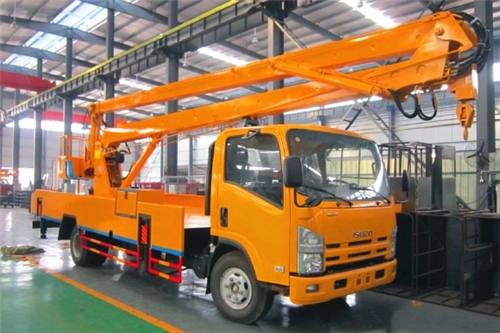

ISUZU 20m Aerial Working Truck, high altitude work vehicle advanced features:
High Altitude Operation Truck mainly means the truck that could lift up and down the platform, and platform can be operated by several hydraulic cylinders and hydraulic system or electric system above the height nearly 14 meters.
The high altitude platform working truck with people loading is one of the advanced mechanic equipment. The skilled worker can do working at some certain height with the help of the high altitude operation truck in proper condition and then it should be safe.
However, while in bad condition or safety measure unimplemented, it is also one very dangerous high altitude operation procedure. So according to the national standard, we CEEC TRUCKS will provide English version Operation Instructions Manuals that the operator should follow before any operation.
---- The working bucket can be made of steel structure or reinforced fiberglass, and rated loading weight can be 200kg.
---- Japanese technology ISUZU 4*2 chassis ensures perfect driving performance.
---- Original ISUZU 4HK1-TCG40 engine with 190HP, super powerful; reliable performance, no overhaul within100,000 km.
---- As for aerial lifting system which is nice shape, rational structure.
---- Carefully examination in factory before shipment and good after-sale service for the ISUZU high altitude lifting trucks can provide long service life.
Items |
Parameter |
||
| Truck Model |
CEEC5120JGK |
||
| Work Platform Parameter |
Outline Dimension (L*W*H) |
8400x2500x3450 |
|
| Rated Load of Bucket |
200kg |
||
| Max. Working Height |
20m |
||
| Max. Working Radius |
8.9m |
||
| Main Feature： 1. Electro-hydraulic proportional control, excellent micro-maneuvering performance 2. Control box at both turret and platform 3. Limit switch and alarm 4. Large outrigger span, outrigger can be operate individually 5. Emergency descent power 6. Safety interlock |
|||
| Bucket Body |
Cargo Thickness |
Side |
4mm |
| Floor |
5mm |
||
| Chassis |
Recommend Chassis Brand |
ISUZU (Other brand for optional) |
|
| Drive Mode |
4x2 |
||
| Tire type |
9.00-20 tire |
||
| Tire No. |
6+1 units |
||
| Max speed |
95 km/h |
||
| Cabin: 1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition installed 4. Single row and Double row for optional, 2 or 5 seats 1-DIN AM/FM CD/MP3 Player |
|||
| Engine |
Power |
140 kw / 190hp |
|
| Fuel type |
diesel |
||
| Emission Standard |
Euro 2/3/4 |
||
| Gearbox |
Control type |
6-shift Manual Gearbox |
|
| Gear |
6 forward & 1 reverse |
||
