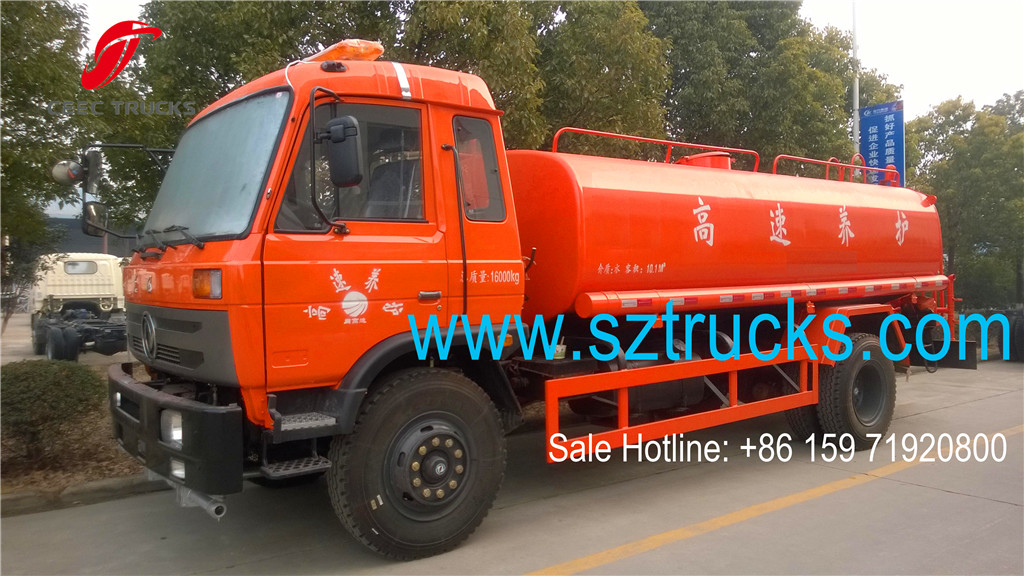

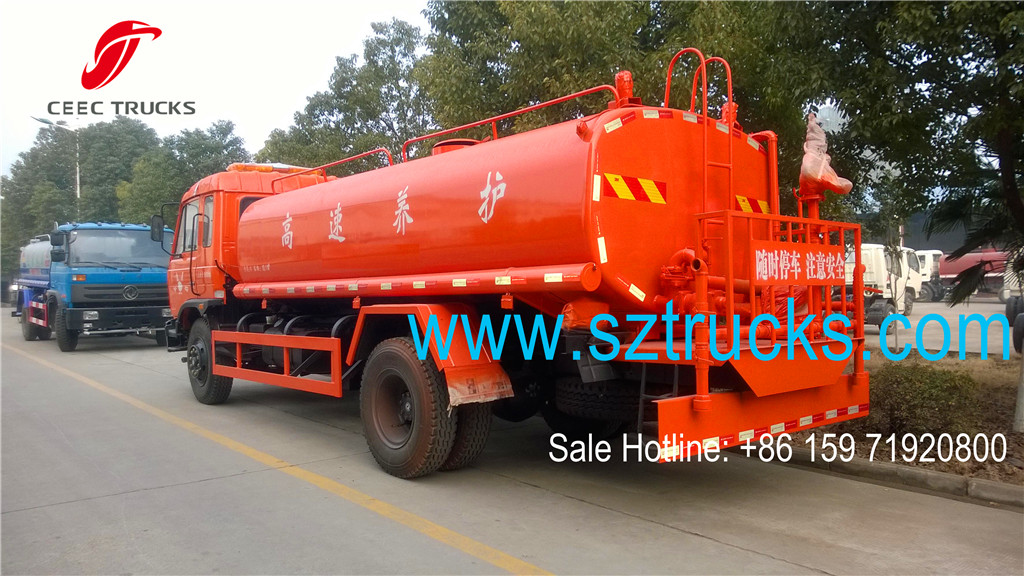

10CBM DongFeng water sprinkler tanker trucks service for highway maintenance
2025-05-05
Water sprinkler tanker trucks is one of the most important sanitation equipment, which is widely being used in City street, school, hospital, park, etc. And being mainly used to transport and spray water. As the most profession sanitation equipment manufacturer in China, we can provide all kinds of sanitation trucks, including garbage compactor truck, road sweeper truck, water tanker truck; combined jetting truck; high pressure jetting truck; cesspit emptier truck; roll on roll off truck, etc. We produced water sprinkler tanker trucks also can be used as the highway maintenance equipment, in other words, this water sprinkler trucks also can be called highway maintenance trucks.
In September 12. 2015, our long-term business cooperation partner Local Government signed a purchasing order again
with our company about purchasing 10 units DFAC brand water sprinkler tanker
trucks, which are purposed be used as the highway cleaning trucks to cleaning the highway and watering the
flowers along the road. For the whole 10 unit water tanker vehicles are
use DongFeng brand 4x2 classicial model chassis, equipped with world famous YUCHAI engine,
the engine horse power can be up to 180HP with Euro 4 emission standard. The top quality world famous brand FAST 8-shift
manual gearbox can provide all easy driving experience. The axle capacity for front is 5Ton and for rear is 10Ton. As for the oval shape water tank, material is standard carbon steel Q235, with thickness is 5mm, all have anticorrossion treatment and epoxy resin painting, which longly extend service life for the trucks. Finally, the whole truck painting totally depend on customers' requirement, which painted to Chinese red color, which made the trucks working on highway more safety.
Following show technical specification for the 10CBM water sprinkler tanker trucks:
| 5160GSS Main specification |
||||||
| Product model and name |
5160GSS water sprinkler tanker truck for sale |
|||||
| Gross weight(Kg) |
16000 |
Drive type |
4×2 |
|||
| Payload(Kg) |
10000 |
Overall dimension(mm) |
7900X2500X3000 |
|||
| Curb weight(Kg) |
6400 |
Cab seats |
3 |
|||
| Approach/departure angle(°) |
21/12 |
Front/rear hang(mm) |
1205/2295 |
|||
| Axle No. |
2 |
Wheelbase(mm) |
4500 |
|||
| Axle load(Kg) |
5000/10000 |
Max speed(Km/h) |
90 |
|||
| Chassis specification |
||||||
| Chassis model |
EQ1168KJ |
Manufacturer |
Dongfeng Motor Co.,Ltd |
|||
| Brand name |
Dongfeng |
Dimension(mm) |
7275×2462×2690 |
|||
| Tyre specification |
10.00-20 |
Tyre No. |
6+1 |
|||
| Steel spring number |
8/10+7 |
Front track base(mm) |
1900 |
|||
| Fuel type |
Diesel |
Rear track base(mm) |
1800 |
|||
| Emission standard |
Euro 3/4 |
Transmission |
8 forward gear,1 reverse gear |
|||
| Cab |
Luxurious interior trim with dashboard and air condition, sleeper. |
|||||
| Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
|||
| B190 33 |
Dongfeng Cummins Engine Co.,Ltd |
5900 |
140 |
|||
| Performance |
||||||
| Tank volume |
10ton (10000L) |
Tank material |
Carbon steel Q235 |
|||
| Water pump model |
80QZF-60/90N |
Water pump flow(m³/h) |
60 |
|||
| Watering width(M) |
≥14 |
Water cannon range (M) |
≥28 |
|||
| Feature and Application |
||||||
| 1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. 2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform. 3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M. 4).Equipped with fire coupling, flow valves, filter screen and water level gauge. 5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped. 6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc. |
||||||
