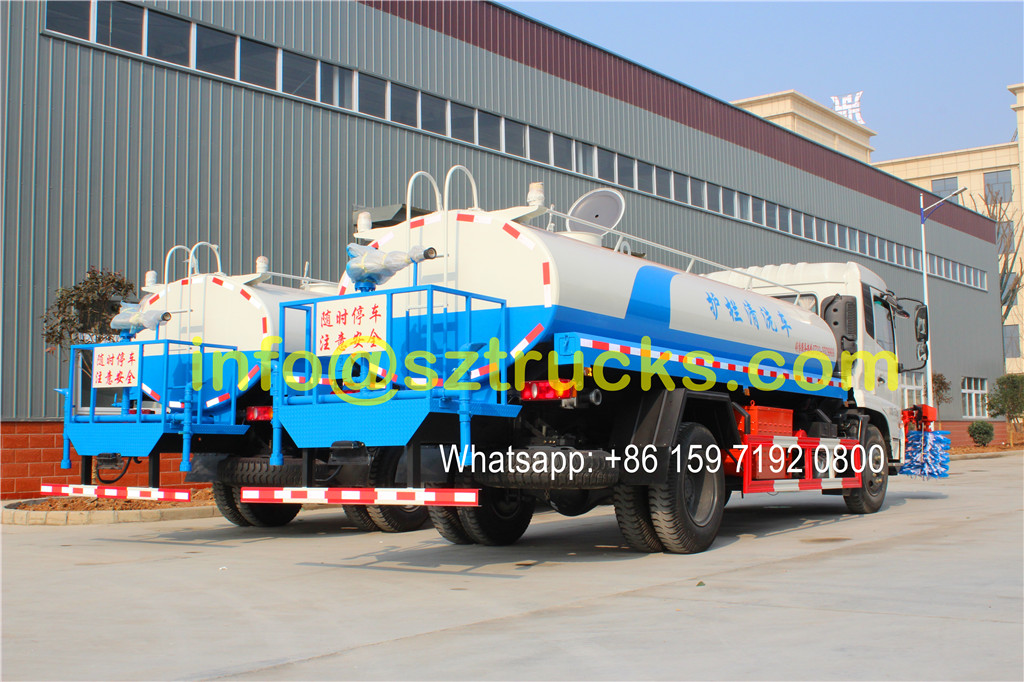

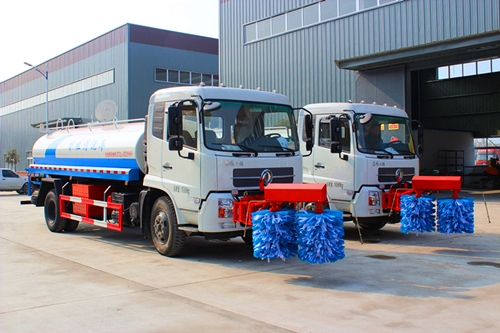

Overview for CEEC produced Guardrail Washing Truck:

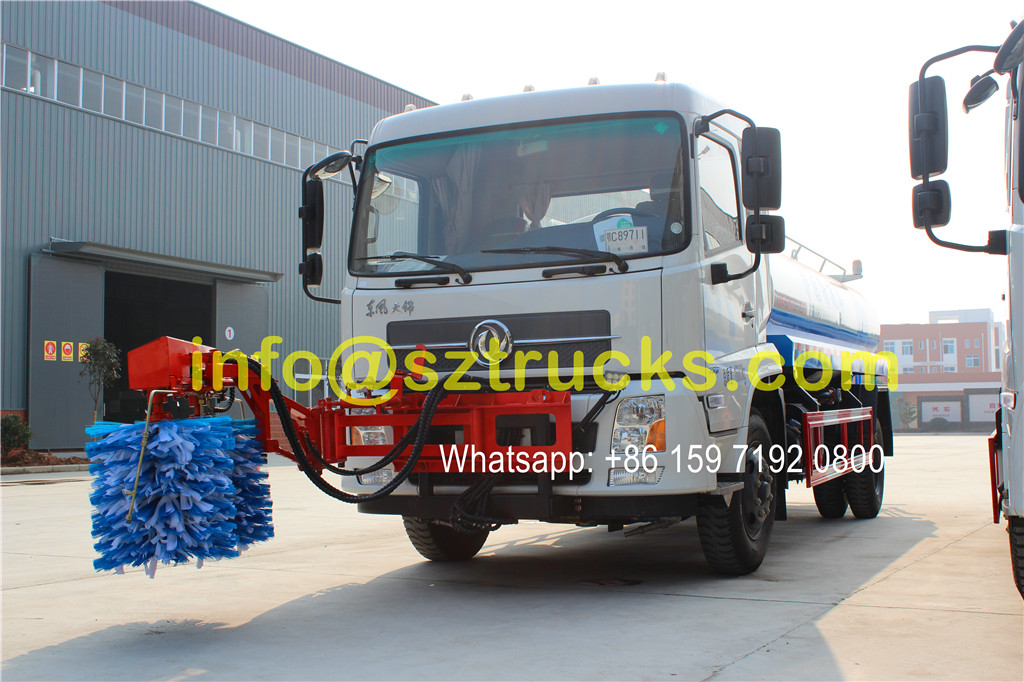

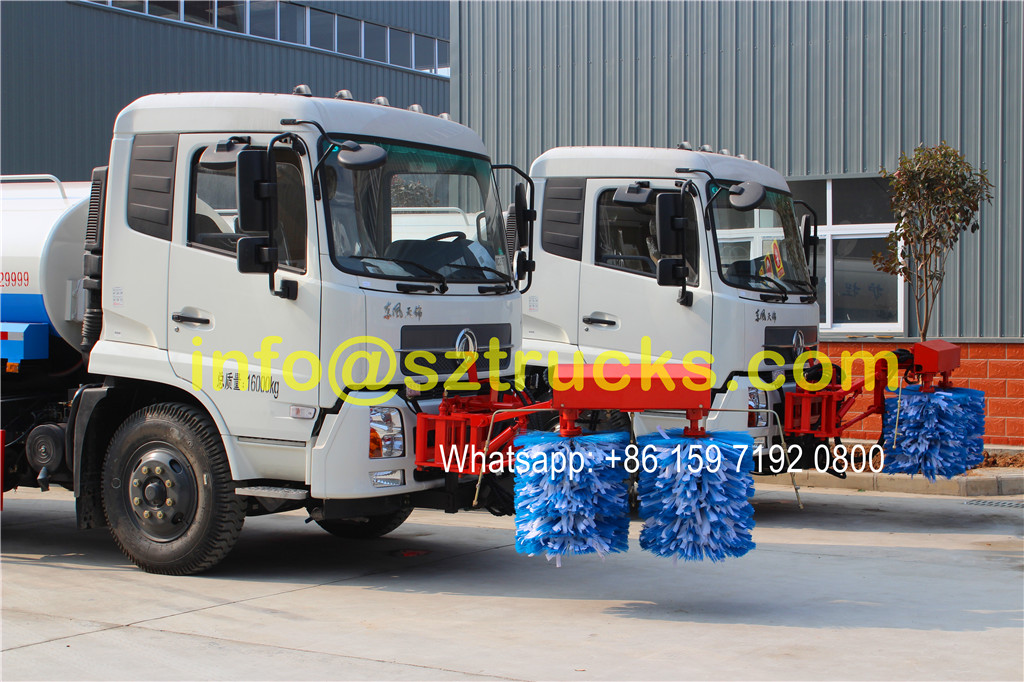

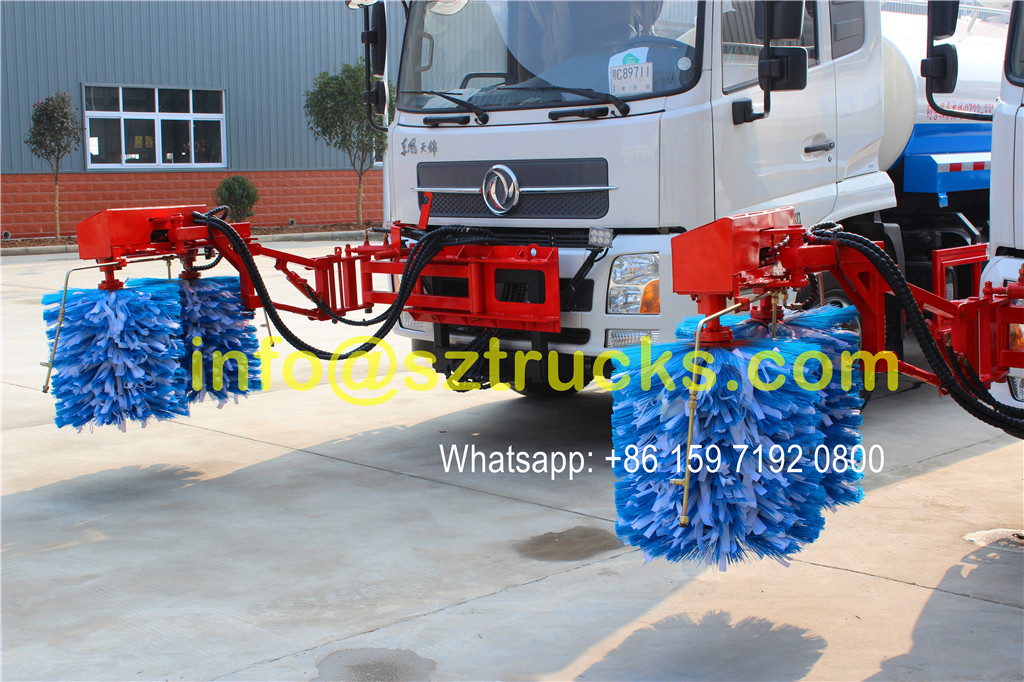

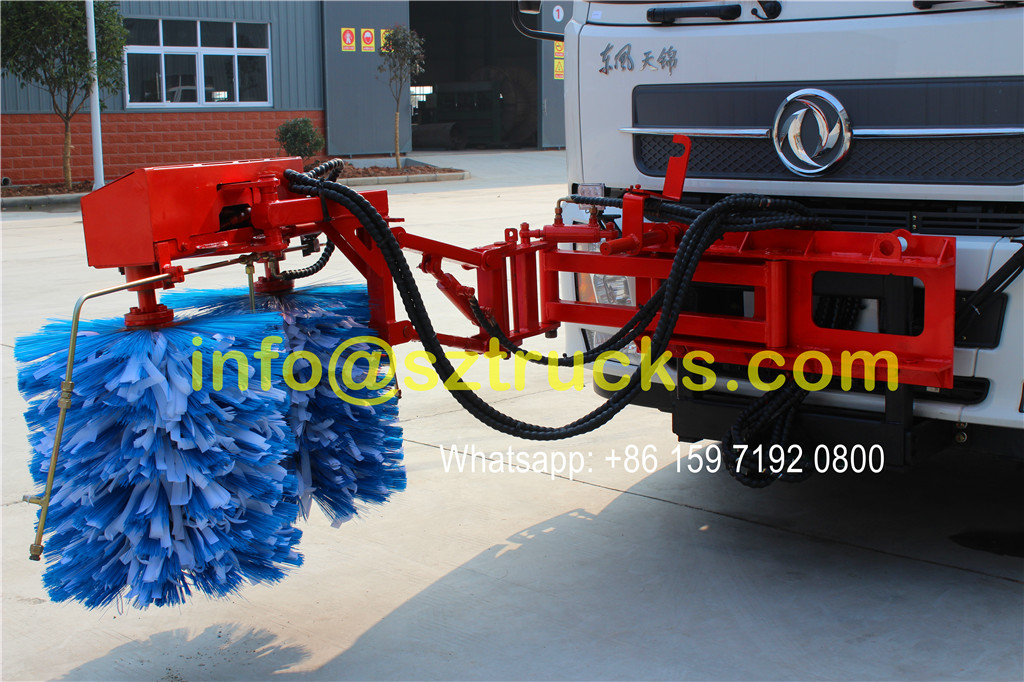

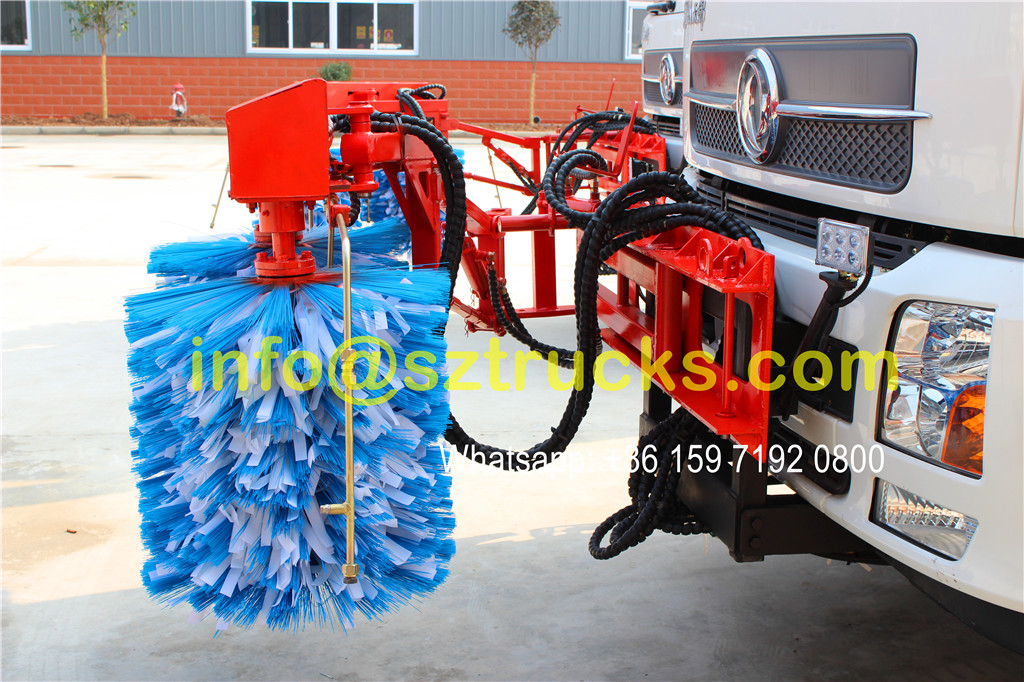

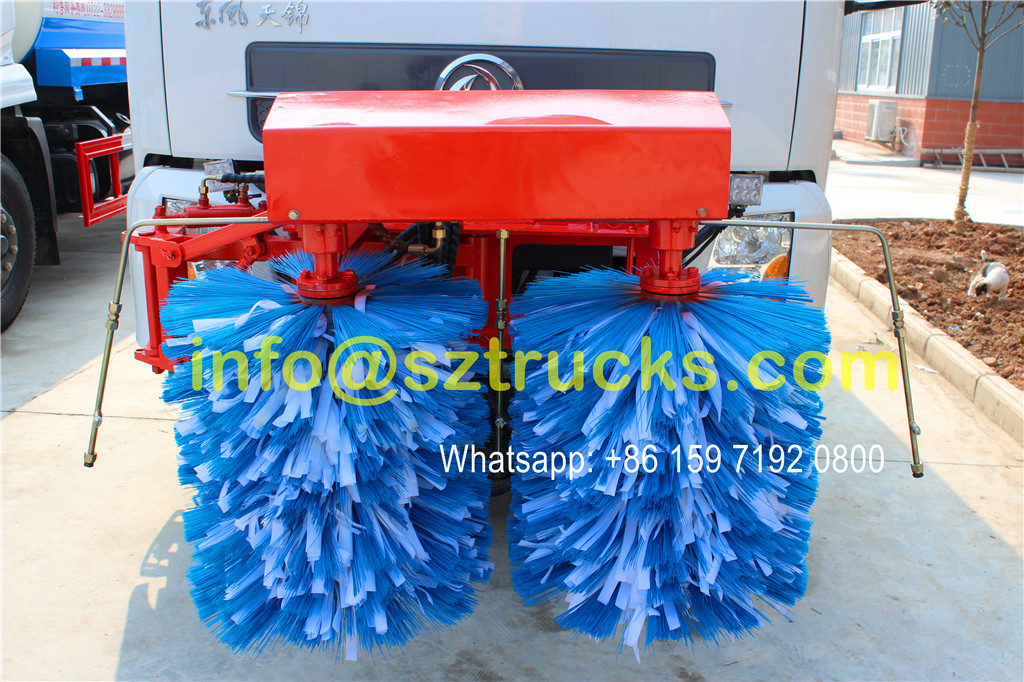

More Close to see the washing system (Tilting device & Washing Brush):

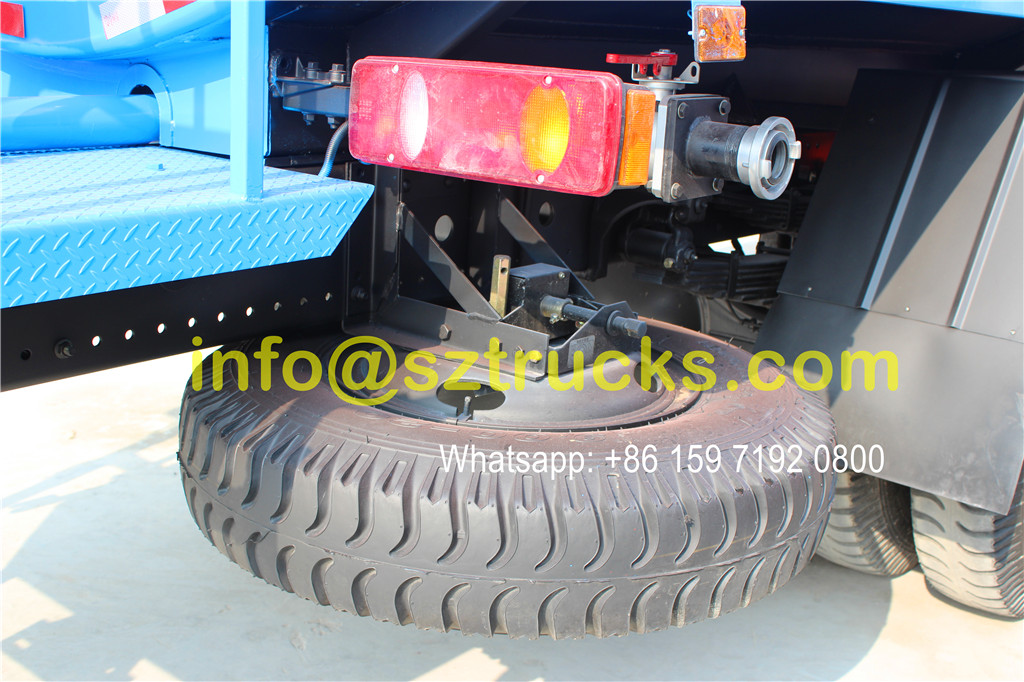

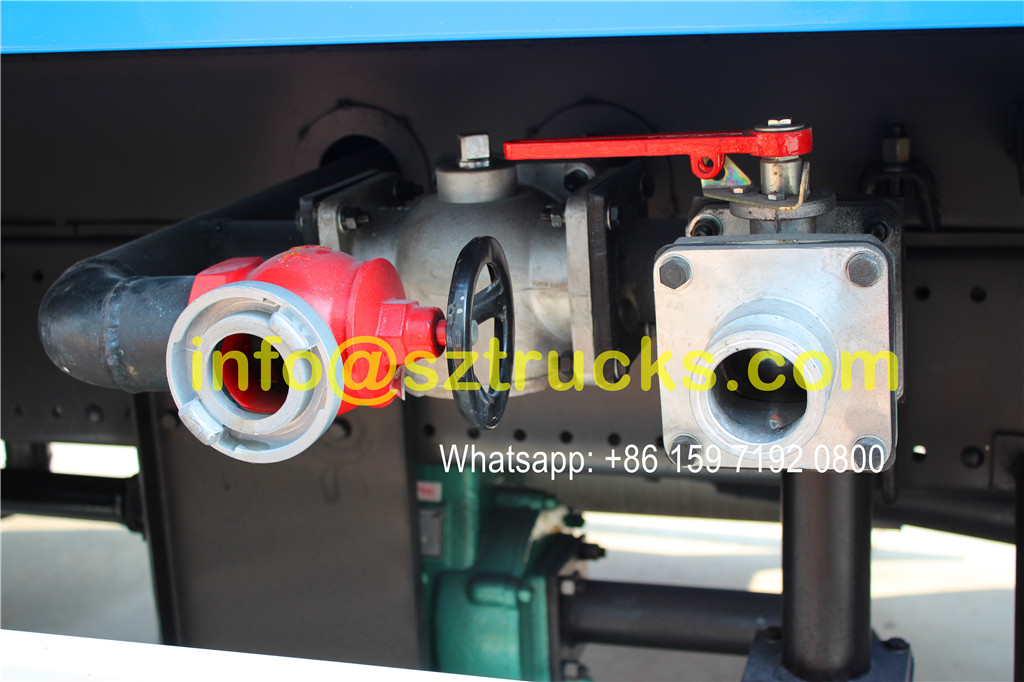

Other advanced equipment to show our products features:
1. Double engine, high and low pressure waterway system. High pressure water pump was driven by second engine, washing speeds could ranges from 0-15km/h.
2. Fronted equipped Fence Washing System can meet Module-assembled various washing function and assessibility.
3. High-pressure washing, powerfully cleaning and efficiently water-saving.
4. High-pressure water pump, spray nozzle, spray gun and other key components are international famous brand, reliable performance, integrated control of electric, hydraulic and pneumatic.
5. The interior of the oval tank is treated with alloy anti-corrosion layer.
6. Famous Chinese brand YIFENG centrifugal self-priming pump 80QZ60/90 model, which has basic information and features as below:
| pump type |
flow |
head ( m ) |
the input shaft speed of ( min ) |
Shaft power ( KW ) m |
Self-priming height（） |
self-priming height |
input shaft rotation direction |
|
| ( m3/h ) |
L/min |
|||||||
| 80QZ60/90N ( S ) |
60 |
1000 |
90 |
1180 |
22.5 |
6.5 |
1 |
rotate around |
Specialreminder:
1. pump work before the pump will be filled with water, or mechanical sealdamage caused by water leakage;
2 the temperature below zero, after the completion of the work, must put thedry pump water, otherwise due to icing bursting pump body;
3 when water containing silt, long fiber sundries, water should take strictprecautions against the suction pump to damage the mechanical seal and theimpeller;
4 in normal self-priming height, pump start after 2 minutes, also is not water,please immediately stop check!
5 for the loss caused by the user is responsible for.
7. If necessary, we can have all customers choose imported Italy pump.
| Main technical parameters 10000L Guardrail Washing truck |
|||||||
| Product name/brand |
10000 liter freeway cleaning truck |
Product model |
CEEC5160GQX |
||||
| Gross weight(Kg) |
16000 |
Cubage(m3) |
10 |
||||
| Rated weight(Kg) |
9000 |
Outline dimension(mm) |
10000×2490×2840 |
||||
| Curb weight(Kg) |
6805 |
Rated passenger number in cab |
3 |
||||
| Approach angle /departure angle |
15/13 |
Front overhang/rear overhang(mm) |
1430/2370 |
||||
| Axle number |
2 |
wheelbase(mm) |
5000 |
||||
| Axle weight (Kg) |
6000/10000 |
Maximum speed(Km/h) |
90 |
||||
| Notes |
1. Effective capacity of tank is 10CBM, Overall dimensions of tank (length/long axis/minor axis) are 5500/2000/1280 (mm). 2. The protective material is Q235A carbon steel, the section size is 50×100 (mm), The height of rear defense from the ground is 550(mm). |
||||||
| Chassis technical parameters |
|||||||
| Chassis model |
DFL1160BX5 |
Chassis name |
Truck chassis |
||||
| Brand name |
DongFeng |
manufacturing enterprise |
DongFeng Automobile company, LTD |
||||
| Tire type |
9.00-20 |
Tire number |
6+1 |
||||
| Approach angle/departure angle |
30/31,30/29.5,30/26 |
Emission standard |
Europe 4 |
||||
| Steel spring number |
8/10+8 |
Front gauge (mm) |
1880 |
||||
| Fuel type |
diesel |
Rear gauge (mm) |
1800 |
||||
| Engine type |
Engine manufacturing enterprise |
Displacement(ml) |
power(Kw) |
||||
| B190 |
Dongfeng Cummins engine co., ltd |
5900 |
140 |
||||
