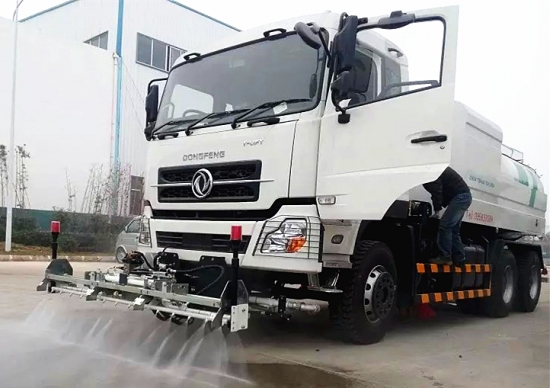

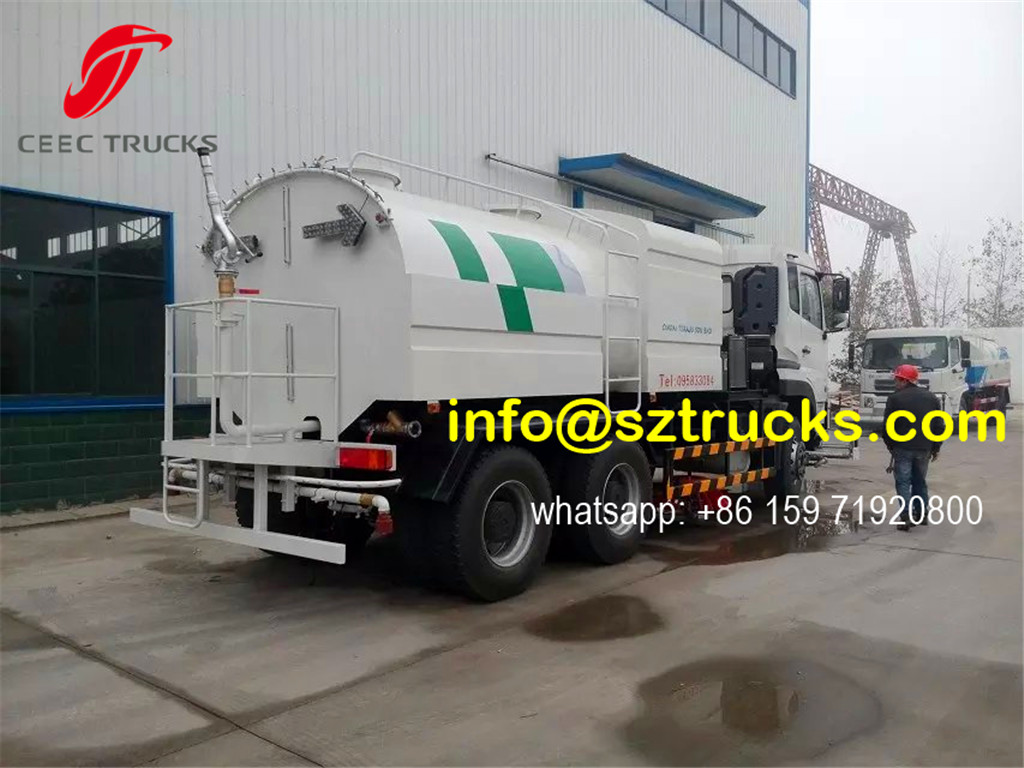

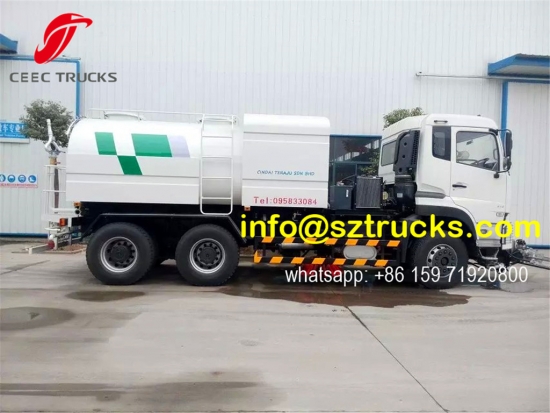

High pressure water jetting truck (also can be called sewer cleaning truck, high quality water jetting truck, multiple function water jetting road cleaing truck). Which is ideal truck for road cleaning because of the powerful spraying water and strong sweeping system, and this kind of truck mainly service for cummunity, high way, airport, seaport, etc.
1. The RHD Water Jetting Cleaner Truck use strong CUMMINS 375HP engine, which is powerful and can cover all kinds of tough road.
2. FAST 9-shift manual transmission gearbox made the driving more smoothly and convenient.

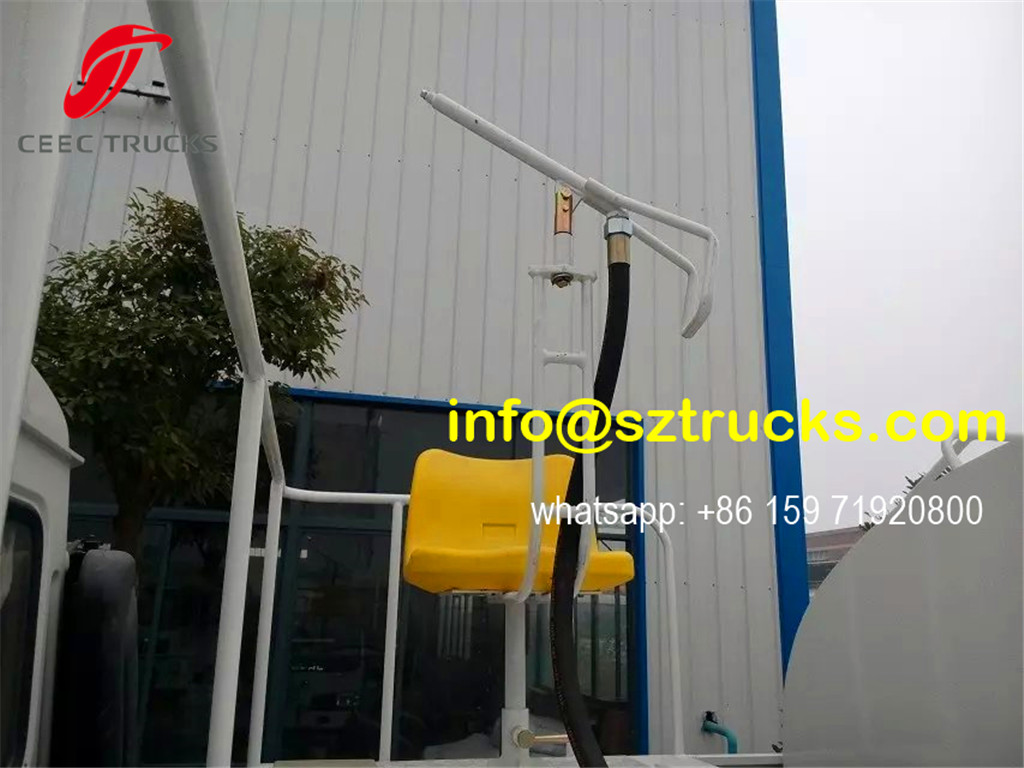

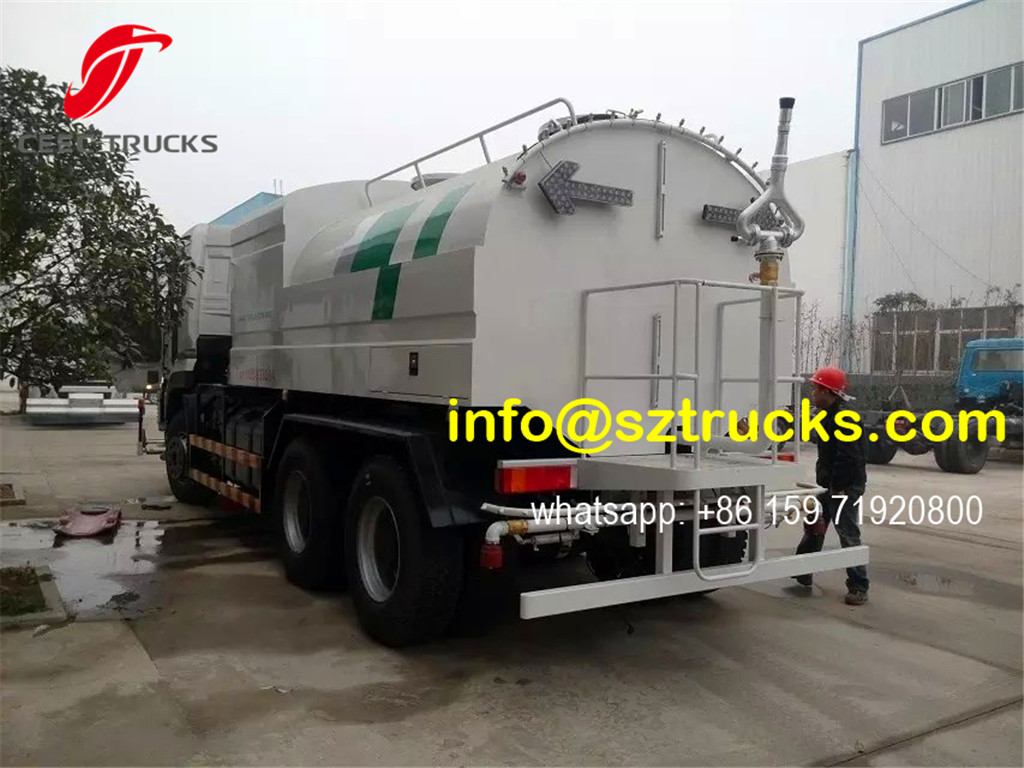

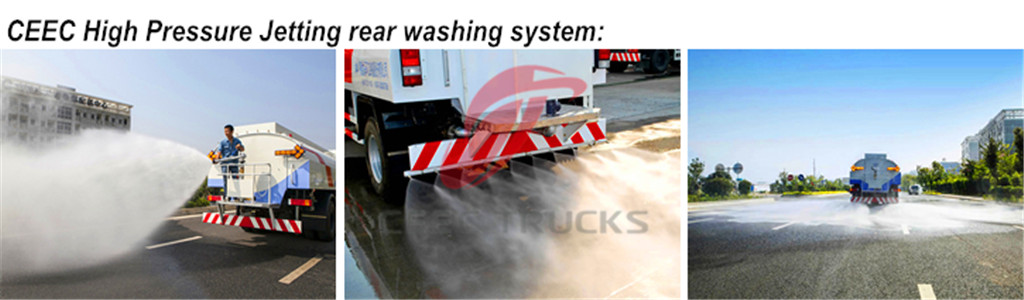

3. Water spraying platform with seat can make operationg more easy and comfortable.

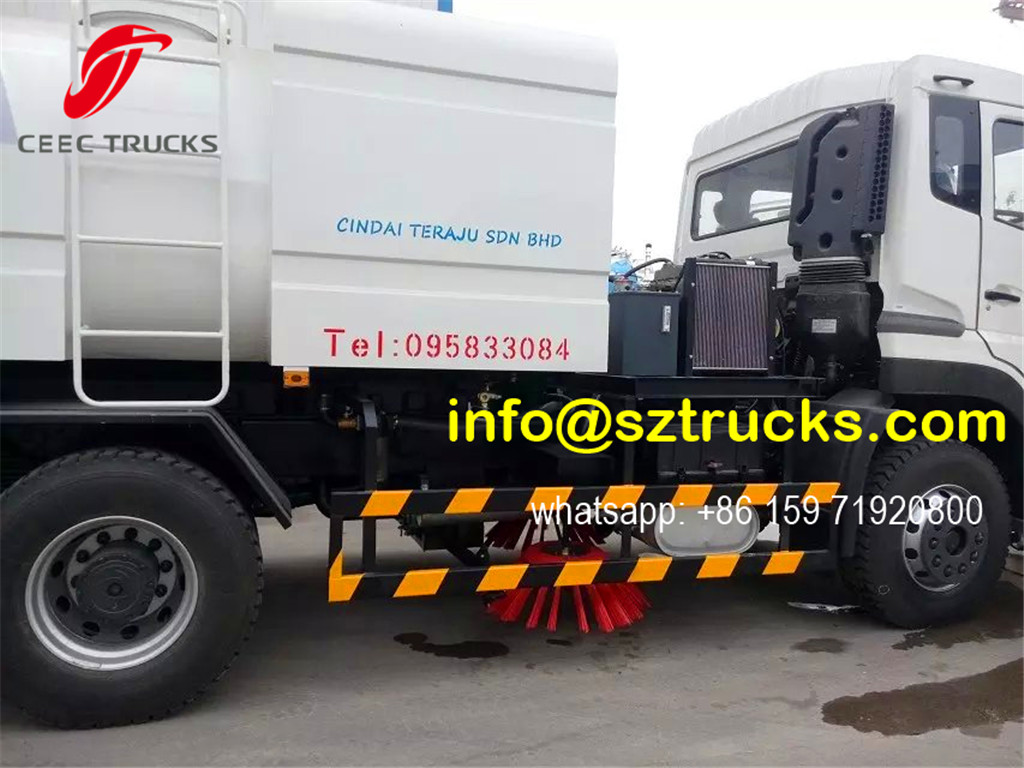

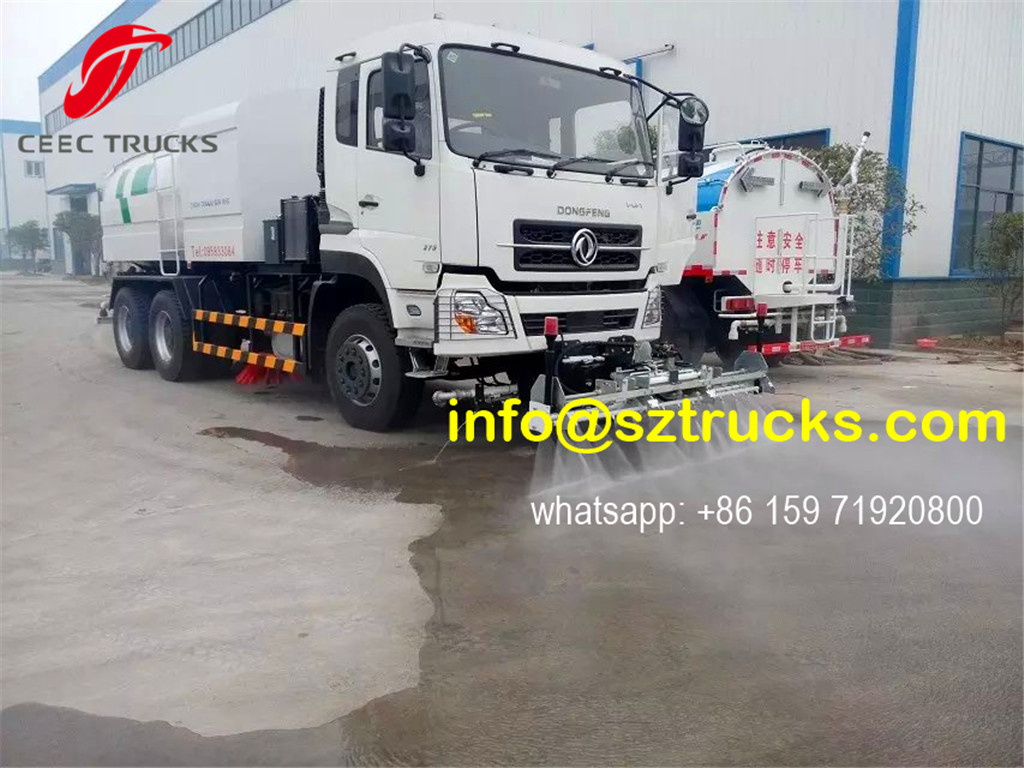

4. Road sweeping brush as standard equipment on truck and can make the truck used as road sweeper truck.

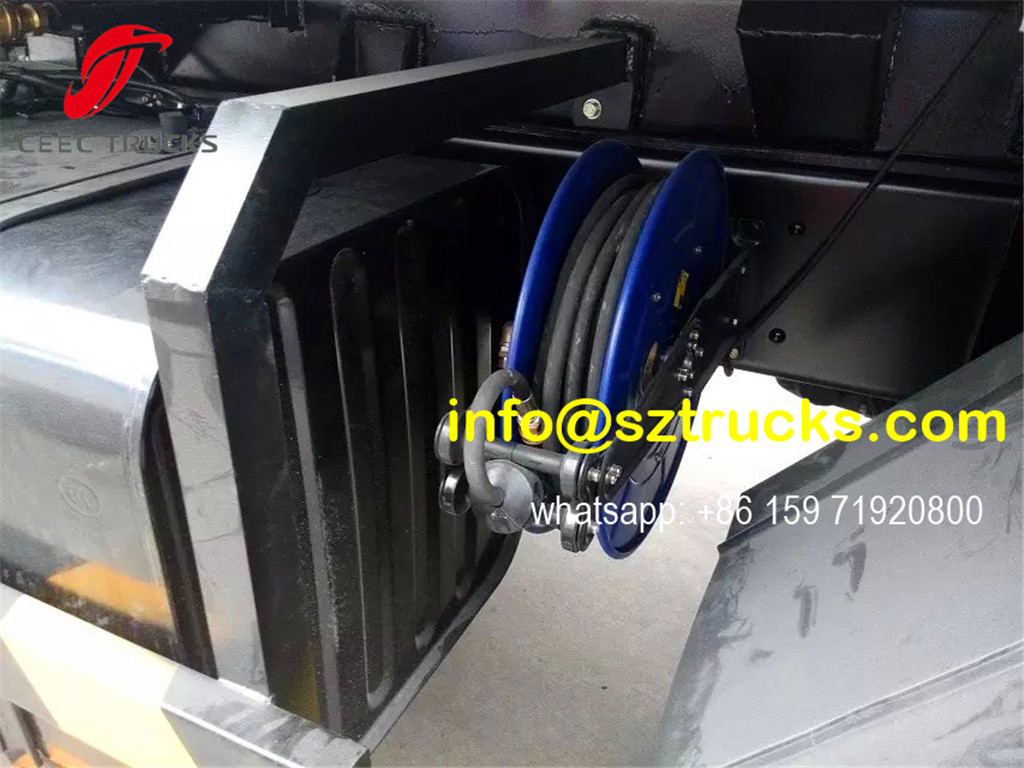

5. Over 20 meters high pressure jetting pipeline can make long-distance operation.

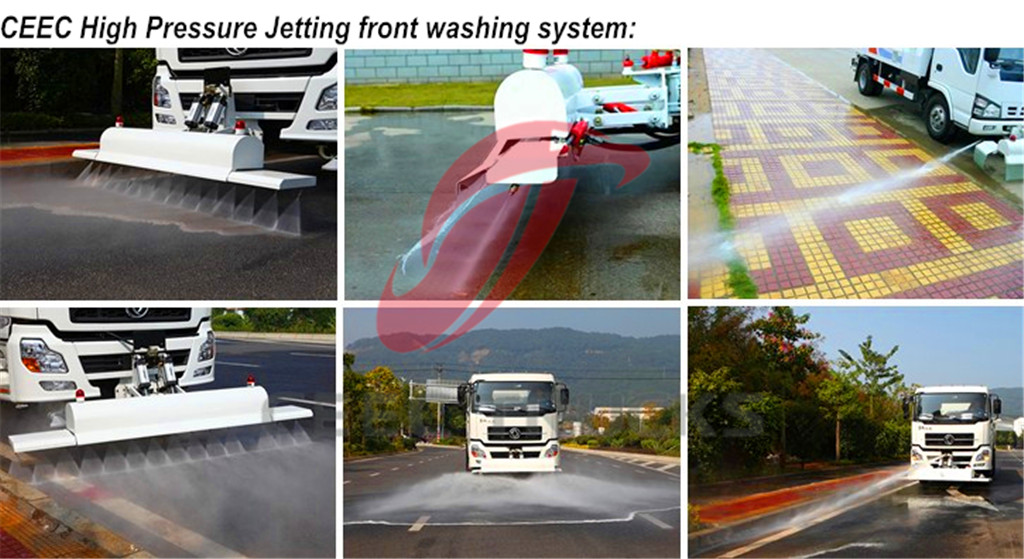

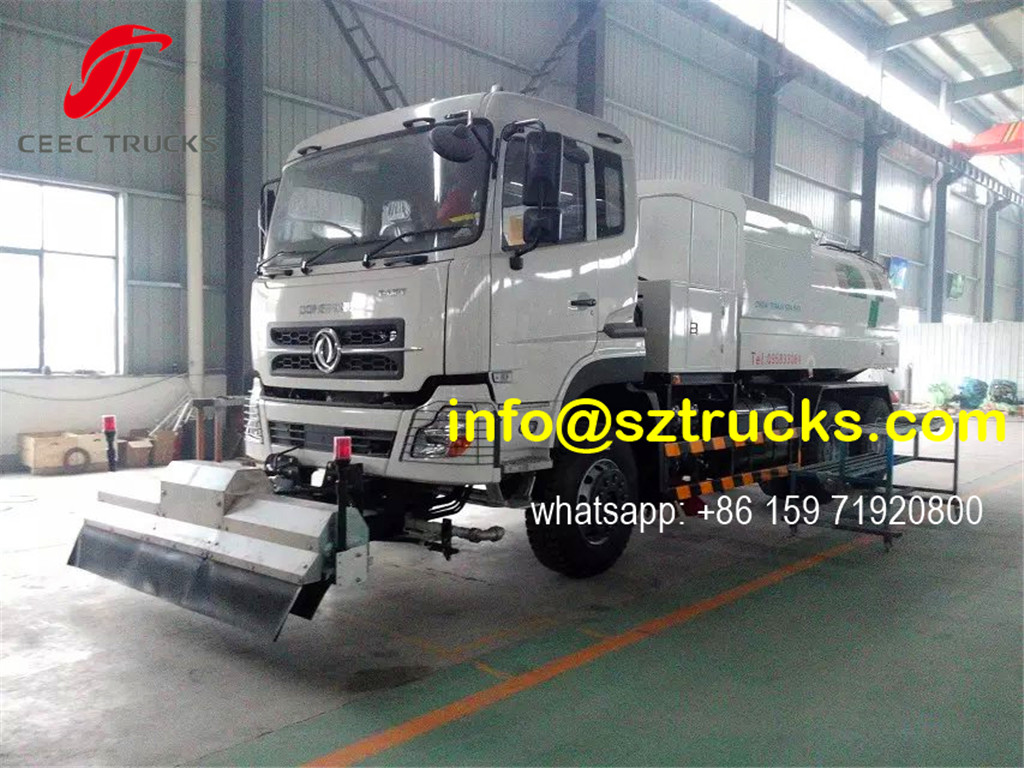

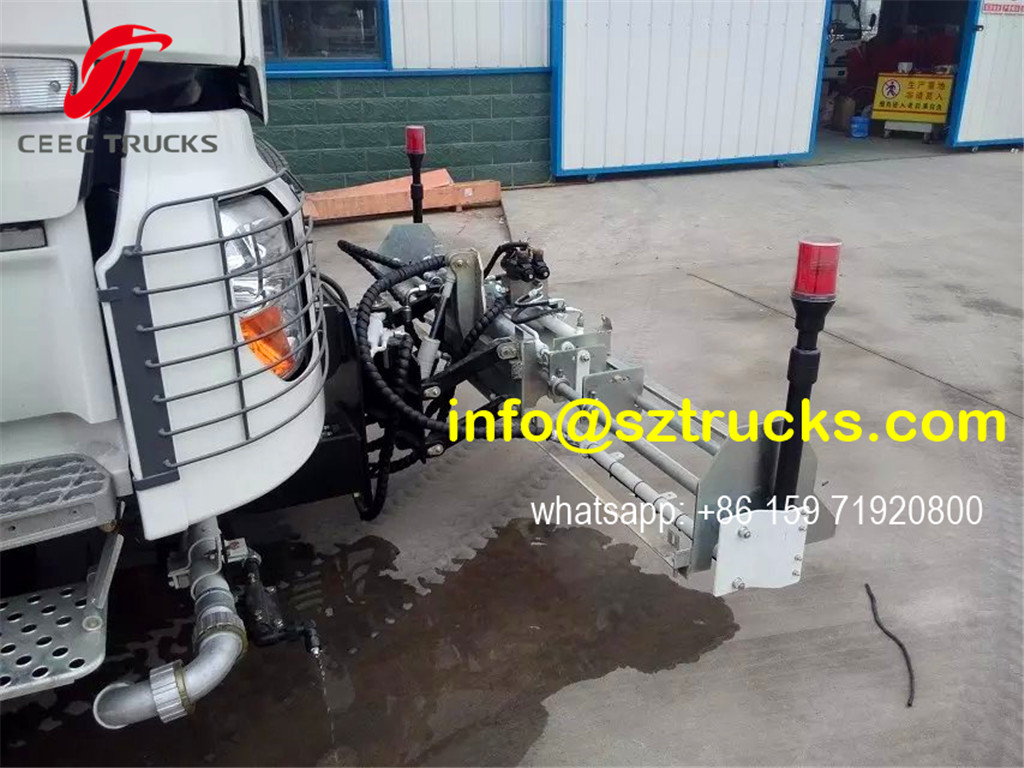

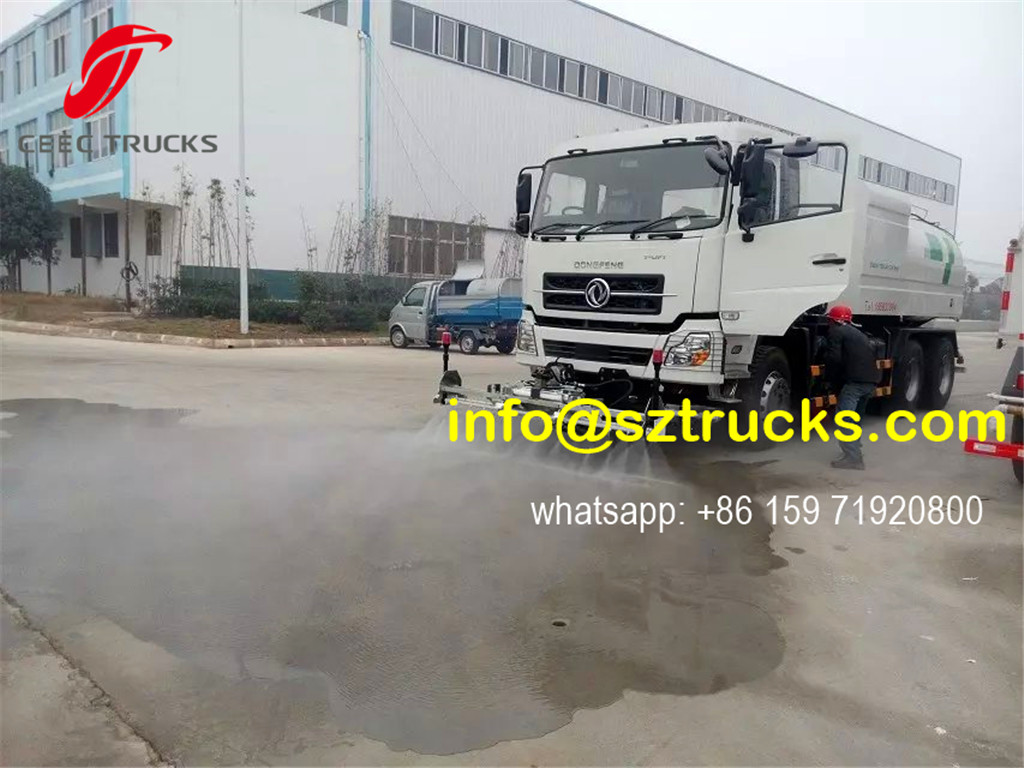

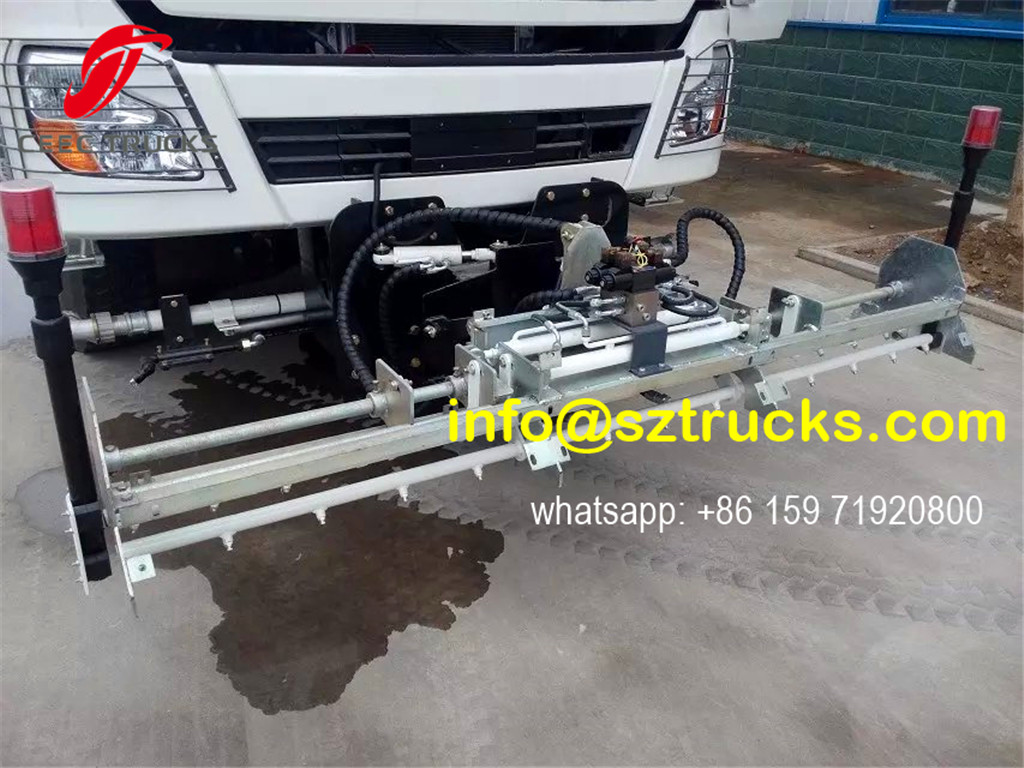

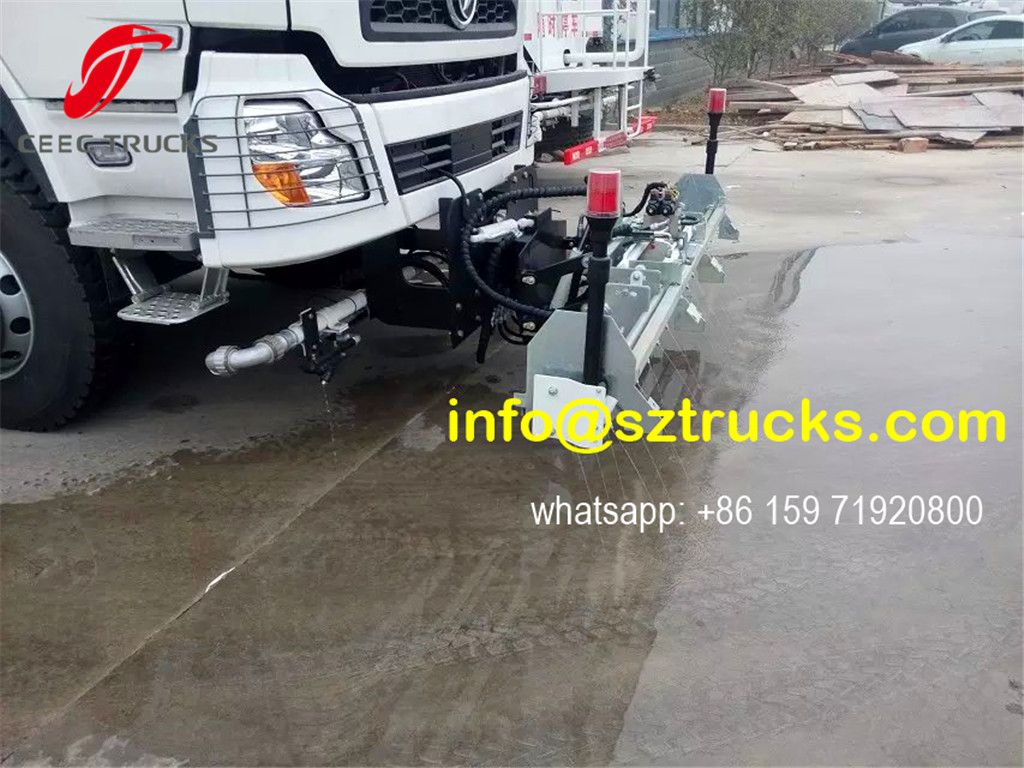

6. Both front spraying system and rear platform equipped with warning light and can make the truck working at night.
7. RHD drive model chassis very suitable for some countries: Kenya, Zambia, Mozambique, etc.

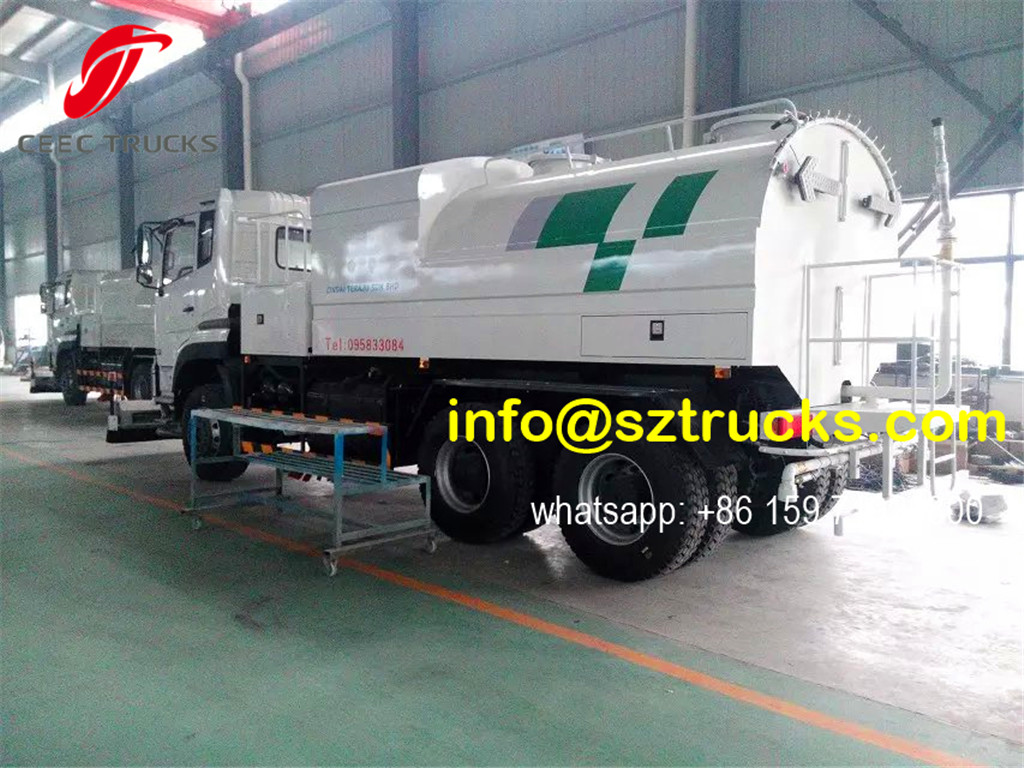

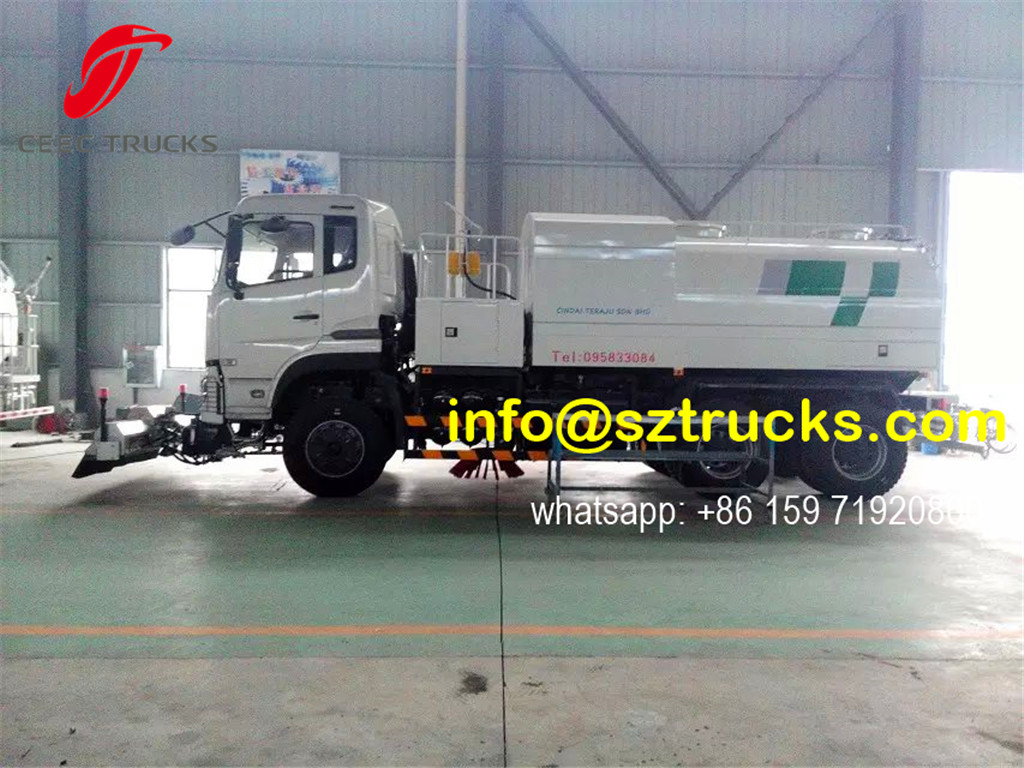

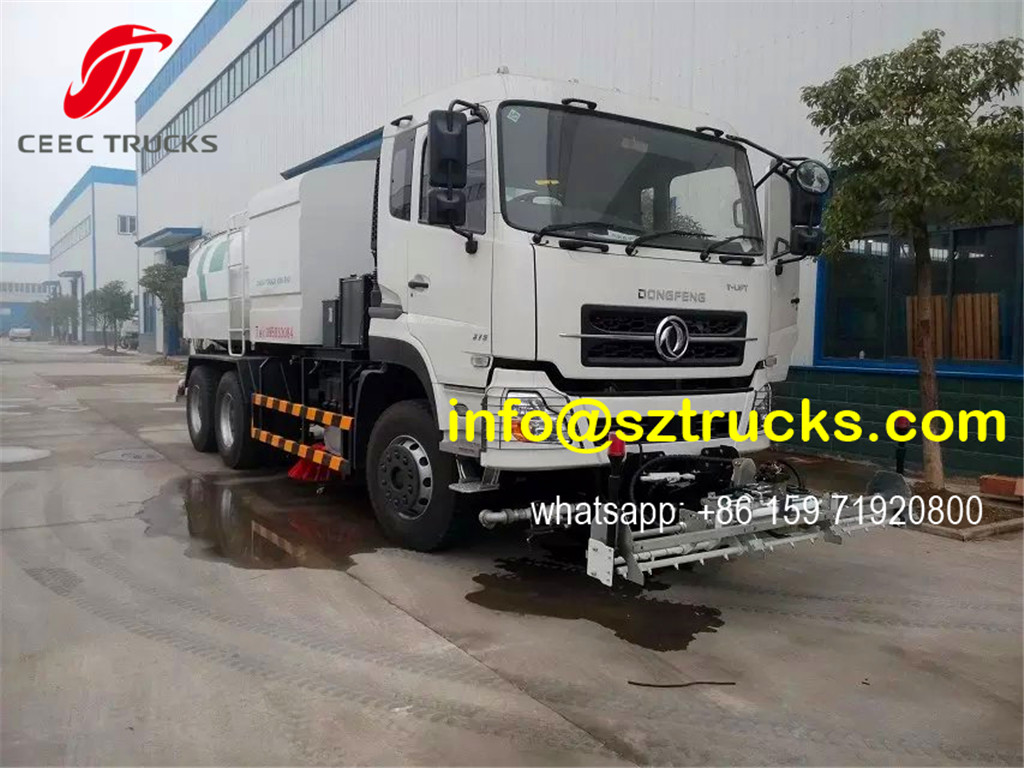

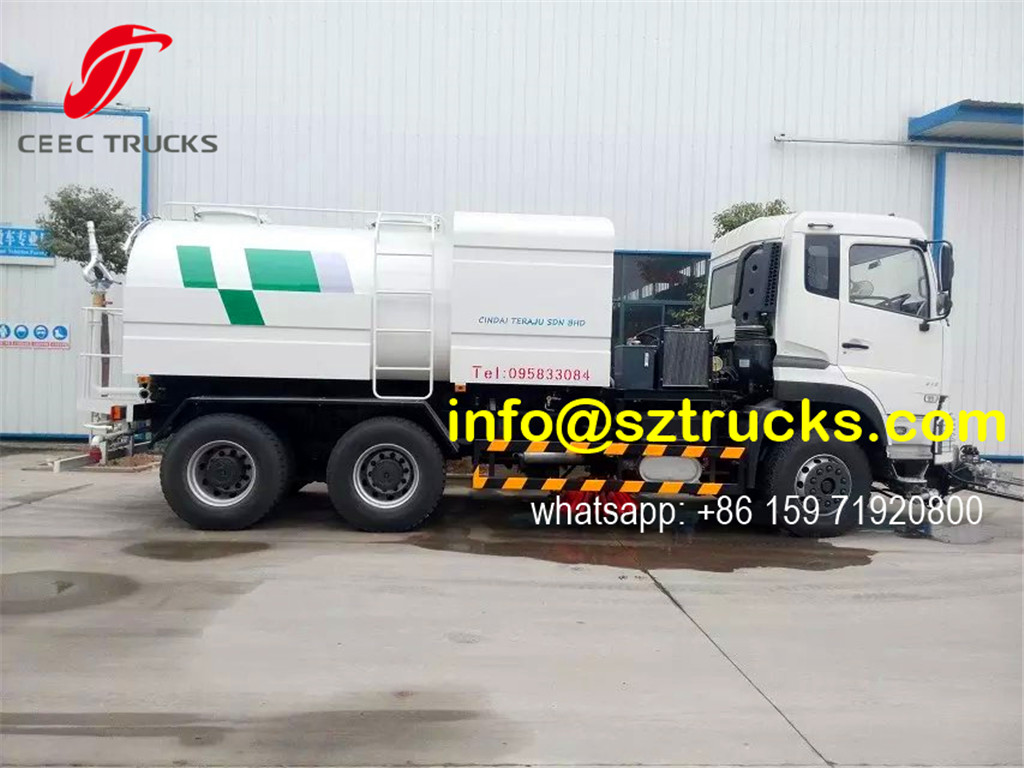

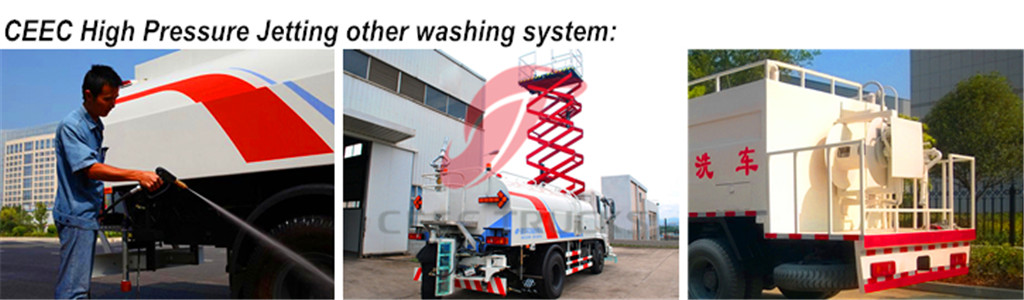

Following show details pictures about optional parts for High Pressure Jetting Truck:
| 10000L |
||||
| Vehicle |
Model |
CEEC5250GQX |
||
| Overall dimension length/width/height(mm) |
9790*2500*3030 |
|||
| Gross Vehicle Mass(kg) |
25000 |
|||
| Curb weight(kg) |
12600 |
|||
| Rated load(kg) |
13100 |
|||
| Fuel Type |
Diesel |
|||
| Top speed(km/h) |
95 |
|||
| Chassis |
Brand |
DONGFENG |
||
| Model |
EQ1250 |
|||
| Drive type |
6*4 RHD model |
|||
| Number of Axles |
3 |
|||
| F/R Axle load (kg) |
5000/10000*2 |
|||
| Wheel base (mm) |
4350+1300 |
|||
| Front track base (mm) |
1910 |
|||
| Rear track base (mm) |
1800 |
|||
| Approach/Departure Angle(°) |
30/15 |
|||
| F/R Suspension (mm) |
1250/2090 |
|||
| Number of Tyres |
10+1 |
|||
| Tyre type |
10.00-20,10.00R20 |
|||
| Pieces of spring |
8/9, 8/10 |
|||
| Transmission |
9 forward gear,1 reverse gear, manual mechanical type |
|||
| Clutch |
Uniwafer, dry clutch, hydraulic remote control |
|||
| Braking system |
Air braking, cam drum braking |
|||
| Cab |
One and half row non-longhead cab can turn over |
|||
| Air-condition |
Installed |
|||
| Engine |
Model |
YC6M375 |
ISLe 375 33 |
|
| Horse Power(hp) |
375 |
375 |
||
| Displacement(cc)/Power(kw) |
9839/276 |
8900/276 |
||
| Upper Structure Configuration |
Tank Dimension(mm) |
4100×2100×1250 |
||
| Tanker Capacity(L) |
10000 |
|||

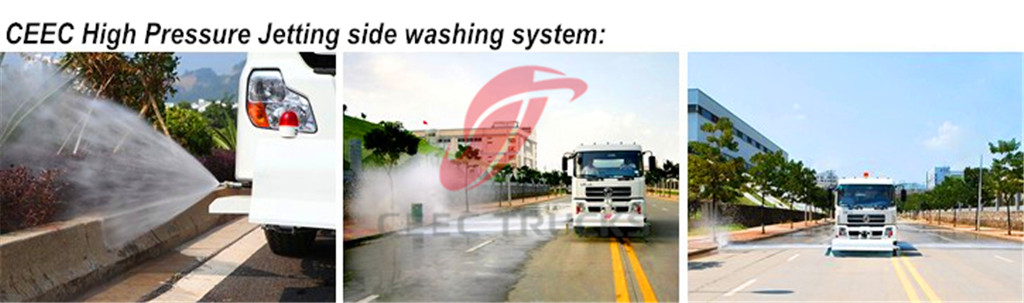

| 1. Equipped with front (rear, side) sprinkler (sprinkling width more than14m ) 2. Equipped with rear working platform with water cannon (range more than 28m) 3. Equipped with Italy or domestic pump (suction lift more than 6m) 4. Equipped with fire valve, water valve, and filter gauze 5. Equipped with road sweeping brush and can be used washing road |
||||
| Production cycle |
20 working-days |
|||
