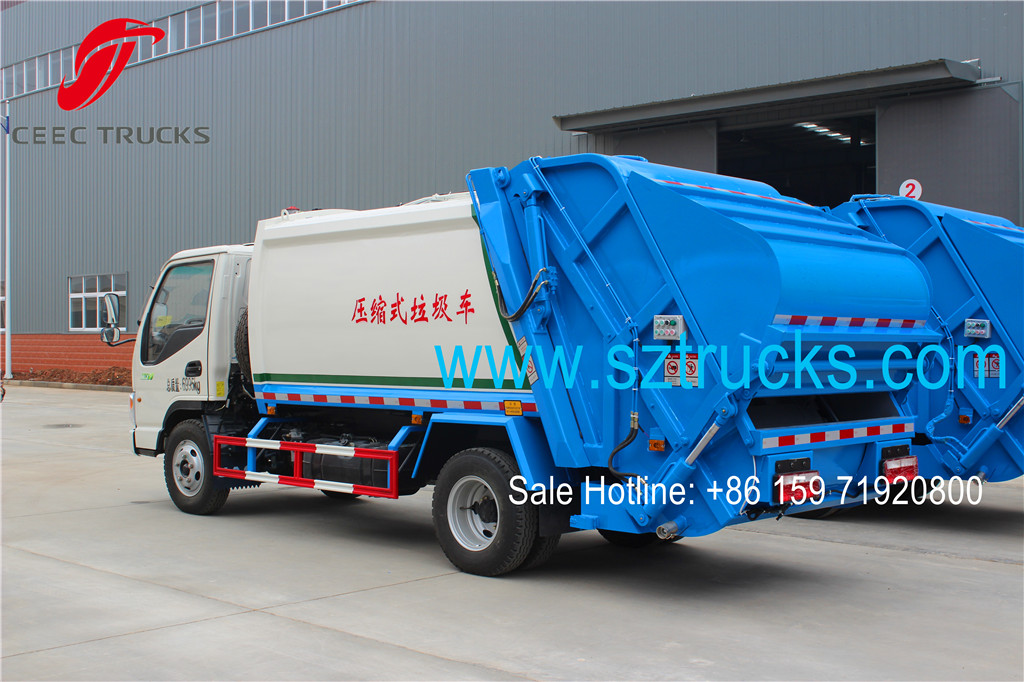

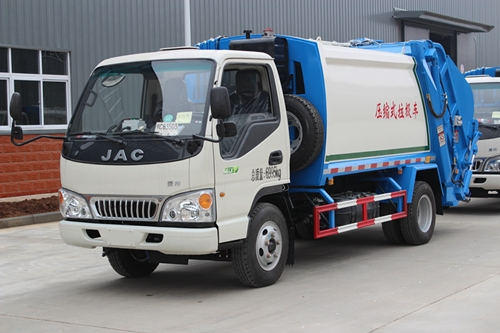

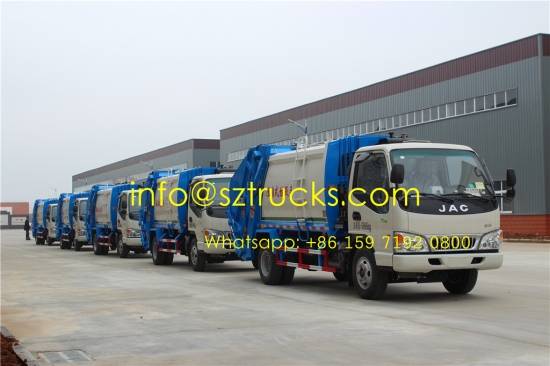

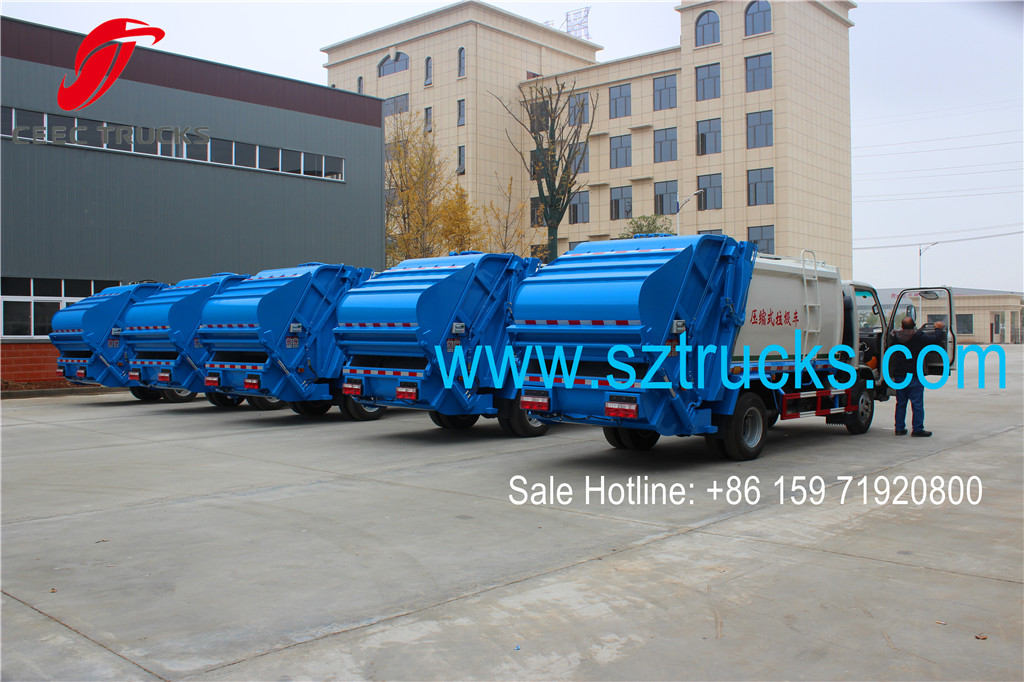

Totally 5units JAC refuse compactor trucks for city sanitation project:

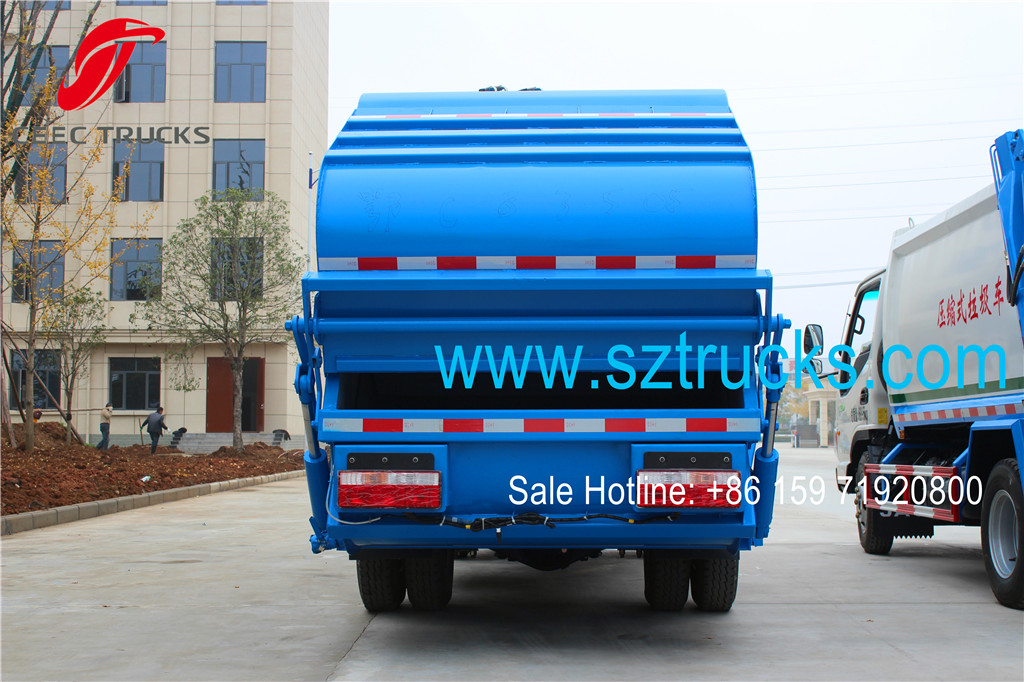

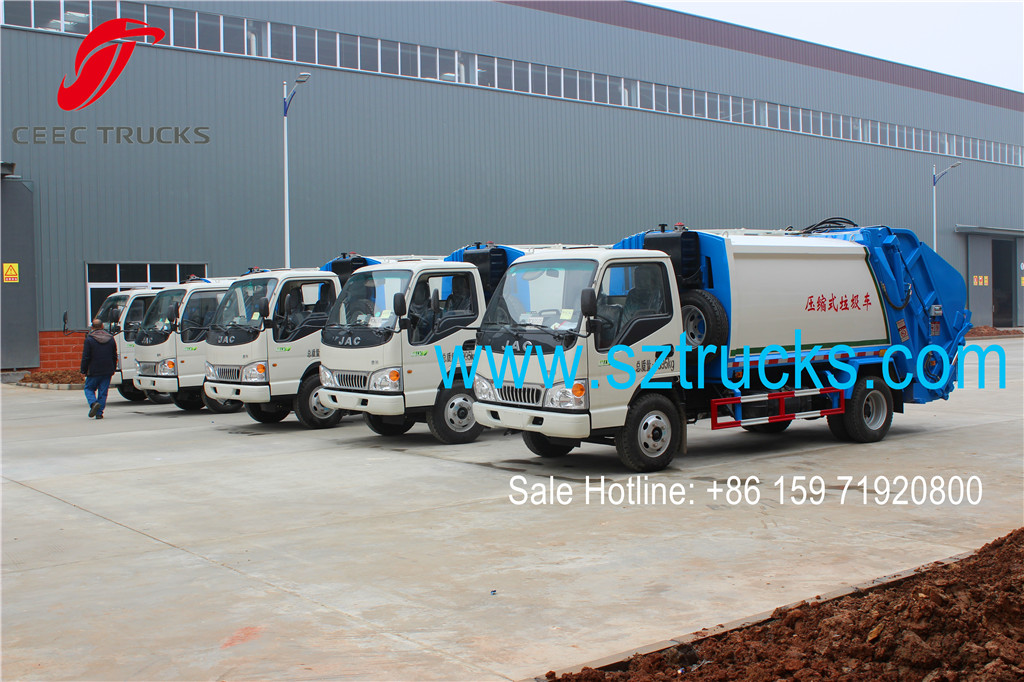

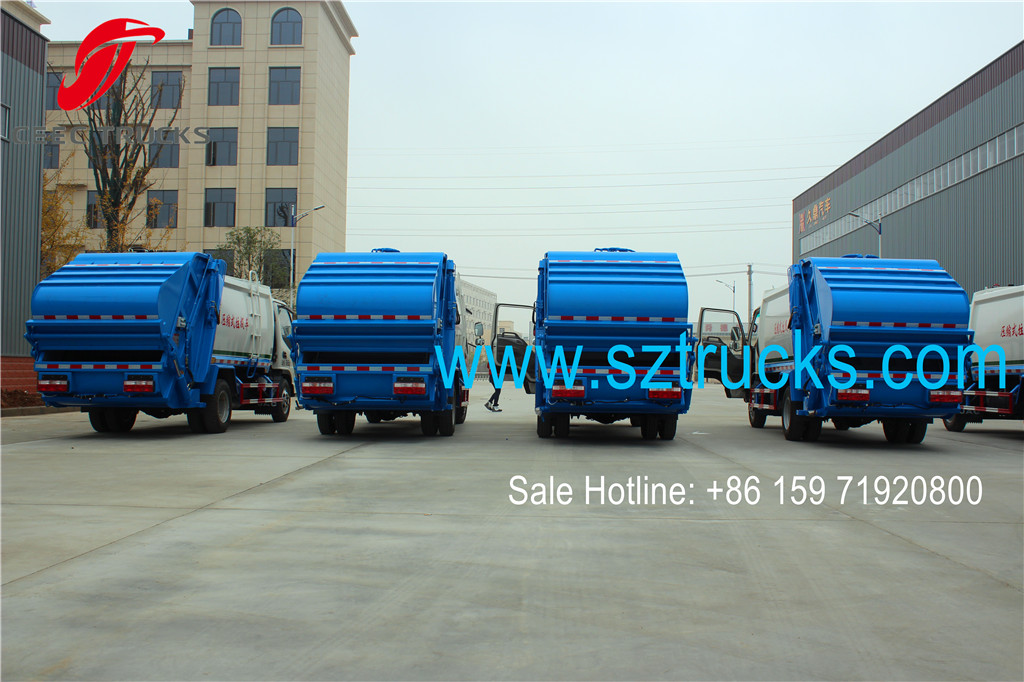

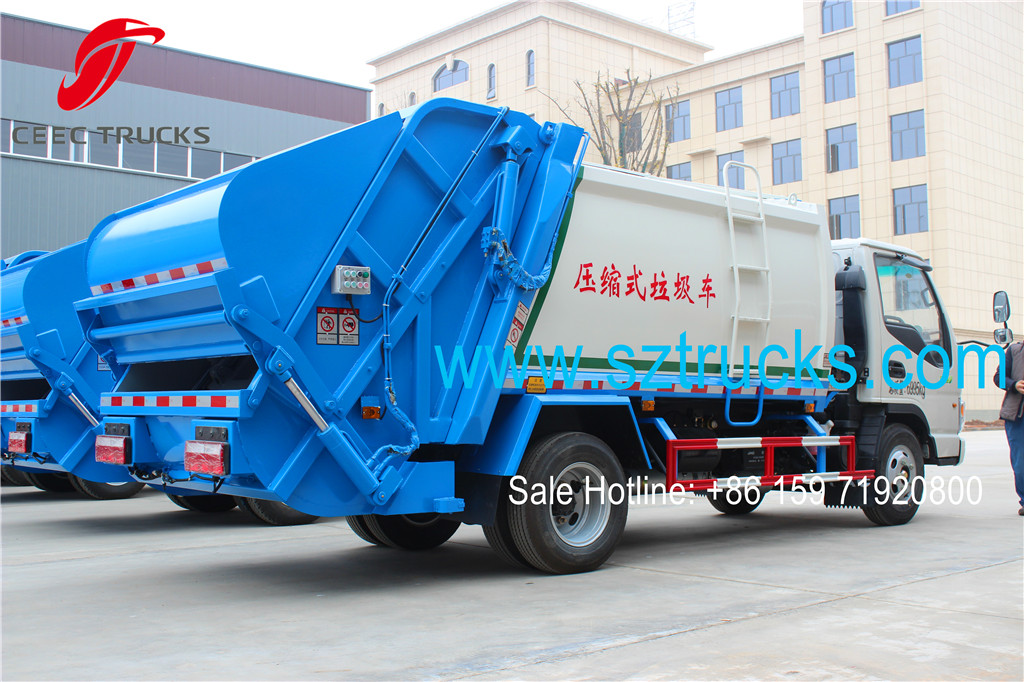

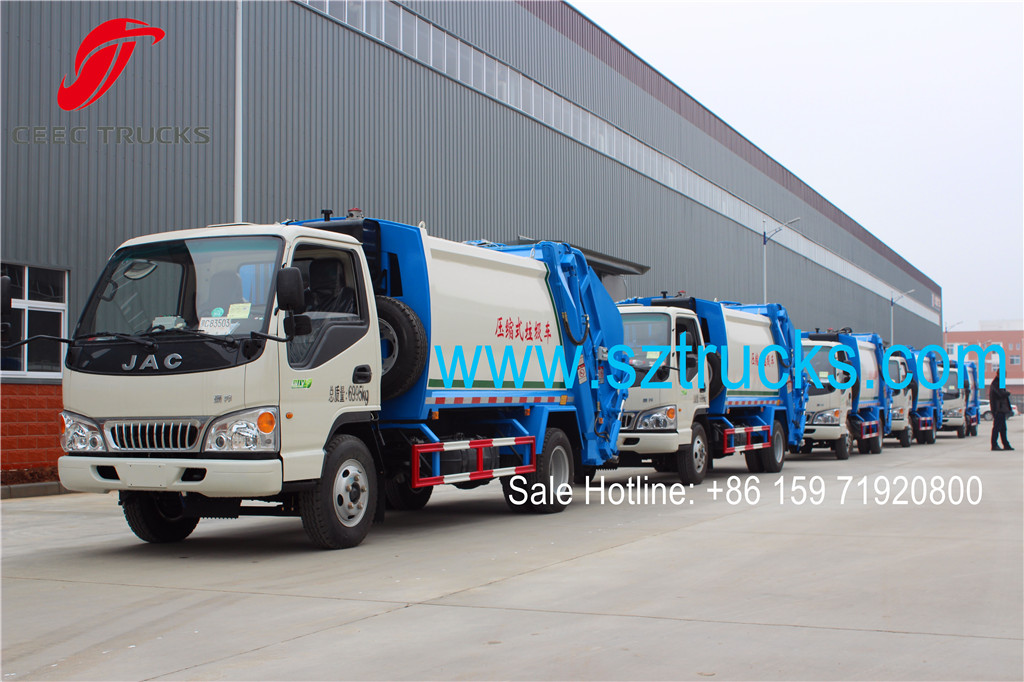

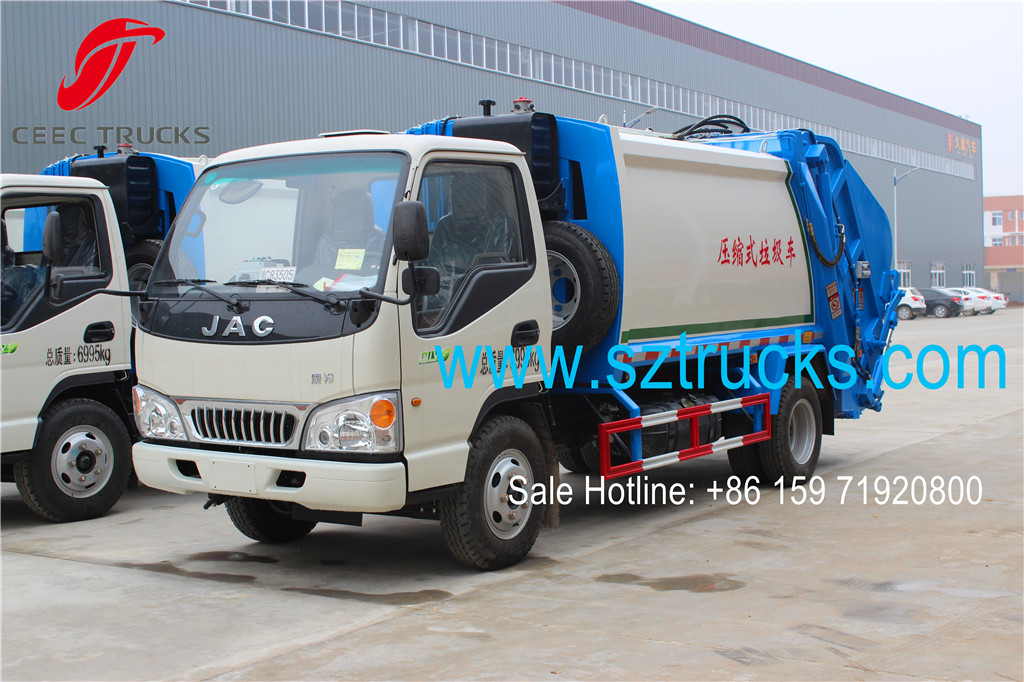

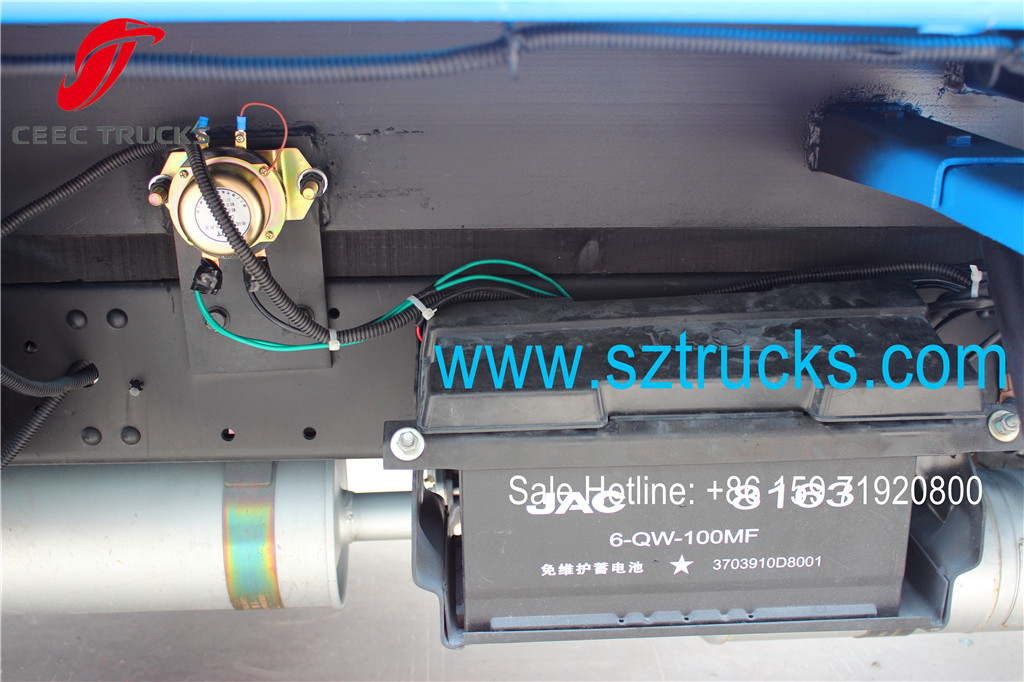

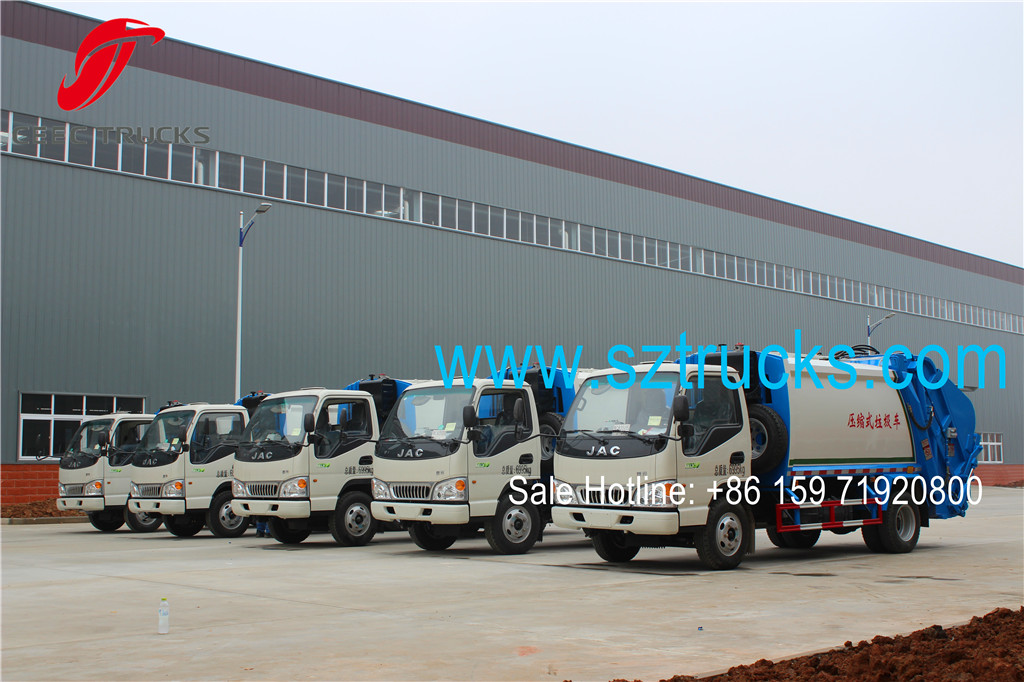

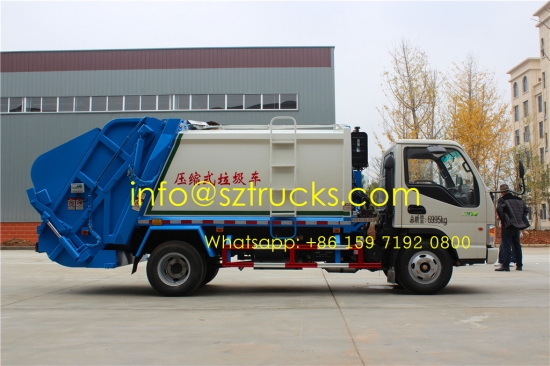

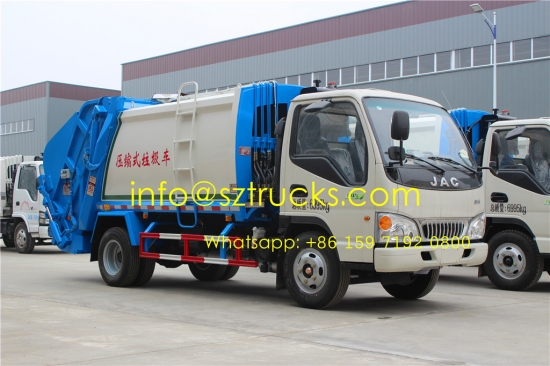

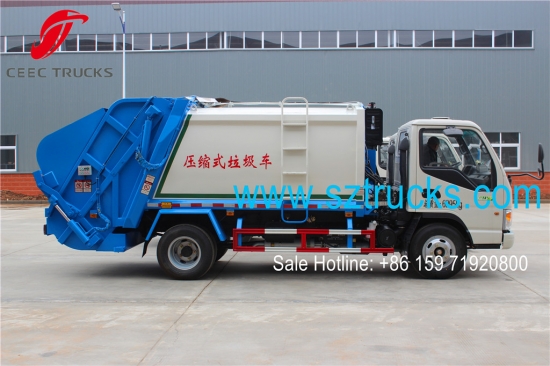

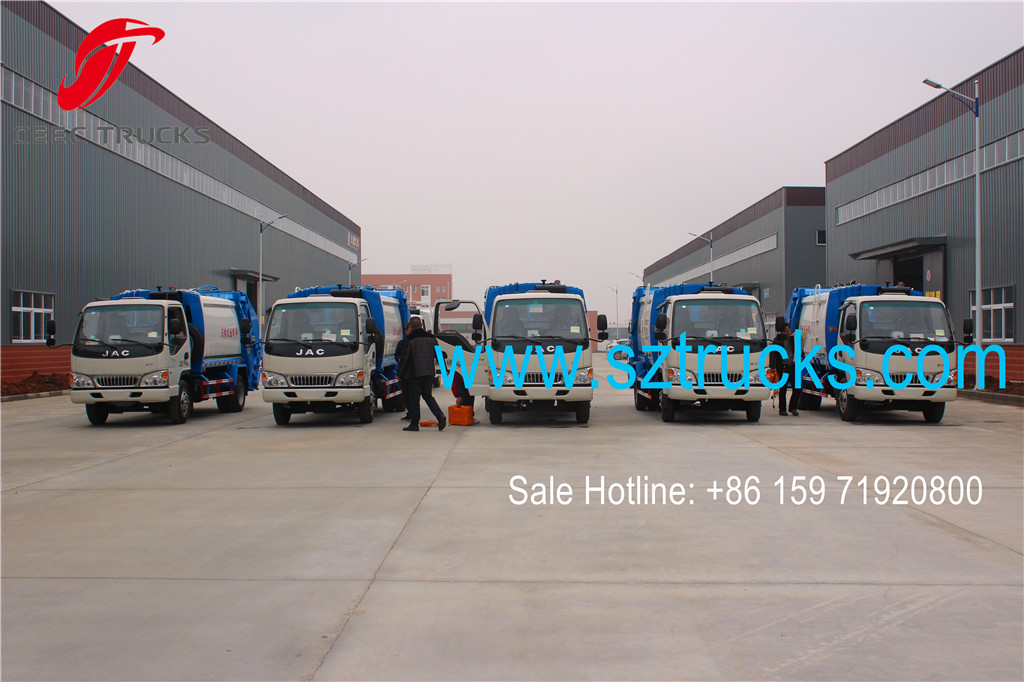

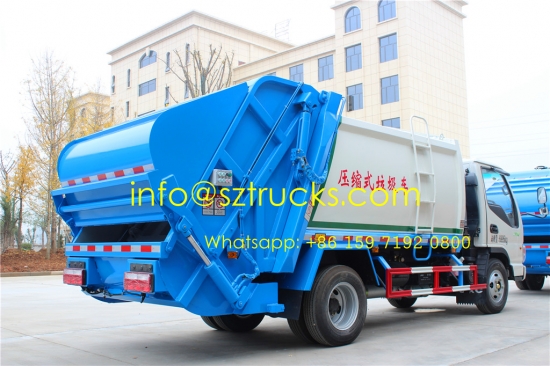

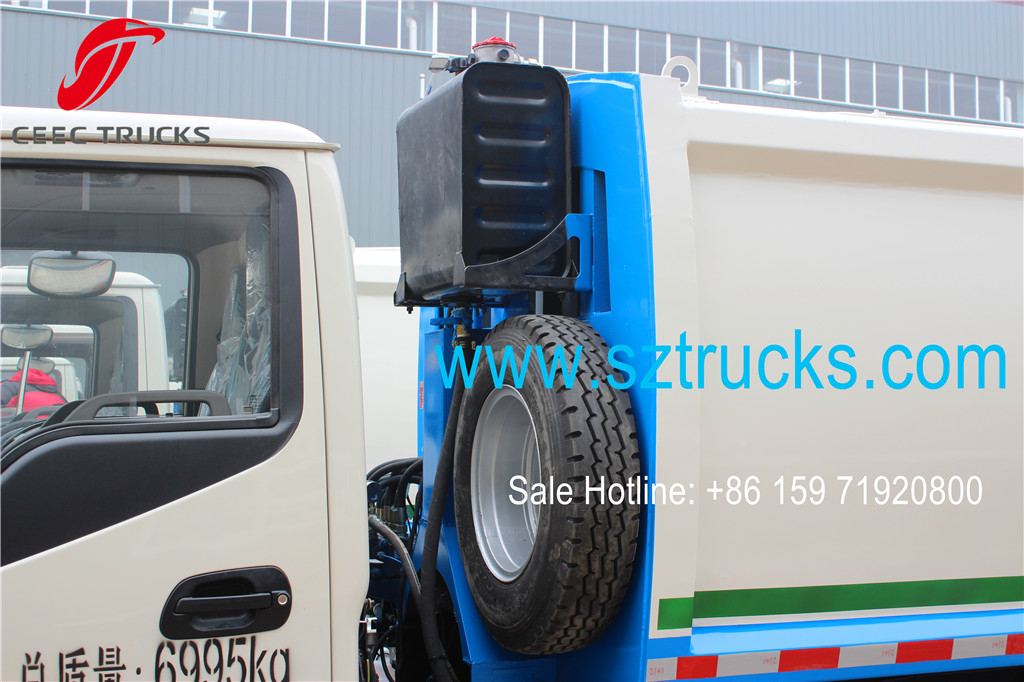

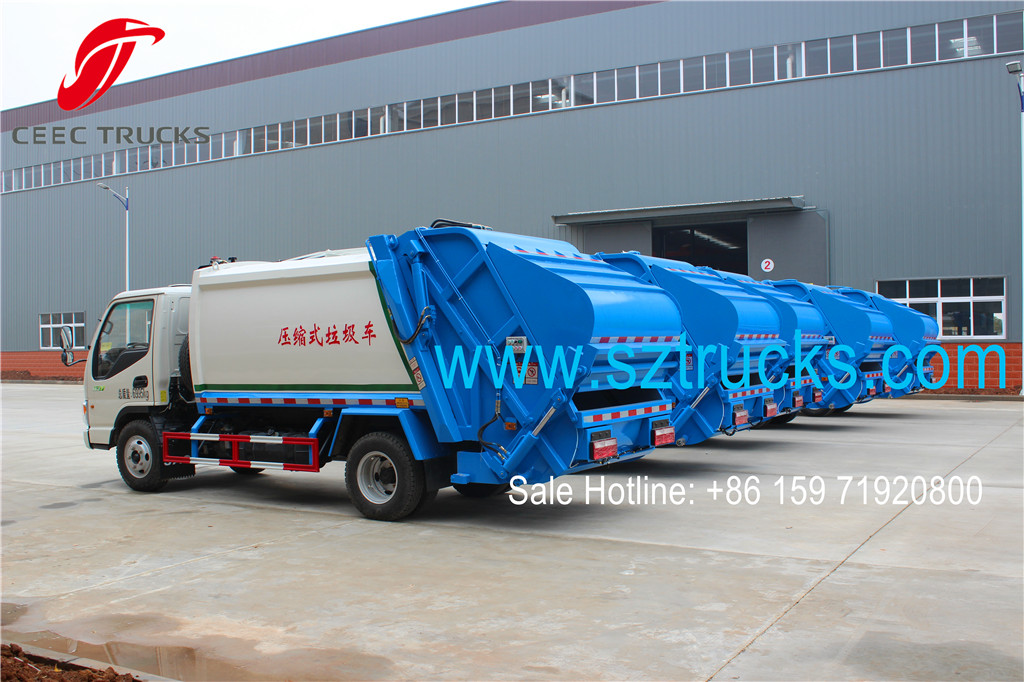

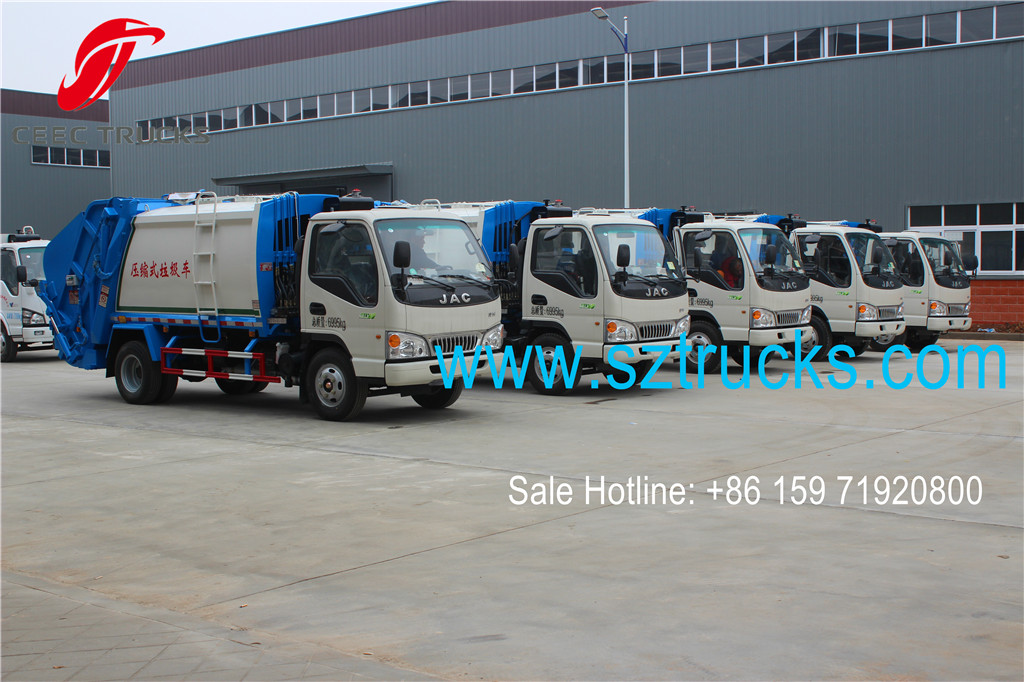

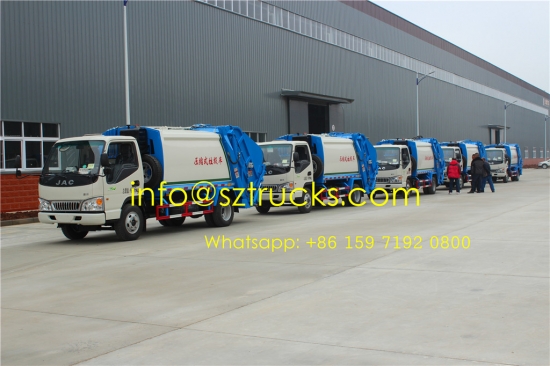

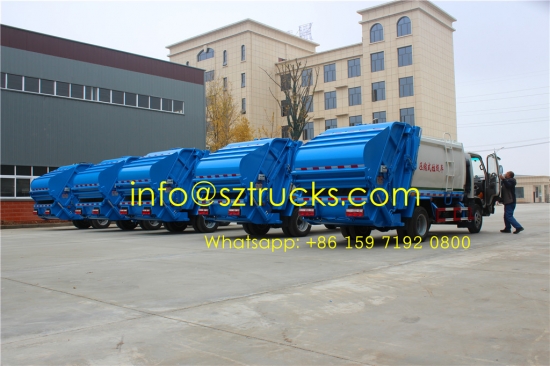

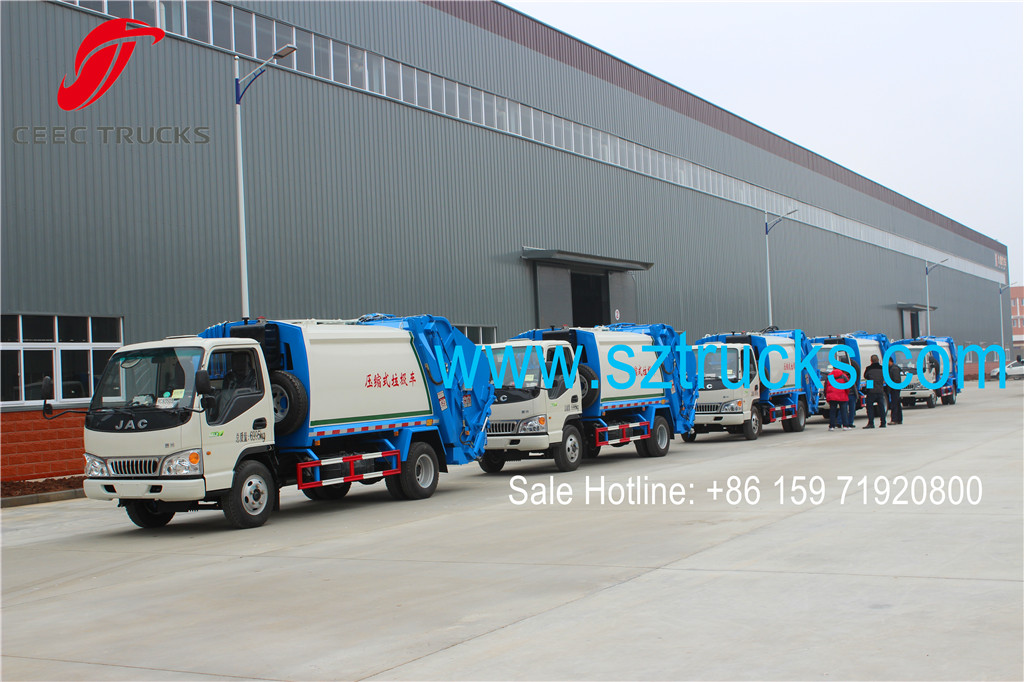

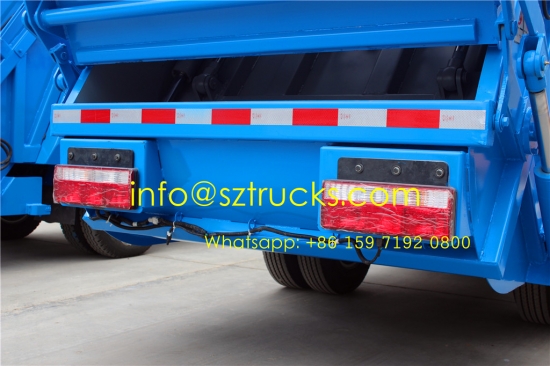

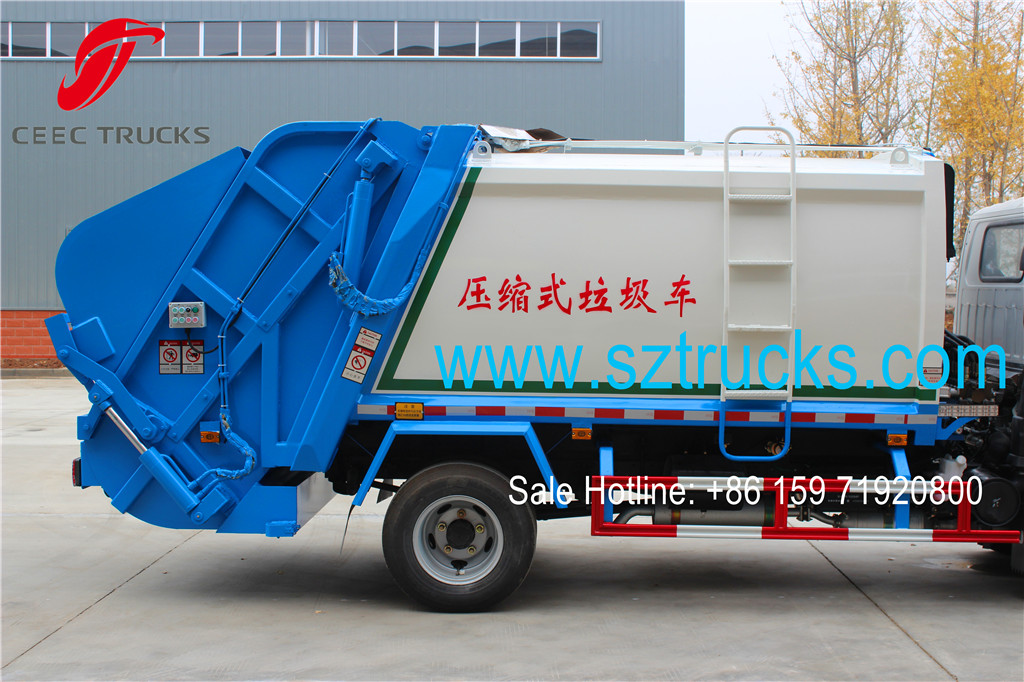

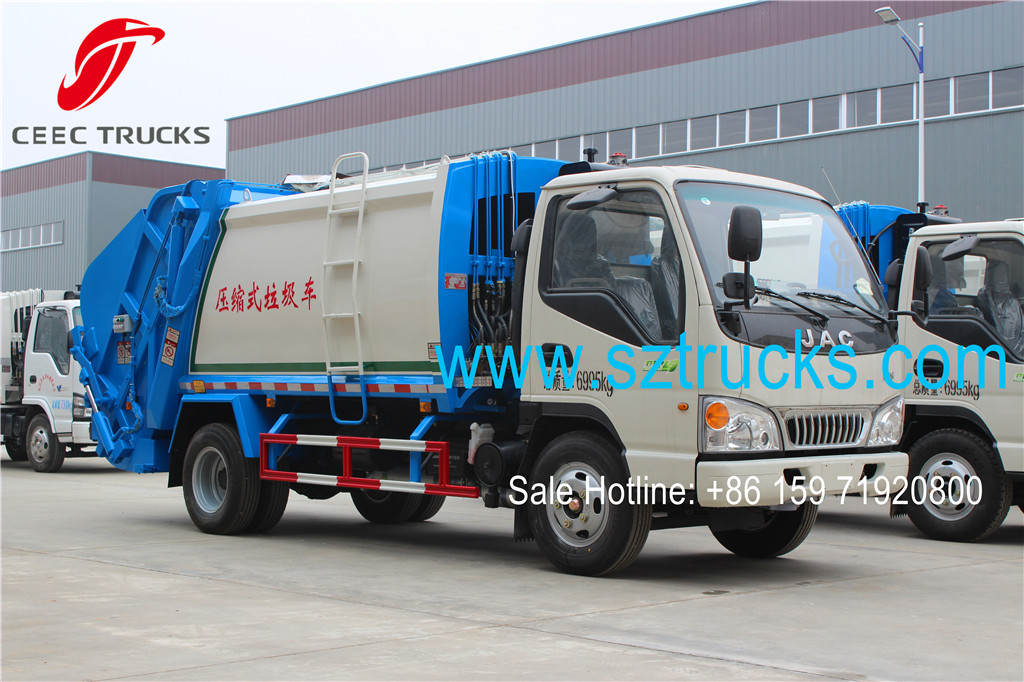

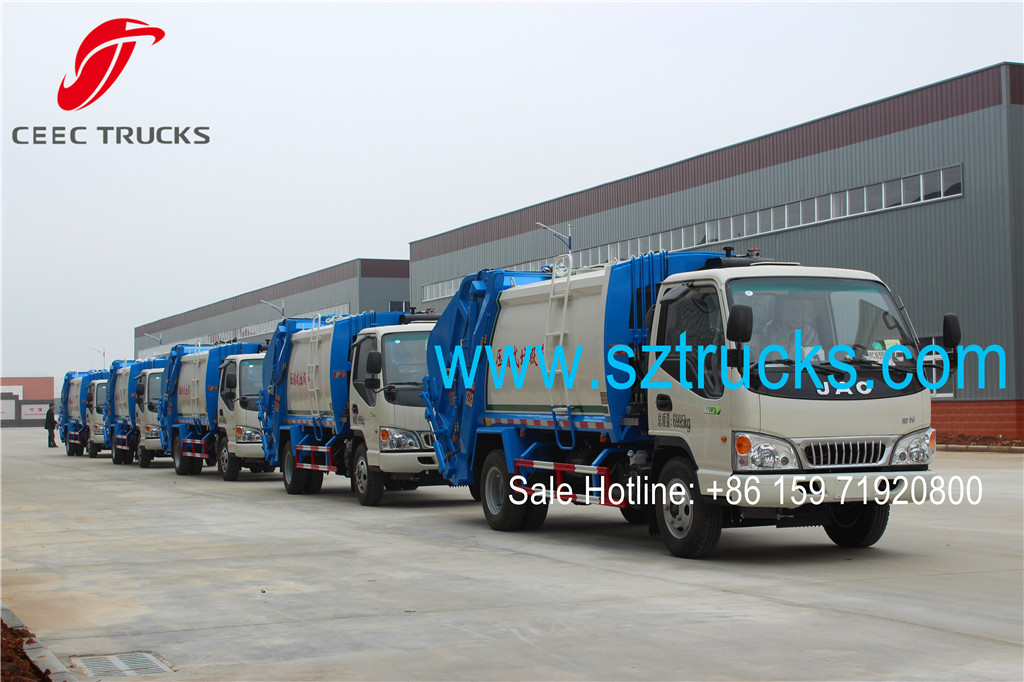

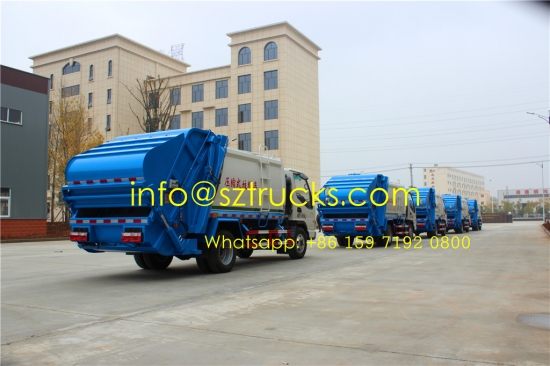

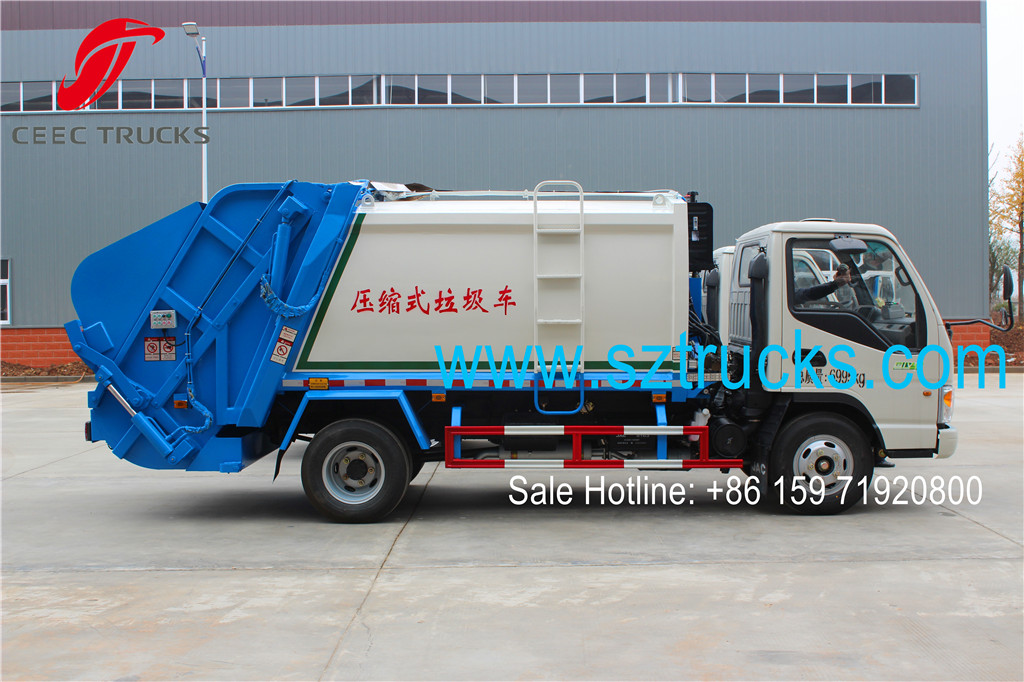

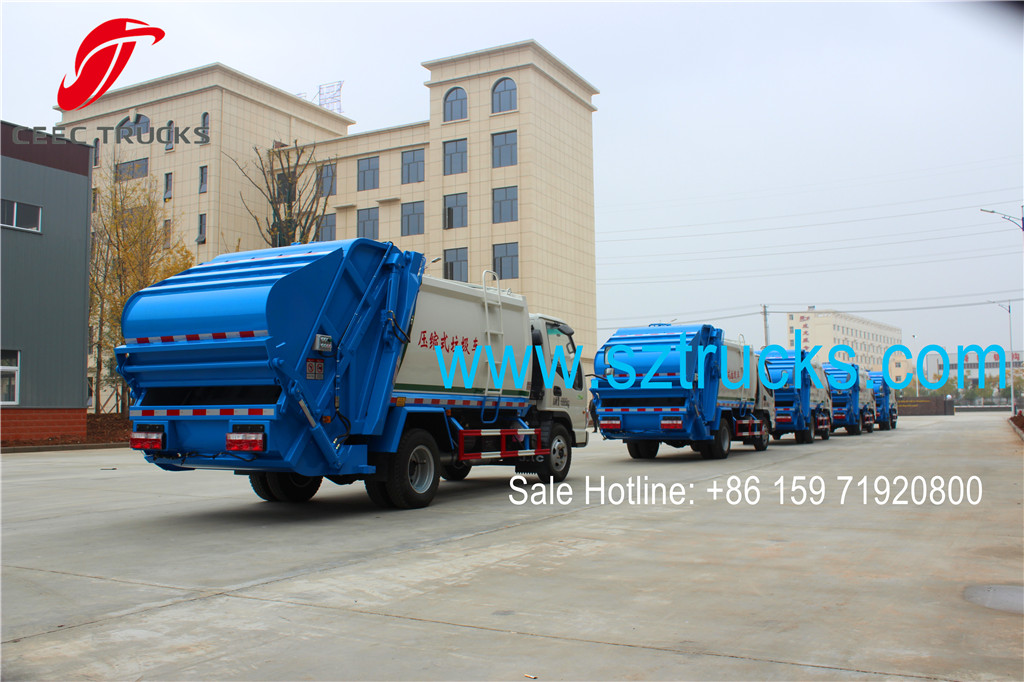

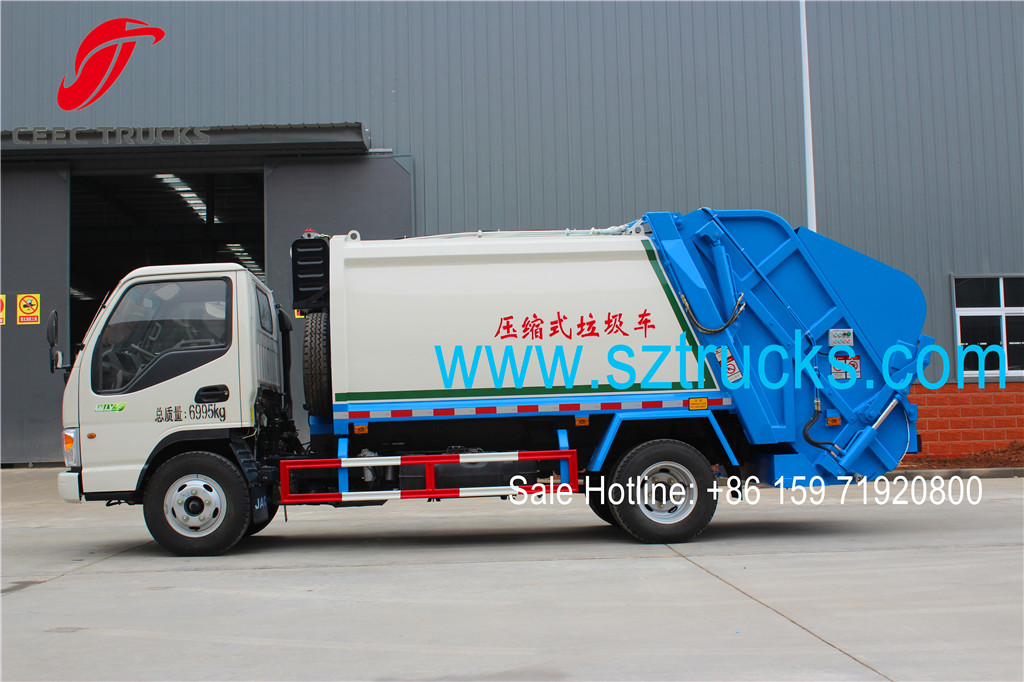

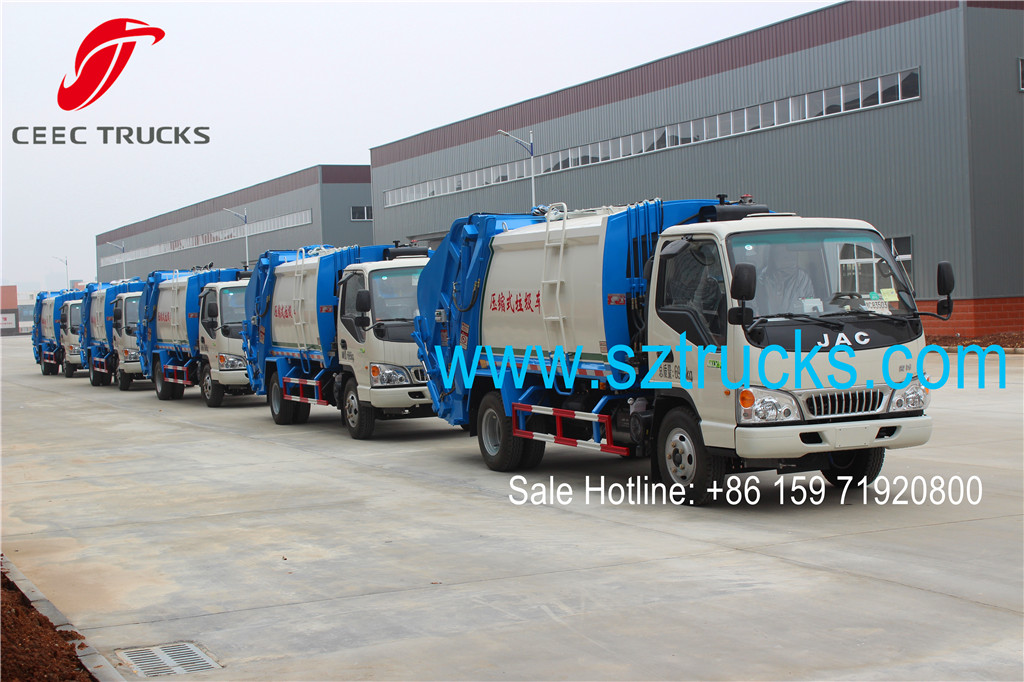

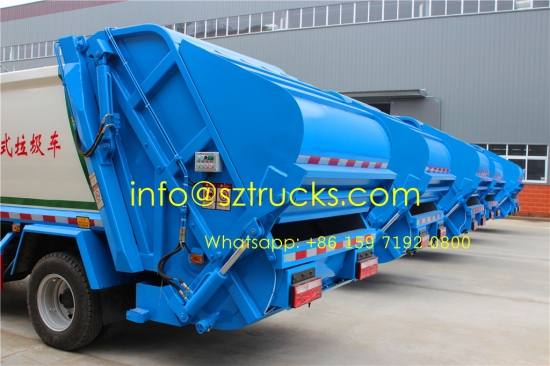

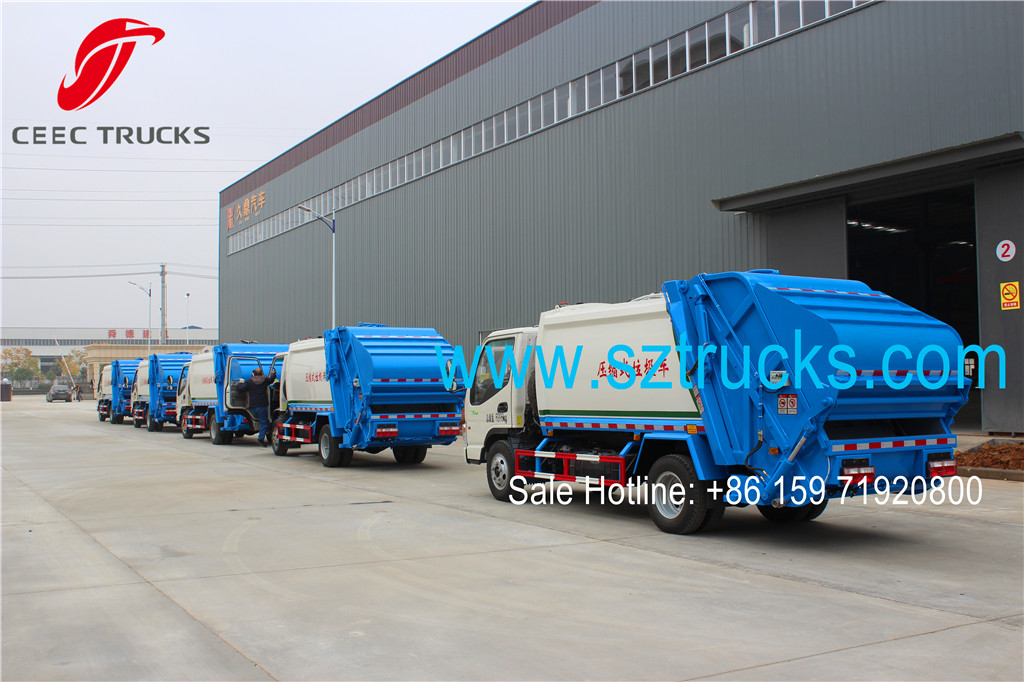

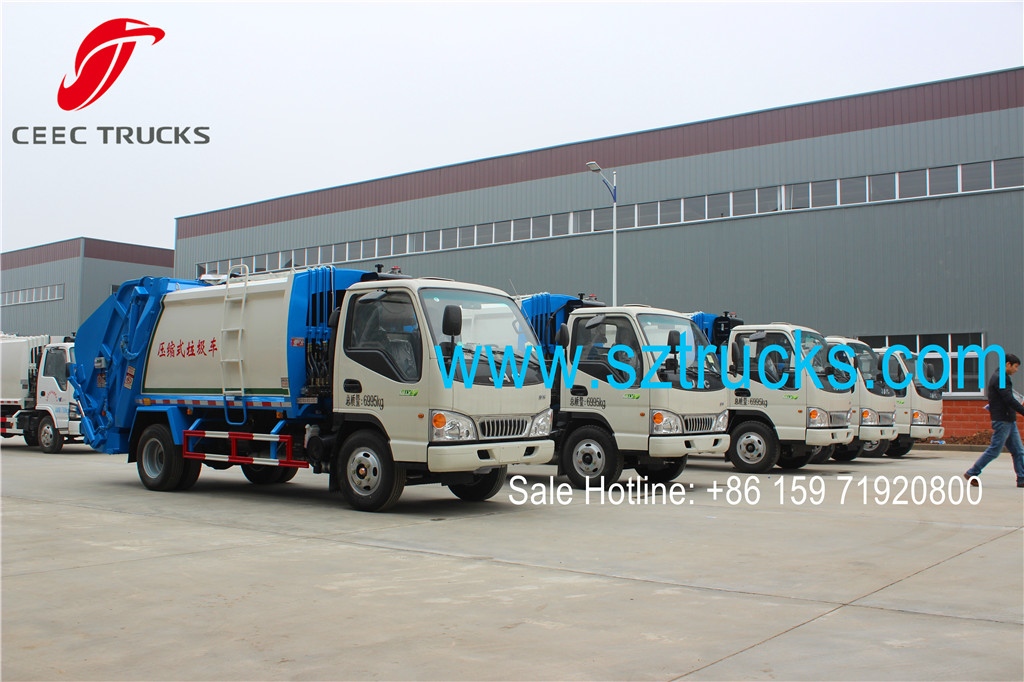

Detailed pictures to show the totally 5units JAC refuse compactor trucks for city sanitation project:
1. Trash collection truck (also called trash compactor truck, trash compactor vehicle, garbage compactor truck, refuse collection vehicle, compactor garbage truck, rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.

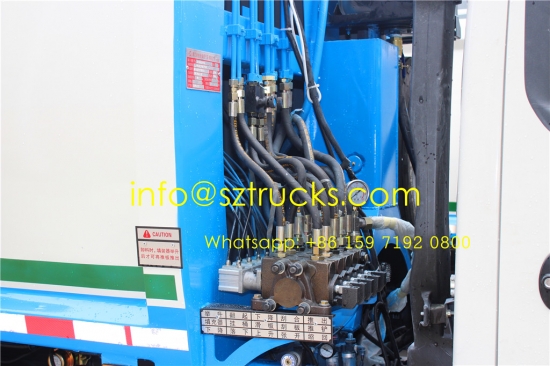

Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.2. We CEEC TRUCKS are manufacturer, specializing in producing garbage compactor truck many years with good reputation.
3. The CEEC 4CBM garbage compactor truck control system PLC (programmable logic controller) originally imported from Italy.

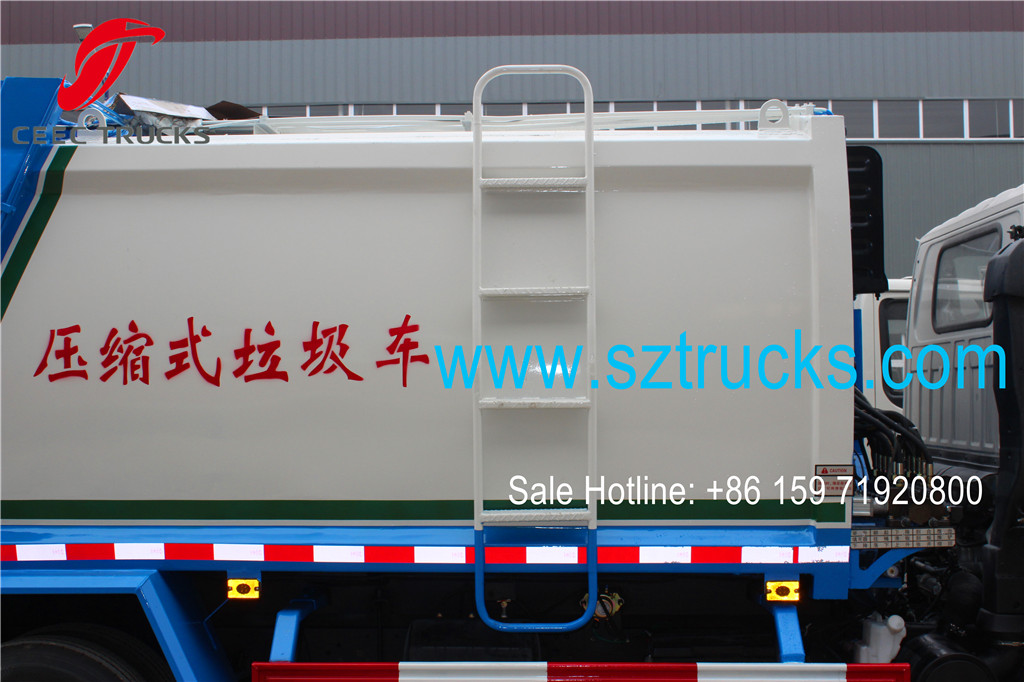

4. Collecting tank is well sealed, which can prevent second pollution.
5. Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for garbage tank, against corrosion resistant, rust protection and well-resisting.
6. Relatively smaller space between scraper and loading device can let garbage more sufficiently into the body.

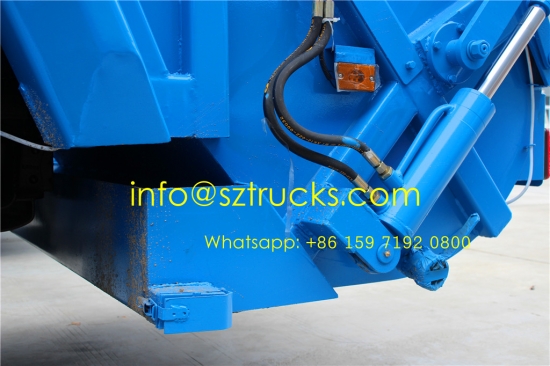

7. Adopt double direction compression techniques, which can make the whole compression work smoothly and efficiently. All the garbage compactor trucks are easy to operate and maintenance!
8. Different hopper can be provided to satisfy our customers. And the Hopper is hydraulically and automatically locked when closed.

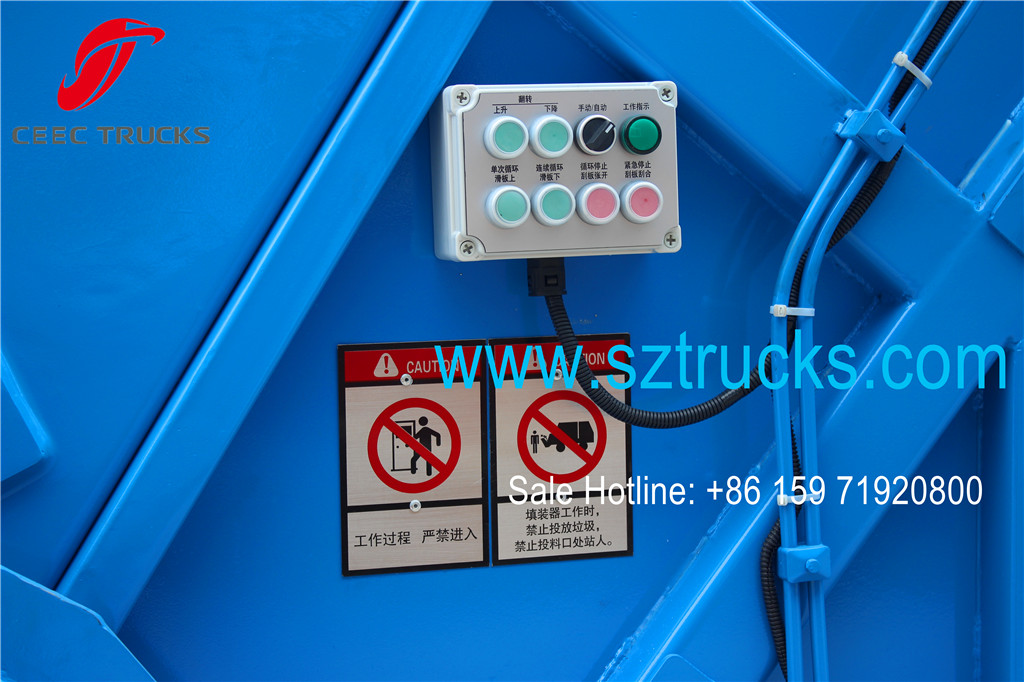

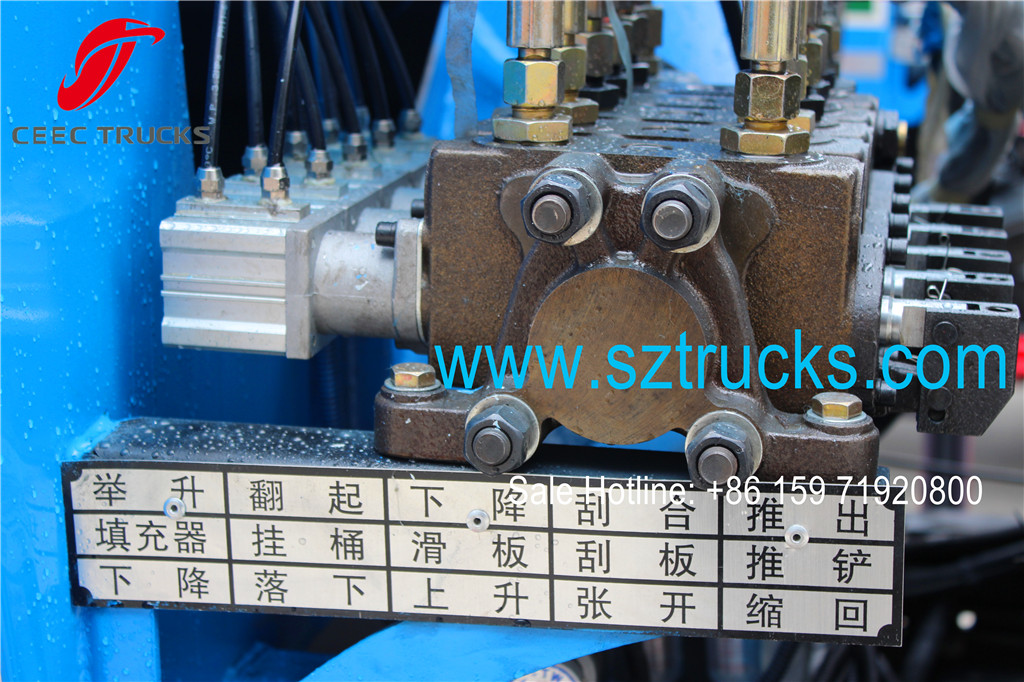

9. CEEC 3000-4000L Compression Garbage vehicles are controlled by the integration of machinery, electricity and hydraulic, with manual control system, crush the garbage through filling, pushing and spading, finally make the waste compressed in the dustbin.

CEEC Garbage Compactor Trucks Working Principle:
Parameter |
|||
Truck Model |
CEEC5070ZYSS |
||
Compression Tank Parameter |
Tank Capacity |
||
Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||
Tank Shape |
Curved Shape Tank (Square shape for optional) |
||
Overall dimension (mm) |
Length |
6480 |
|
Width |
2050 |
||
Height |
2550 |
||
Tank Thickness |
Side |
4mm |
|
Floor |
4mm |
||
Chassis |
Chassis Brand |
DongFeng |
|
Drive Mode |
4x2 |
||

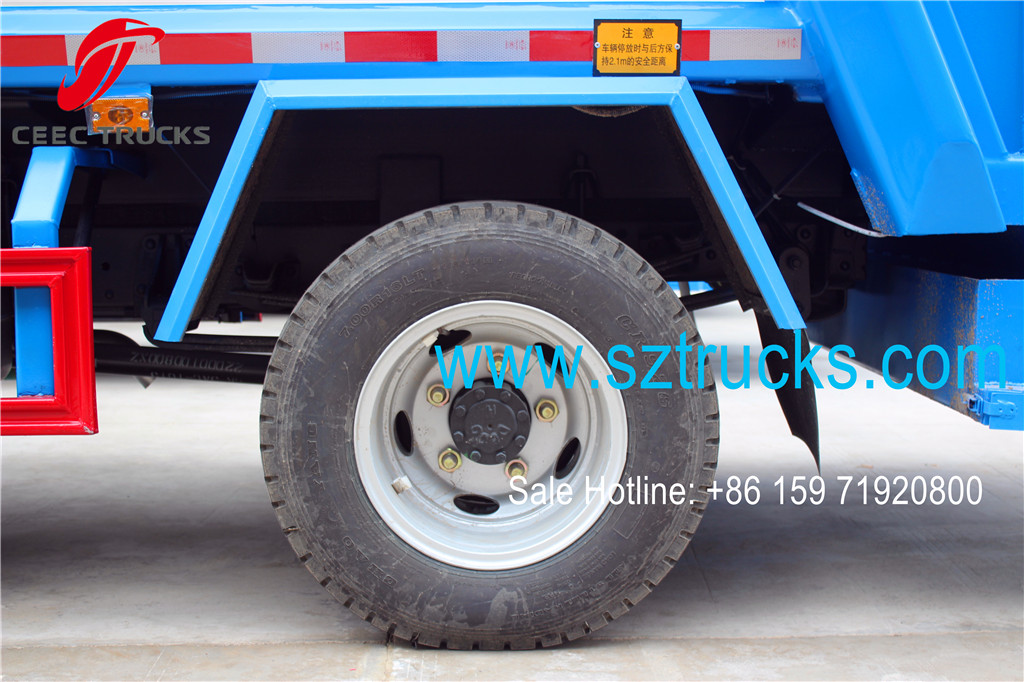

Tire type |
7.00-16 tire |
||
Tire No. |
6+1 units |
||
Max speed |
90 km/h |
||
Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
Engine |
Power |
88 kw / 120hp |
|
Fuel type |
diesel |
||
Emission Standard |
Euro 3 & Euro 4 |
||
Gearbox |
Control type |
Manual |
|
Gear |
5 forward & 1 reverse |
||
Loading Introduction |
