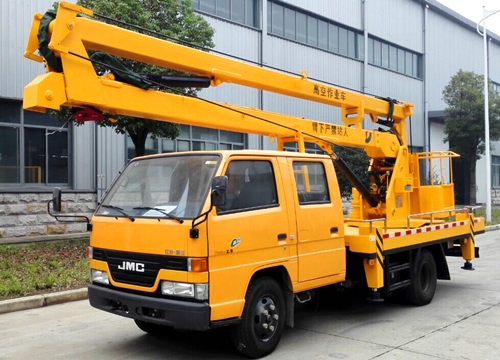

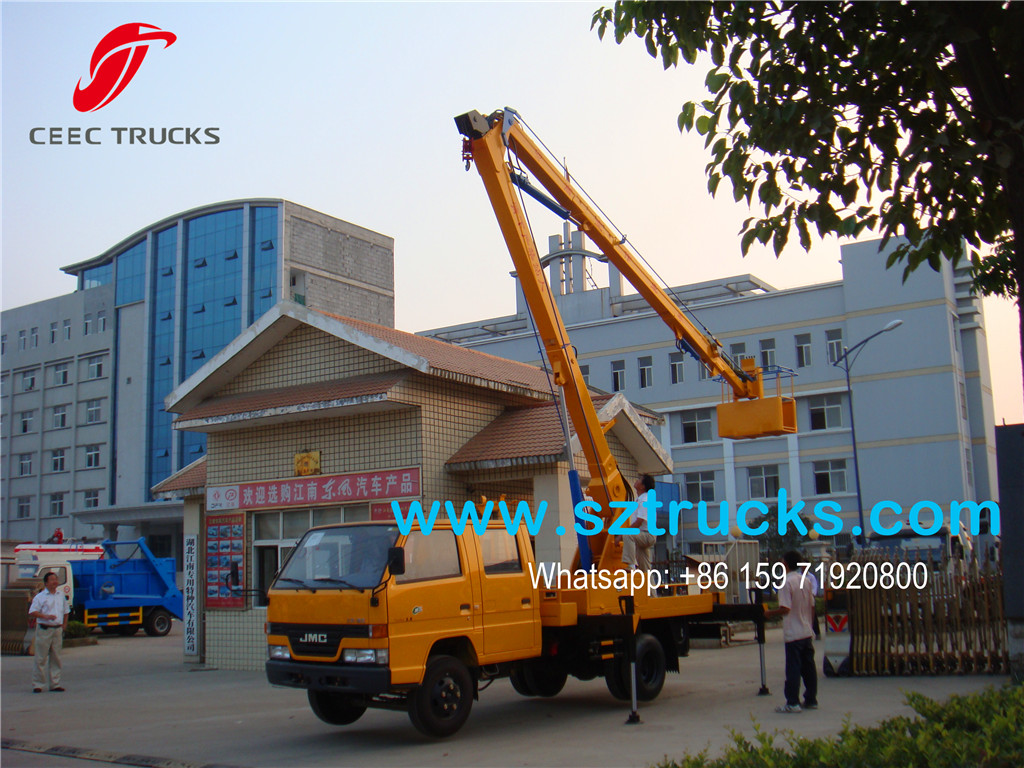

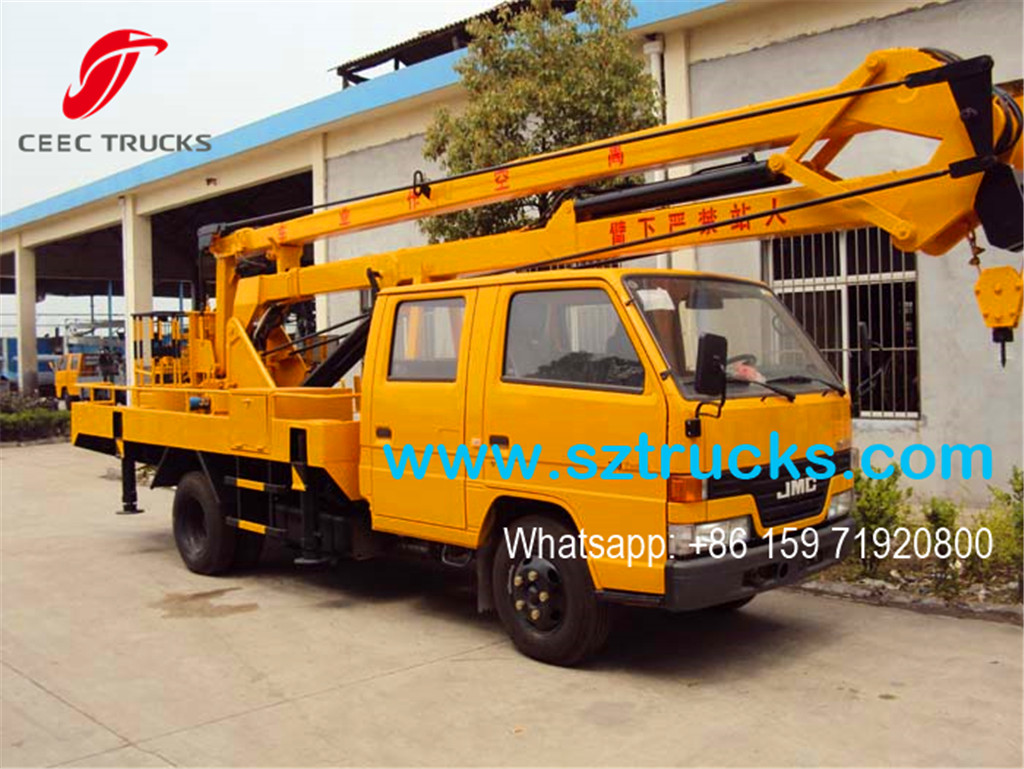

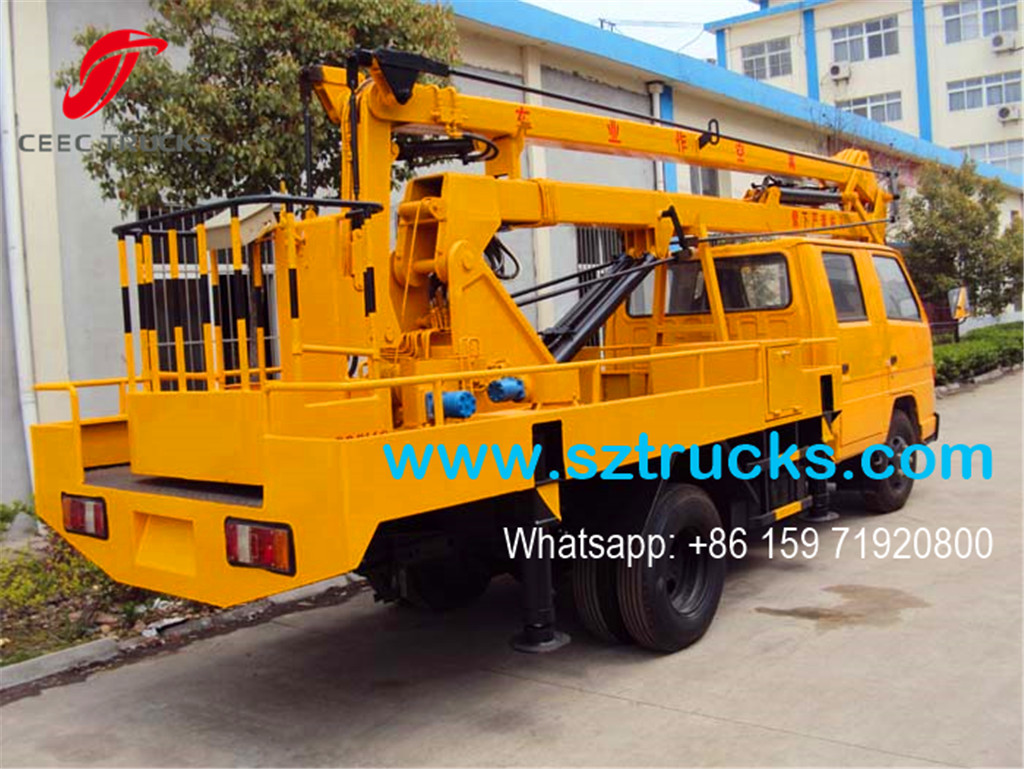

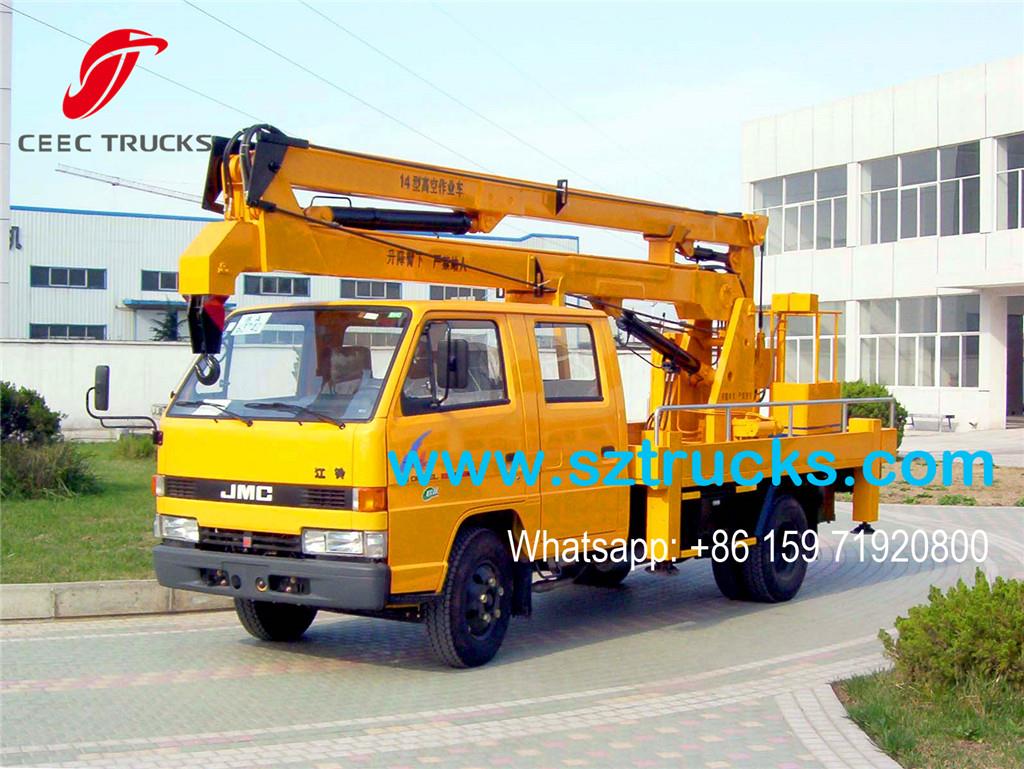

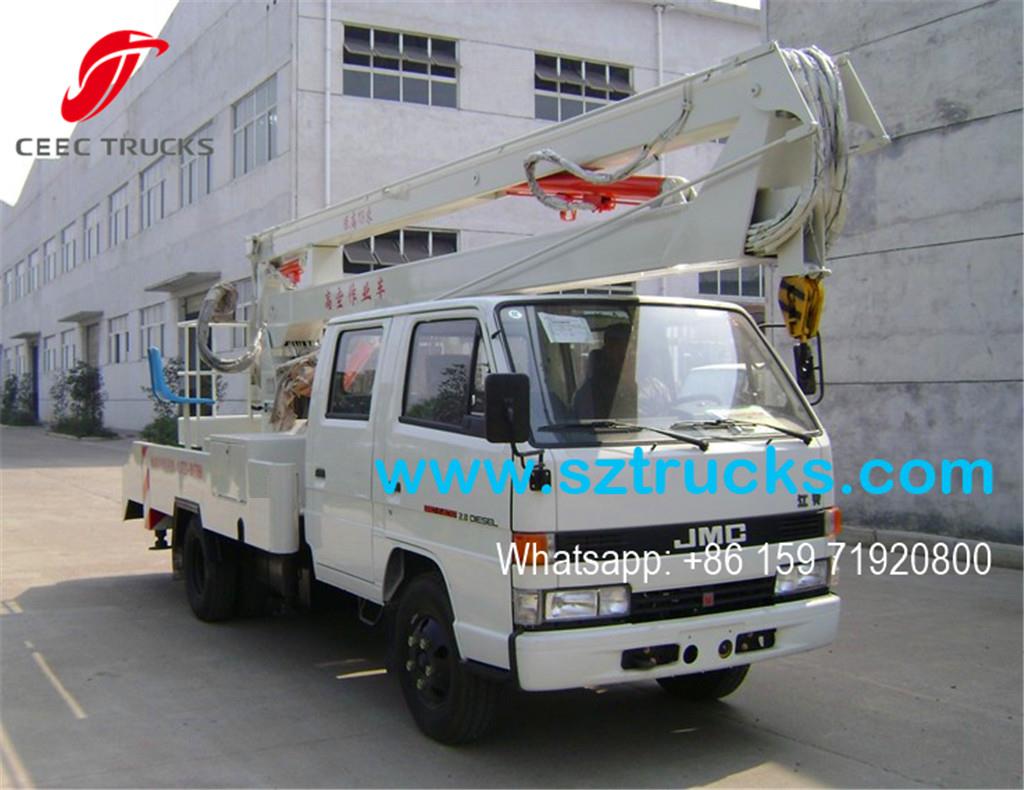

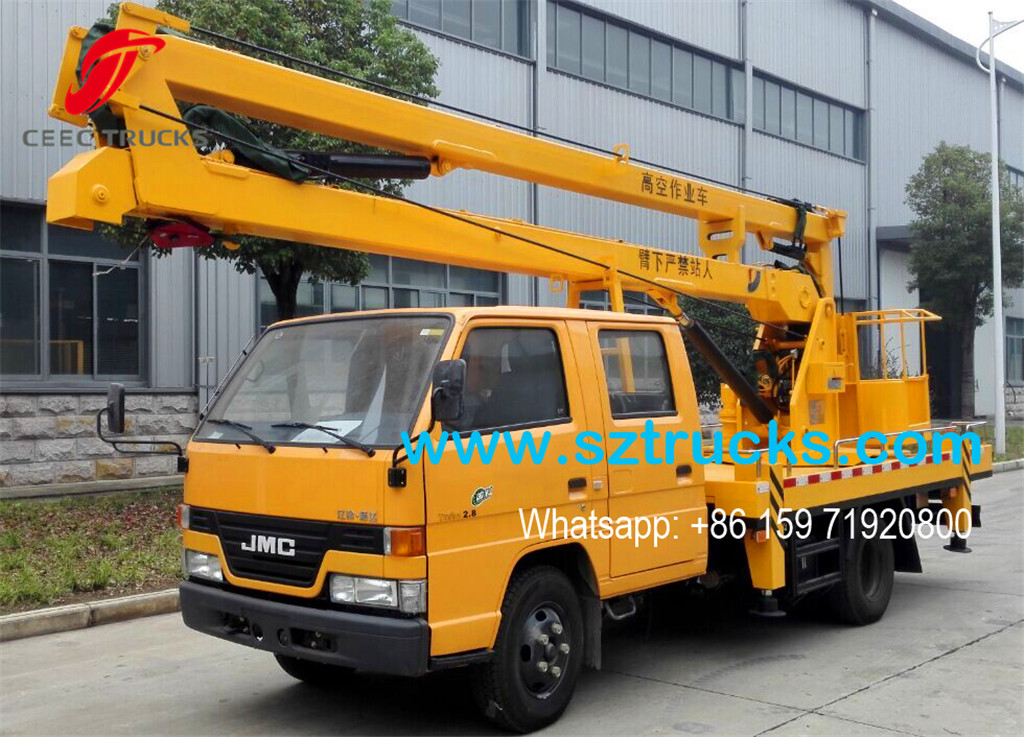

JMC 14m Aerial Working Truck, high altitude work vehicle advanced features:
High Altitude Operation Truck mainly means the truck that could lift up and down the platform, and platform can be operated by several hydraulic cylinders and hydraulic system or electric system above the height nearly 14 meters.
The high altitude platform working truck with people loading is one of the advanced mechanic equipment. The skilled worker can do working at some certain height with the help of the high altitude operation truck in proper condition and then it should be safe.
However, while in bad condition or safety measure unimplemented, it is also one very dangerous high altitude operation procedure. So according to the national standard, we CEEC TRUCKS will provide English version Operation Instructions Manuals that the operator should follow before any operation.
---- The working bucket can be
made of steel structure or reinforced fiberglass.
---- JMC chassis ensures perfect driving performance.
---- JMC engine, super powerful; reliable performance, no overhaul within
100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.
|
Truck Model |
CEEC5080JGK |
Chassis Model |
JX1060TSG23 |
|
GVW (kg) |
7300 |
Mass in working order (kg) |
5150 |
|
Max speed (Km/h) |
95 |
||
|
Chassis Description |
|||
|
Cab |
JMC |
||
|
Allowable Passengers In Cab |
2/3 |
Air conditioner |
Installed |
|
Wheel base(mm) |
3360 |
Number of axles |
2 |
|
F/R track base(mm) |
1385/1425 |
F/R overhang(mm) |
1015/2025 |
|
Approach/Departure angle(°) |
27/11 |
Spring plate |
7/5+5 |
|
F/R axle-load |
2315/3160 |
Type of fuel |
Diesel |
|
Tire specification |
7.00-16 |
Tire quantity |
6+1 Spare tire |
|
Traction system |
4*2 |
Operation control system |
Steering Wheel |
|
Braking system |
Air Braking |
Electric system |
24V |
|
Engine Description |
|||
|
Engine model |
JX493ZLQ3 |
Emission standard |
Euro 3 |
|
Exhaust/output |
2771 |
Horse power |
116 |
|
Engine Manufacturer |
JMC Motors Co., Ltd |
||
|
Special Parts Description |
|||
|
Main description |
Max operation height: MIN14m, Max operation radius MIN.7m, Max working platform height MIN.13.2m, Working platform rating loading=200kg, Working platform rating allowable passengers: 2 or 3 Working platform equipped with insulated material, with 360°turning (left or right), 4 H-shape legs. 0.5-1.5 ton crane are for optional, |
||
