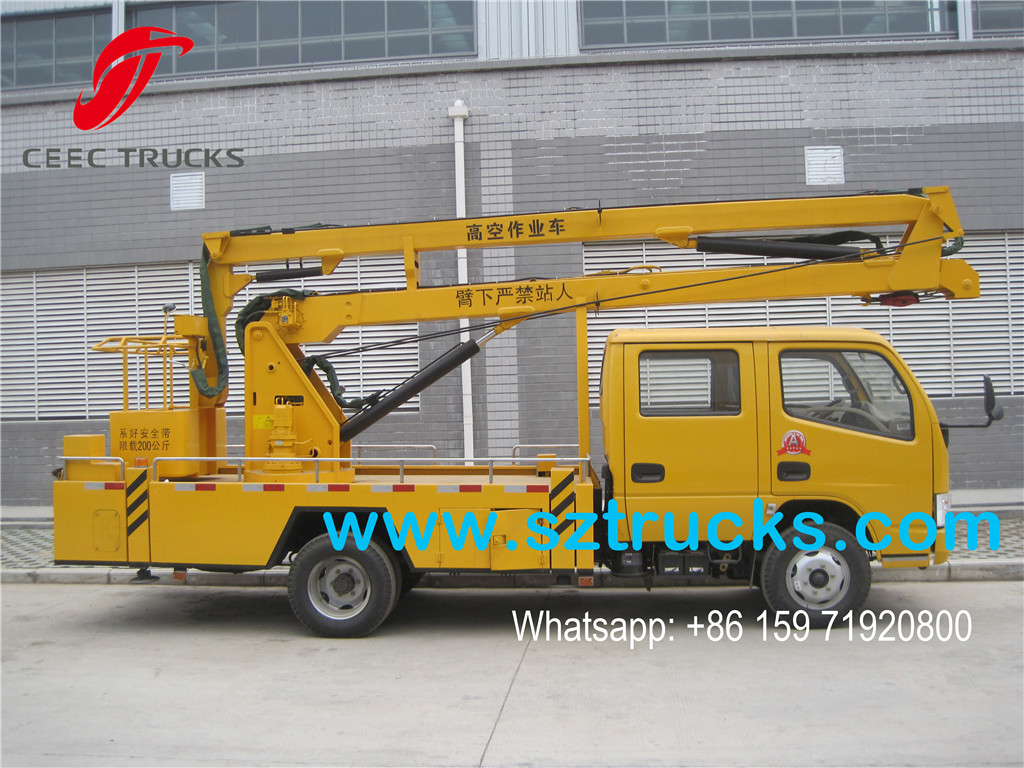

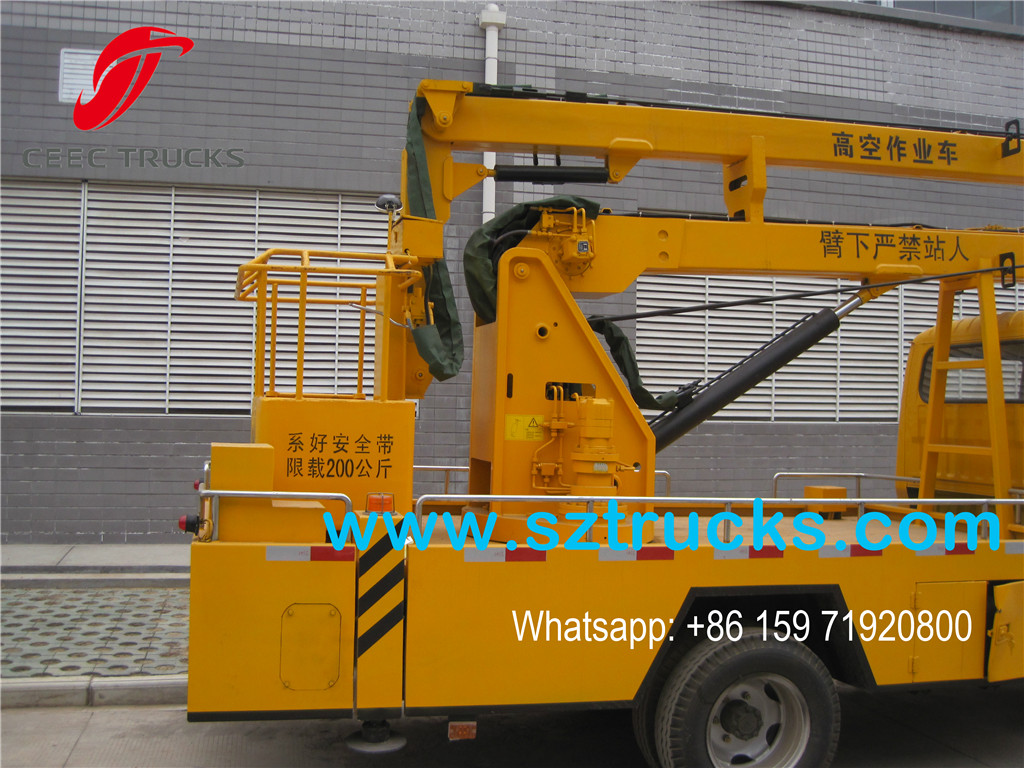

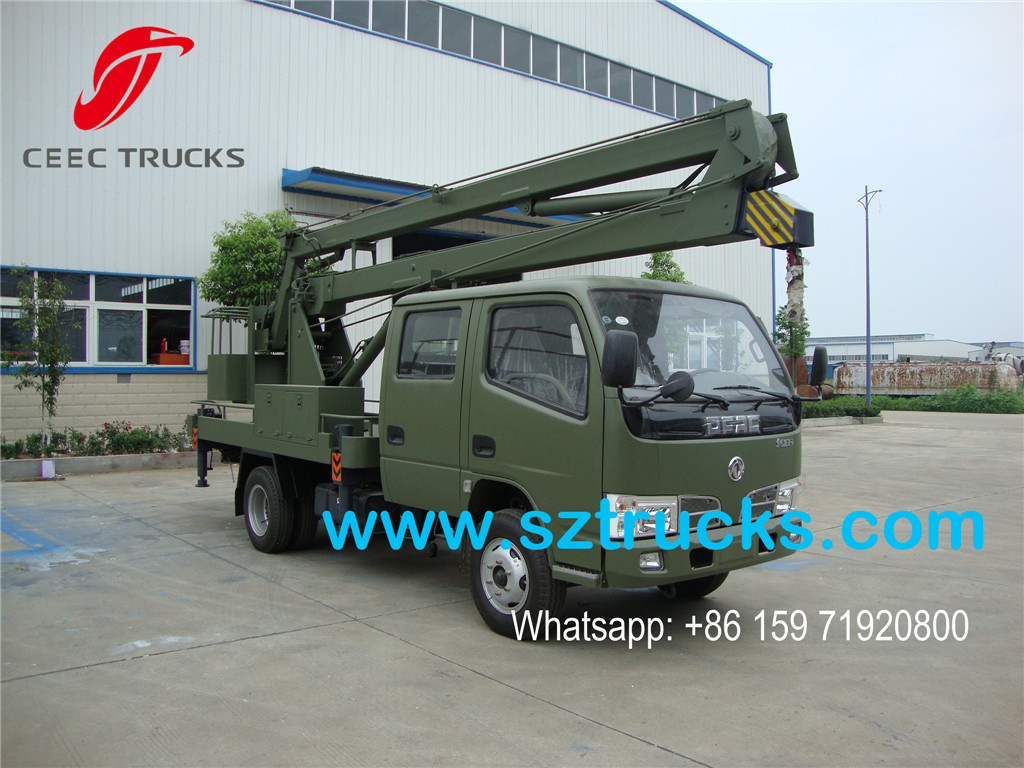

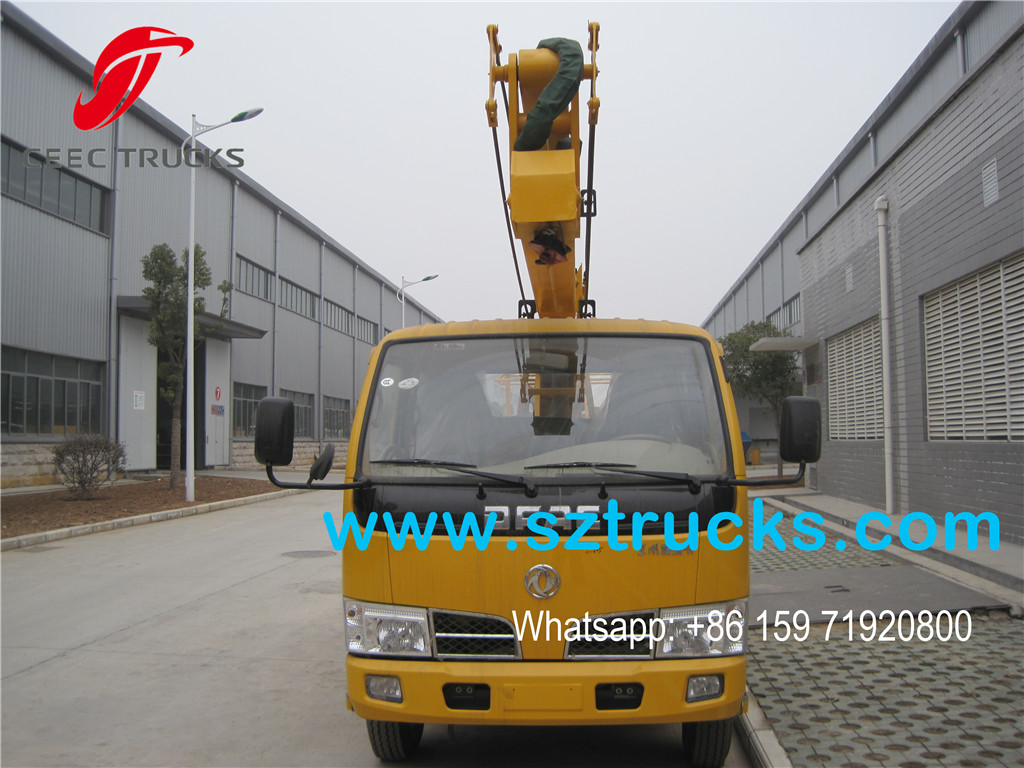

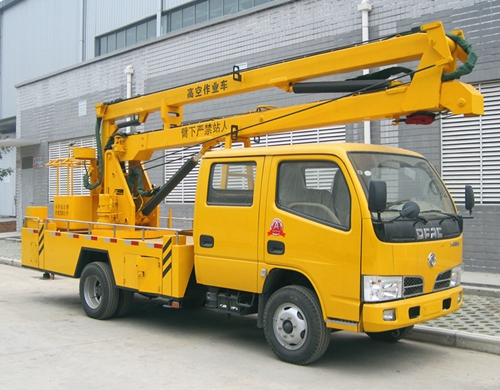

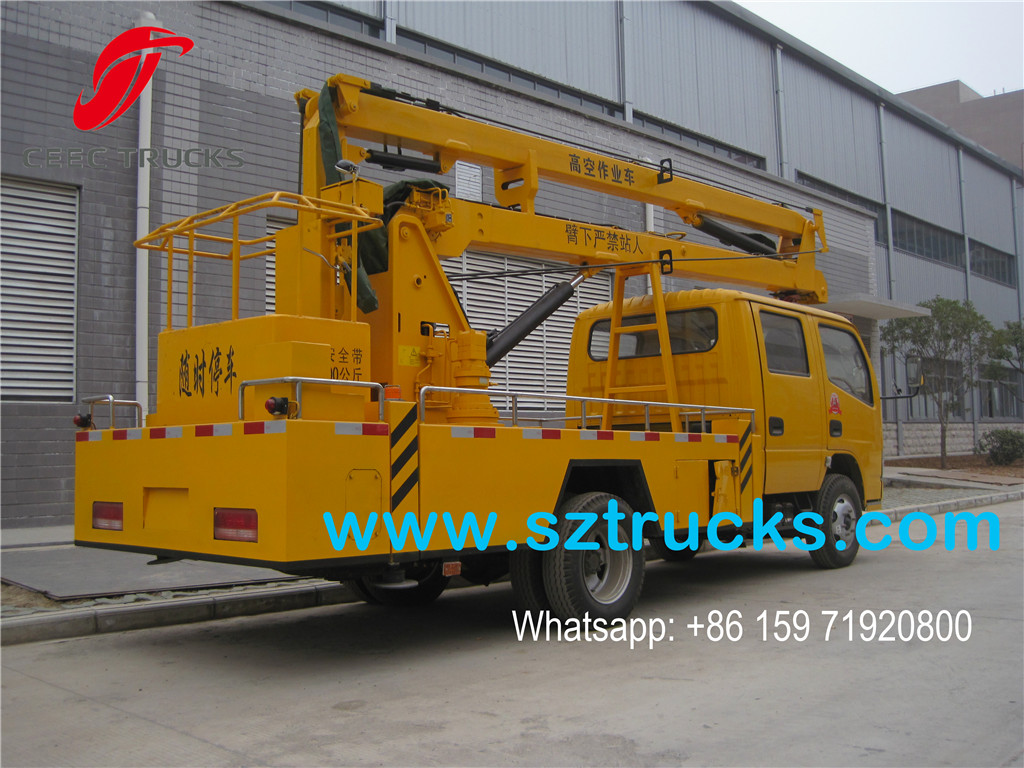

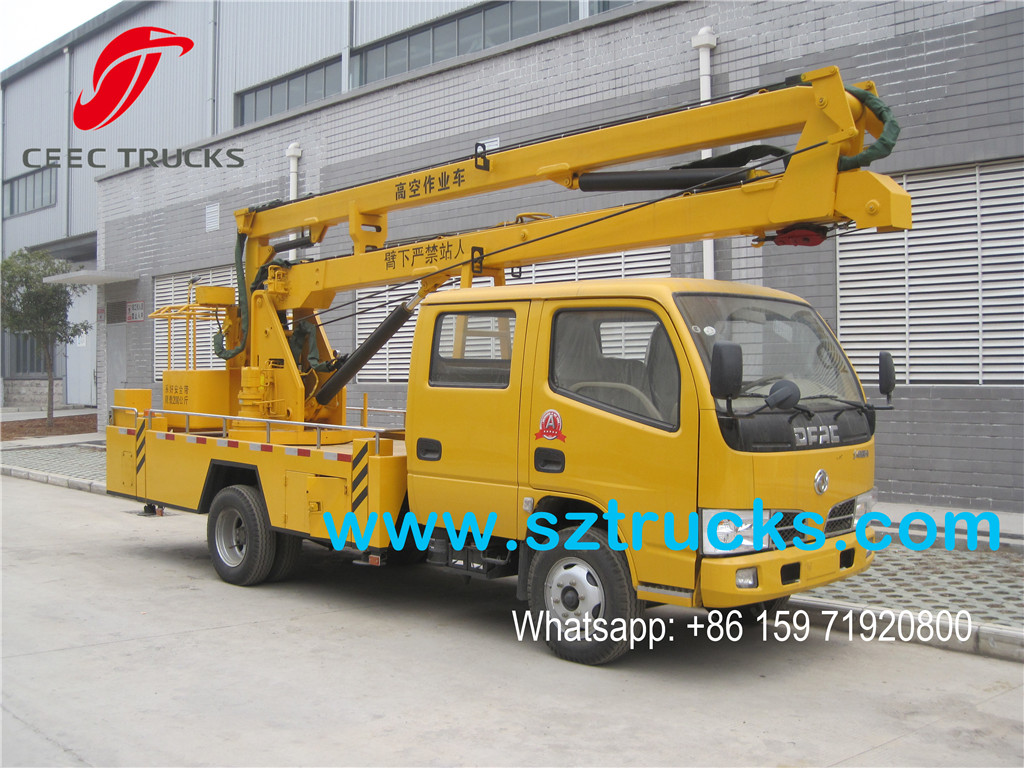

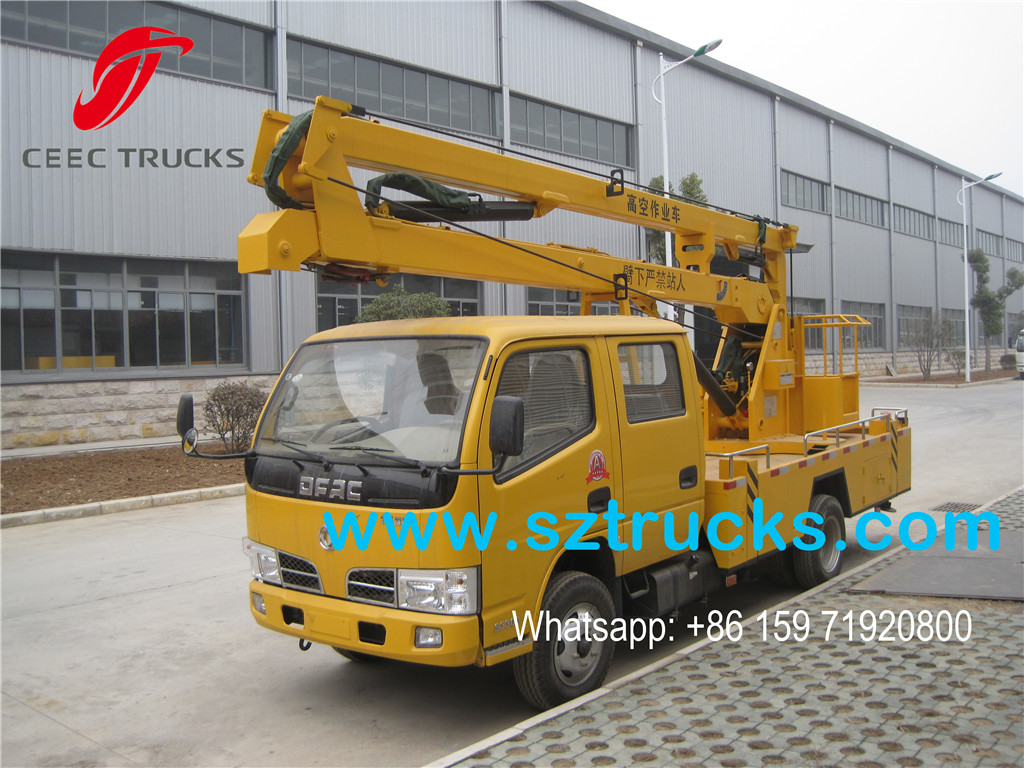

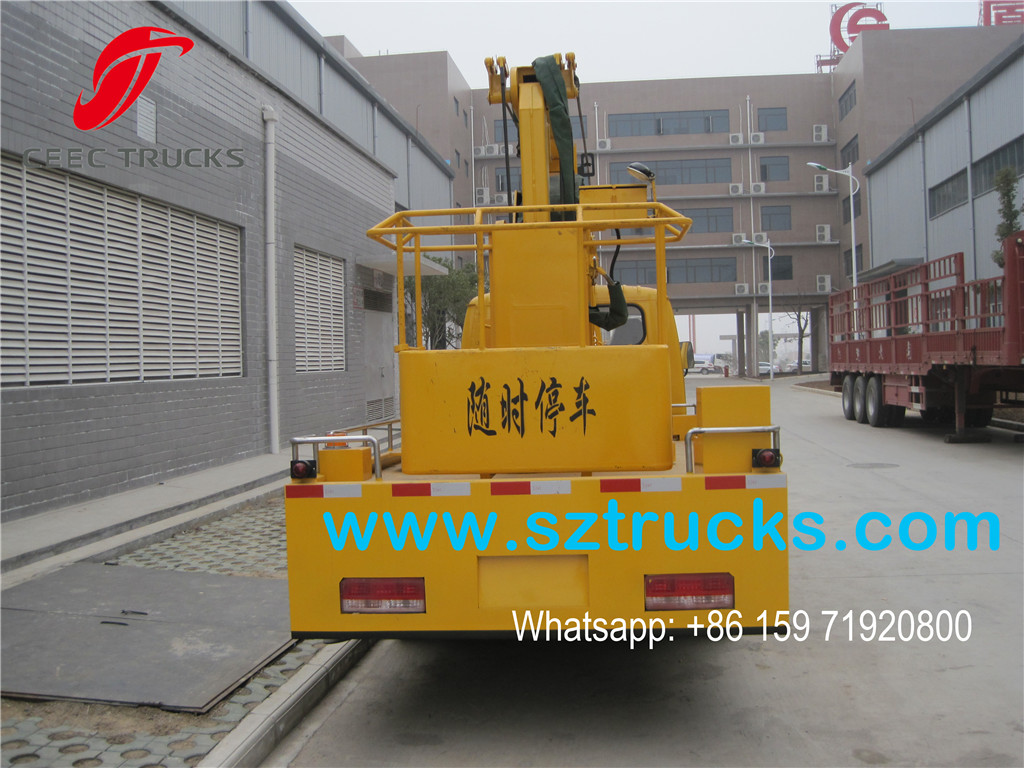

Frankly speaking, most customer prefer Engineering Yellow painting for their Aerial Work Platform, anyway, below Army Green painting and other painting also for optional:

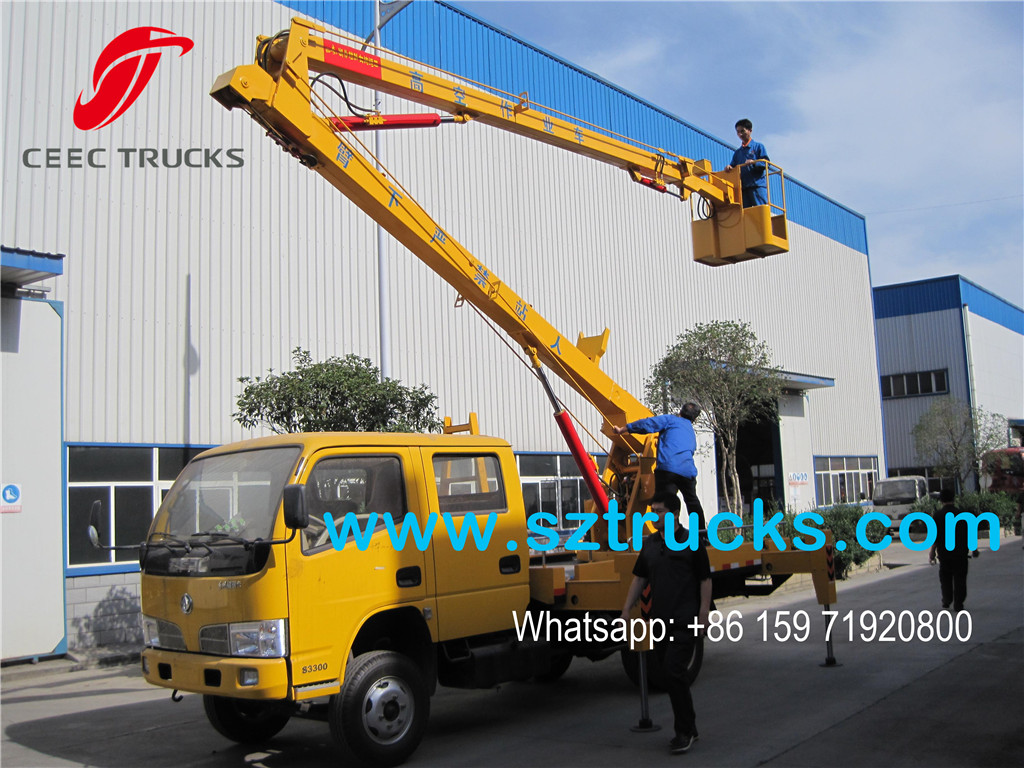

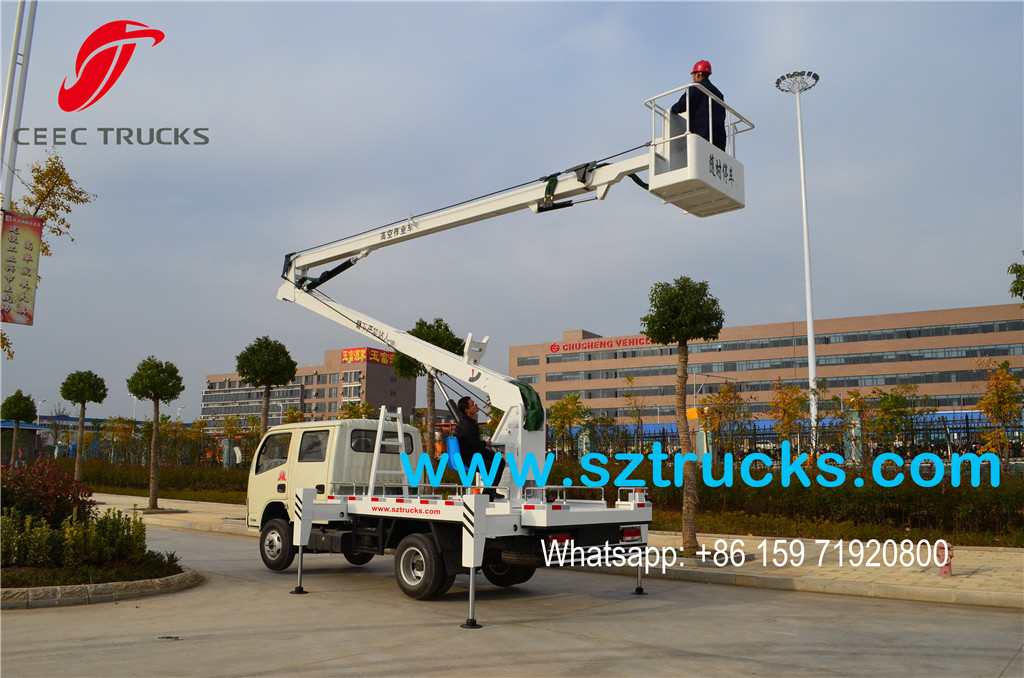

CEEC TRUCKS produced Aerial Work Platform for Testing:
Function:
Aerial Work Platforms (also called basket crane truck, truck mounted aerial lift truck, hydraulic aerial platform, bucket lift truck) is ideal for maintenance of traffic lights, street lights, landscapingtrees, cleaning & setting signboard and other high aerial works.
Features:
---- The working bucket can be made of steel structure or reinforced fiberglass.
---- DONGFENG 3300mm wheelbase chassis ensures perfect driving performance.
---- Famous & Durable CHAOCHAI CY4102-C3F engine with 95HP, super powerful; reliable performance, no overhaul within100,000 km.
---- Nice shape and rational structure, with more than 4 level paintings, any logos is applicable to satisfy our customer requirement
---- Massive, durable, long service life.
| Folding Type Aerial Work Platforms (10-12M) CEEC5060JGK |
||
| General |
Vehicle Brand |
CEEC TRUCKS |
| Chassis Brand |
DONGFENG (DFAC) |
|
| Overall Dimension |
7640 * 2000 * 3150 mm |
|
| GVW / Kerb Weight |
6,800 kg / 5,275 kg |
|
| Cab |
Cab Capacity |
2+3 persons allowed |
| Air Conditioner |
Installed air conditioner |
|
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
CHAOCHAI CY4102-C3F |
|
| Power |
95 Ps (70 KW) |
|
| Displacement |
3856 ml |
|
| Emission Standard |
Euro III |
|
| Chassis |
Drive Type |
4X2, LHD / RHD |
| Transmission |
5-shift manual gearbox, no overhaul within 500,000km |
|
| Wheelbase/No. of axle |
3360 mm / 2 |
|
| Tyre Specification |
7.00-16 |
|
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
95 km/h |
|
| Paint |
Metallic paint |
|
| Super Structure |
Working Cage |
200 kg capacity, anti-slip floor |
| Working Height |
8m ≤ Working Height ≤ 12 M |
|
| Slewing |
360° continuous rotation with base turntable |
|
| Control |
Control both on the ground and in the cage |
|
| Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure. |
||
| Emergency stop switches at base and operator’s cage. |
||
| Optional |
** Hoist hook with cables can be equipped for the function of a crane. |
|
