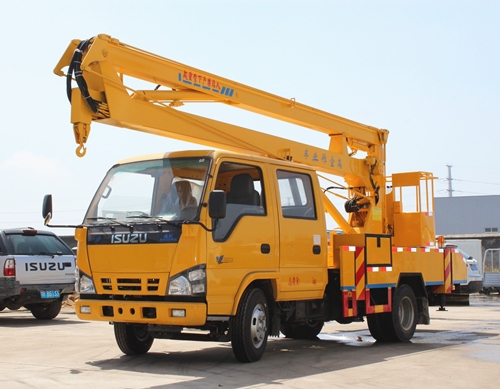

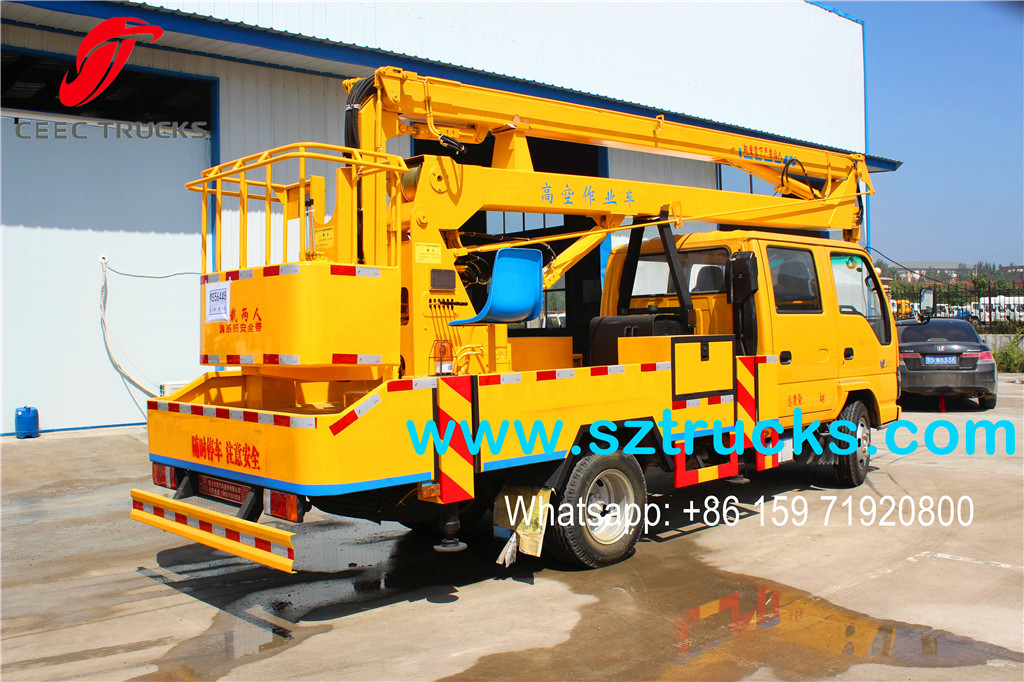

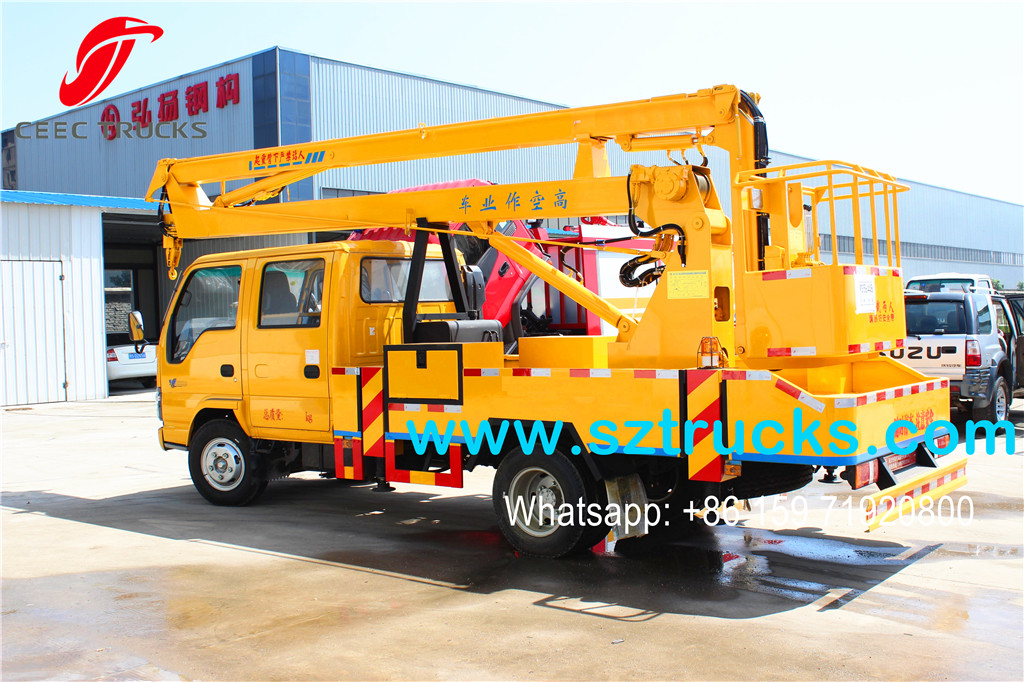

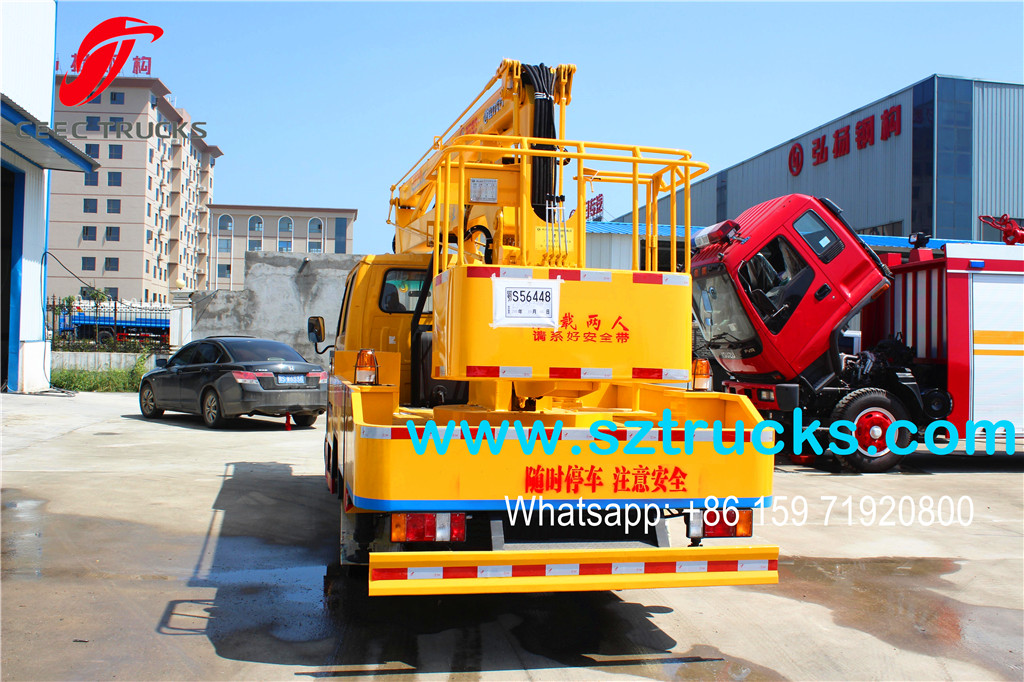

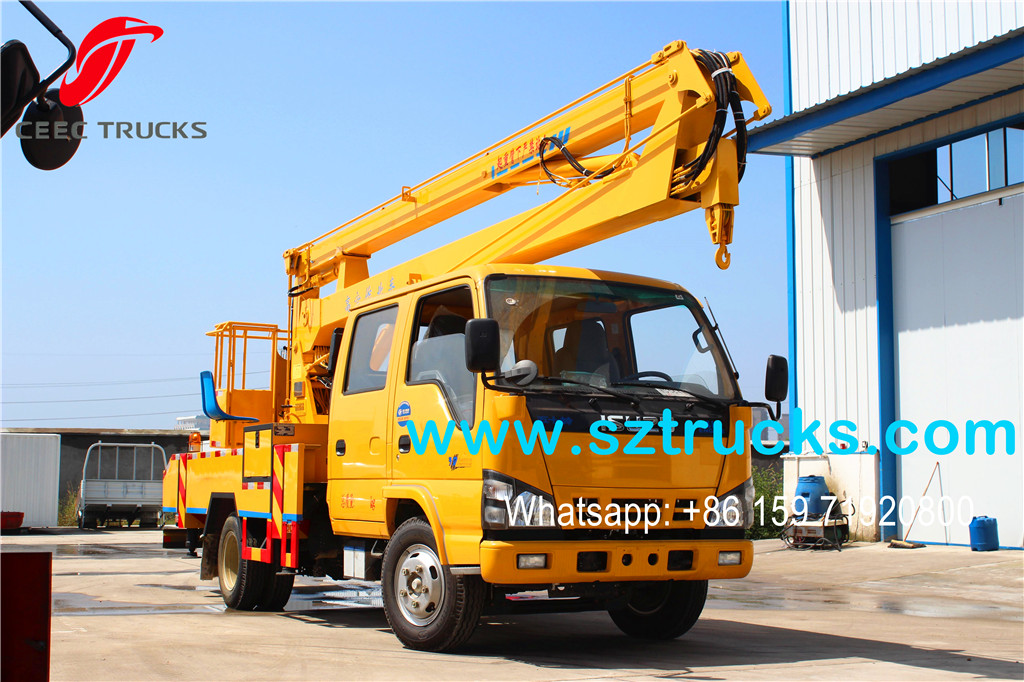

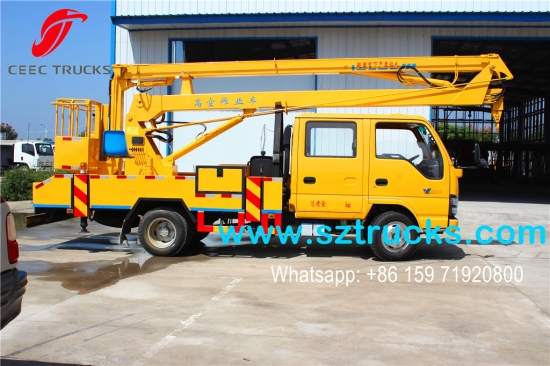

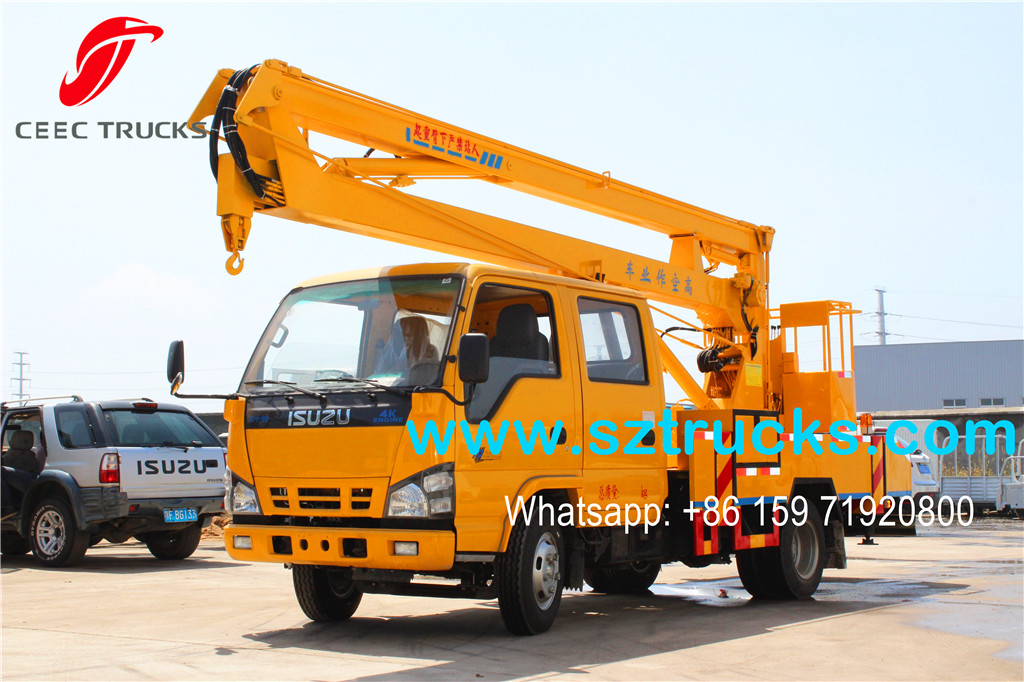

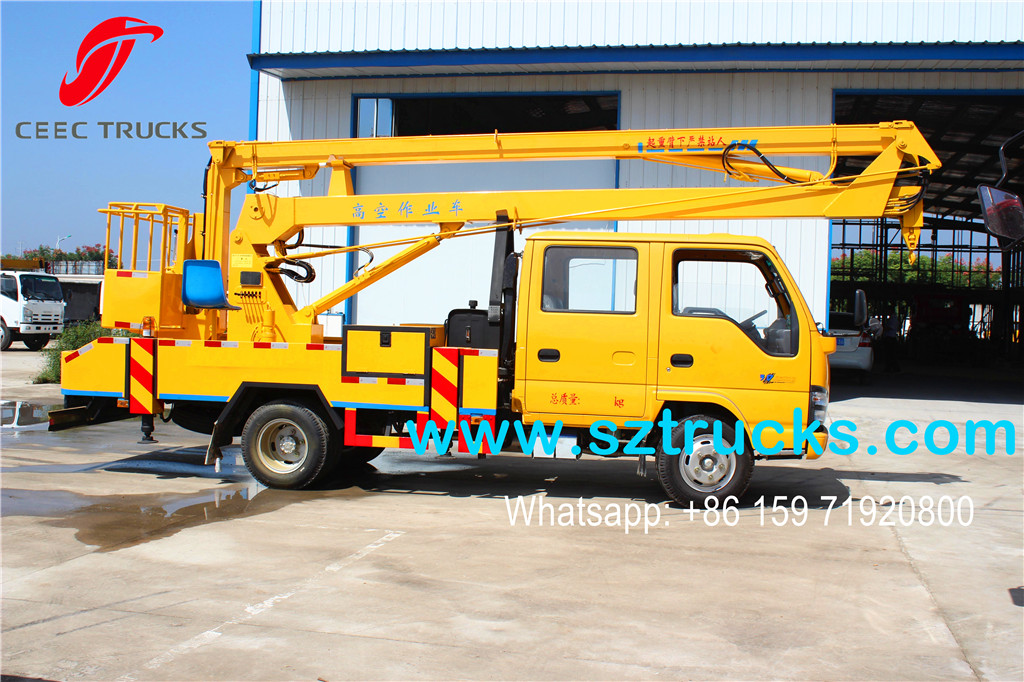

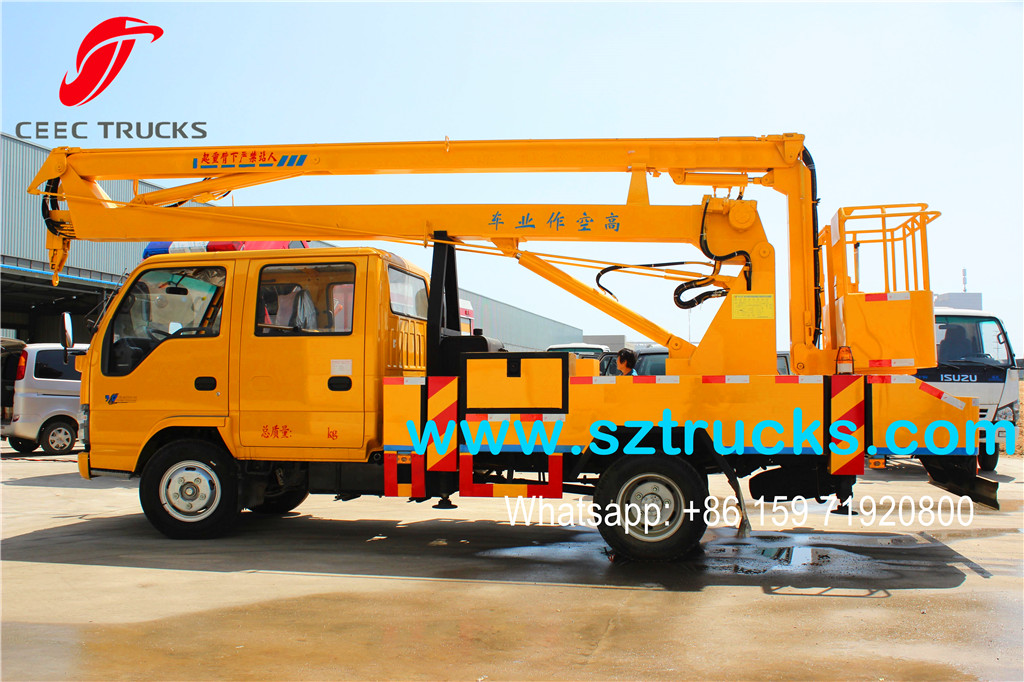

- The CEEC TRUCKS produced ISUZU aerial work platform truck has lowest overall height facilitates entering tunnels and underground parking lots.
- Uni-body frame with high stiffness minimizes twist of chassis.
- Digitalization of RPM accelerator results quicker operation.

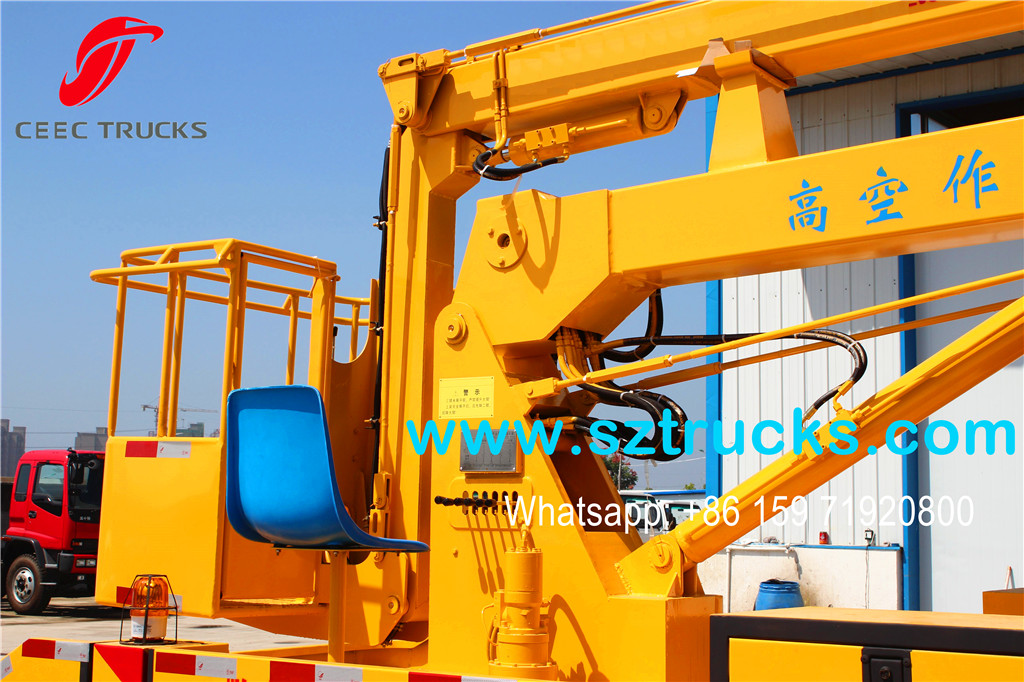

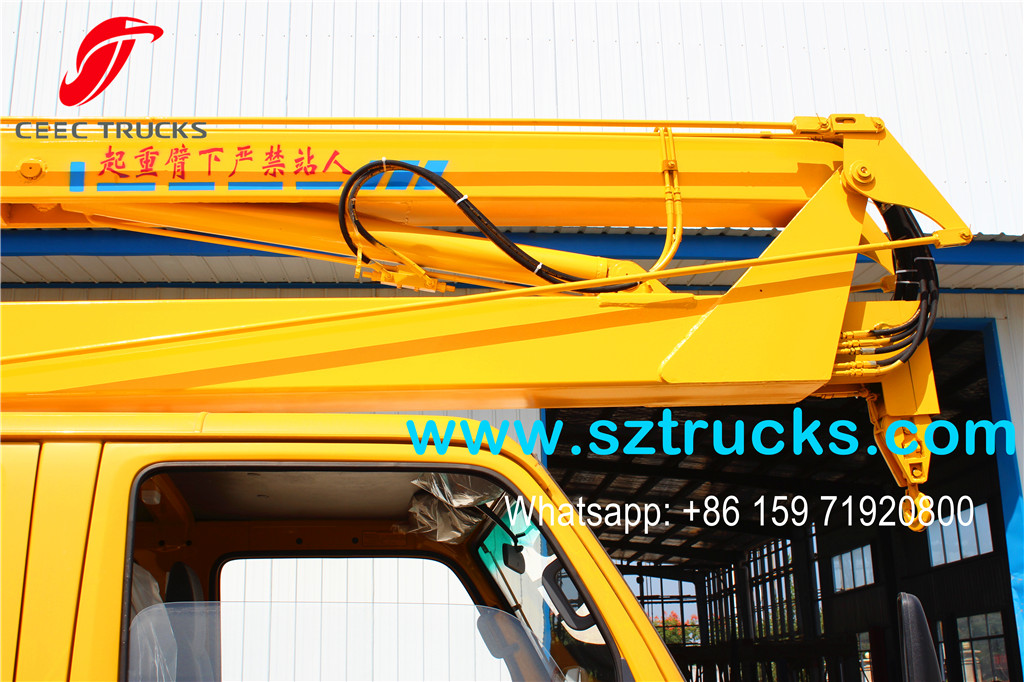

- Double derrick cylinder gives excellentlifting capacity.
- Double boom slewing hydraulic reductionminimizes boom's wobble when the boom rotates.
- PLVC system and CAN communication/networkcontrol system enable superior quality of fine movement.
- High end exterior aluminum checker platesare attached on the relevant parts.
- Rubber dampers are installed on the boomrest for the protection of the derrick cylinder.
|
UNIT |
PARAMETER |
||
|
Vehicle model |
|
CEEC5090JGK Aerial Platform Truck |
|
|
Chassis model |
|
QL1090 |
|
|
Overall dimensions |
mm |
7800×2180×3210 |
|
|
Fact loading |
kg |
200 |
|
|
Mass in working order |
kg |
Appro×4000 |
|
|
Body internal dimensions |
mm |
/ |
|
|
Wheel base |
3360 |
||
|
F/R track base |
1506/1404 |
||
|
Approach/departure angle |
° |
19/11 |
|
|
Exhaust/kw |
ml/kw |
2999/88 |
|
|
Max speed |
km/h |
105 |
|
|
Tire specification |
7.00-16 |
Engine type |
4KH1-TCG40 |
|
Traction system |
4×2 |
transmission |
MSB 5-speed Manual |
|
Number of axles |
2 |
Electric system |
24v |
|

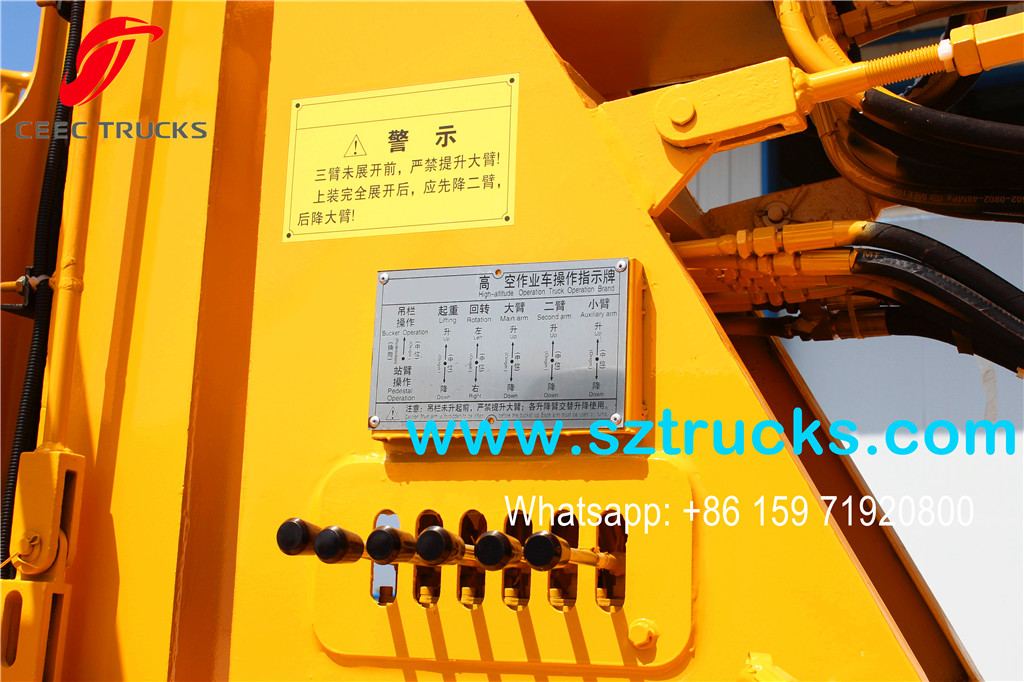

Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
2+3 |
|
Equipment |
max operation height:14m,max operation radius:5.7m,max working platform height:11.5m, working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension:1100*570*1000mm,360°turning(left or right),4 H-shape legs for optional |
||
|
Engine |
ISUZU brand diesel engine |
||
|
Production cycle |
15-20 days |
||
|
Warranty |
12 month, from the date of supply |
||
