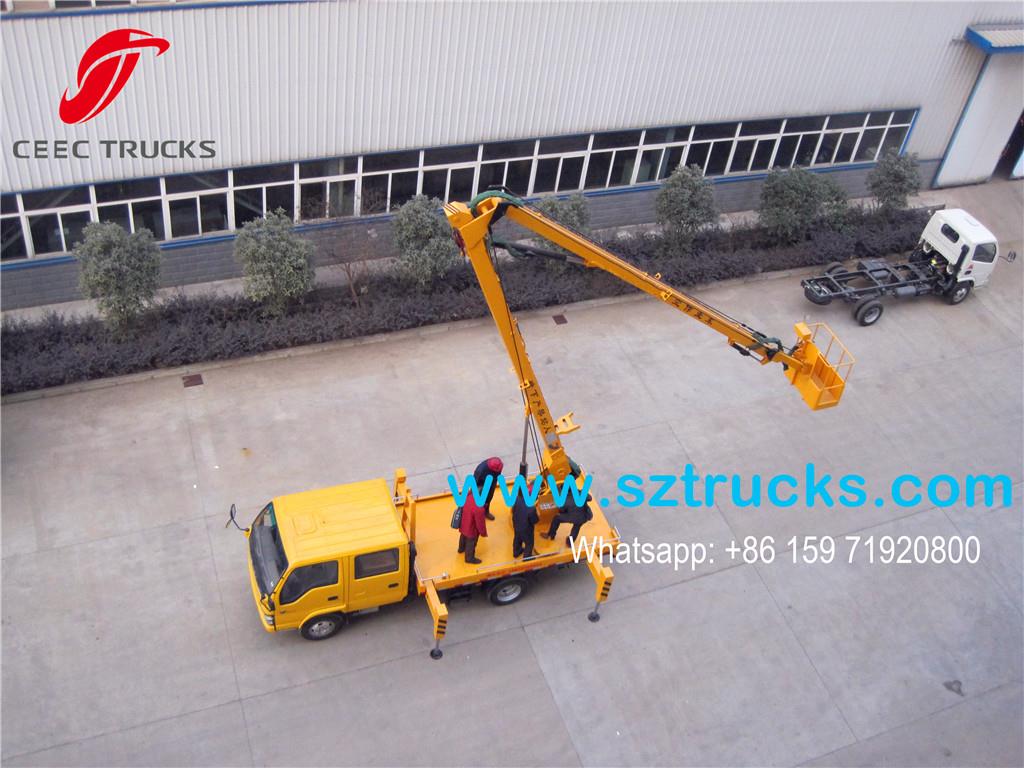

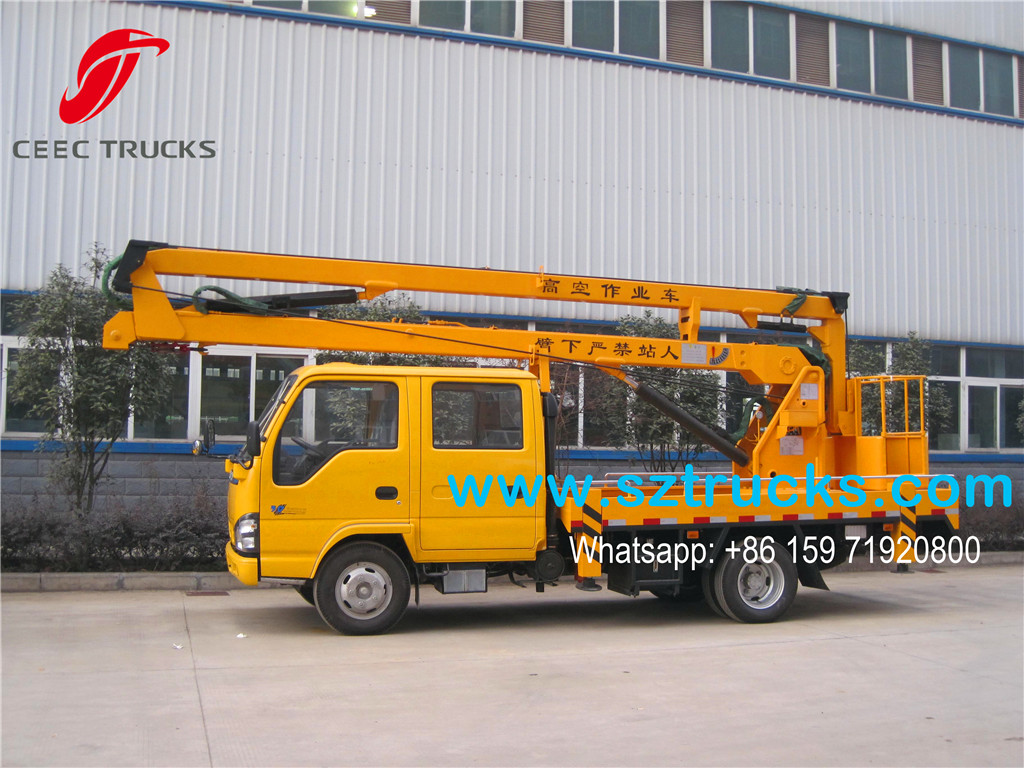

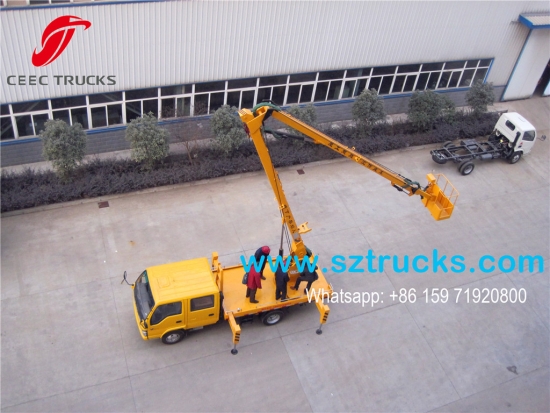

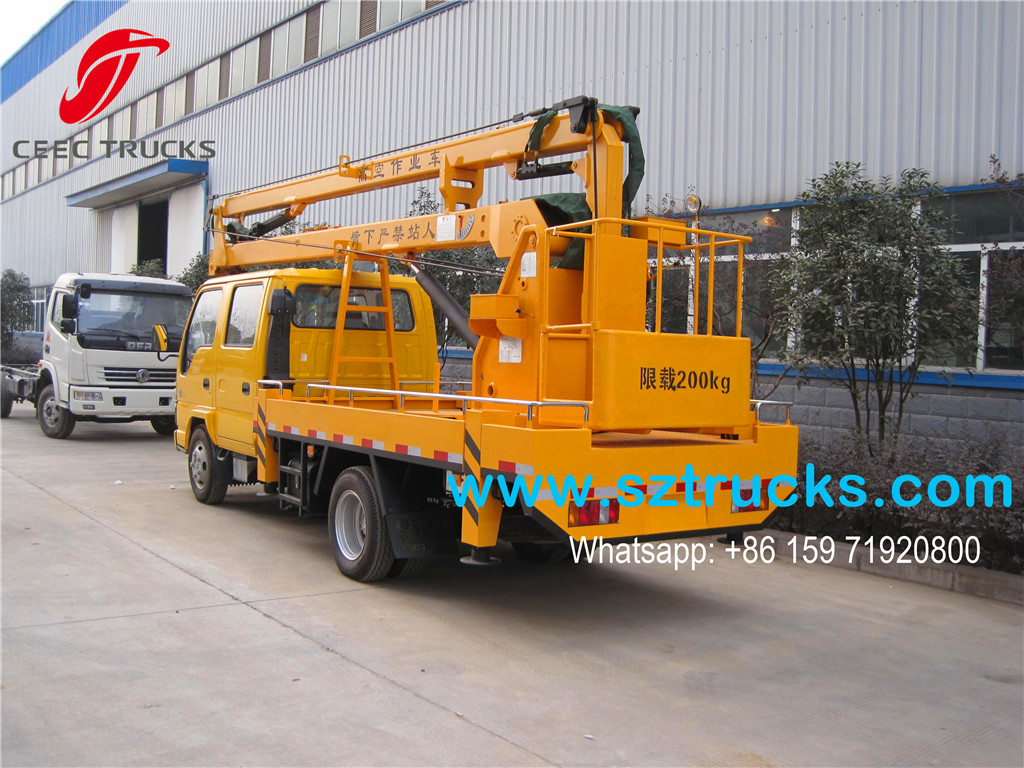

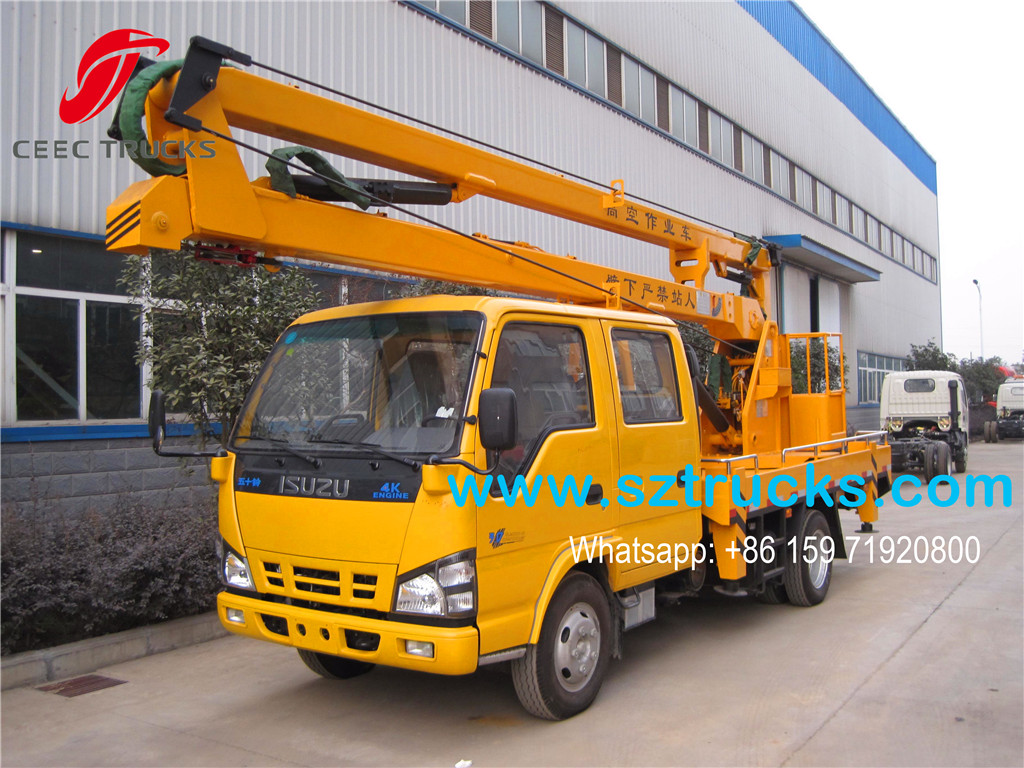

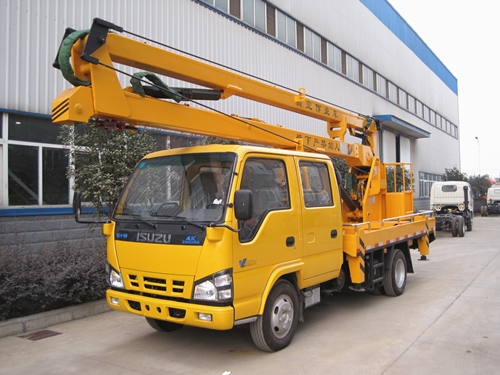

ISUZU 16m High Altitude Working Platform Truck for testing:

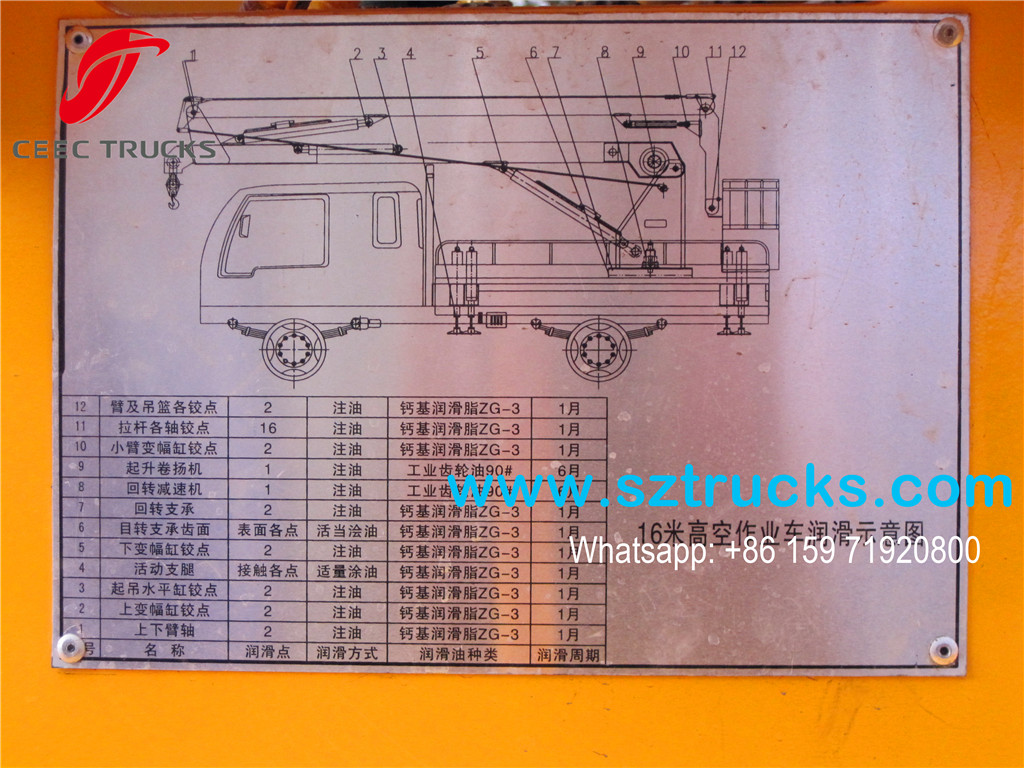

Below show Chinese version Lubrication Point for ISUZU 16m High Altitude Working Platform Truck, also we can provide English version panel for all export trucks:
The Aerial Work Platform is a truck used to do lifting work in applications requiringwork high above the ground, such as power system, advertisements, photography,telecom telecommunications, parks, transportation, ports, and more.
Applications of Aerial Work Platform:
Theaerial work platform is a truck used to do lifting work in applications requiringwork high above the ground, such as power system, advertisements, photography,telecom telecommunications, parks, transportation, ports, and more.
Features of Aerial Work Platform:
1.The chassis is manufactured by some famous companies, such as Dongfeng, ISUZU, HINO, FAW, Beiben, SINOTRUK, CAMC, JAC, JMC, etc.
2.The aerial truck lift is designed with four hydro cylinders and manual accelerator.
3.Equipped with four H-shaped outriggers, our aerial truck lift can operate steadily.
4.It can complete a 360° spin.
5.Lifting hook is optional. Our aerial truck lift can lift up materials whose weight is in the range of 1 to 1.5t.
6.The cab is designed with two rows of seats. It can hold five or six persons init.
As the leading aerial work platform truck manufacturer located in China, CEEC TRUCKS INDUSTRY CO., LIMITED constantly strives for providing a variety of sweepertrucks, water trucks, truck mounted cranes, fire trucks, etc., to our global customers.
Due to reliable quality and affordable prices, our CCC certified products are widely exported to Vietnam, Laos, Cambodia, Kazakhstan, Uzbekistan, NorthKorea, Nepal, Mali, Egypt, Libya, Nigeria, Indonesia, Mongolia, Algeria,Tajikistan, Sudan, etc.
UNIT |
PARAMETER |
||
Vehicle model |
|
CEEC5090JGK Aerial Platform Truck |
|
Chassis model |
|
QL1090 |
|
Overall dimensions |
mm |
7850×2200×3250 |
|
Fact loading |
kg |
200 |
|
Mass in working order |
kg |
Appro×4000 |
|
Body internal dimensions |
mm |
/ |
|
Wheel base |
3360 |
||
F/R track base |
1506/1404 |
||
Approach/departure angle |
° |
19/11 |
|
Exhaust/kw |
ml/kw |
2999/88 |
|
Max speed |
km/h |
105 |
|
Tire specification |
7.00-16 |
Engine type |
4KH1-TCG40 |
Traction system |
4×2 |
transmission |
MSB 5-speed Manual |
Number of axles |
2 |
Electric system |
24v |
Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
2+3 |
Equipment |
max operation height:14m,max operation radius:5.7m,max working platform height:11.5m, working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension:1100*570*1000mm,360°turning(left or right),4 H-shape legs for optional |
||
Engine |
ISUZU brand diesel engine |
||
Production cycle |
15-20 days |
||
Warranty |
12 month, from the date of supply |
