Function:

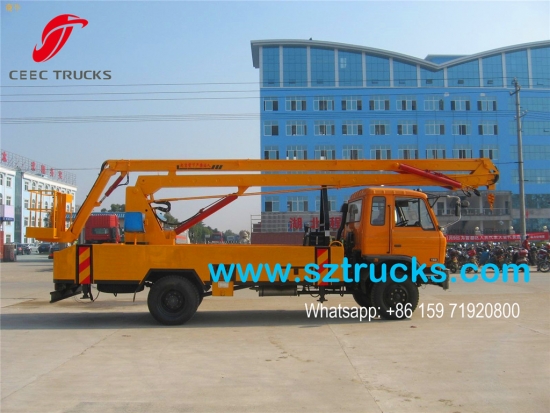

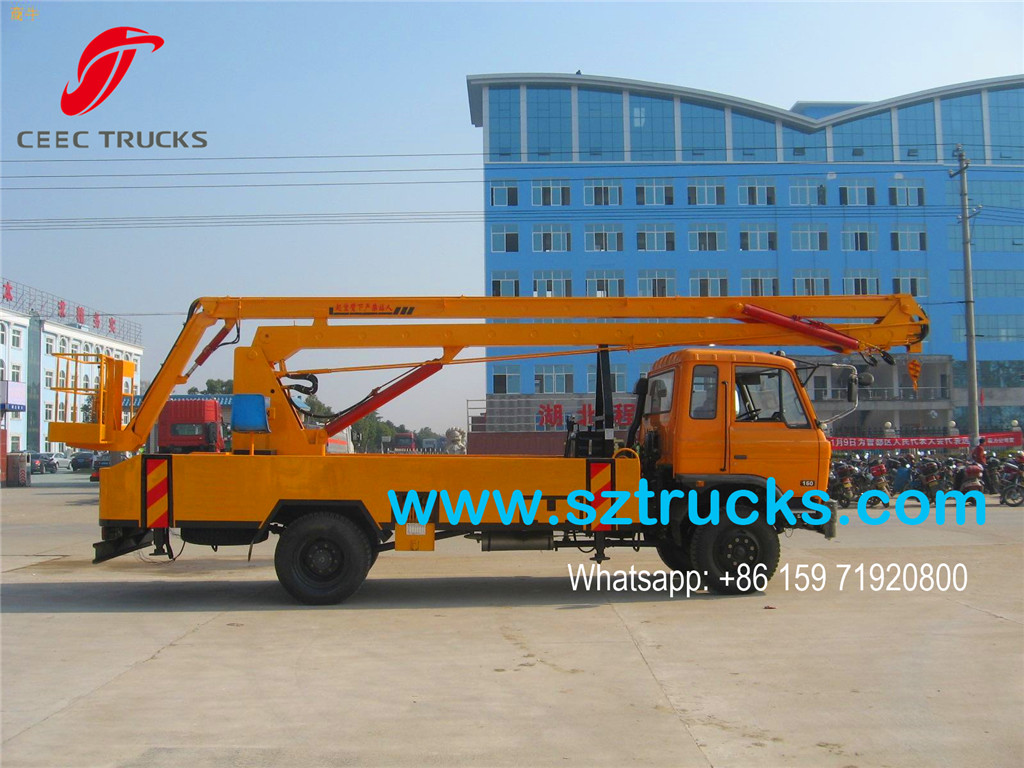

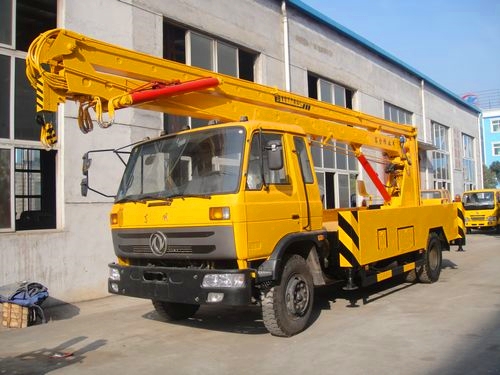

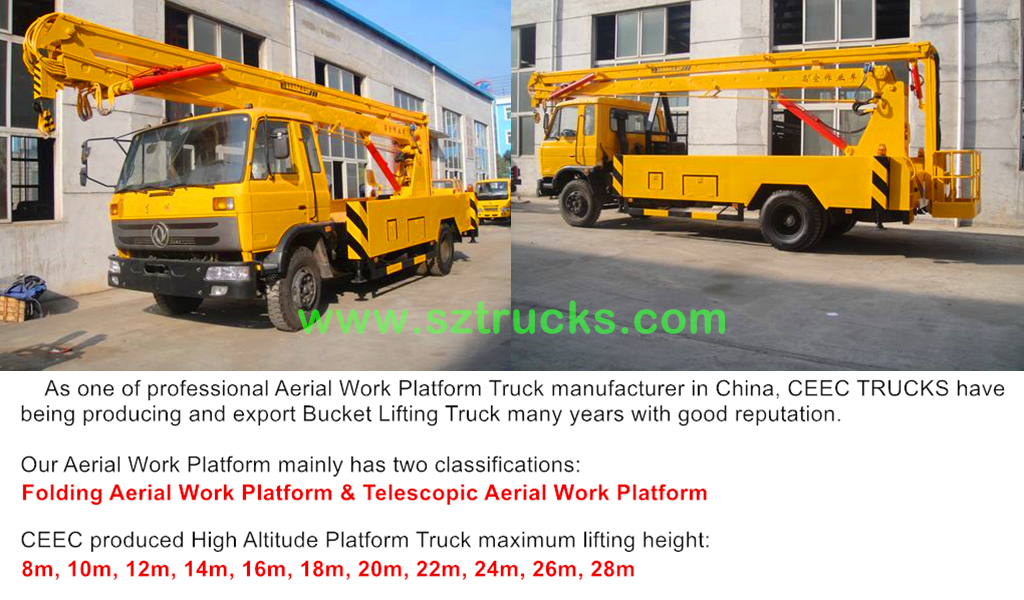

Aerial Work Platforms (also called basket crane truck, truck mounted aerial lift truck, hydraulic aerial platform, bucket lift truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning & setting signboard and other high aerial works.
Features:
---- The working bucket can be made of steel structure or reinforced fiberglass, with maximum loading capacity can be up to 200kg.
---- DONGFENG 4500mm wheelbase special designed chassis ensures perfect driving performance.
---- Famous & Durable CUMMINS B190 33 engine with 190HP, super powerful; reliable performance, no overhaul within100,000 km.
---- Nice shape and rational structure, with more than 4 level paintings, any logos is applicable to satisfy our customer requirement
---- Massive, durable, long service life.
| Truck Model |
Chassis Model |
EQ1160 |
|
| GVW (kg) |
16000 |
Mass in working order (kg) |
8500 |
| Max speed (Km/h) |
90 |
||
| Chassis Description |
|||
| Cab |
DONGFENG (DFAC) |
||
| Allowable Passengers In Cab |
2/3 |
Air conditioner |
Installed |
| Wheel base(mm) |
4500 |
Number of axles |
2 |
| F/R track base(mm) |
1385/1425 |
F/R overhang(mm) |
1015/2025 |
| Approach/Departure angle(°) |
27/11 |
Spring plate |
7/5+5 |
| F/R axle-load |
5000kg / 10000kg |
Type of fuel |
Diesel |
| Tire specification |
7.00-16 |
Tire quantity |
6+1 Spare tire |
| Traction system |
4*2 |
Operation control system |
Steering Wheel |
| Braking system |
Air Braking |
Electric system |
24V |
| Engine Description |
|||
| Engine model |
B190 33 |
Emission standard |
Euro 3 |
| Exhaust/output |
5900ml |
Horse power |
190HP |
| Engine Manufacturer |
CUMMINS |
||
| Special Parts Description |
|||
| Main description |

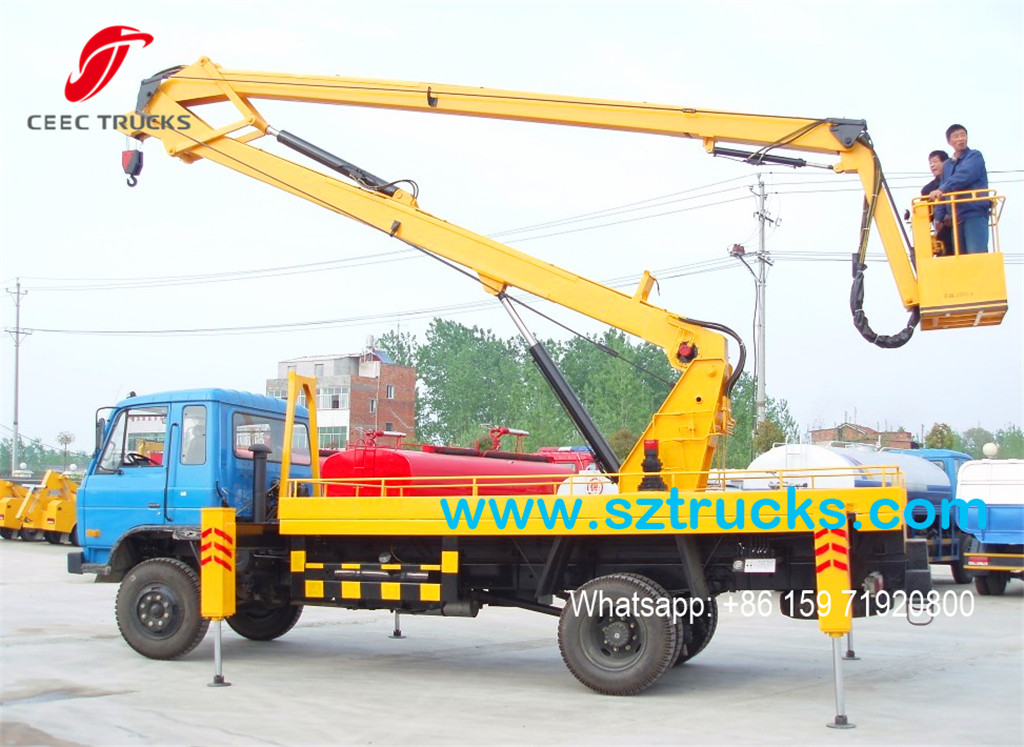

Max operation height: MIN 20m, Max operation radius MIN.9.2 m, Max working platform height MIN.19.5m, Working platform rating loading=200kg, Working platform rating allowable passengers: 2 or 3 Working platform equipped with insulated material, with 360°turning (left or right), 4 H-shape legs. 0.5-1.5 ton crane are for optional, |
||
