The 17m Aerial Working Platform is special produced for export. Below show details English Version name plate:
Function:

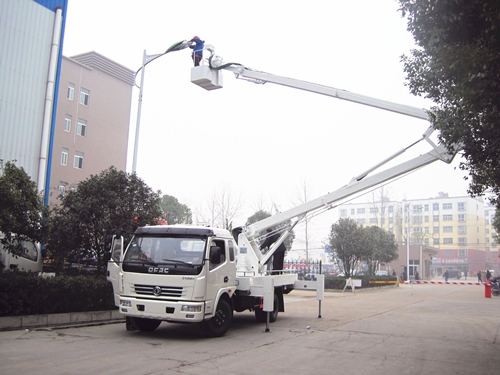

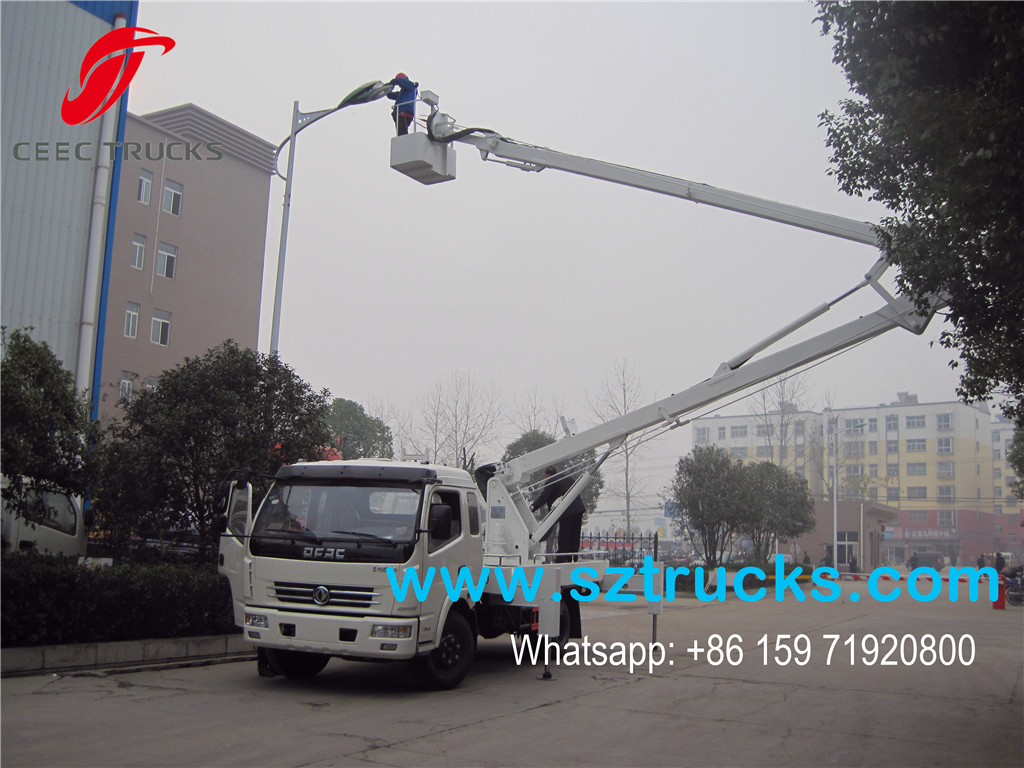

Aerial Work Platforms (also called basket crane truck, truck mounted aerial lift truck, hydraulic aerial platform, bucket lift truck) is ideal for maintenance of traffic lights, street lights, landscapingtrees, cleaning & setting signboard and other high aerial works.
Features:
---- The working bucket can be made of steel structure or reinforced fiberglass (depend on customer requirement).
---- DONGFENG 3800mm wheelbase chassis and 6+1units 8.25-16 tire can ensure perfect driving performance.
---- Famous & Durable CHAOCHAI CY4102-E3C engine with 120HP, super
powerful; reliable performance, no overhaul within100,000 km.
---- Nice shape and rational structure, with more than 4 level
paintings, any logos is applicable to satisfy our customer requirement
---- 4H hydraulic lifting leg can provide easy and satefy operation

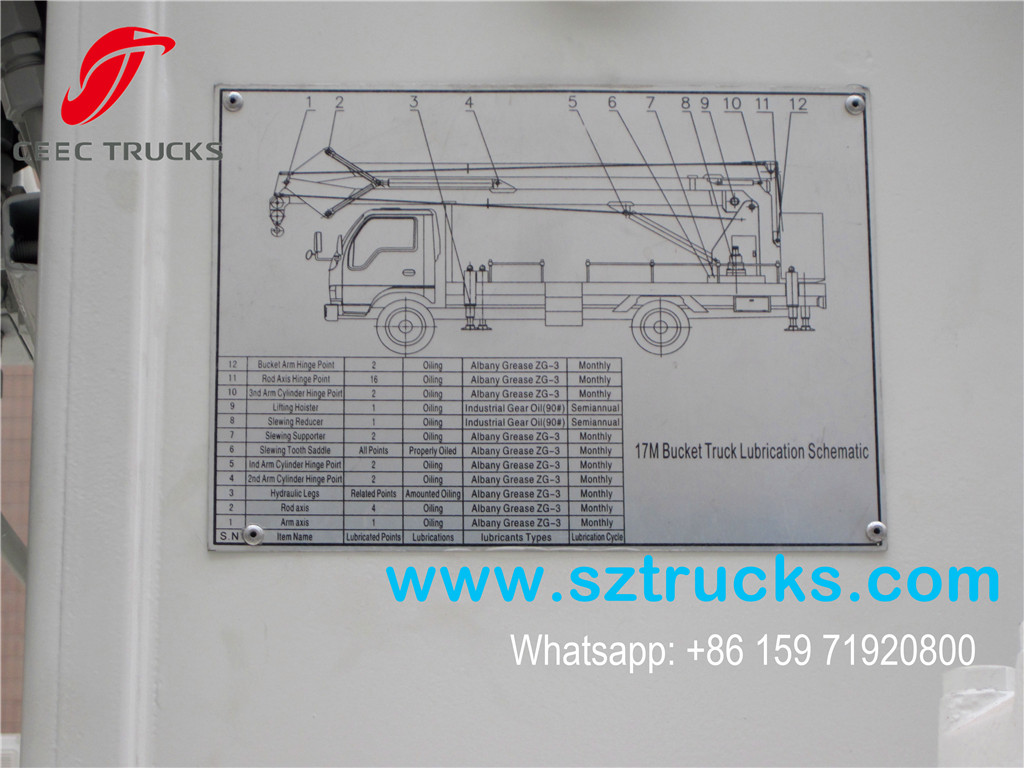

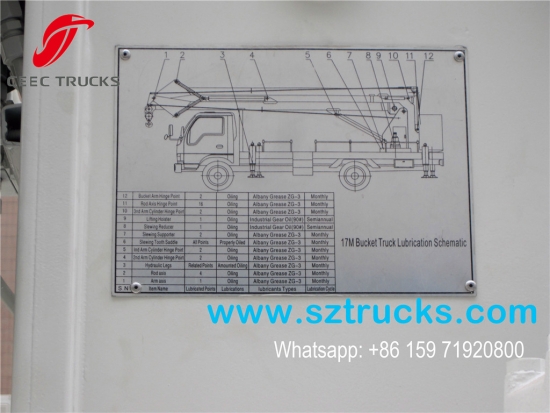

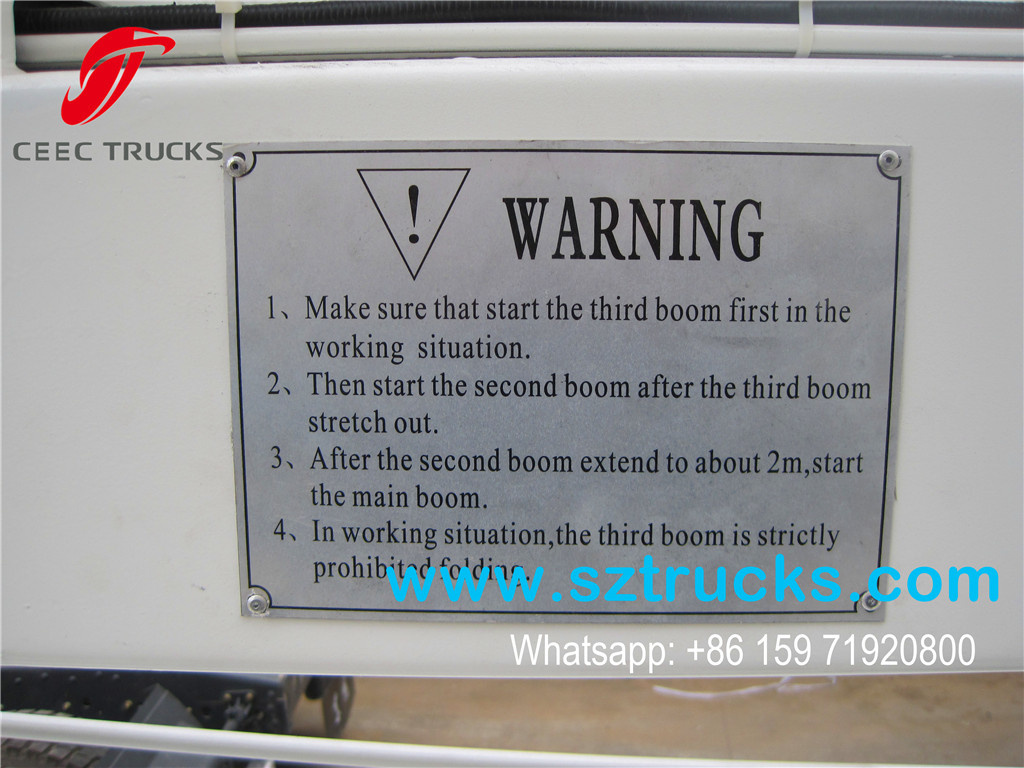

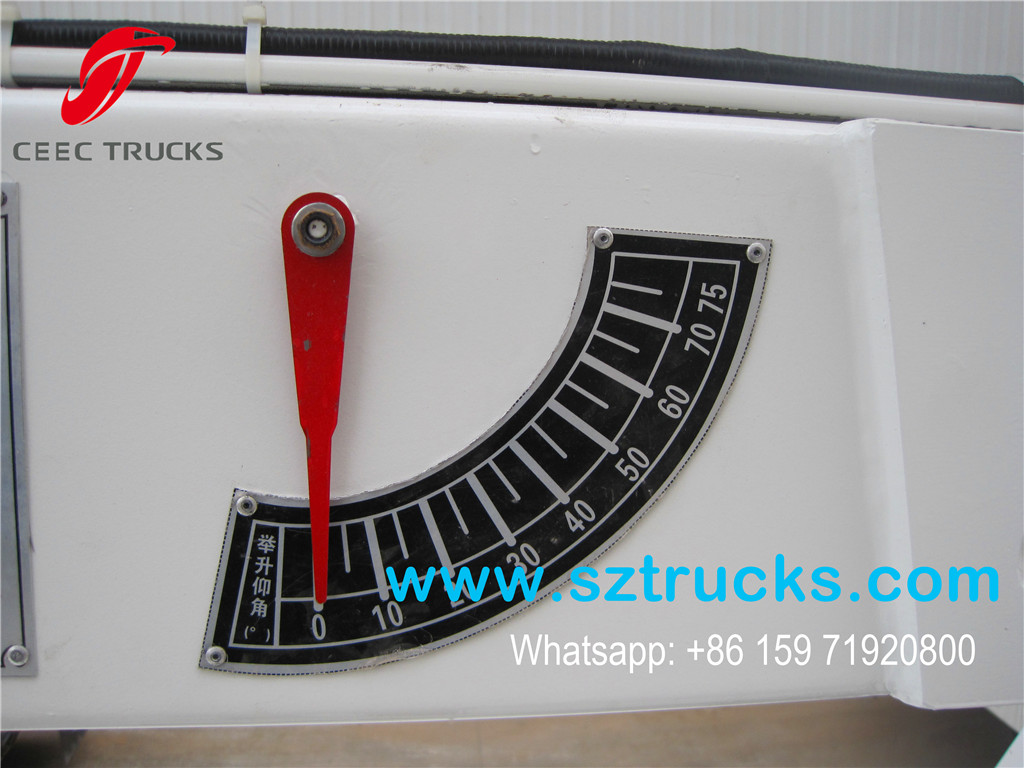

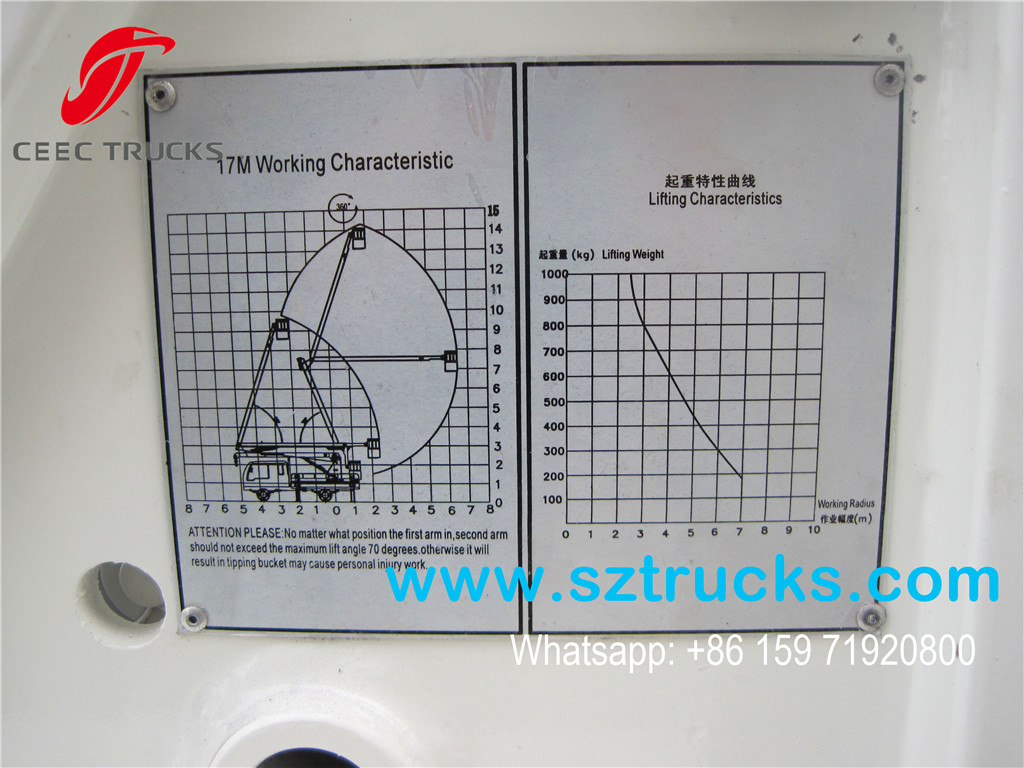

---- All name plate including Operation Joysticks plate, Warning plate, Working Charicteristic plate, etc are all English Version

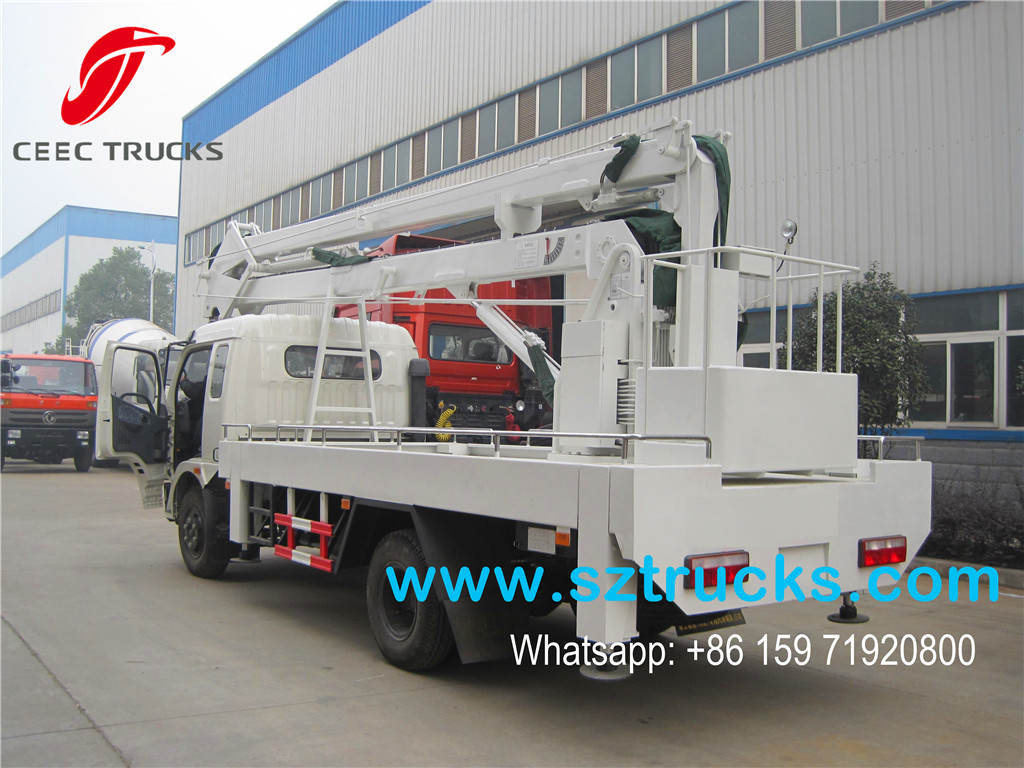

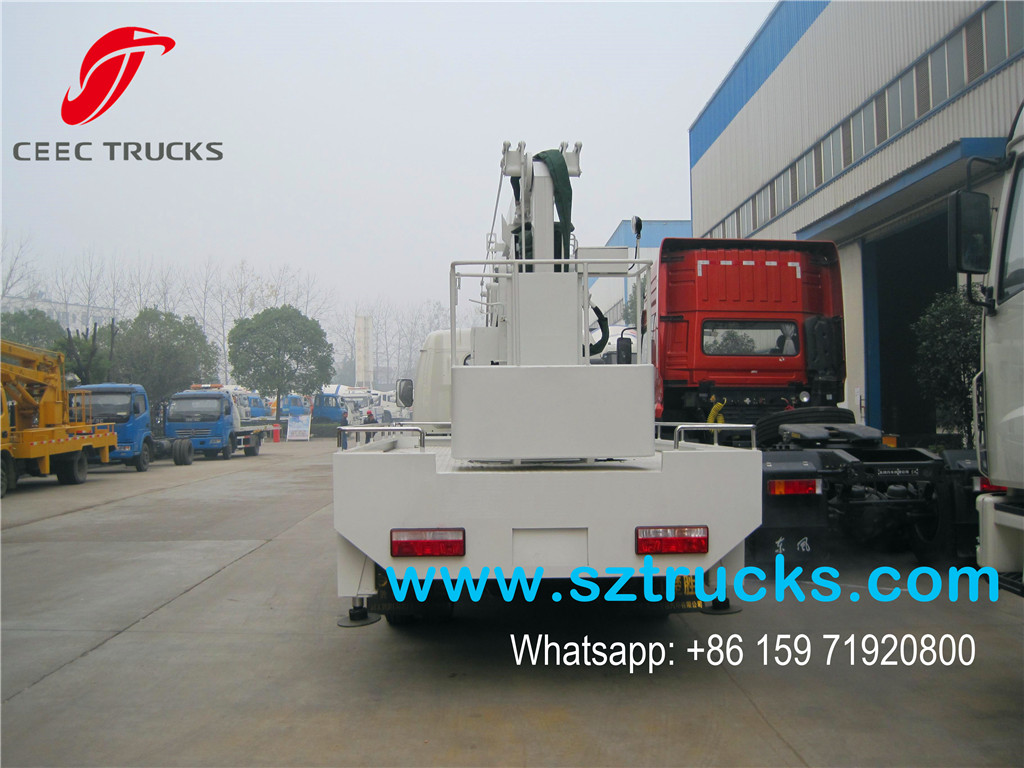

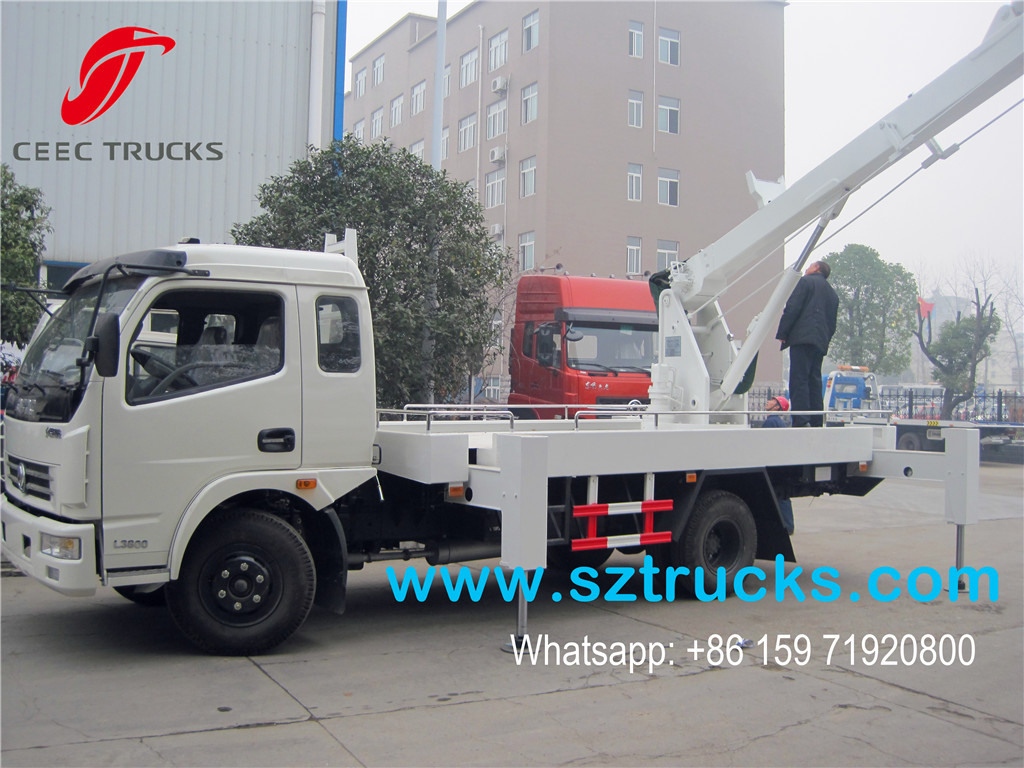

Folding Type Aerial Work Platforms (17M) CEEC5106JGK |
||
| General |
Vehicle Brand |
CEEC TRUCKS |
| Chassis Brand |
DONGFENG (DFAC) |
|
| Overall Dimension |
7840 * 2200 * 3150 mm |
|
| GVW / Kerb Weight |
8,400 kg / 6,675 kg |
|
| Cab |
Cab Capacity |
2 persons allowed (2+3 are optional) |
| Air Conditioner |
Installed air conditioner |
|
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
CHAOCHAI CY4102-C3F |
|
| Power |
120 Ps (88 KW) |
|
| Displacement |
3856 ml |
|
| Emission Standard |
Euro III |
|
| Chassis |
Drive Type |
4X2, LHD / RHD |
| Transmission |
5-shift manual gearbox, no overhaul within 100,000km |
|
| Wheelbase/No. of axle |
3800 mm / 2 |
|
| Tyre Specification |
8.25-16 |
|
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
95 km/h |
|
| Paint |
Metallic paint |
|
| Super Structure |
Working Cage |
200 kg capacity, anti-slip floor |
| Working Height |
17m |
|
| Slewing |
360° continuous rotation with base turntable |
|
| Control |

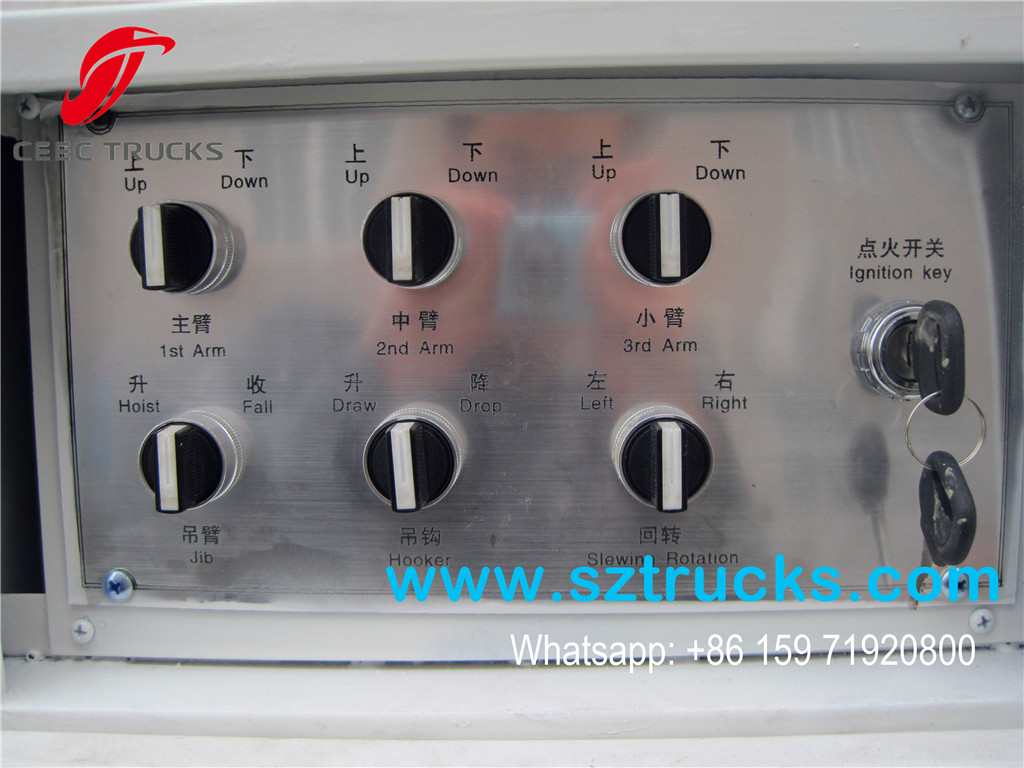

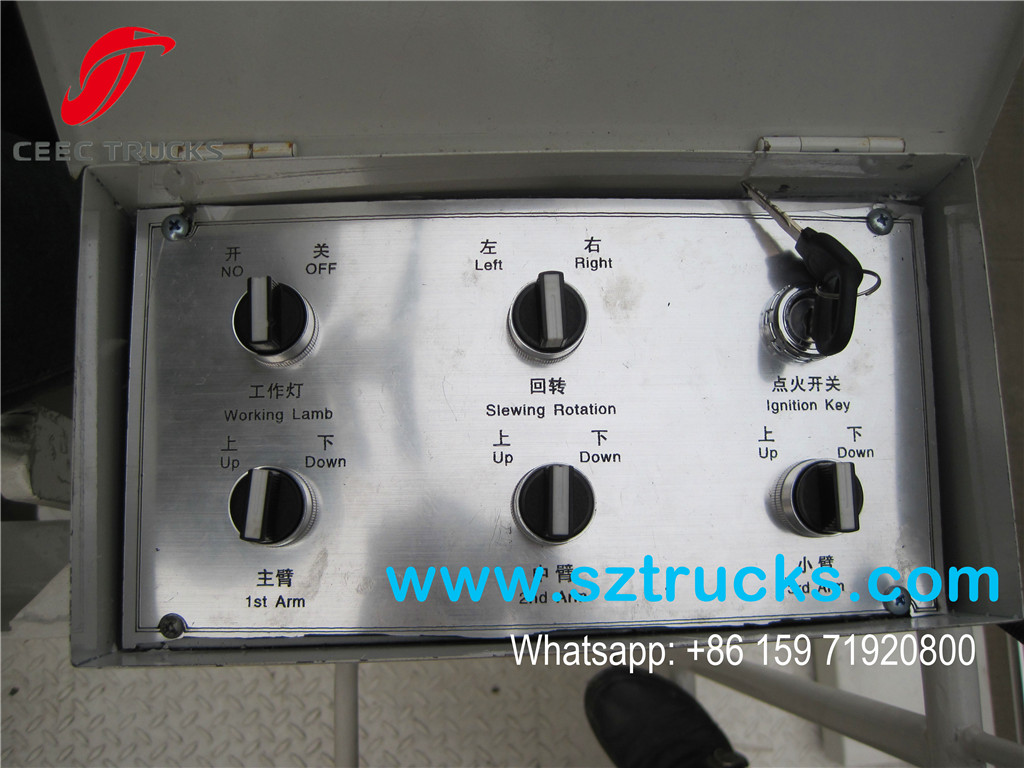

Control both on the ground and in the cage |
|
| Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure. |
||
| Emergency stop switches at base and operator’s cage. |
||
| Optional |
** Hoist hook with cables can be equipped for the function of a crane. |
|
