Previous for the Middle East customer buying ISUZU 18m Aerial Working Platform:

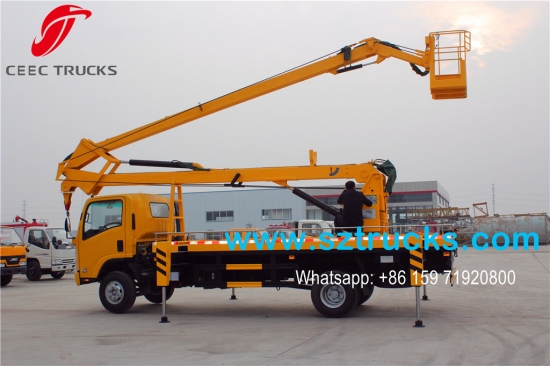

ISUZU 18m Aerial Working Platform for testing before shippment to Middle East country:

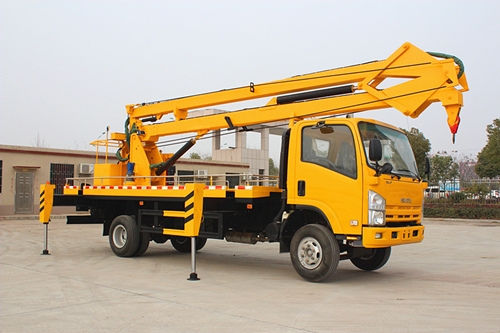

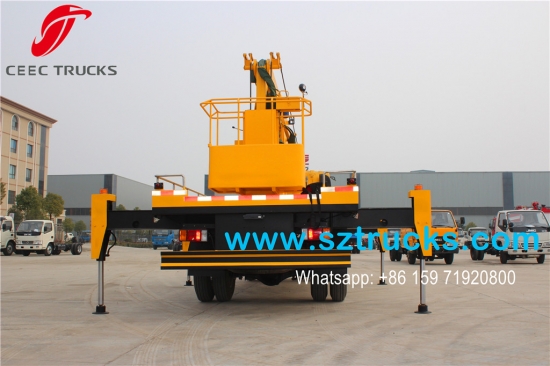

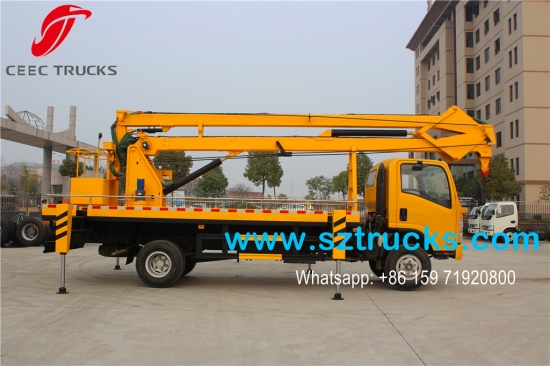

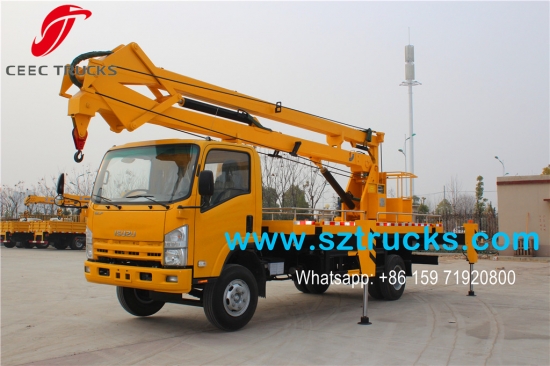

ISUZU 18m Aerial Working Platform Detail parts showing as below:
The Aerial Work Platform is a truck used to do lifting work in applications requiringwork high above the ground, such as power system, advertisements, photography,telecom telecommunications, parks, transportation, ports, and more.
Applications of Aerial Work Platform:
The ISUZU aerial work platform is a truck used to do lifting work in applications requiringwork high above the ground, such as power system, advertisements, photography,telecom telecommunications, parks, transportation, ports, and more.
Features of Aerial Work Platform:
1.The chassis is manufactured by some famous companies, such as Dongfeng, ISUZU, HINO, FAW, Beiben, SINOTRUK, CAMC, JAC, JMC, etc.
2.The aerial truck lift is designed with four hydro cylinders and manual accelerator.
3.Equipped with four H-shaped outriggers, our aerial truck lift can operate steadily.
4.It can complete a 360° spin.
5.Lifting hook is optional. Our aerial truck lift can lift up materials whose weight is in the range of 1 to 1.5t.
6.The cab is designed with two rows of seats. It can hold five or six persons init.
As the leading aerial work platform truck manufacturer located in China, CEEC TRUCKS INDUSTRY CO., LIMITED constantly strives for providing a variety of garbage compactor trucks, road sweeper trucks, water tanker trucks, truck mounted cranes, fire trucks, etc., to our global customers.
Due to reliable quality and affordable prices, our CCC certified products are widely exported to Vietnam, Laos, Cambodia, Kazakhstan, Uzbekistan, NorthKorea, Nepal, Mali, Egypt, Libya, Nigeria, Indonesia, Mongolia, Algeria,Tajikistan, Sudan, etc.
Items |
Parameter |
||
Truck Model |
CEEC5110JGK |
||
Work Platform Parameter |
Outline Dimension (L*W*H) |
8400x2270x3450 |
|
Rated Load of Bucket |
200kg |
||
Max. Working Height |
18m |
||
Max. Working Radius |
8.5m |
||
Main Feature: 1. Electro-hydraulic proportional control, excellent micro-maneuvering performance 2. Control box at both turret and platform 3. Limit switch and alarm 4. Large outrigger span, outrigger can be operate individually 5. Emergency descent power 6. Safety interlock |
|||
Bucket Body |
Cargo Thickness |
Side |
4mm |
Floor |
5mm |
||
Chassis |
Recommend Chassis Brand |
ISUZU (Other brand for optional) |
|
Drive Mode |
4x2 |
||
Tire type |
7.50-16 tire |
||
Tire No. |
6+1 units |
||
Max speed |
105 km/h |
||
Cabin: 1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition installed 4. Single row and Double row for optional, 2 or 5 seats 1-DIN AM/FM CD/MP3 Player |
|||
Engine |
Power |
140 kw / 190hp |
|
Fuel type |
diesel |
||
Emission Standard |
Euro 4 |
||
Gearbox |
Control type |
ISUZU MLD 6-shift Manual Gearbox |
|
Gear |
6 forward & 1 reverse |
