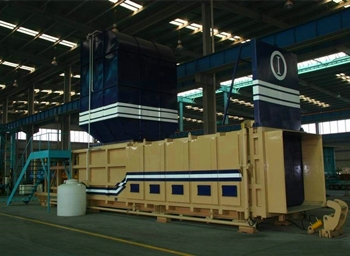

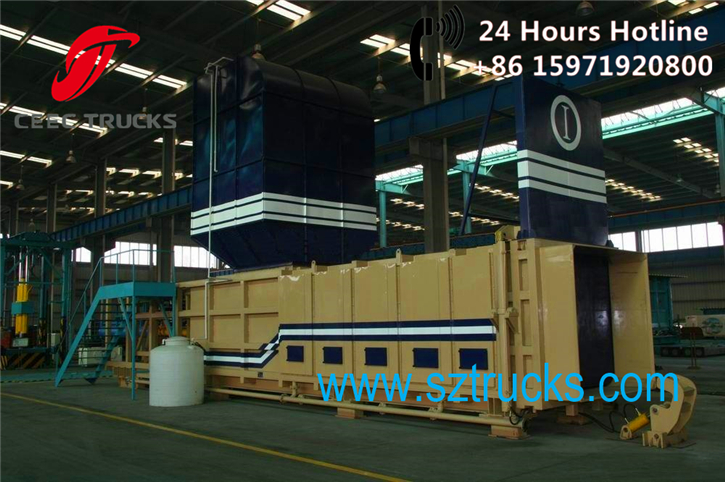

Horizontal Level Preloaded Garbage Transfer Stations HOT SALE

Brief Introduction:

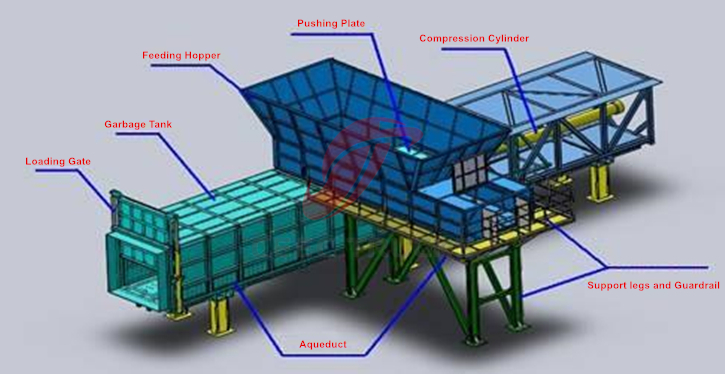

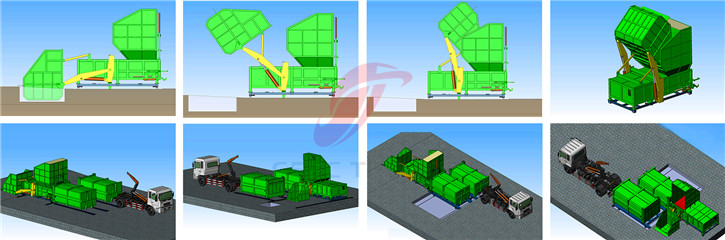

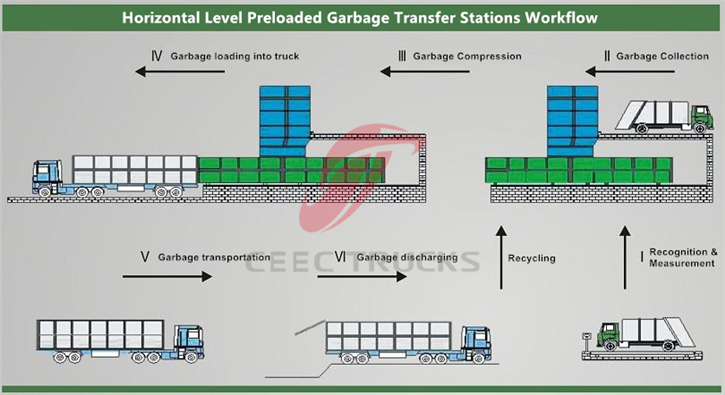

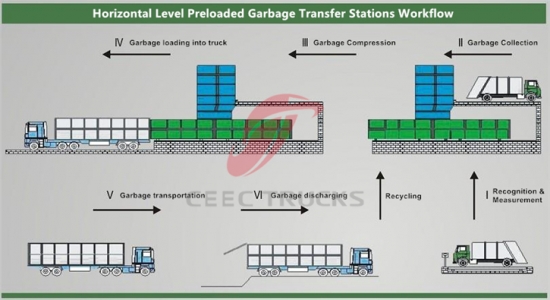

The device adopt straight horizontal pressure technology, garbage compression and storage sub-body design,with waste disposal equipment for compression of the waste volume reduction ofthe hydraulic integration of, and its single maximum daily processing capacityis 50 ∽ 300 tons, uploading way is side turnover type, rear turnoverand platform type, transport vehicles is carriage supporting detachable garbagetruck, it has advantage of varied structure, wide range of handling and highefficiency, its smaller products can be used for small urban sanitation systemsas a satellite site garbage collection, its larger product is used in large-scale,large-scale transfer stations.

Advanced Features:

1.    High efficiency:equipment hydraulic system with constant-power variable plunger pump, thedevice can effectively improve the operating speed and reduce energyconsumption;

2.    The same time, thecompressor can be designed for the host shift or displacement of the box model,the device can achieve a continuous work, waste disposal and high efficiency;

3.    Structural varietyand wide range of applications: modular equipment design, structural diversity,can be flexibly configured according to customer demand;

4.    Good overallstructural strength: product structure materials are selected and made of lotof 16Mn steel welded rectangular steel pipe and through the finite elementstress calculation, the product structure is strong and the main structure has10-year warranty;

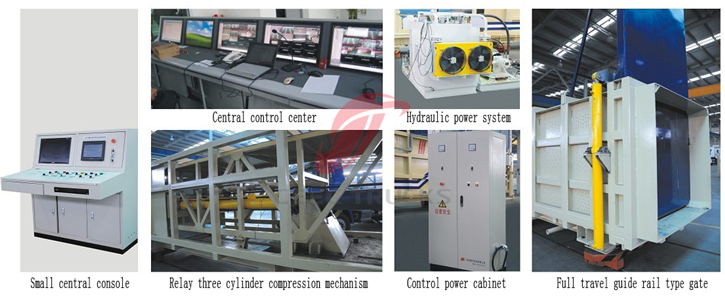

5.    Equipmentreliability: the use of the device compressed body and replaceable nylon wearplate steel piston design and smooth operation; the main electro-hydrauliccomponents are well-known brands, such as: YUKEN, Mitsubishi, Omron, Schneider,etc. product performance is reliable;

6.    Good anti-corrosion:All structural parts are after blasting, blasting, spraying paint adopt theDutch Nobel internationally renowned brands, or COSCO Kansai Companies heavyprotective anticorrosive marine paint.
