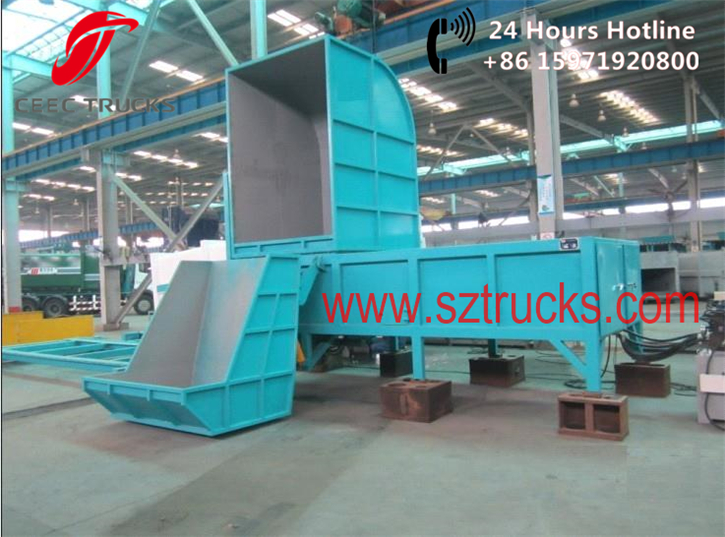

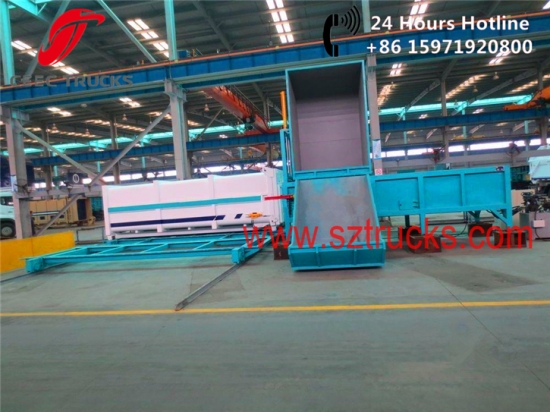

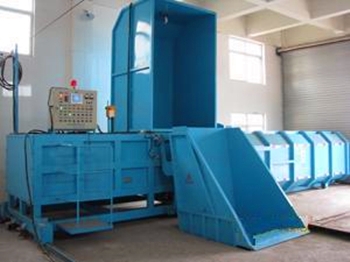

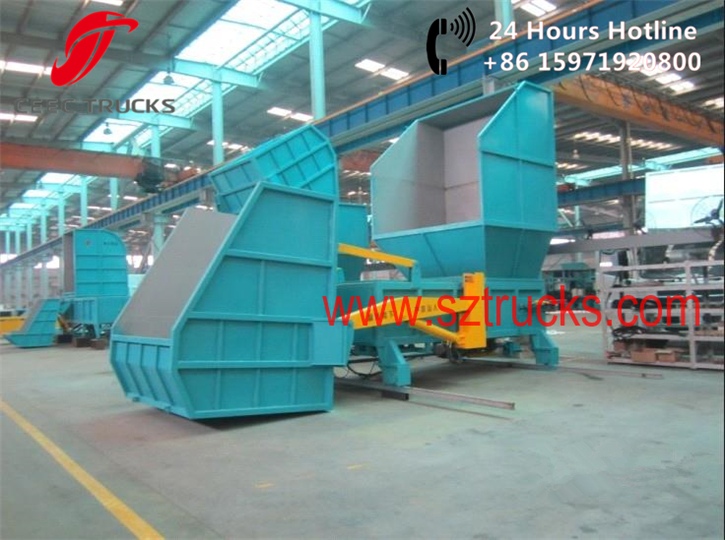

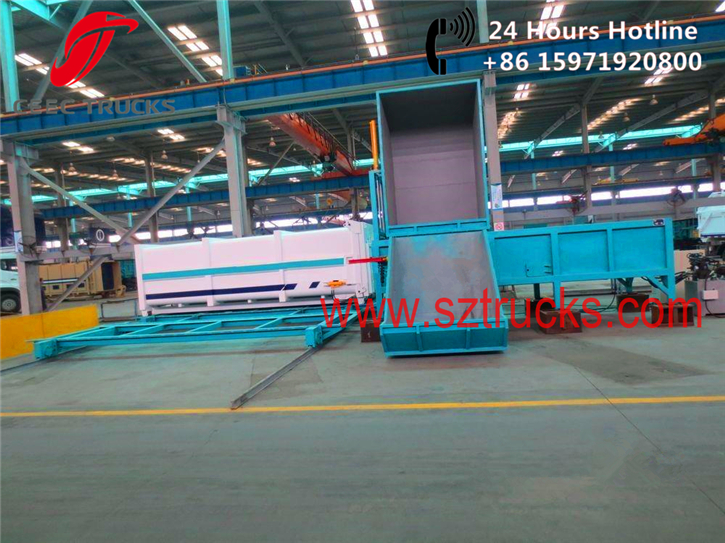

Good horizontal level direct pressure transfer stations

Brief Introduction:

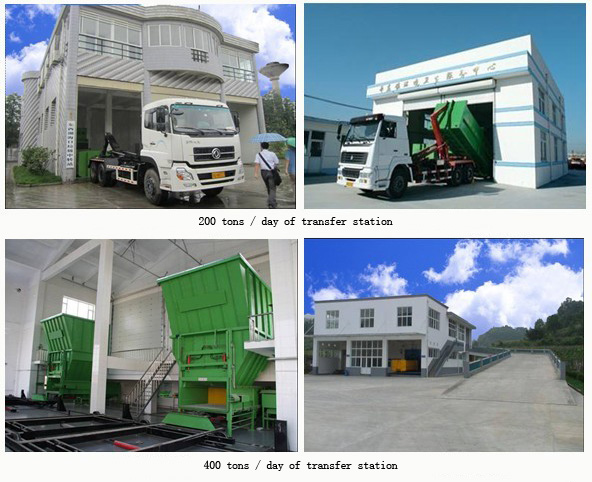

The device adopt straighthorizontal pressure technology, garbage compression and storage sub-bodydesign, with waste disposal equipment for compression of the waste volumereduction of the hydraulic integration of, and its single maximum dailyprocessing capacity is 50 ∽ 300 tons,uploading way is side turnover type, rear turnover and platform type, transportvehicles is carriage supporting detachable garbage truck, it has advantage ofvaried structure, wide range of handling and high efficiency, its smallerproducts can be used for small urban sanitation systems as a satellite sitegarbage collection, its larger product is used in large-scale, large-scaletransfer station.

Advanced Features:

1.    High efficiency:equipment hydraulic system with constant-power variable plunger pump, thedevice can effectively improve the operating speed and reduce energyconsumption;

2.    The same time, the compressor can be designed for the host shift or displacement ofthe box model, the device can achieve a continuous work, waste disposal andhigh efficiency;

3.    Structural variety and wide range of applications: modular equipment design, structural diversity, can be flexibly configured according to customer demand;

4.    Good overall structural strength:product structure materials are selected and made of lot of 16Mn steel welded rectangular steel pipe and through the finite element stress calculation, theproduct structure is strong and the main structure has 10-year warranty;

5.    Equipmentreliability:the use of the device compressed body and replaceable nylon wear plate steelpiston design and smooth operation; the main electro-hydraulic components arewell-known brands, such as: YUKEN, Mitsubishi, Omron, Schneider, etc. product performance is reliable;

6.      Good anti-corrosion:All structural parts are after blasting, blasting, spraying paint adopt the Dutch Nobel internationally renowned brands, or COSCO Kansai Companies heavyprotective anticorrosive marine paint.
