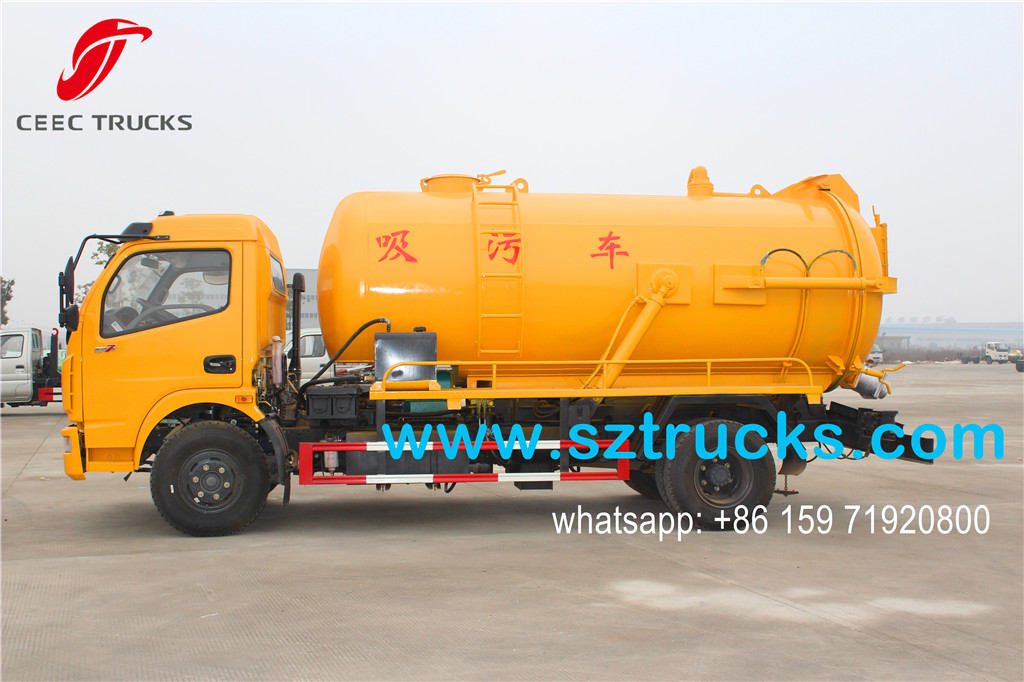

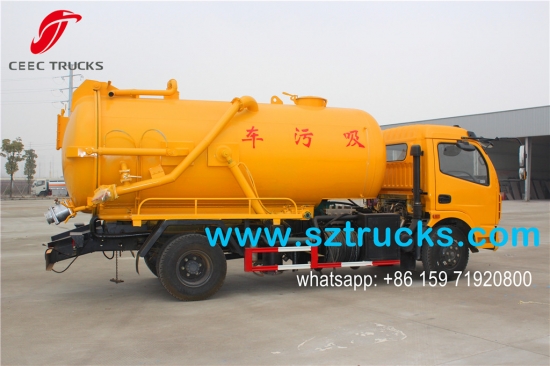

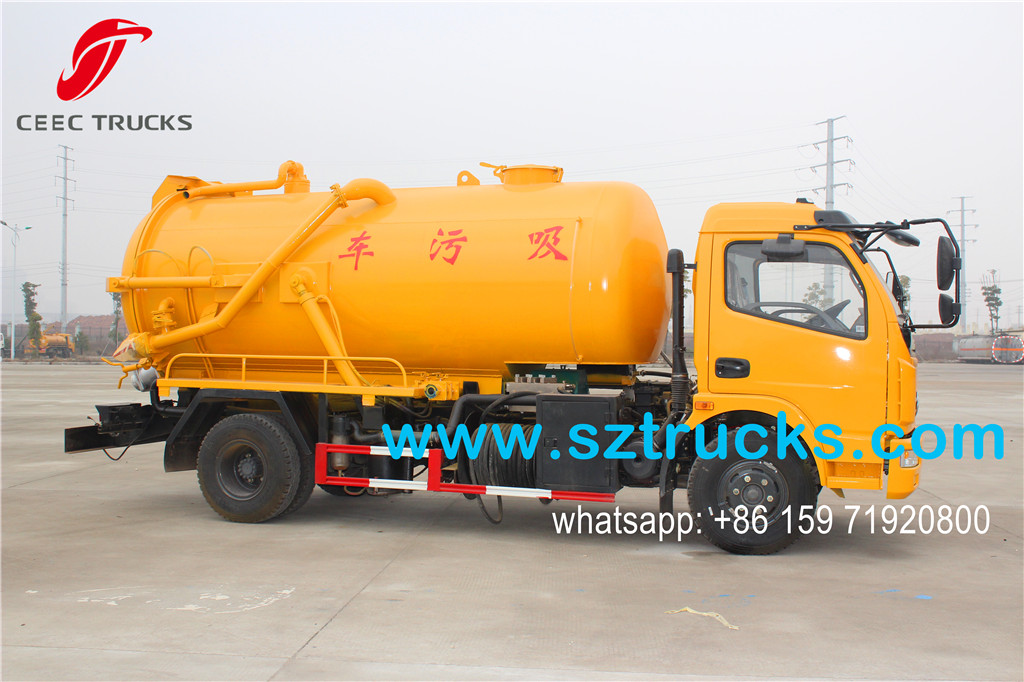

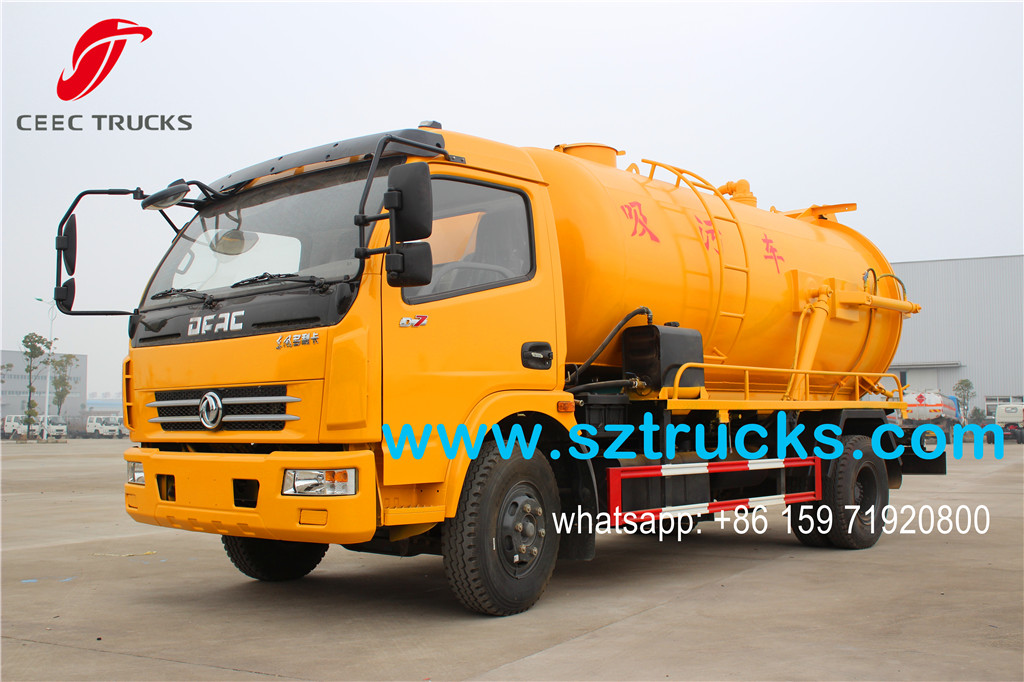

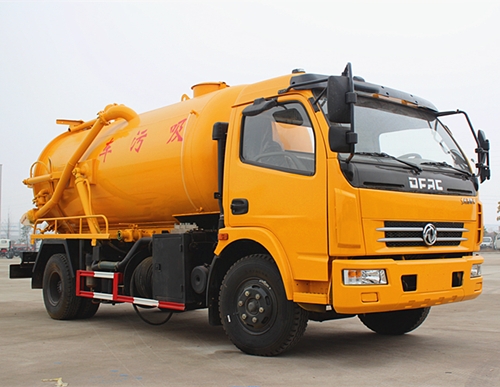

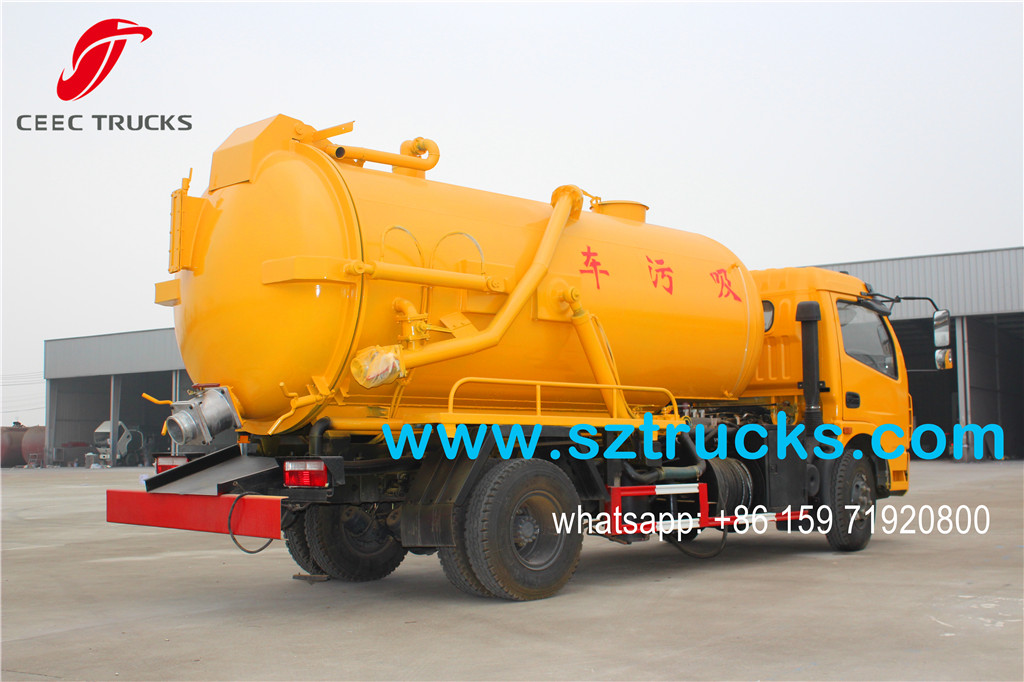

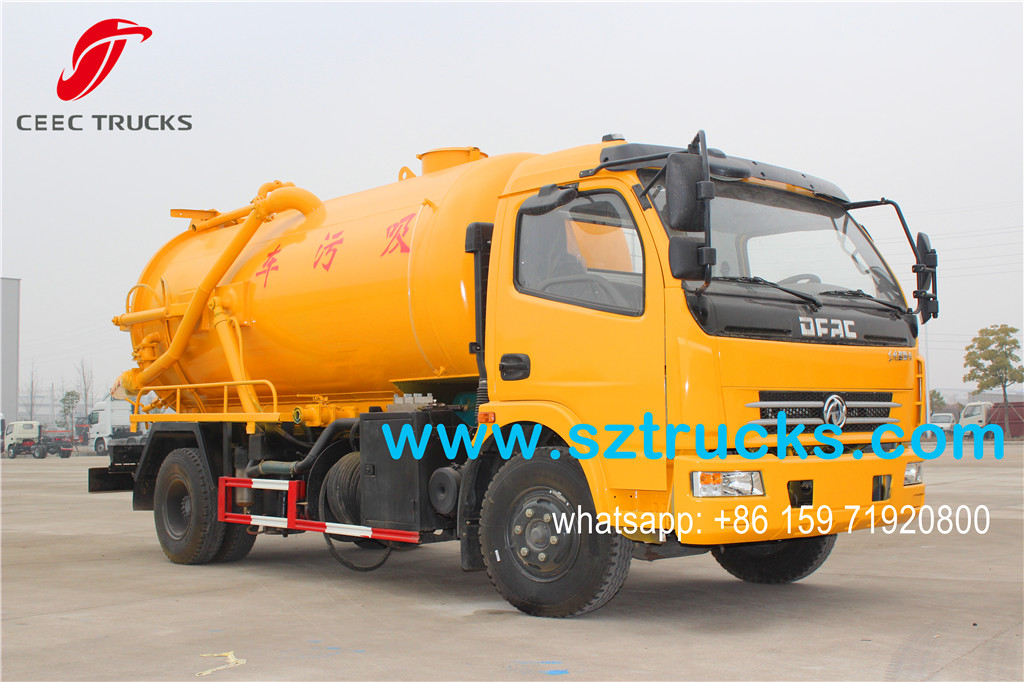

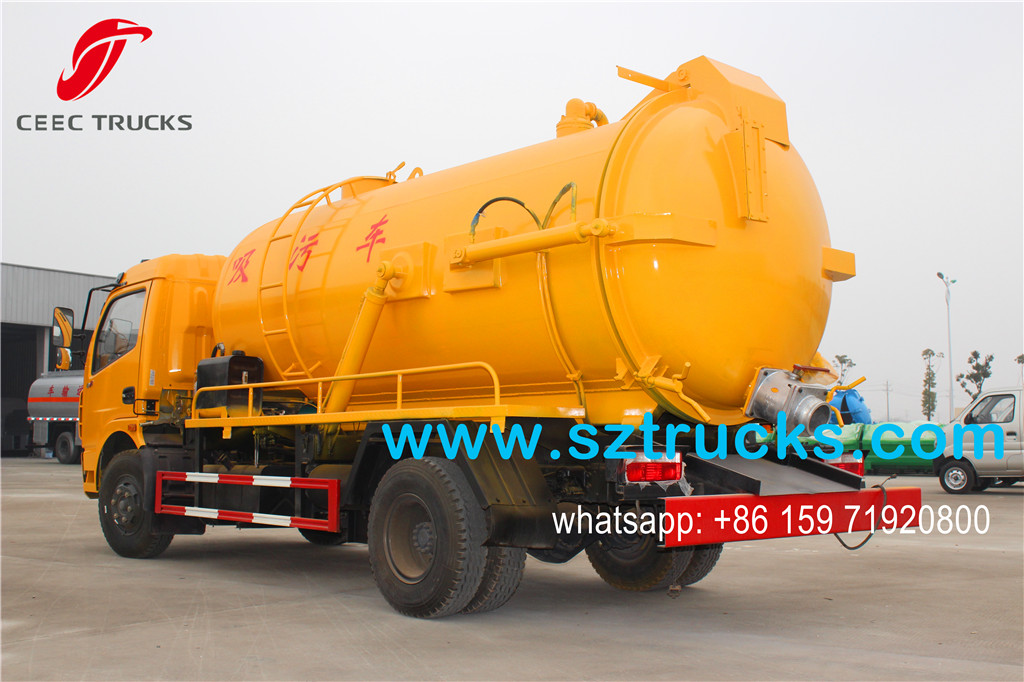

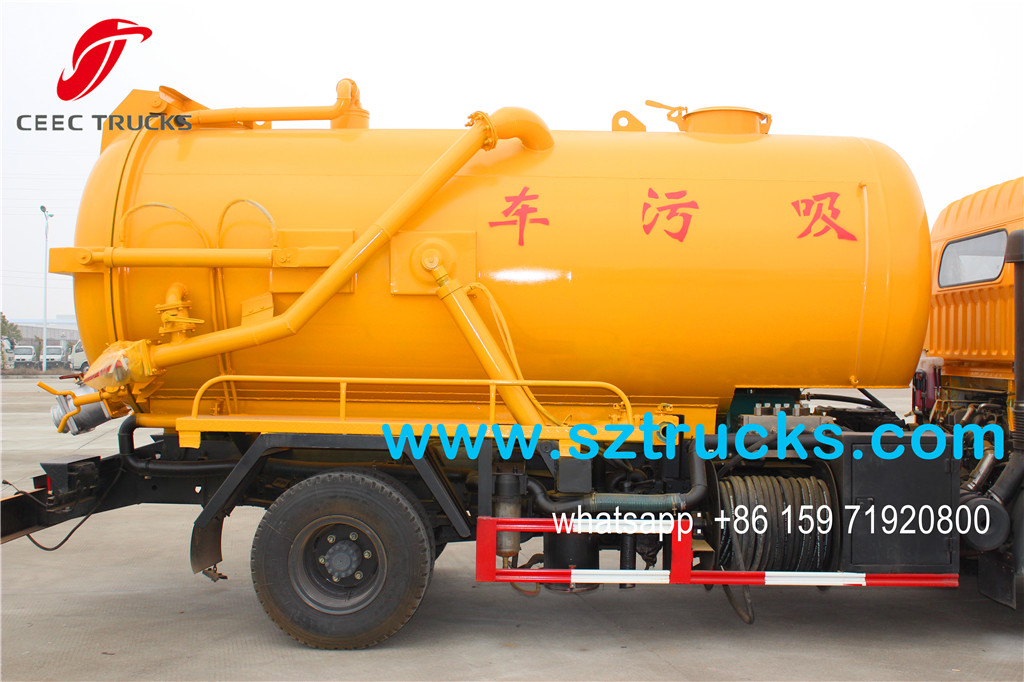

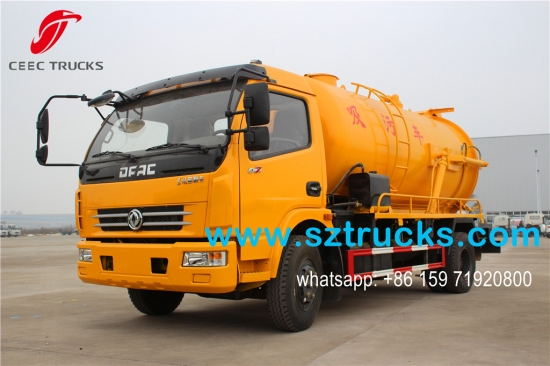

Cesspit Emptier (also called sewer cleaning truck, sewage tanker, sewer truck, vacuum sewage suction truck, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
---- CUMMINS engine 140HP or CHAOCHAI engine 120HP for optional, super powerful; reliable performance, no overhaul within 100,000 km.
---- Standard carbon steel Q235 material round vacuum tank, nice shape and rational structure, good quality.
---- Standard equipped famous Chinese brand Hangzhou WEILONG Vacuum pump super powerful, highly efficient.
---- Massive, durable, long service life. And after-sale service can be as long as 12mon

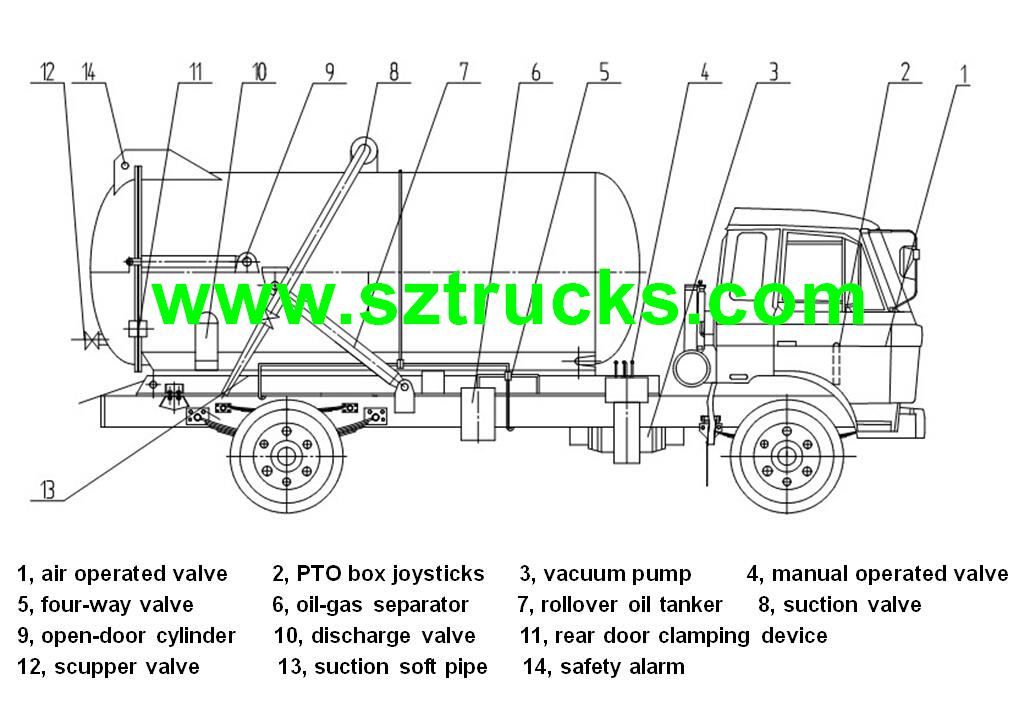

Technical Drawing for Cesspit Emptier:
|
General |
Vehicle Brand |
CEEC TRUCKS |
|
Chassis Brand |
DongFeng |
|
|
Overall Dimension |
6490 * 2200 * 2550 mm |
|
|
GVW / Kerb Weight |
9,400 kg / 4,605 kg |
|
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Air conditioner is optional |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
Cummins engine |
|
|
Power |
140 Ps (103 KW) |
|
|
Displacement |
3900 ml |
|
|
Emission Standard |
Euro III |
|
|
Chassis |
Drive Type |
4X2, left or right hand drive |
|
Transmission |
5-speed front, 1 reverse |
|
|
Wheelbase/No. of axle |
3800 mm / 2 |
|
|
Tyre Specification |
7.50-16 |
|
|
Tyre Number |
6 tires and 1 spare tyre |
|
|
Max Speed |
95 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |

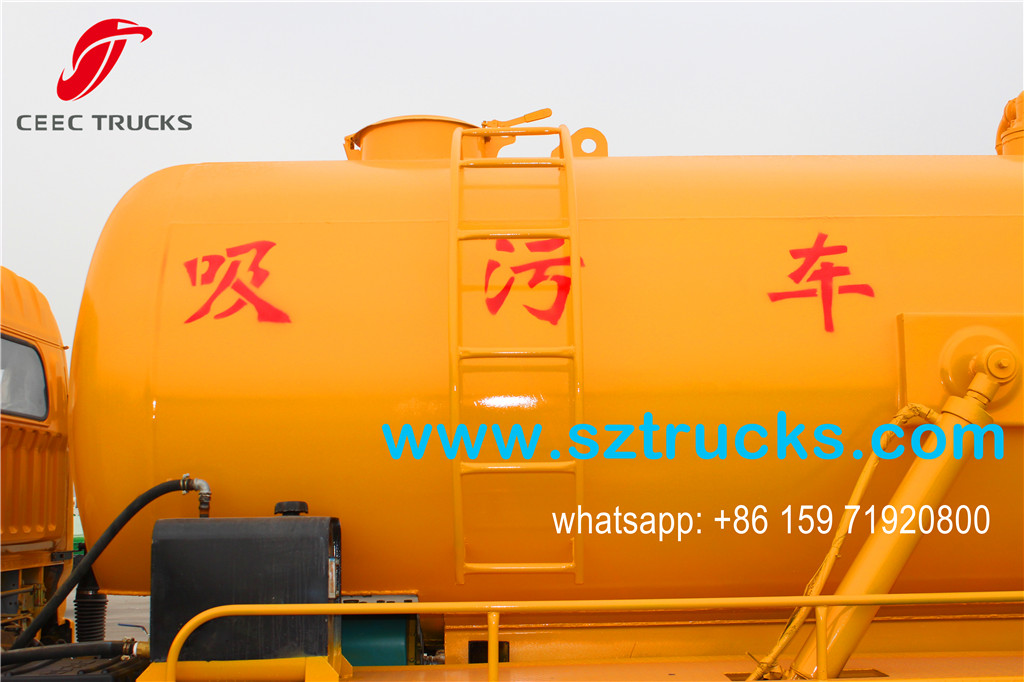

Tank Capacity |
6,000 Liters (about 1,600 gallons) |
|
Tank Material |
Carbon steel |
|
|
Suction Head |
7m |
|
|
Vacuum Pump |
Highly efficient, vacuum rate 93%, |
|
|

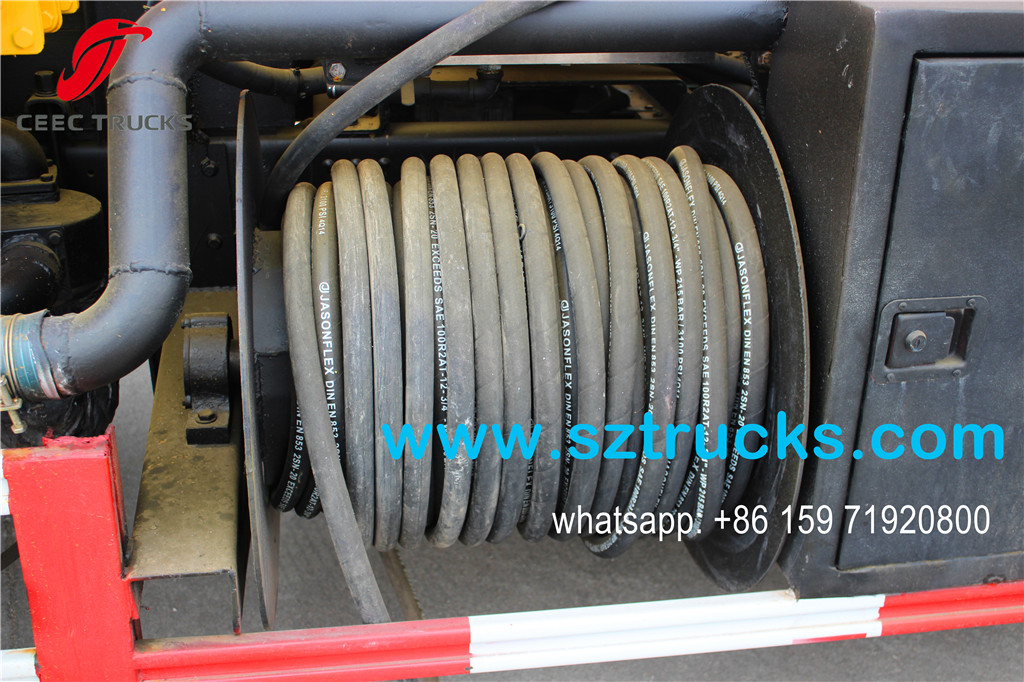

Hose |
High quality, wire strengthened hose |
|
|

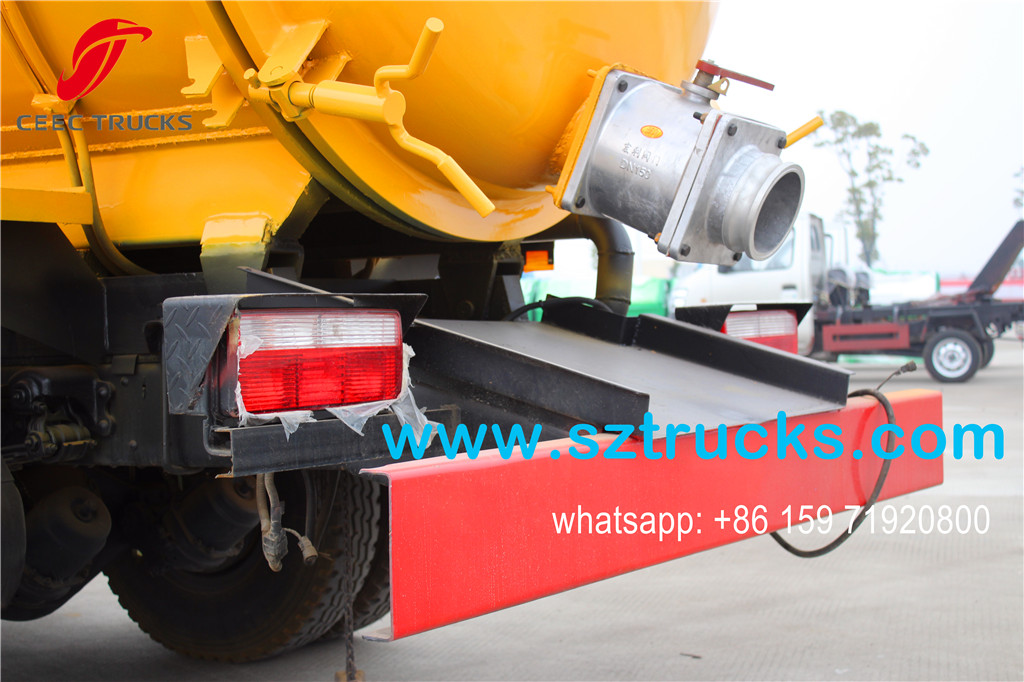

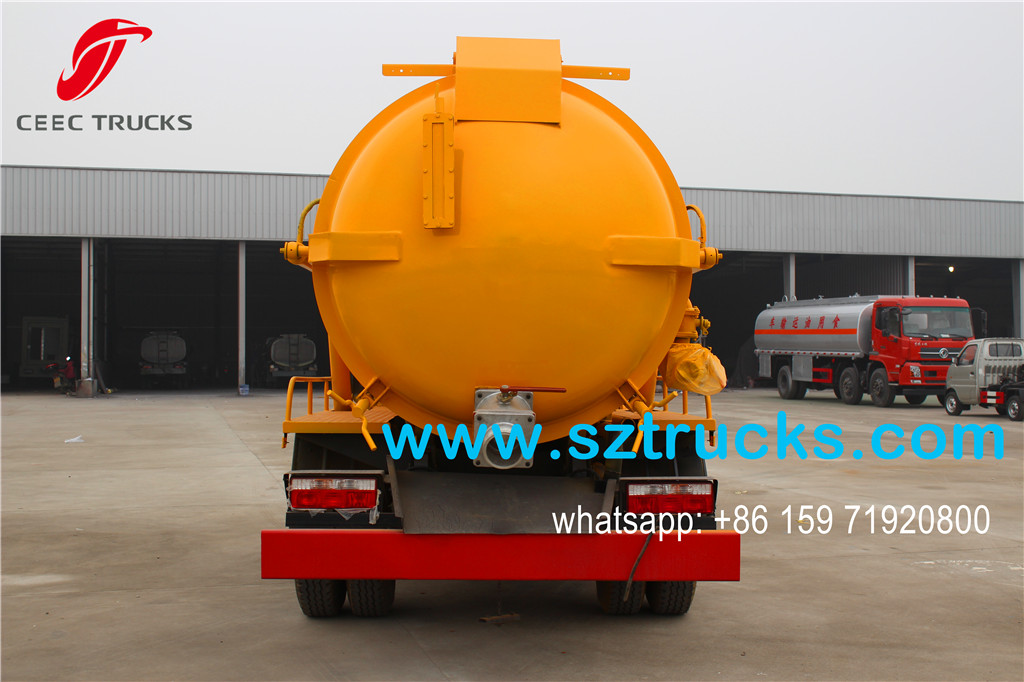

Rear door can be hydraulic opened for complete discharge of solid stuff. |
||
|

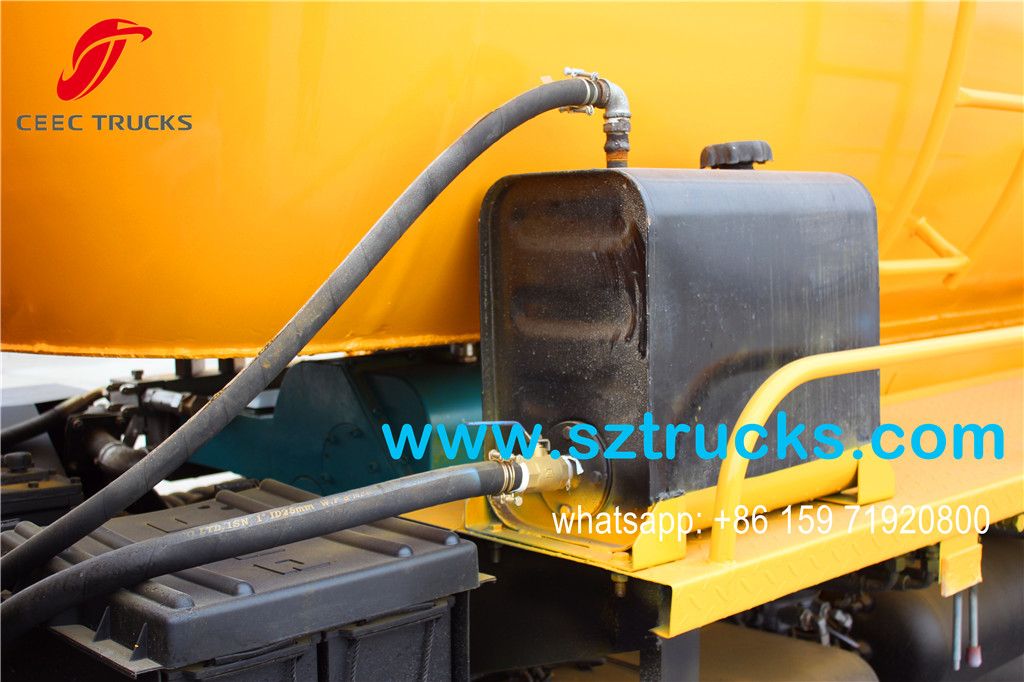

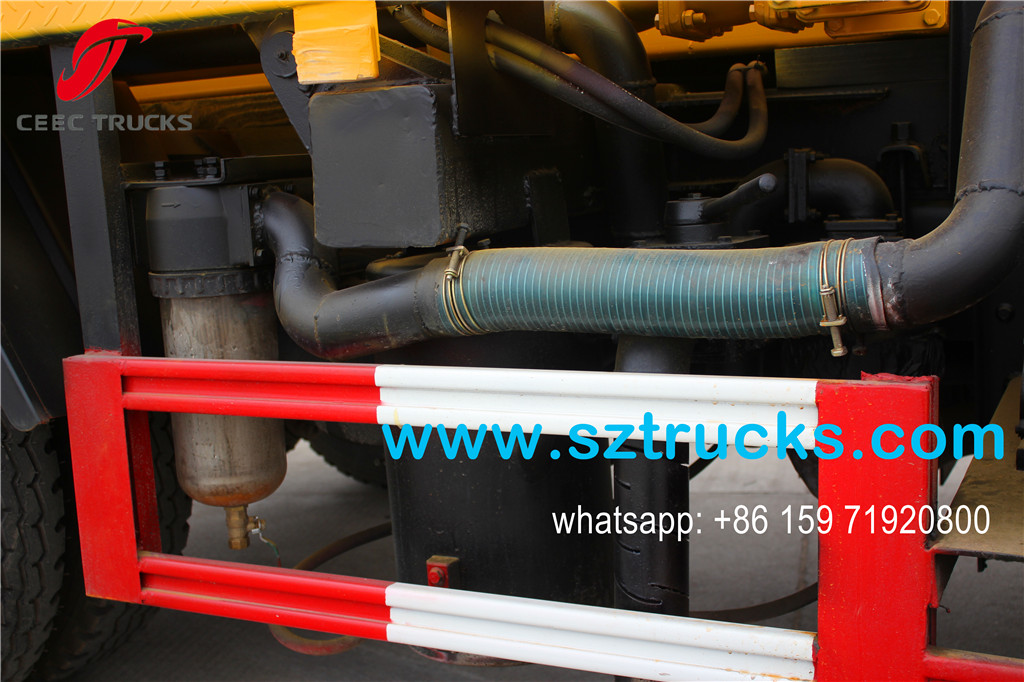

Install vacuum Pump drive by engine through PTO, hydraulic system, multi-way valve, pressure gauges, water-gas separator, oil-gas separator, oil tank reservoir, level inspection window and suction hose. |
||
|

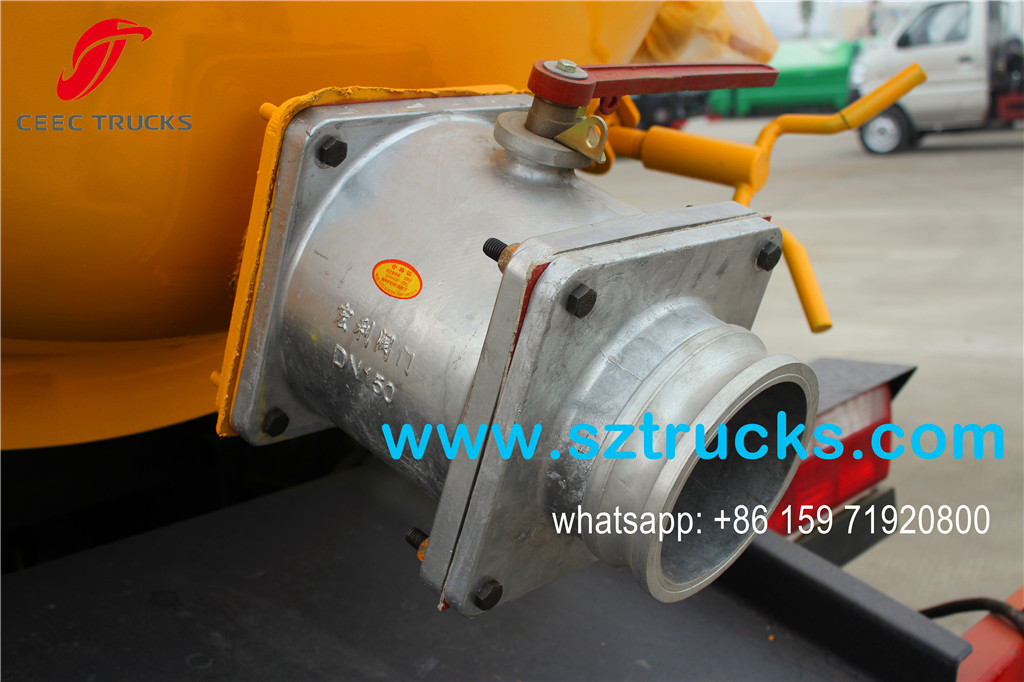

All standard accessories: inlet, discharge, anti-fill valve…….. |
||
|
Optional |
** Tank material could be carbon steel, stainless steel..….. |
|
