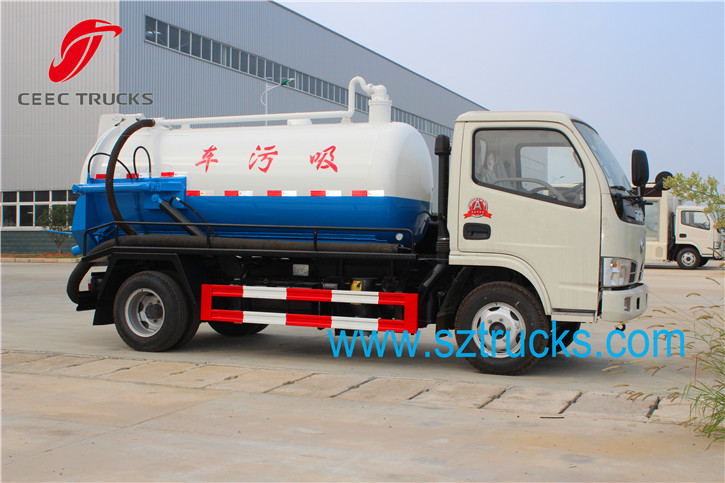

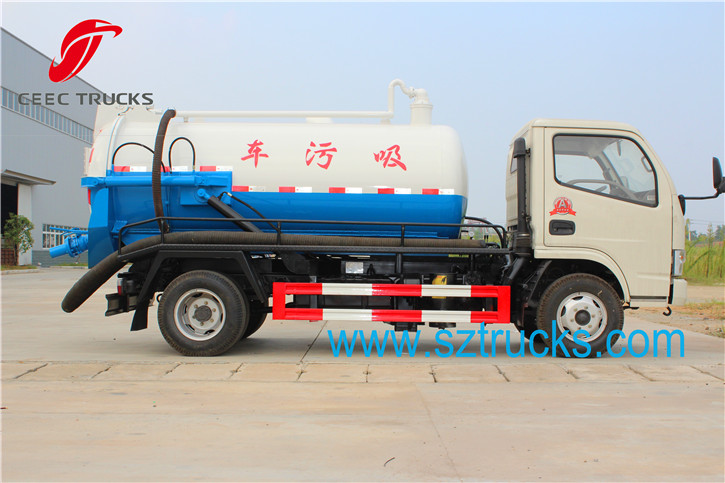

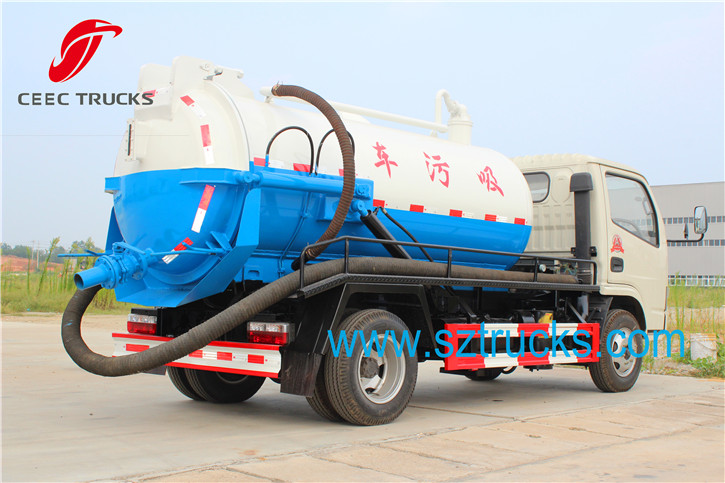

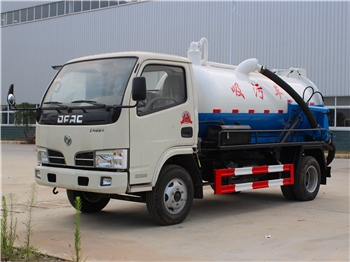

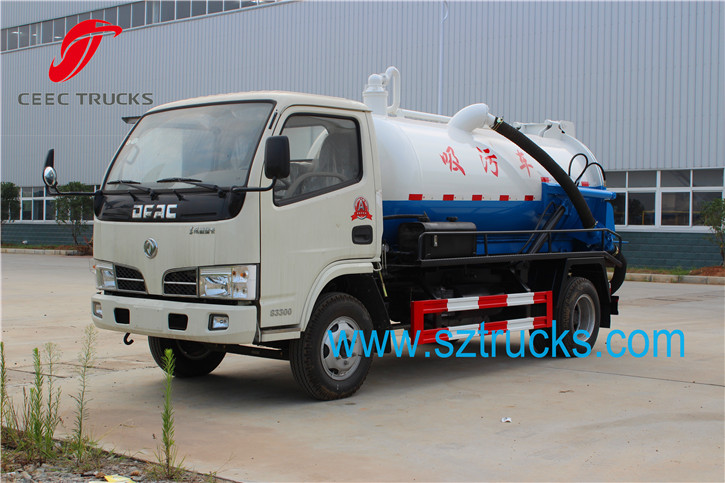

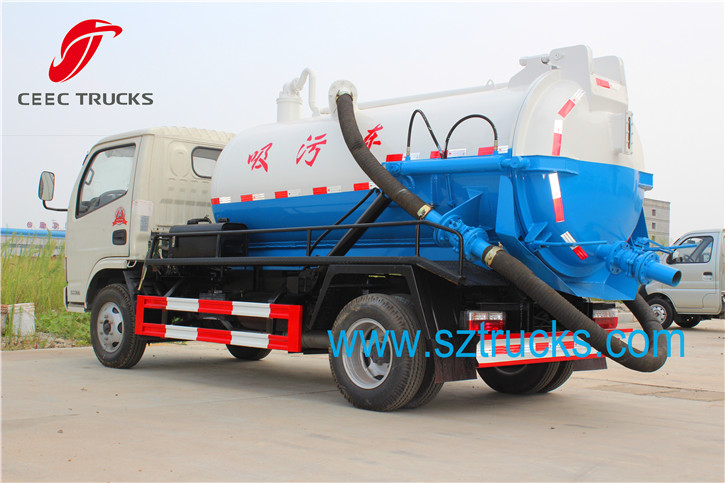

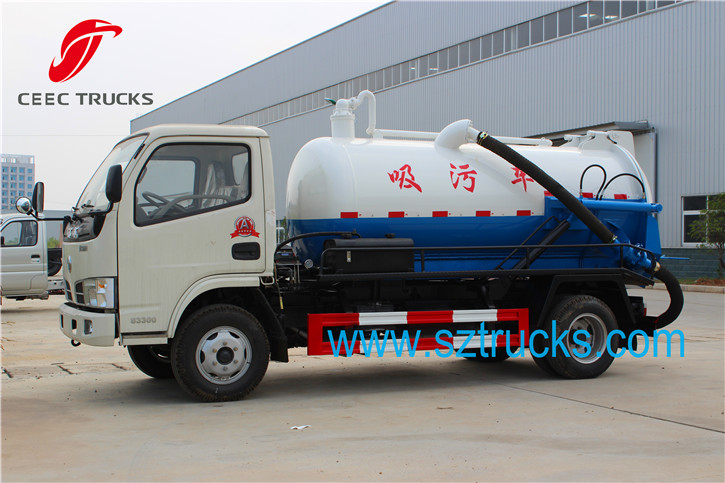

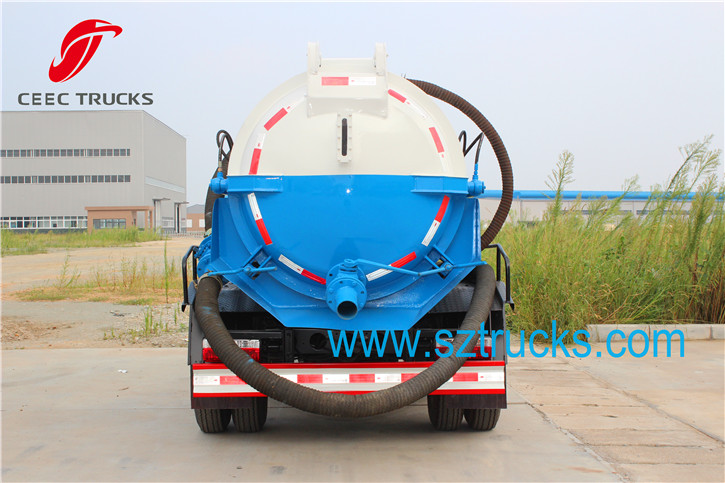

CEEC Sewage Suction Truck exhibition:
CEEC tanker truck workshop:
1. We CEEC TRUCKS are manufacturer, specializing in producing Vacuum Sewage Suction truck many years with good reputation.

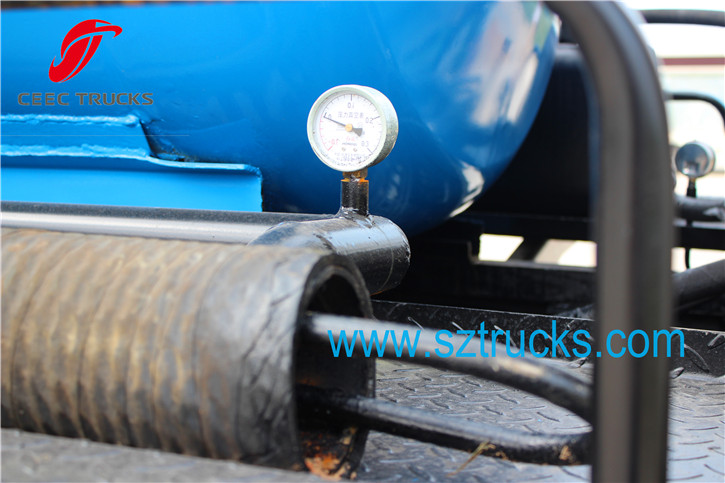

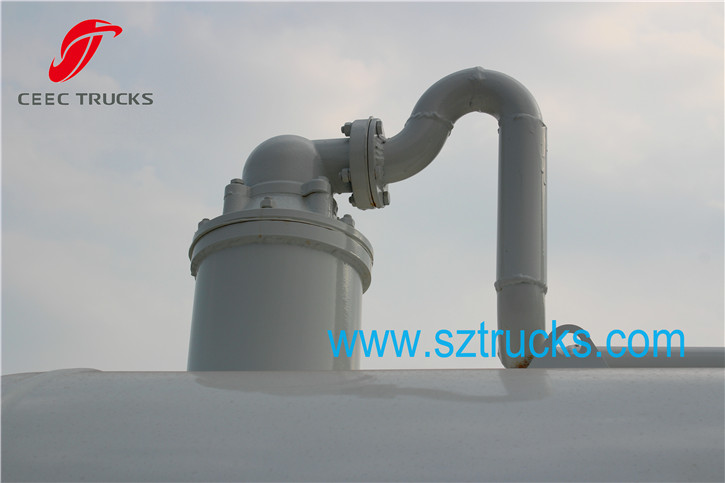

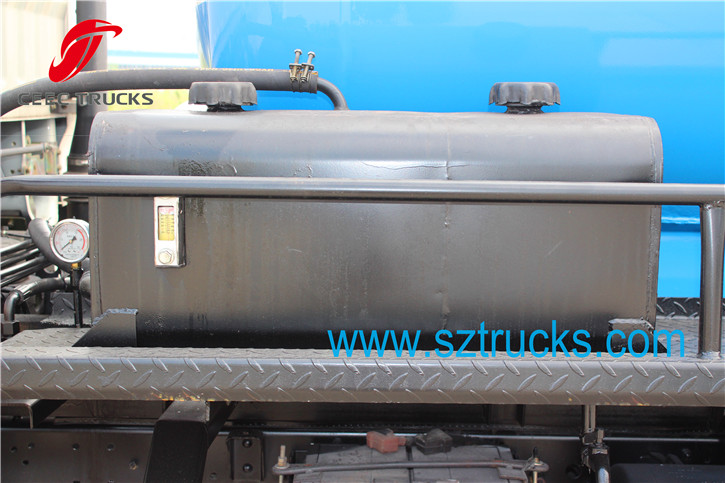

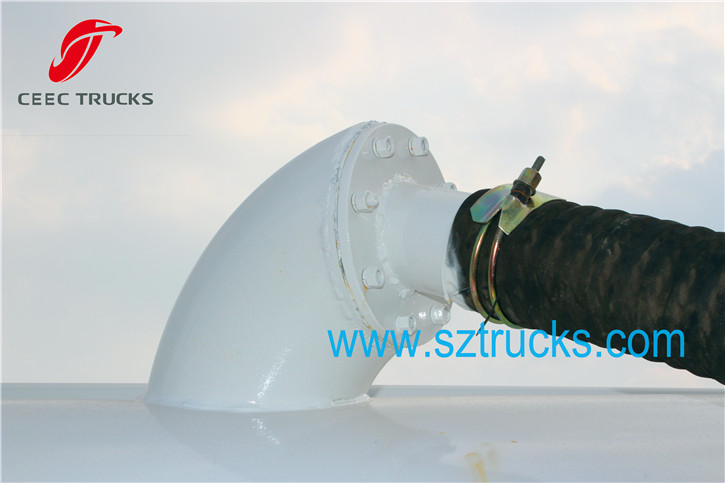

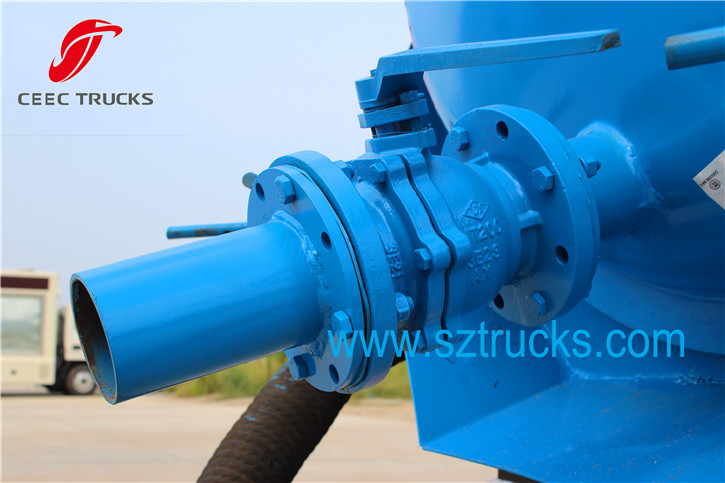

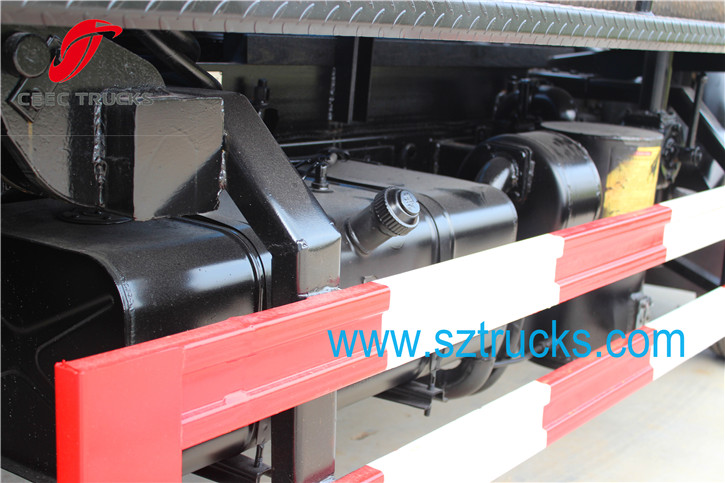

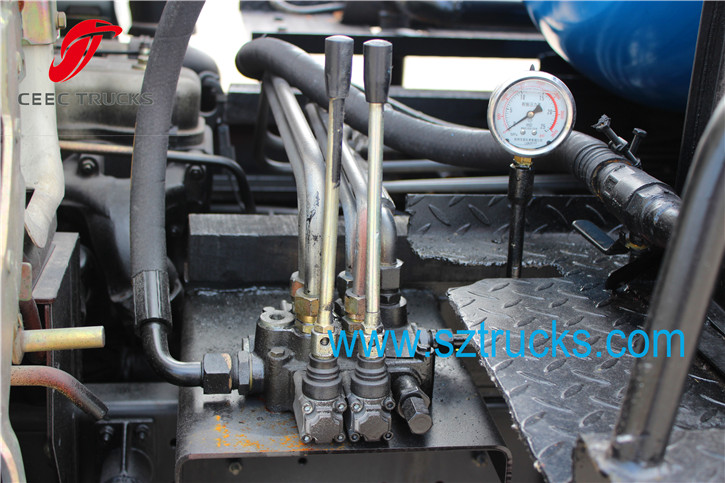

2. The CEEC 4CBM Vacuum Sewage Suction truck mainly consists of: PTO (Power Take Off), Transmission shaft, vacuum pump, water and gas separator, oil and gas separator, multiple directional control valve, hanger rod, sewage tanker, flow valve, sucking gun, water tank, vacuum pressure gauge and piping system, etc.
3. Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for the tank, against corrosion resistant, rust protection and well-resisting.
4. Available also with hydraulic drive. Max. Vacuum rate 95%. Suitable i.e. recommended for continuous duty even at high vacuum levels. Low noise level on all models. This pump is designed for stationary industrial plants or for sewer cleaning, truck mounted, and equipment.
5. CEEC TRUCKS vacuum suction trucks have following advanced characters: high efficiency; self-draining; direct irrigating, etc.
6. Mainly used for pumping the sewage, fecal, slurry and mixed with small suspension debris. And this kind CEEC 3000L cesspit emtiper is widely applicable to sanitation, city cleaning, residential areas, agriculture, and industry in large, medium and small cities.
Items |
Parameter |
||
Truck Model |
CEEC5060GXW2 |
||
Vacuum Tank Parameter |
Tank Capacity |
4CBM |
|
Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||
Tank Shape |
Round Shape Tank |
||
Overall dimension (mm) |
Length |
6025 |
|
Width |
1980 |
||
Height |
2525 |
||
Hose Diameter (mm) |
100 |
||
Discharging Angle (°) |
45 |
||
Scraper Thickness （mm） |
＞14 |
||
Rotate Speed （rpm） |
500-600 |
||
Degree of Vacuum (kPa) |
93-96 |
||
Available Suction (m) |
7-30 |
||
Tank Filling Time (min) |
＜5 |
||
Chassis |
Chassis Brand |
DongFeng |
|
Drive Mode |
4x2 |
||
Tire type |
7.00-16 tire |
||
Tire No. |
6+1 units |
||
Max speed |
95 km/h |
||
Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
Engine |
Power |
75 kw / 102hp |
|
Fuel type |
diesel |
||
Emission Standard |
Euro 3 & Euro 4 |
||
Gearbox |
Control type |
Manual |
|
Gear |
6 forward & 1 reverse |
||
