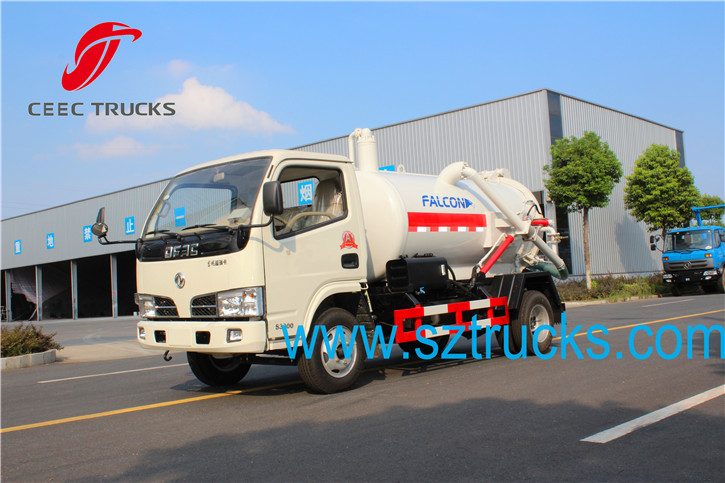

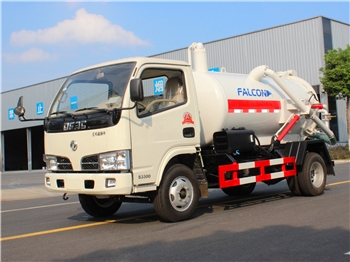

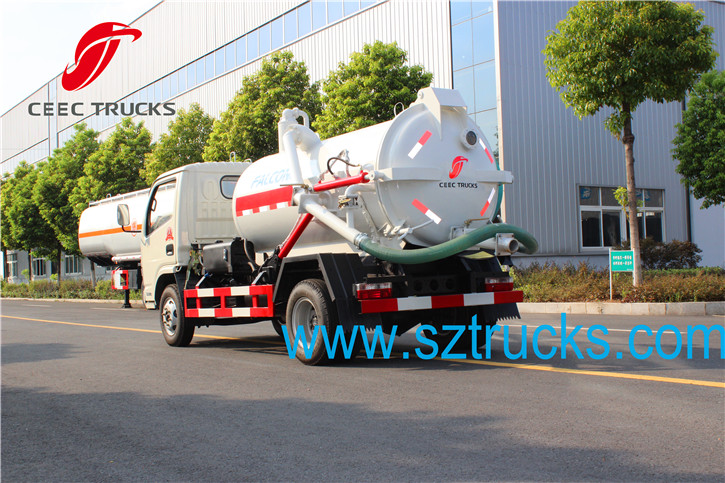

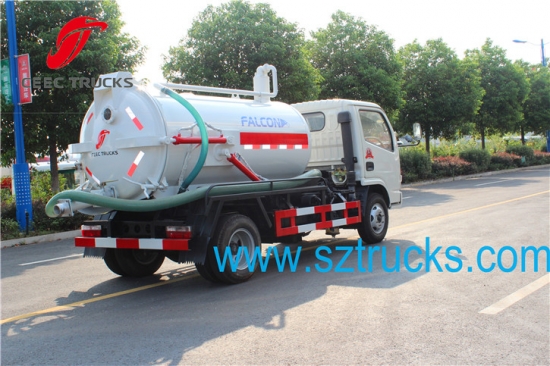

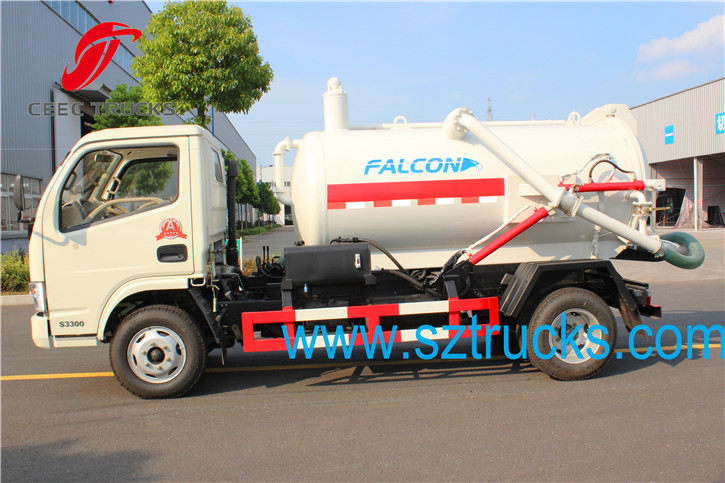

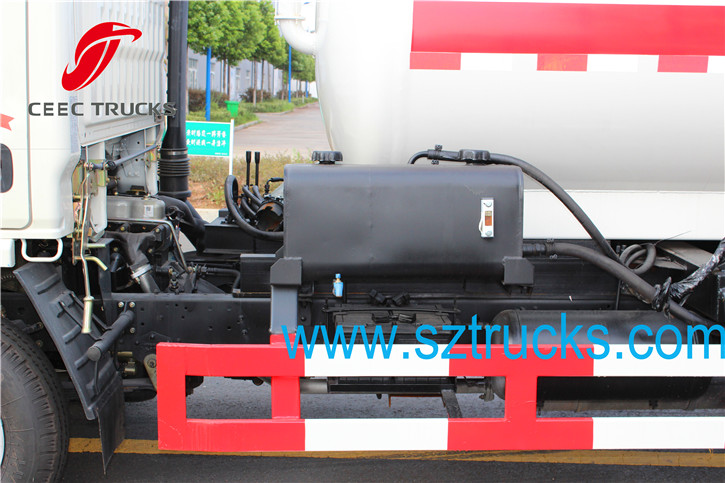

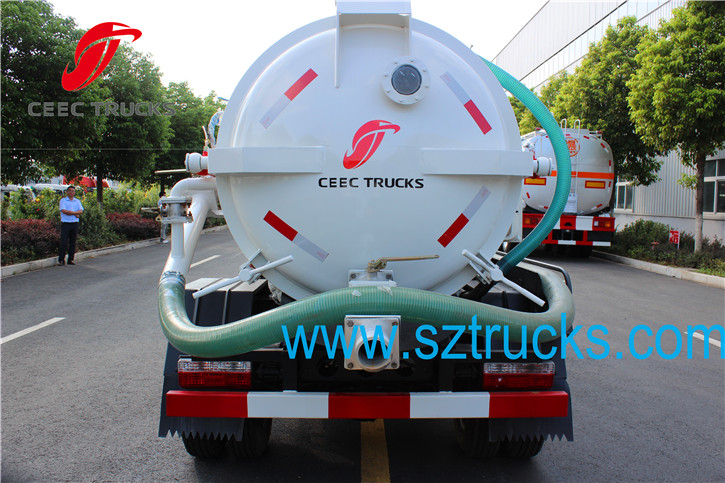

CEEC Sewage Suction Truck exhibition:

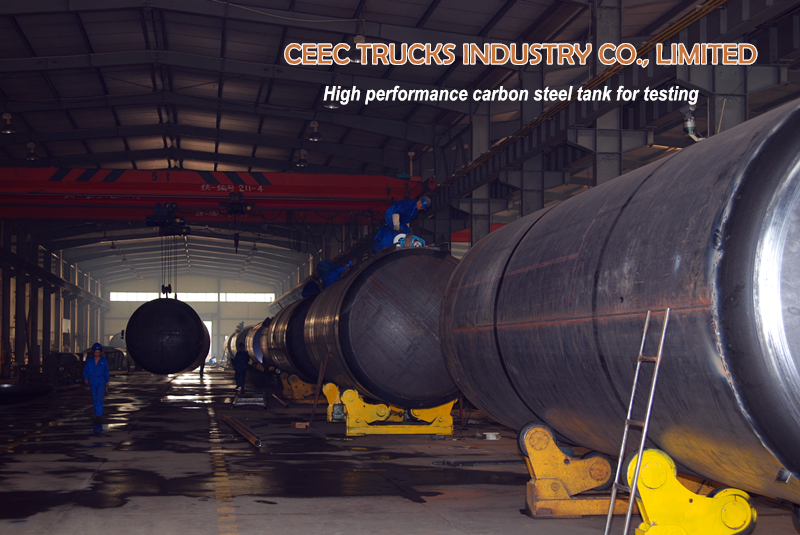

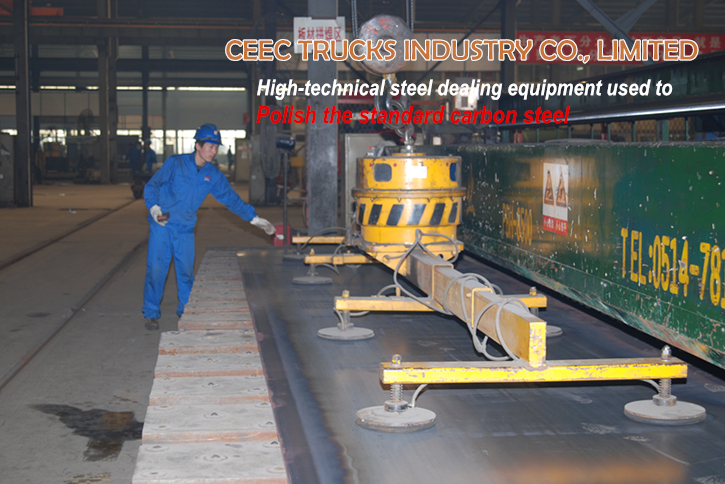

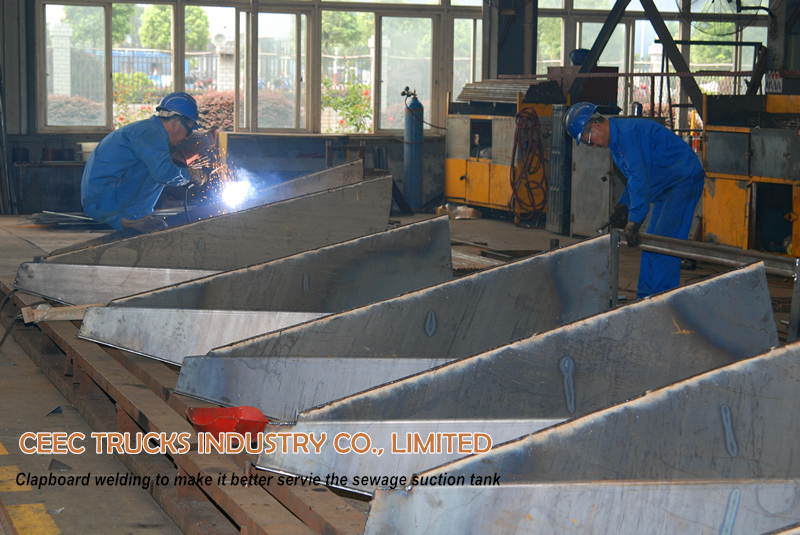

CEEC tanker truck workshop:
1. We CEEC TRUCKS are manufacturer, specializing in producing Vacuum Sewage Suction truck many
years with good reputation.

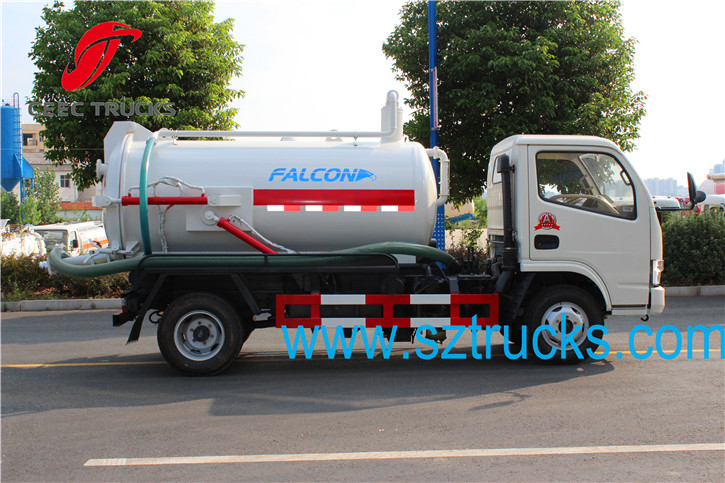

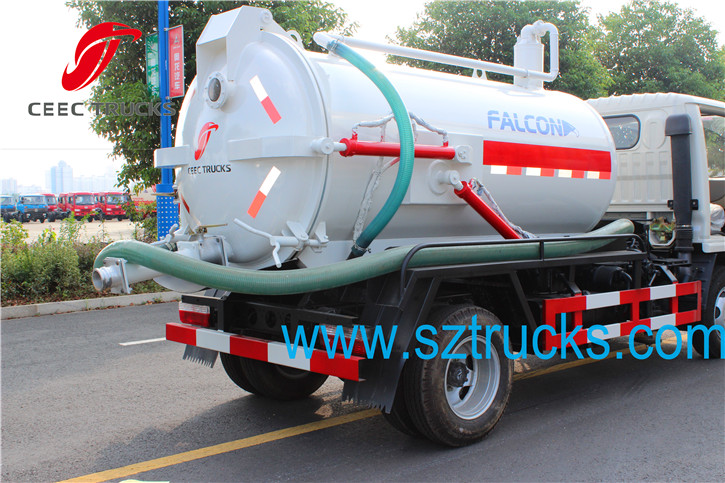

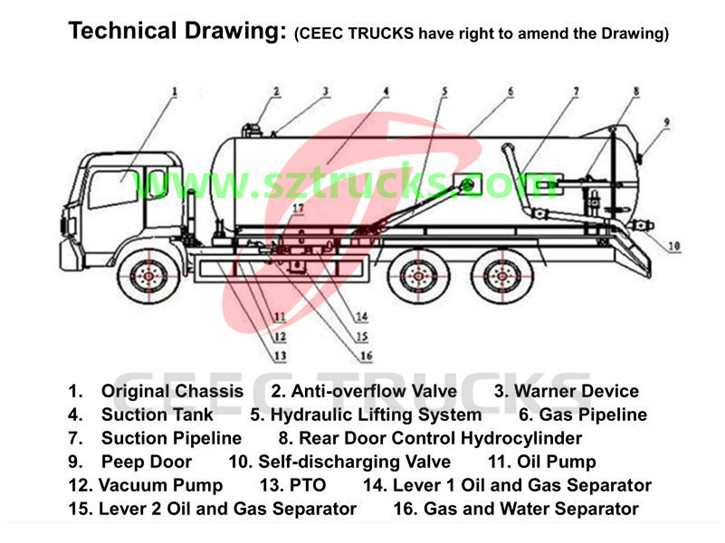

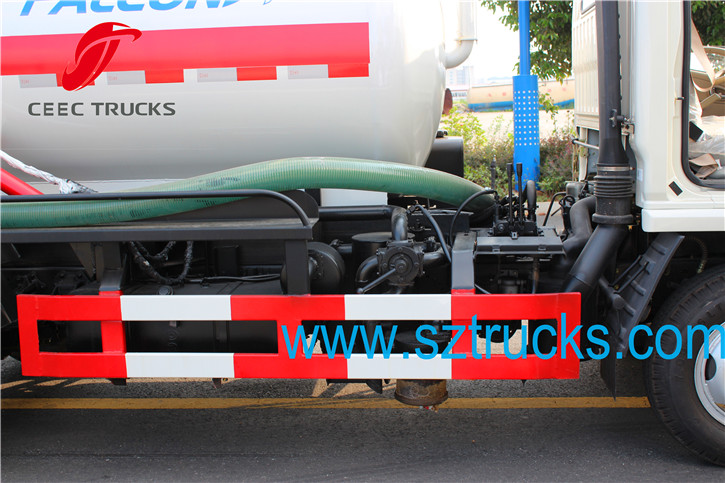

2. The CEEC 3CBM Vacuum Sewage Suction truck mainly
consists of: PTO (Power Take Off), Transmission shaft, vacuum pump, water and
gas separator, oil and gas separator, multiple directional control valve,

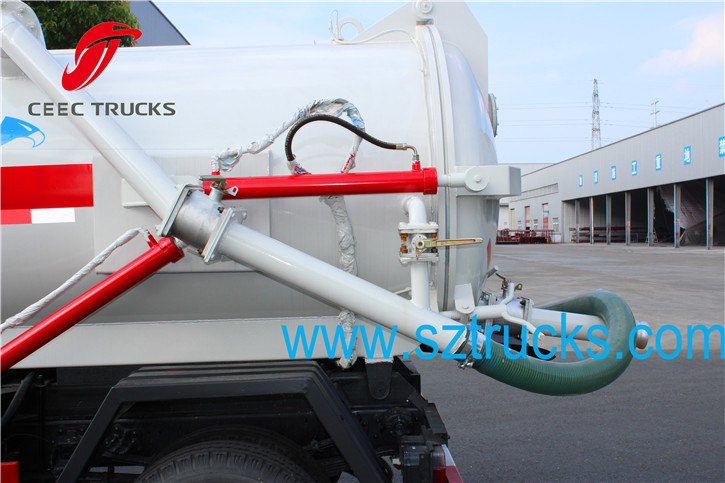

hanger rod, sewage tanker, flow valve, sucking gun, water tank, vacuum pressure
gauge and piping system, etc.
3. Standard
steel (Carbon steel Q235 & Q345,
also the Stainless steel can be choose)
for the tank, against corrosion resistant, rust protection and well-resisting.
4. Available
also with hydraulic drive. Max. Vacuum rate 95%. Suitable i.e. recommended for
continuous duty even at high vacuum levels. Low noise level on all models. This
pump is designed for stationary industrial plants or for sewer cleaning, truck
mounted, and equipment.
5. CEEC TRUCKS vacuum suction trucks have following advanced characters: high efficiency; self-draining; direct
irrigating, etc.
6. Mainly
used for pumping the sewage, fecal, slurry and mixed with small suspension
debris. And this kind CEEC 3000L cesspit emtiper is widely applicable to sanitation, city cleaning, residential areas, agriculture,
and industry in large, medium and small cities.
Items |
Parameter |
||
Truck Model |
CEEC5060GXW1 |
||
Vacuum Tank Parameter |
Tank Capacity |
||
Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||
Tank Shape |
Round Shape Tank |
||
Overall dimension (mm) |
Length |
5995 |
|
Width |
2000 |
||
Height |
2520 |
||
Hose Diameter (mm) |
100 |
||
Discharging Angle (°) |
45 |
||
Scraper Thickness （mm） |
＞14 |
||
Rotate Speed （rpm） |
500-600 |
||
Degree of Vacuum (kPa) |
93-96 |
||
Available Suction (m) |
7-30 |
||
Tank Filling Time (min) |
＜5 |
||
Chassis |
Chassis Brand |
DongFeng |
|
Drive Mode |
4x2 |
||
Tire type |
7.00-16 tire |
||
Tire No. |
6+1 units |
||
Max speed |
95 km/h |
||

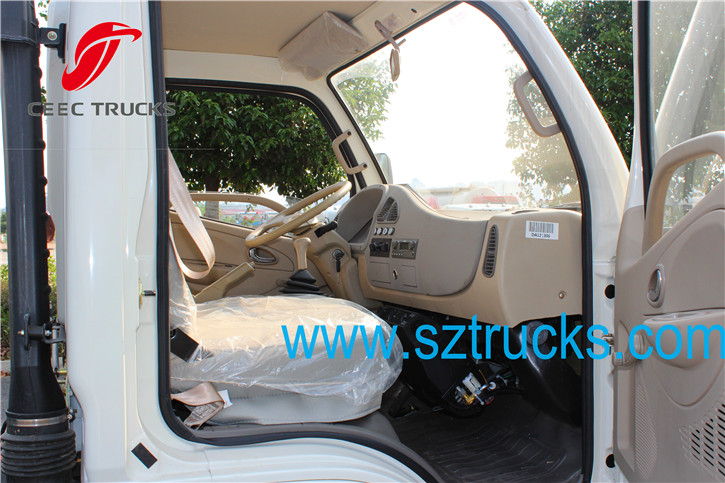

Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
Engine |
Power |
70 kw / 95hp |
|
Fuel type |
diesel |
||
Emission Standard |
Euro 3 & Euro 4 |
||
Gearbox |
Control type |
Manual |
|
Gear |
6 forward & 1 reverse |
||
