CEEC Roll on Roll off truck Workshop:
CEEC Roll on Roll off truck Technical Drawing:
1. We CEEC TRUCKS are manufacturer, specializing in producing roll on roll off trucks (Hook Lift garbage trucks) many years with good reputation.

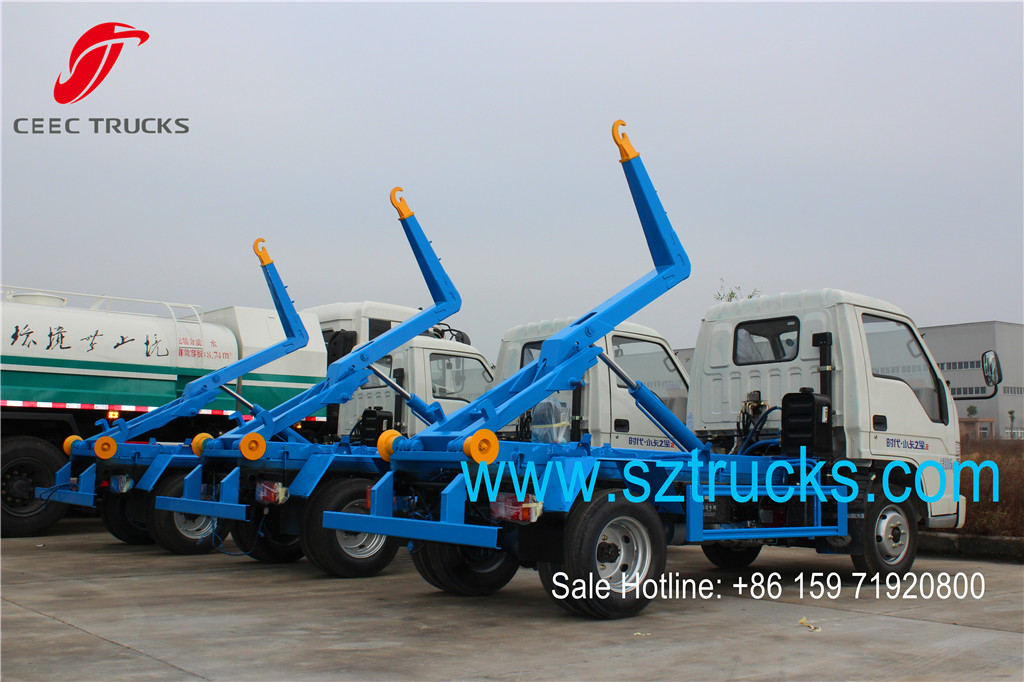

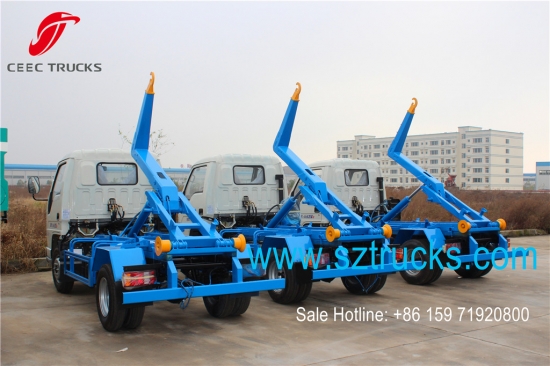

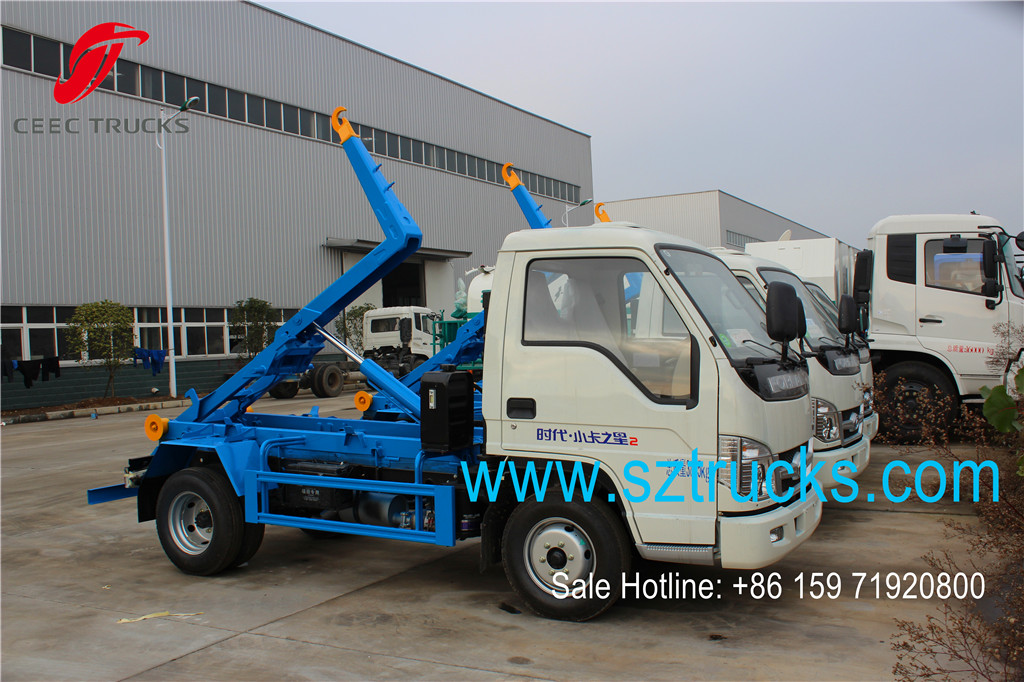

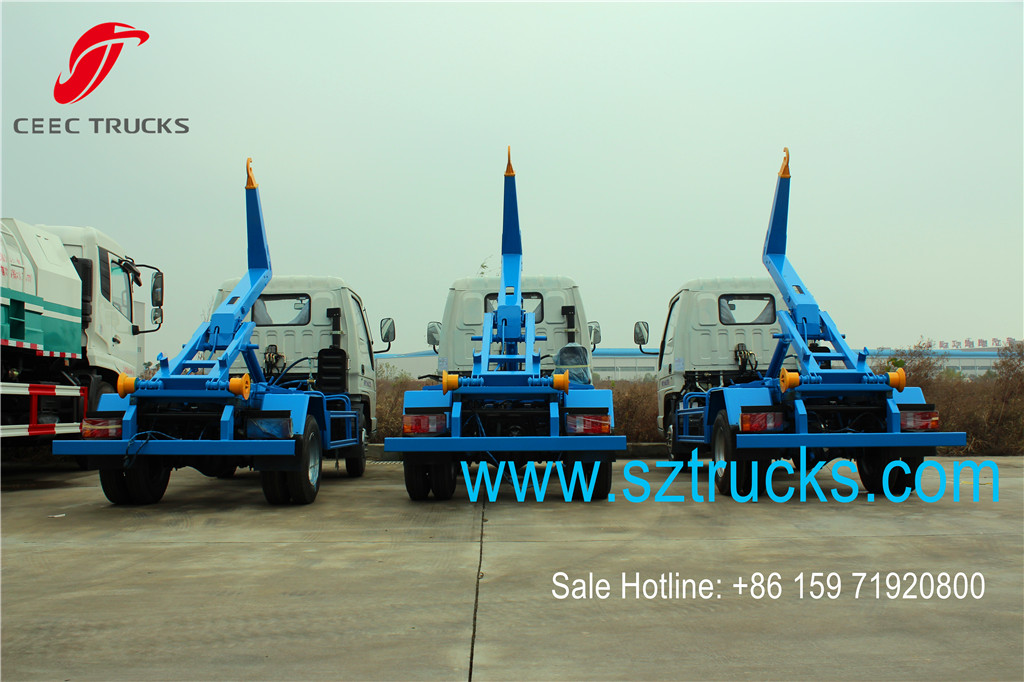

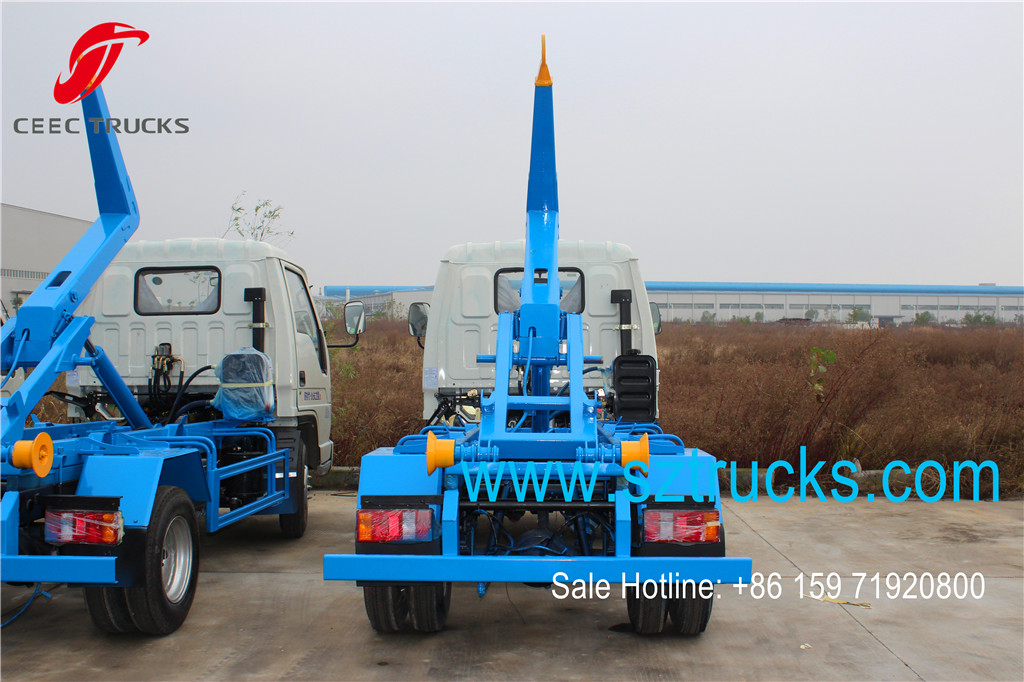

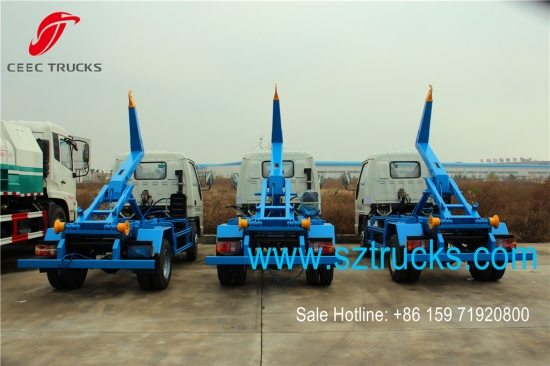

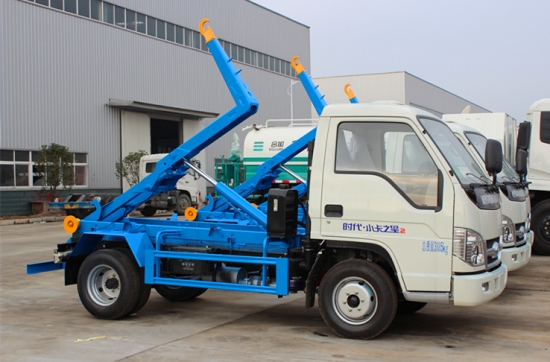

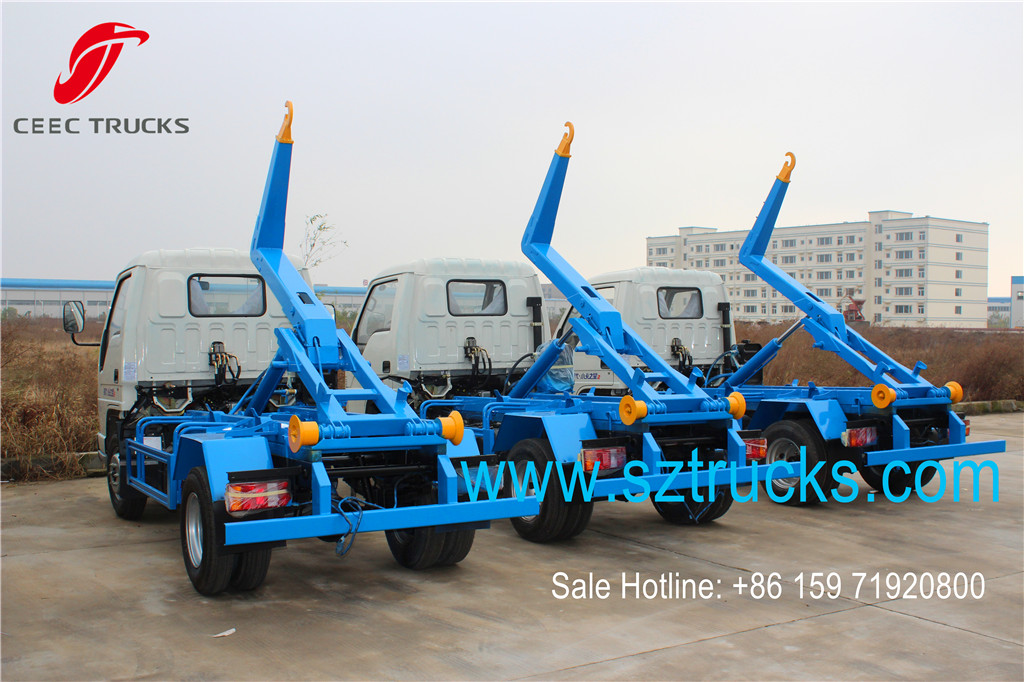

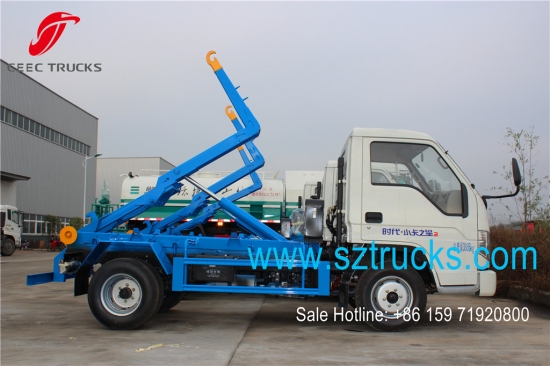

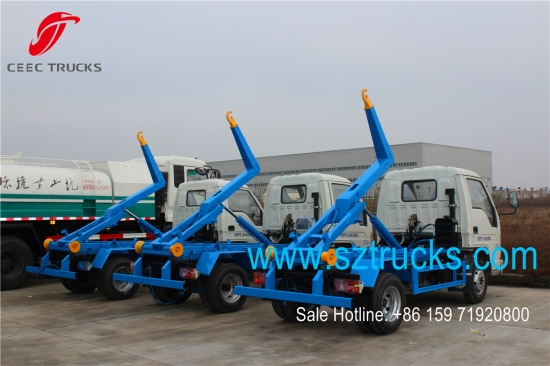

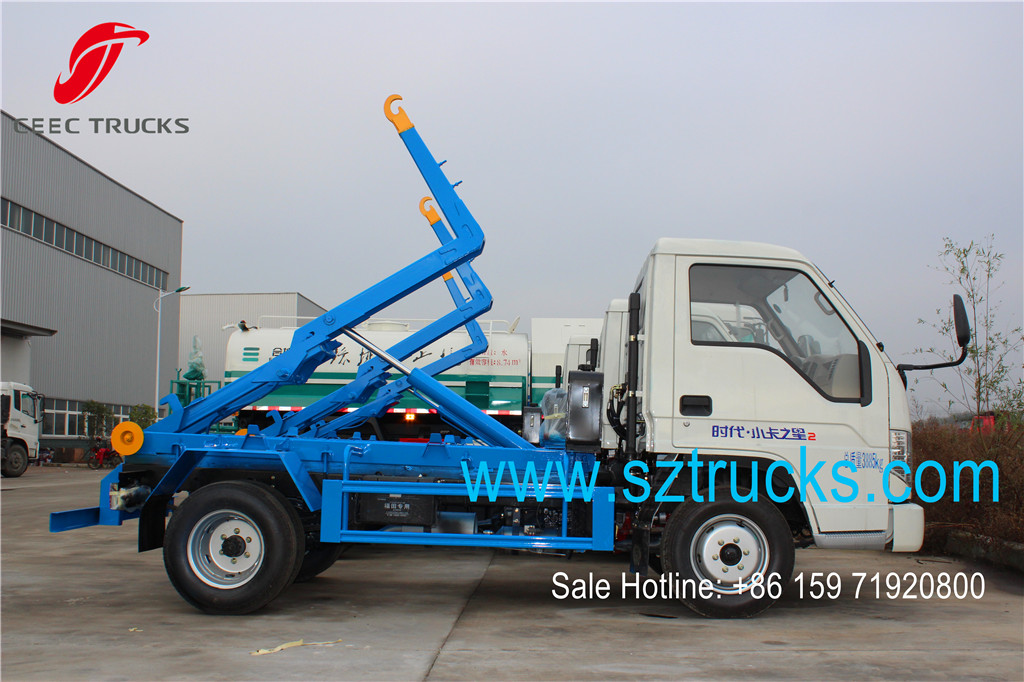

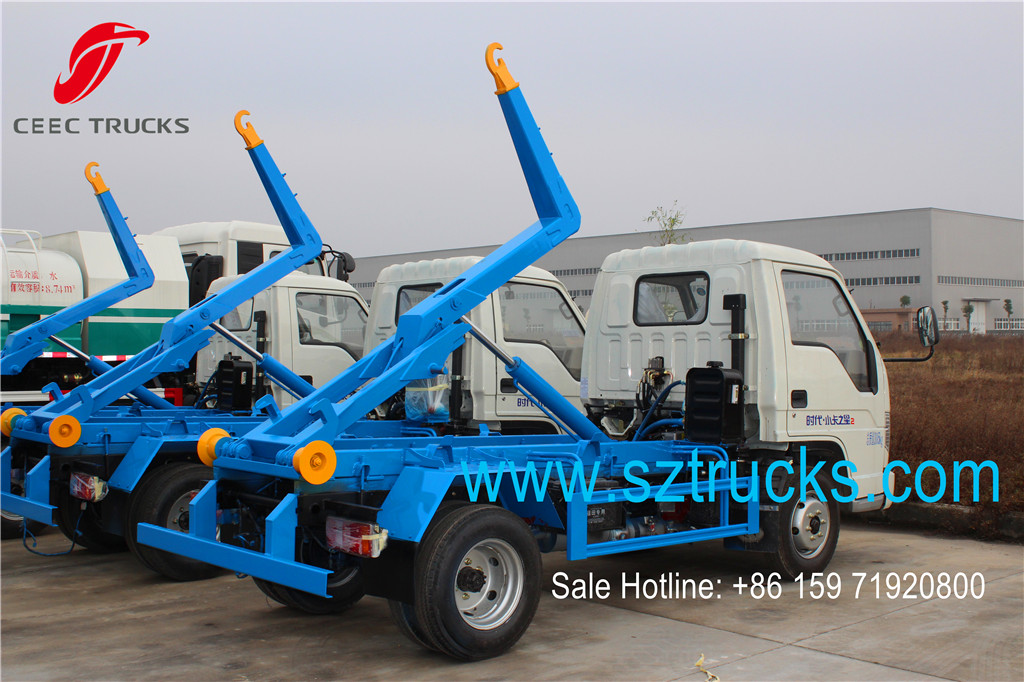

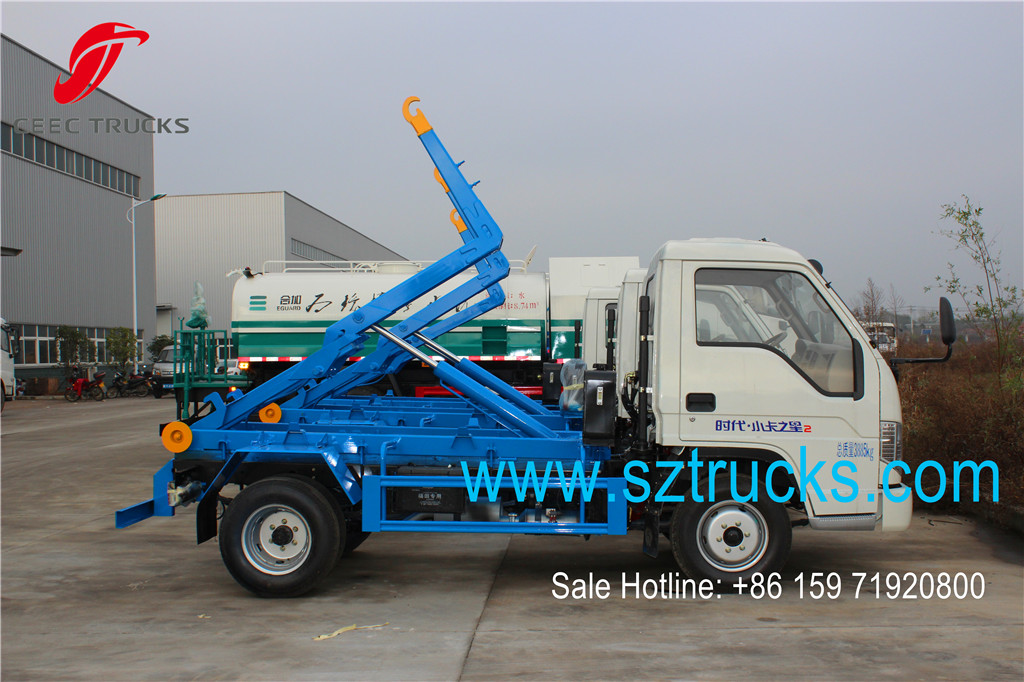

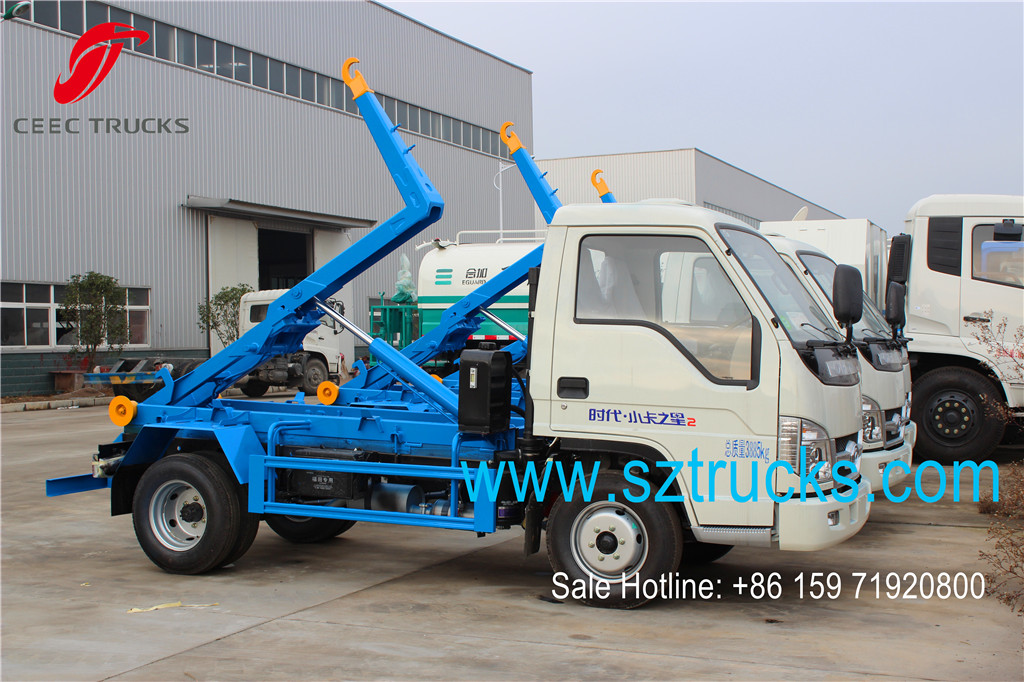

2. The CEEC 4CBM FOTON Roll on Roll off truck is multi-functional used for garbage collection, transportation and self-discharging. Without any other equipment, also easy to operate.
3. The roll on roll off system use complete sets of equipment, safe and reliable, and the loading weight is more than others.
4. Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for garbage tank, against corrosion resistant, rust protection and well-resisting.

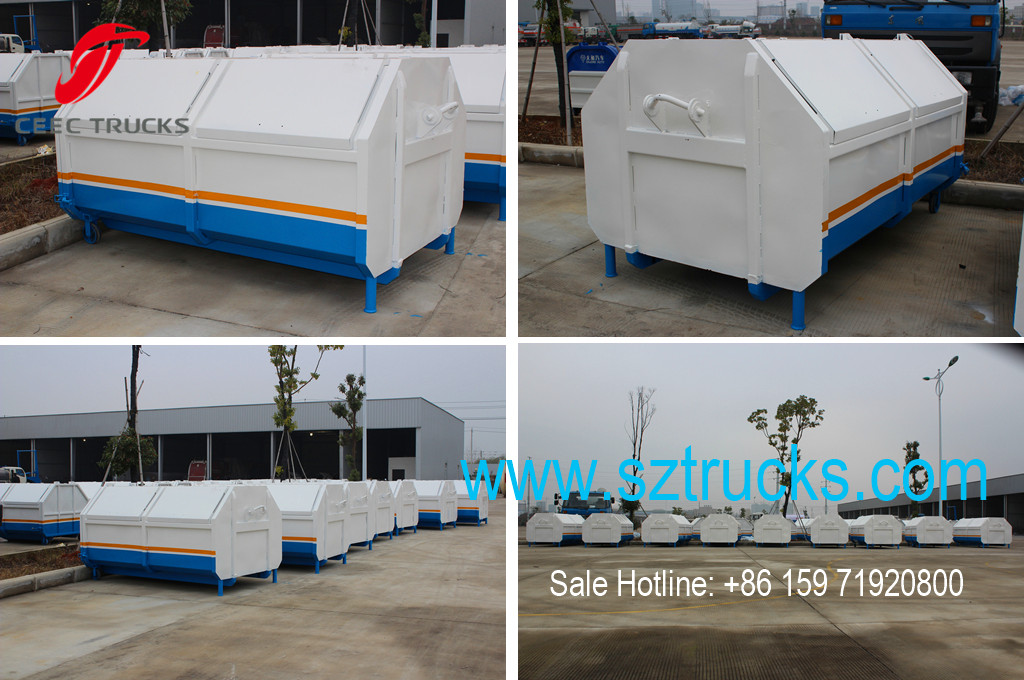

5. 4000Liters FOTON Hook Loader Truck adopt one truck match numbers of garbage tank, loop transportation, which can highly improve the work efficiency, also reduce the cost.
6. Under the garbage tank, there are two waste water discharging valve, easy to discharge the waste water.
7. The Washing System are optional for the CEEC 4Tons Hook Lift truck, which can be used to cleaning the garbage tank after discharging the rubbish. Also can cleaning the sealing strip and the surface, which can effectively improve the service life of the sealing strip and garbage tank.
Parameter |
|||
Truck Model |
CEEC5060ZLB |
||
Roll on Roll off Parameter |
Tank Capacity |
||
Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||
Overall dimension (mm) |
Length |
5050 |
|
Width |
1880 |
||
Height |
2180 |
||
Tank Thickness |
Side |
3mm |
|
Floor |
3mm |
||
Hydraulic System |
High Performed Hydraulic System |
||
Chassis |
Chassis Brand |
DongFeng / FOTON |
|
Drive Mode |
4x2 |
||
Tire type |
6.50-15 tire |
||
Tire No. |
6+1 units |
||
Max speed |
95 km/h |
||
Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
Engine |
Power |
70 kw / 95hp |
|
Fuel type |
diesel |
||
Emission Standard |
Euro 3 & Euro 4 |
||
Gearbox |
Control type |
Manual |
|
Gear |
5 forward & 1 reverse |
||
