CEEC Roll on Roll off truck Workshop:
CEEC Roll on Roll off truck Technical Drawing:
1. We CEEC TRUCKS are manufacturer, specializing in producing roll
on roll off truck many years with good reputation.

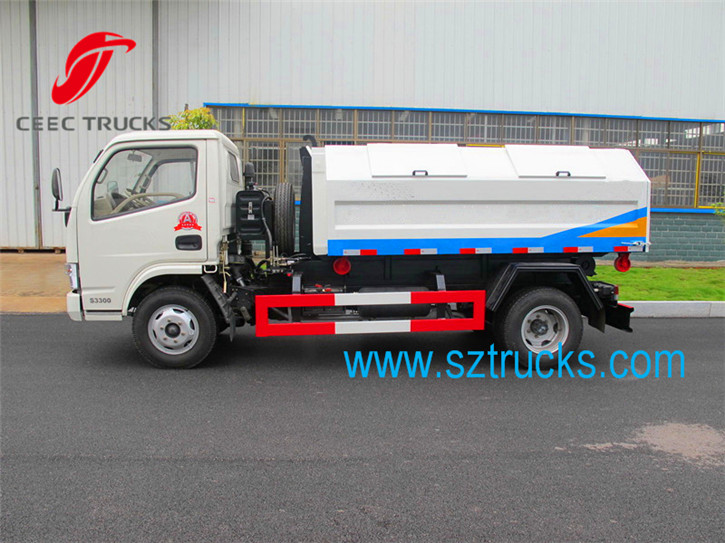

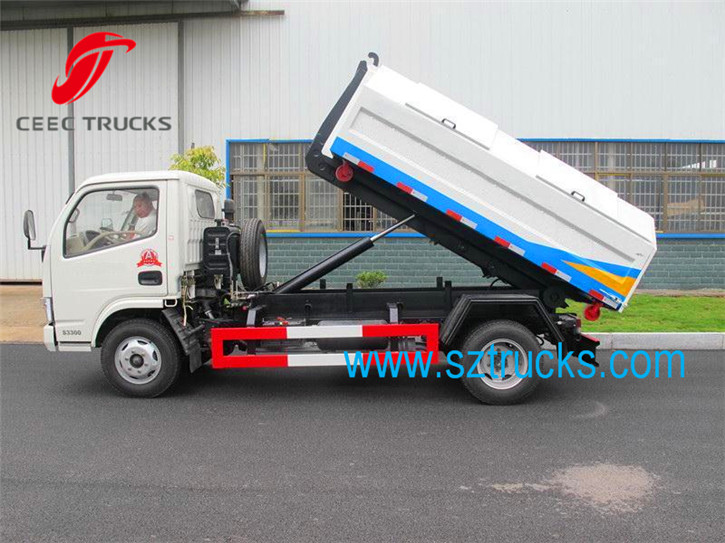

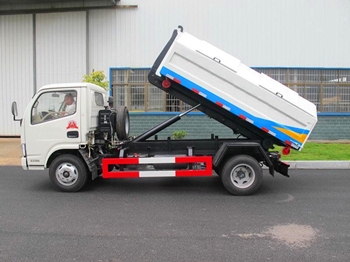

2. The CEEC 3-5CBM Roll on Roll off truck is multi-functional used for garbage
collection, transportation and self-discharging. Without any other equipment,
also easy to operate.
3. The roll on roll off system use complete sets
of equipment, safe and reliable, and the loading weight is more than others.
4. Standard steel (Carbon steel Q235 & Q345,
also the Stainless steel can be choose) for garbage tank, against corrosion
resistant, rust protection and well-resisting.
5. 3000-5000Liters Hook
Loader Truck adopt
one truck match numbers of garbage tank, loop transportation, which can highly
improve the work efficiency, also reduce the cost.

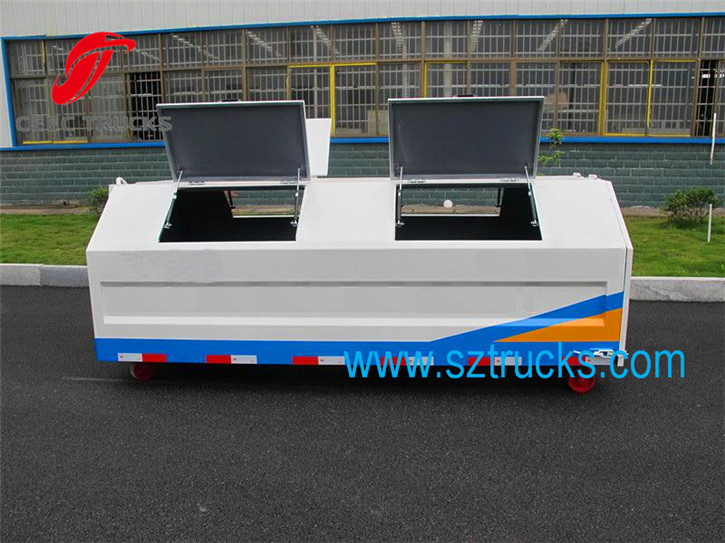

6. Under the garbage tank, there are two waste
water discharging valve, easy to discharge the waste water.
7. The Washing System are optional for the CEEC 3-5CBM Hook Lift truck, which can be used to cleaning the garbage
tank after discharging the rubbish. Also can cleaning the sealing strip and the
surface, which can effectively improve the service life of the sealing strip
and garbage tank.
| Parameter |
|||
| Truck Model |
CEEC5060ZLB1 |
||
| Roll on Roll off Parameter |
Tank Capacity |
||
| Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||
| Overall dimension (mm) |
Length |
5350 |
|
| Width |
1960 |
||
| Height |
2250 |
||
| Tank Thickness |
Side |
3mm |
|
| Floor |
3mm |
||

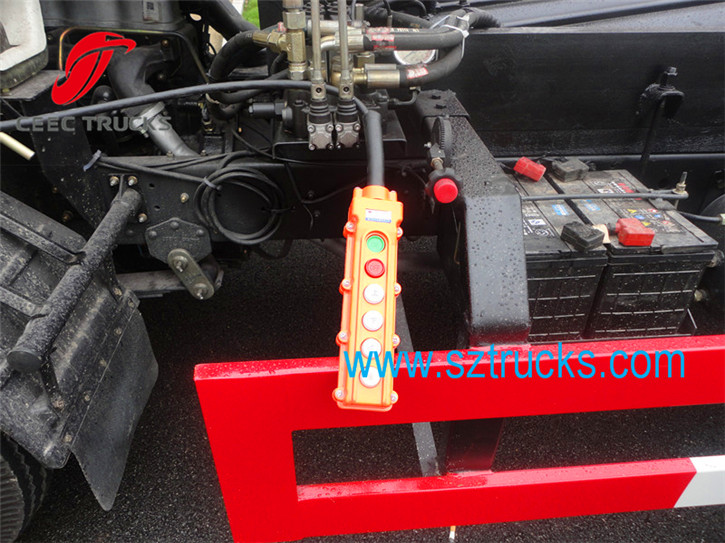

| Hydraulic System |
High Performed Hydraulic System |
||
| Chassis |
Chassis Brand |
DongFeng |
|
| Drive Mode |
4x2 |
||
| Tire type |
7.00-16 tire |
||
| Tire No. |
6+1 units |
||
| Max speed |
95 km/h |
||
| Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
| Engine |
Power |
70 kw / 95hp |
|
| Fuel type |
diesel |
||
| Emission Standard |
Euro 3 & Euro 4 |
||
| Gearbox |
Control type |
Manual |
|
| Gear |
6 forward & 1 reverse |
||
