1. CEEC TRUCKS is the manufacturer of truck mounted crane many years with good reputation. And thecrane including XCMG, UNIC, PALFINGER, SANY, etc.
2. Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
3. Advanced development means make sure that the design is very reliable.

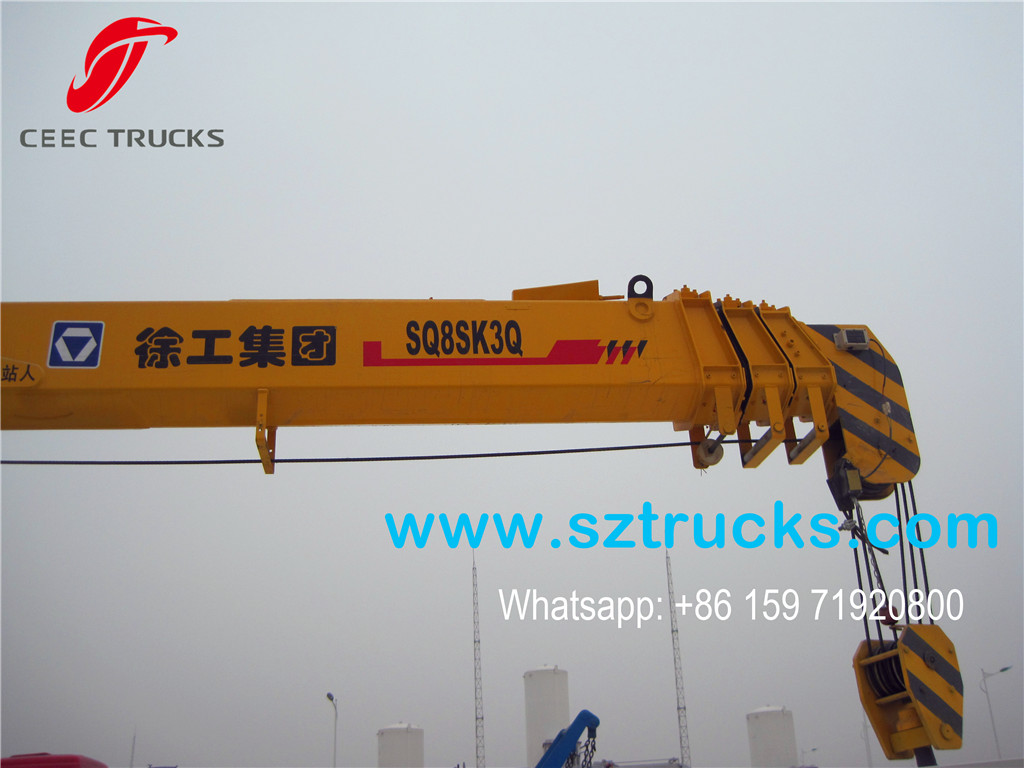

4. The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
5. Compact Hinge point design take up smaller space.
6. The work is more safety after fitted with over windsalarm equipment.
7. The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.
8. Float three-point bridge structure design canlower the accessional stress on the chassis when traveling.
9. Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
10. CEEC truck monted crane equipped with Anti-slewing impulse equipment that make vehicle running sagely.
2. Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
3. Advanced development means make sure that the design is very reliable.
4. The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
5. Compact Hinge point design take up smaller space.
6. The work is more safety after fitted with over windsalarm equipment.
7. The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.
8. Float three-point bridge structure design canlower the accessional stress on the chassis when traveling.
9. Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
10. CEEC truck monted crane equipped with Anti-slewing impulse equipment that make vehicle running sagely.
| Parameter |
|||
| Truck Model |
CEEC5160JSQ1 |
||
| Crane Parameter |
Max Lifting Capacity |
||
| Max Lifting Moment |
20 T.M |
||
| Recommend Power |
27 kw |
||
| Max Oil Flow of Hydraulic System |
55 L/min |
||
| Max Pressure of Hydraulic System |
27 Mpa |
||
| Oil Tank Weight |
160 L |
||
| Crane Weight |
3315 kg |
||
| Installation Space |
1200 mm |
||
| Rotation Angle |
360° All Rotation |
||
| Tank Body |
Cargo Thickness |
Side |
3mm |
| Floor |
4mm |
||
| Chassis |
Recommend Chassis Brand |
DongFeng |
|
| Drive Mode |
4x2 |
||
| Tire type |
10.00-20 tire |
||
| Tire No. |
6+1 units |
||
| Max speed |
95 km/h |
||
| Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
| Engine |
Power |
132 kw / 180hp |
|
| Fuel type |
diesel |
||
| Emission Standard |
Euro 3 & Euro 4 |
||
| Gearbox |
Control type |
Manual |
|
| Gear |
8 forward & 1 reverse |
||
