1. CEEC TRUCKS is themanufacturer of truck mounted crane many years with good reputation. And thecrane including XCMG, UNIC, PALFINGER, SANY, etc.
2. Single cylinder synchronization guy cable technologymakes work efficiency much higher than before.
3. Advanced development means make sure that thedesign is very reliable.
4. The more symmetrical center design ofpentagon & hexagon boom make it has bigger anti-bending capacity.
5. Compact Hinge point design take up smallerspace.

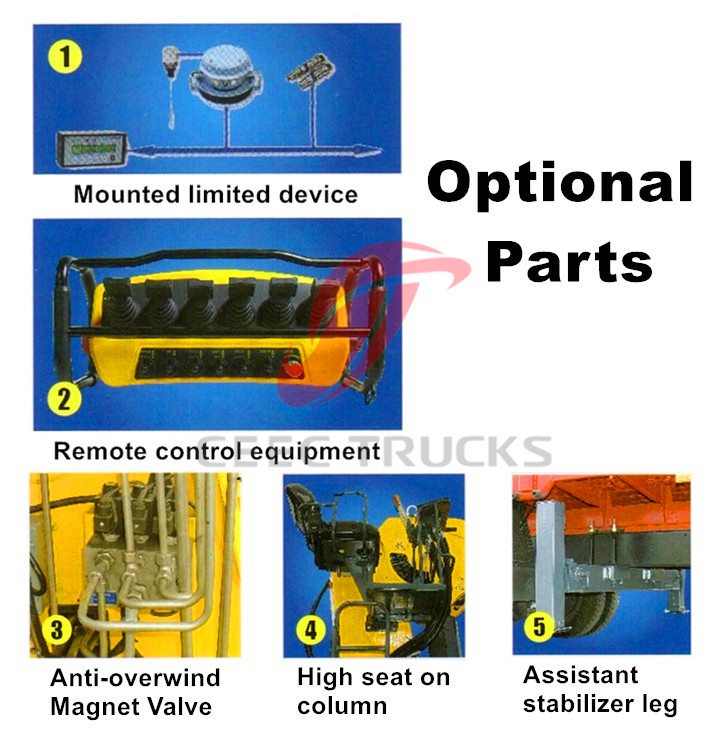

6. The work is more safety after fitted with overwindsalarm equipment.
7. The integer lifting winch improved the workefficiency greatly and prolonged work life of hydraulic system.
8. Float three-point bridge structure design canlower the accessional stress on the chassis when traveling.
9. Self-designed & developed slewing machinewith greater drive force can meet varied requirements of working situation.
10. Anti-slewing impulse equipment that makevehicle running sagely.
2. Single cylinder synchronization guy cable technologymakes work efficiency much higher than before.
3. Advanced development means make sure that thedesign is very reliable.
4. The more symmetrical center design ofpentagon & hexagon boom make it has bigger anti-bending capacity.
5. Compact Hinge point design take up smallerspace.
6. The work is more safety after fitted with overwindsalarm equipment.
7. The integer lifting winch improved the workefficiency greatly and prolonged work life of hydraulic system.
8. Float three-point bridge structure design canlower the accessional stress on the chassis when traveling.
9. Self-designed & developed slewing machinewith greater drive force can meet varied requirements of working situation.
10. Anti-slewing impulse equipment that makevehicle running sagely.

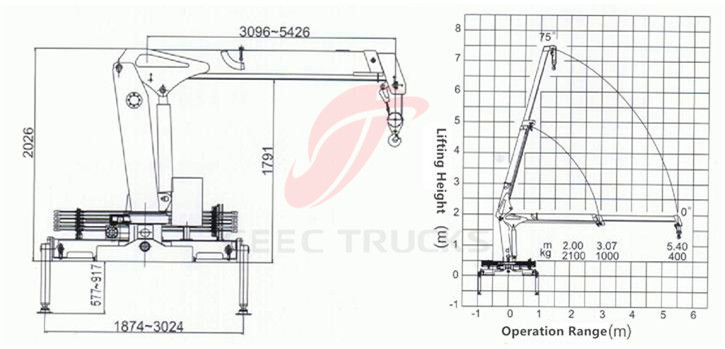

| Parameter |
|||
| Truck Model |
CEEC5060JSQ1 |
||
| Crane Parameter |
Max Lifting Capacity |
2000 kg |
|
| Max Lifting Moment |
4.2 T.M |
||
| Recommend Power |
9 kw |
||
| Max Oil Flow of Hydraulic System |
20 L/min |
||
| Max Pressure of Hydraulic System |
16 Mpa |
||
| Oil Tank Weight |
25 L |
||
| Crane Weight |
875 kg |
||
| Installation Space |
850 mm |
||
| Rotation Angle |
360° All Rotation |
||
| Tank Body |
Cargo Thickness |
Side |
2mm |
| Floor |
3mm |
||
| Chassis |
Recommend Chassis Brand |
DongFeng |
|
| Drive Mode |
4x2 |
||
| Tire type |
7.00-16 tire |
||
| Tire No. |
6+1 units |
||
| Max speed |
95 km/h |
||
| Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
| Engine |
Power |
70 kw / 95hp |
|
| Fuel type |
diesel |
||
| Emission Standard |
Euro 3 & Euro 4 |
||
| Gearbox |
Control type |
Manual |
|
| Gear |
6 forward & 1 reverse |
||
