1. We CEEC TRUCKS are manufacturer, specializing in producing Garbage Dumper many years with good reputation.

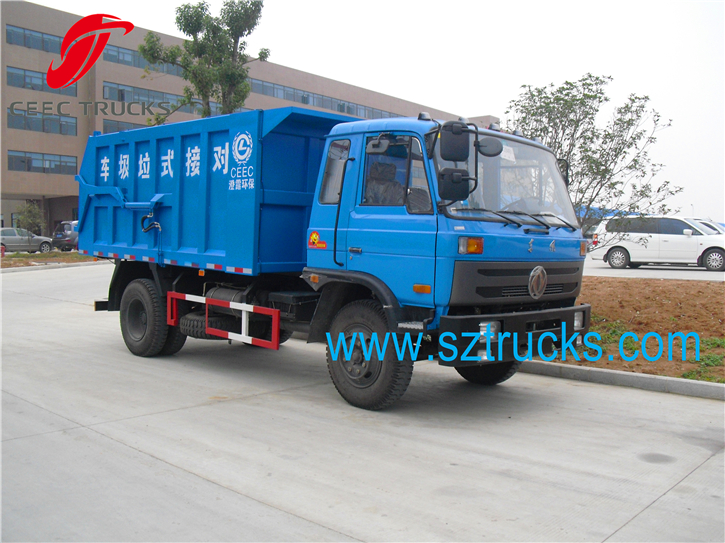

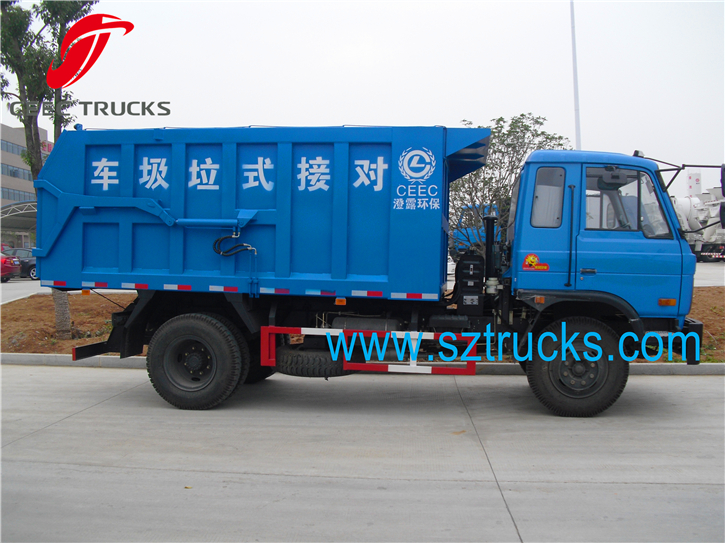

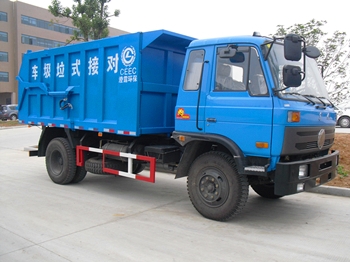

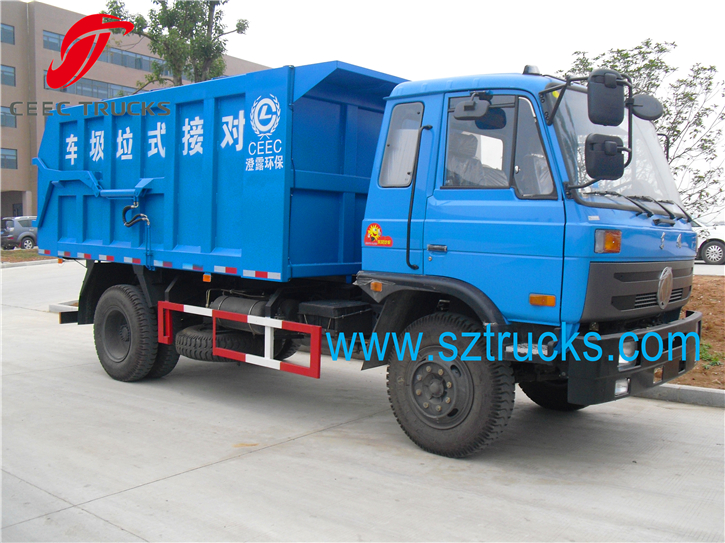

2. The CEEC 8CBM Garbage Dump truck is multi-functional used for garbage collection, transportation and self-discharging. Easy to operate and maintenance.

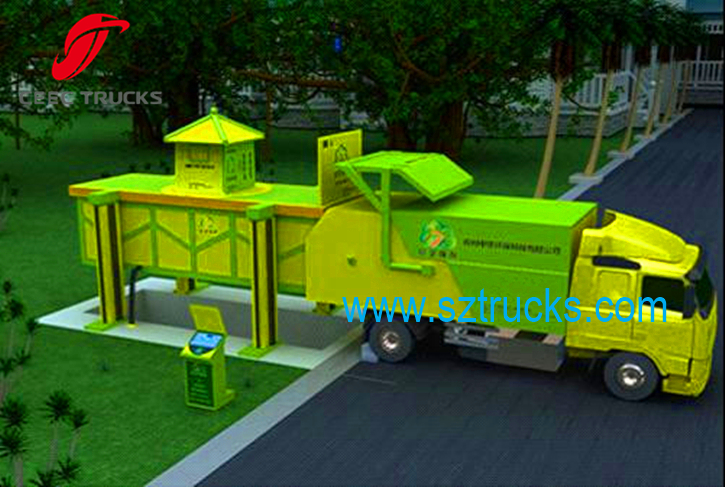

3. The Sealed garbage trucks have high degree of automation, our 10000Liters garbage dumper is match used with other Waste Management, such as garbage compactor truck, swing arm garbage truck, garbage station etc. Also the Monitoring Device is available, which can make the garbage loading more efficiency & easy.
4. Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for garbage tank, against corrosion resistant, rust protection and well-resisting.
5. 8000Liters Garbage Dumper refuse docking Trucks adopts high performance & advanced Hydraulic System. Which has the advantage of smaller size, long usage life, reliable performance, and easy to operation & maintenance.
6. The garbage tank self-weight is relatively lower, but capacity is bigger. This means the garbage dumpers have the advantage of energy conservation & emission reduction. Also can help user reduce the cost.
7. The rear door is advanced designed. Adopted high-tech Europe design. This can improve the work efficiency and avoid the crash.
Parameter |
|||
Truck Model |
|||
Garbage Tank Parameter |
Tank Capacity |
8CBM |
|
Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||
Overall dimension (mm) |
Length |
7120 |
|
Width |
2500 |
||
Height |
3145 |
||
Tank Thickness |
Side |
3mm |
|
Floor |
4mm |
||
Hydraulic System |
High Performed Hydraulic System |
||
Chassis |
Chassis Brand |
DongFeng |
|
Drive Mode |
4x2 |
||
Tire type |
9.00-20tire |
||
Tire No. |
6+1 units |
||
Max speed |
95 km/h |
||
Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
Engine |
Power |
132 kw / 180hp |
|
Fuel type |
diesel |
||
Emission Standard |
Euro 3 & Euro 4 |
||
Gearbox |
Control type |
Manual |
|
Gear |
8 forward & 1 reverse |
||
