1. We CEEC TRUCKS are manufacturer, specializing in producing Garbage Dumper many years with good reputation.

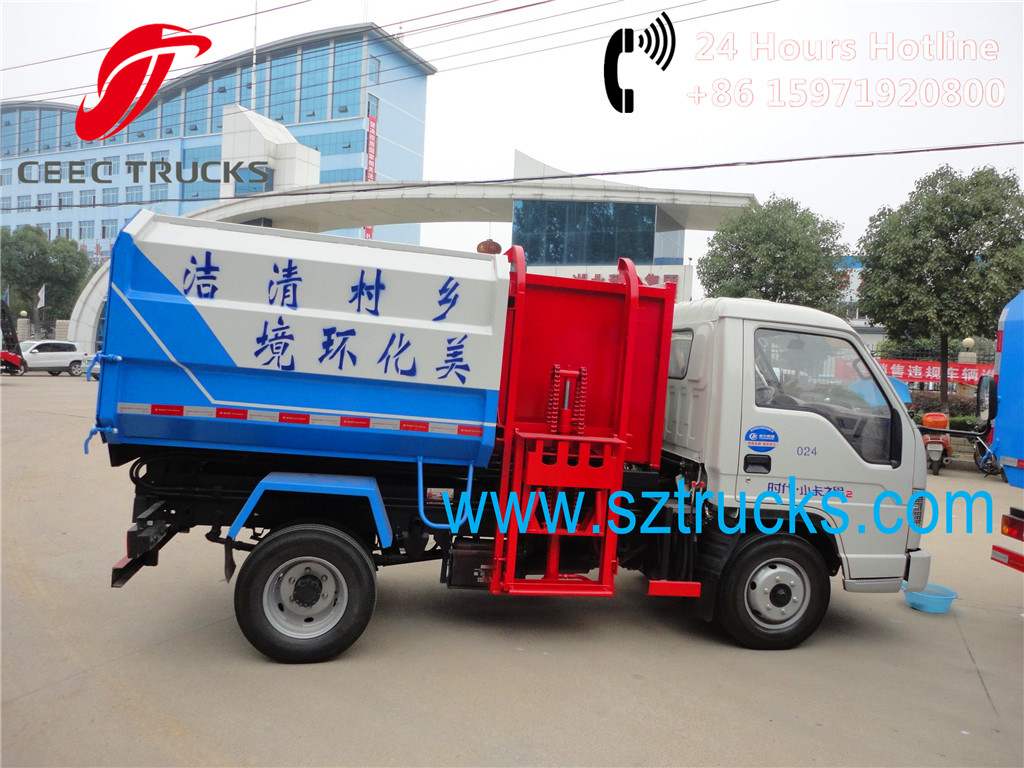

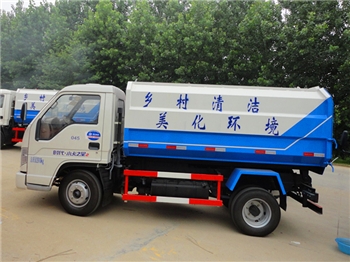

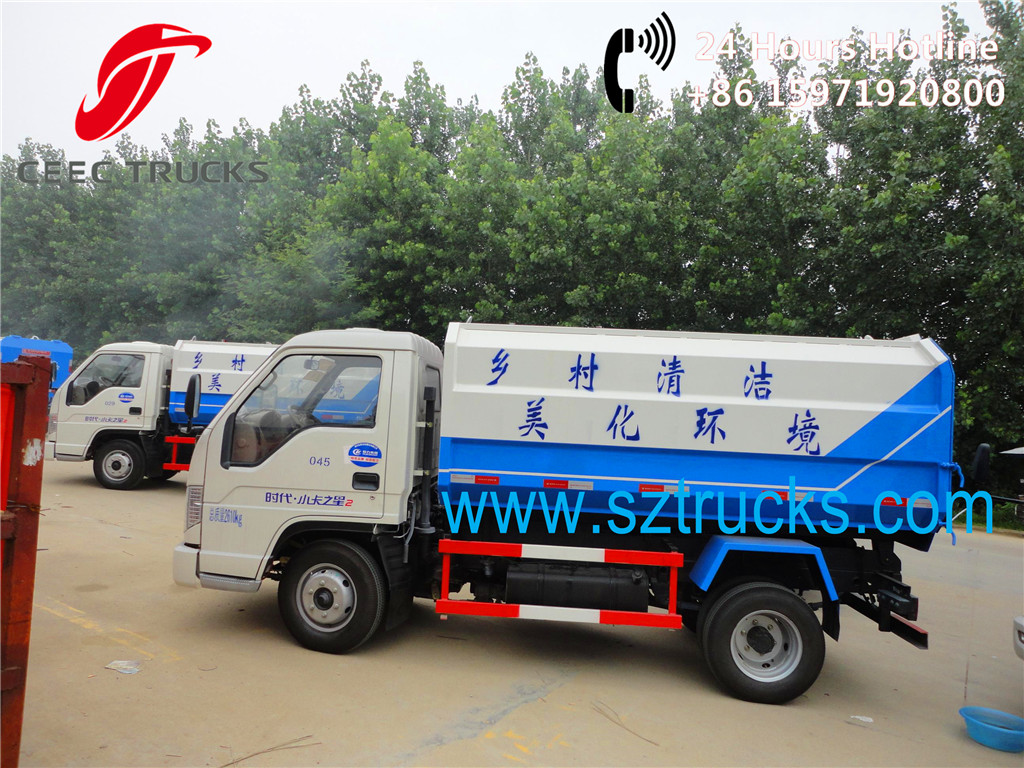

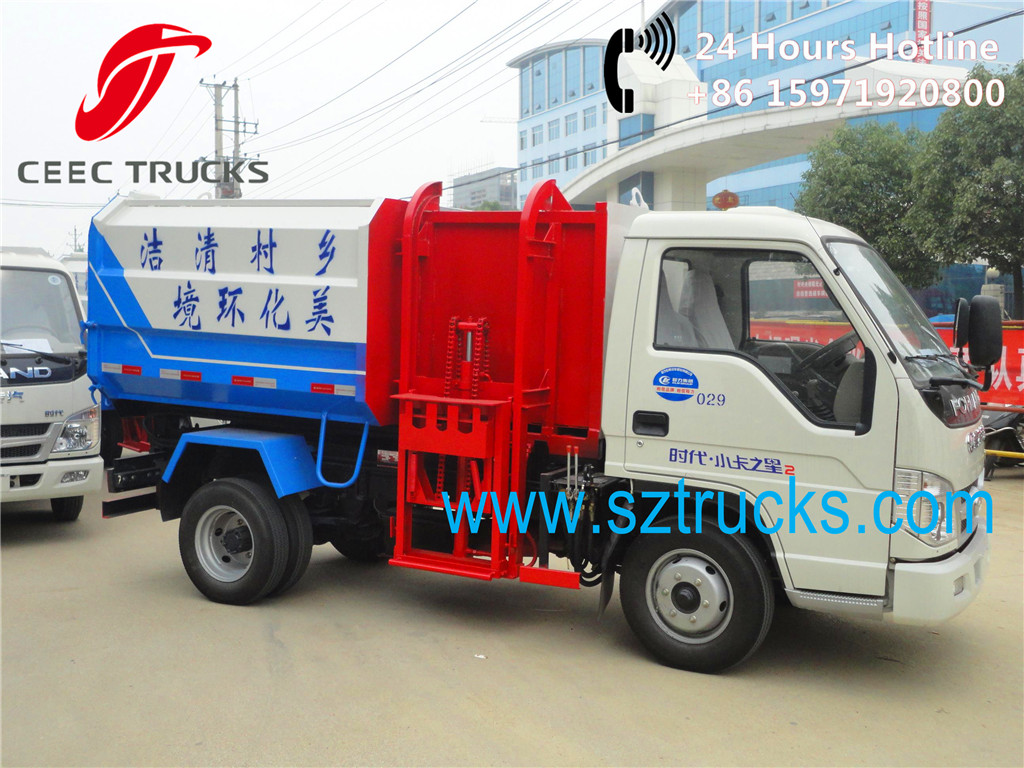

2. The CEEC 2-3CBM Self Loading Garbage truck is multi-functional used for garbage collection, transportation and self-discharging. Easy to operate and maintenance.
3. The Sealed garbage trucks have high degree of automation, our 6000Liters garbage dumper is match used with other Waste Management, such as garbage compactor truck, swing arm garbage truck, garbage station etc. Also the Monitoring Device is available, which can make the garbage loading more efficiency & easy.
4. The garbage tank volume is 2.5-3CBM, adopts GB Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for garbage tank, 3mm thickness for side and 4mm thickness for floor, all with against corrosion resistant, rust protection and well-resisting.
5. 2000Liters mini Side Loading Garbage Truck adopts high performance & advanced Hydraulic System. Which has the advantage of smaller size, long usage life, reliable performance, and easy to operation & maintenance.
6. The garbage tank self-weight is relatively lower, but capacity is bigger. This means the garbage dumpers have the advantage of energy conservation & emission reduction. Also can help user reduce the cost.
7. The rear door is advanced designed. Adopted high-tech Europe design. This can improve the work efficiency and avoid the crash.
Parameter |
|||
Truck Model |
|||
Garbage Tank Parameter |
Tank Capacity |
||
Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||
Overall dimension (mm) |
Length |
4516 |
|
Width |
1680 |
||
Height |
1920 |
||
Tank Thickness |
Side |
3mm |
|
Floor |
4mm |
||
Hydraulic System |
High Performed Hydraulic System |
||
Chassis |
Chassis Brand |
DongFeng |
|
Drive Mode |
4x2 |
||
Tire type |
6.00-15 tire |
||
Tire No. |
6+1 units |
||
Max speed |
85 km/h |
||
Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
Engine |
Power |
60 kw / 82hp |
|
Fuel type |
diesel |
||
Emission Standard |
Euro 3 & Euro 4 |
||
Gearbox |
Control type |
Manual |
|
Gear |
5 forward & 1 reverse |
||
