Cesspit Emptier (also called truck mounted sewage vacuum cleaner, vacuum cleaner truck, vacuum suction tanker, vacuum waste collection truck, sewage suction truck, sewage vacuum truck, waste vacuum tanker, sewer truck, sewage suction tanker truck, gully emptier etc.) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
CEEC TRUCKS manufacturered vacuum tank capacity ranges from 2,000 litres to 20,000 litres…..
---- Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.

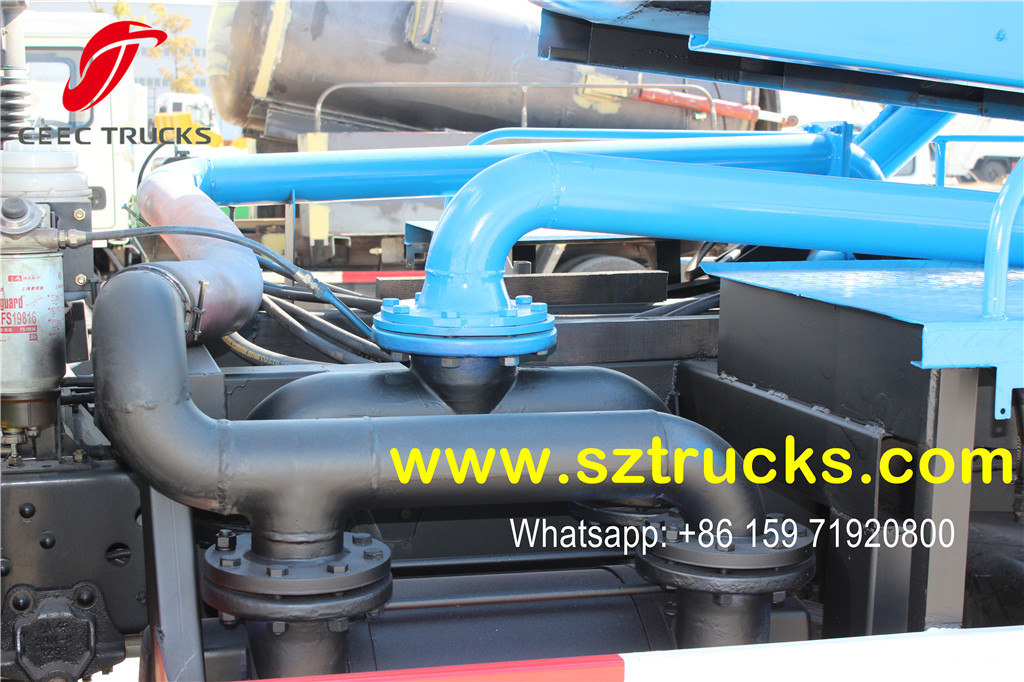

---- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
---- Pump can be operated by a hydraulic motor or by an auxiliary engine.
---- Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
---- Nice shape, rational structure, durable and long service life.

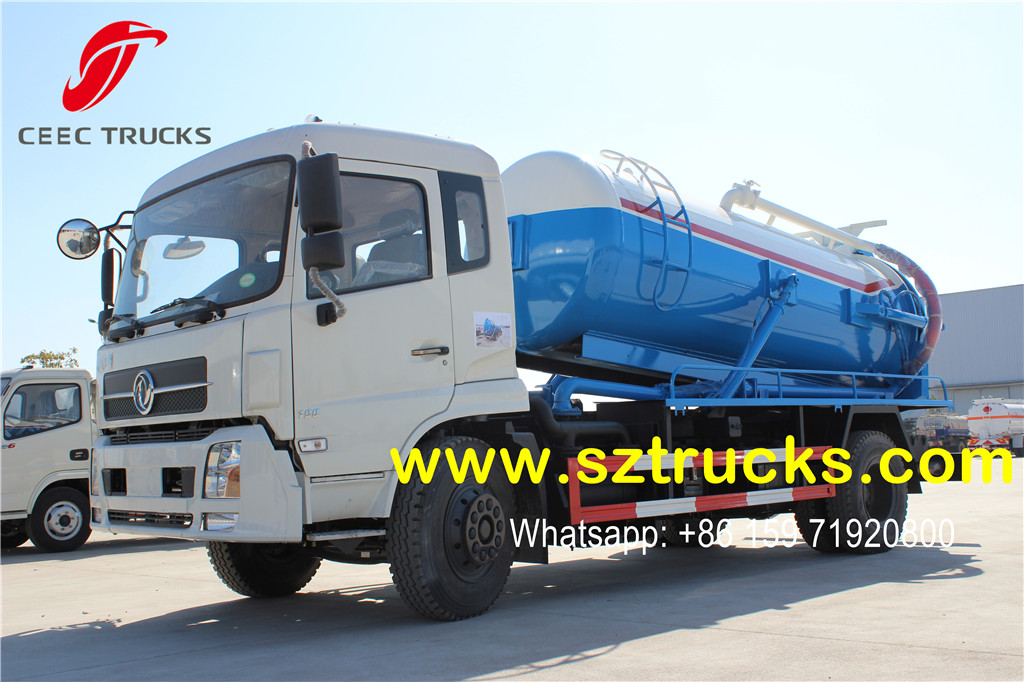

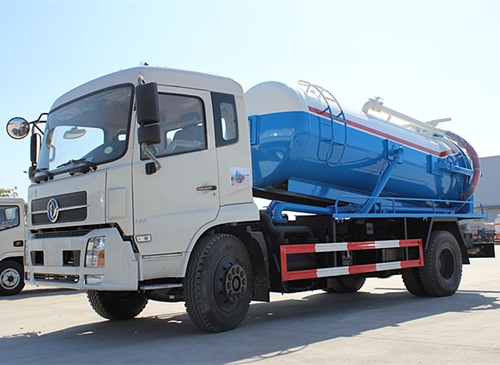

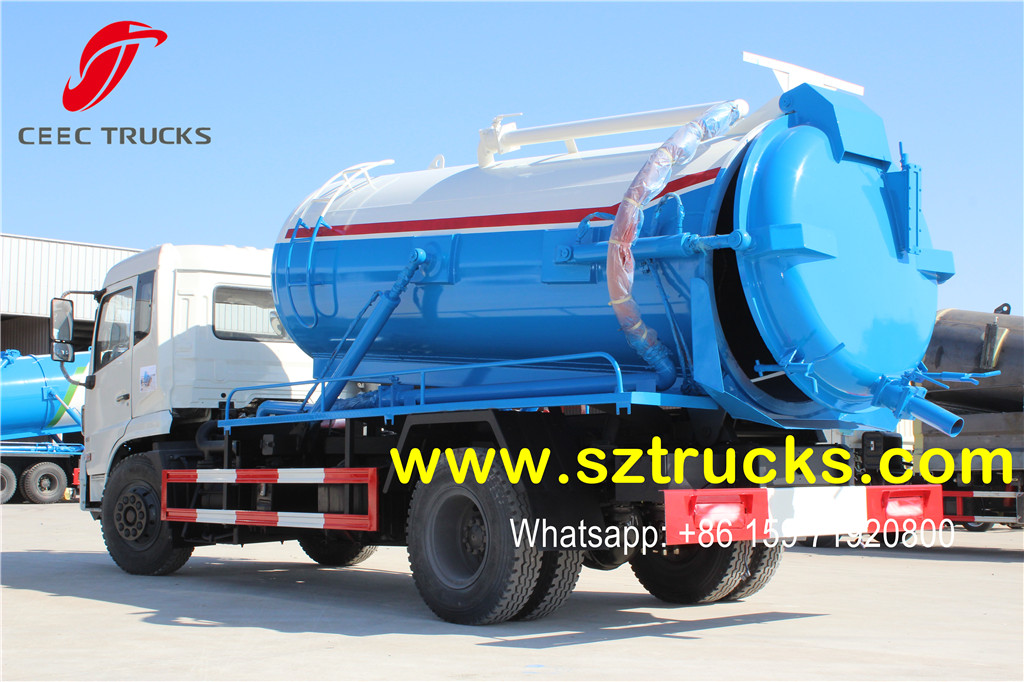

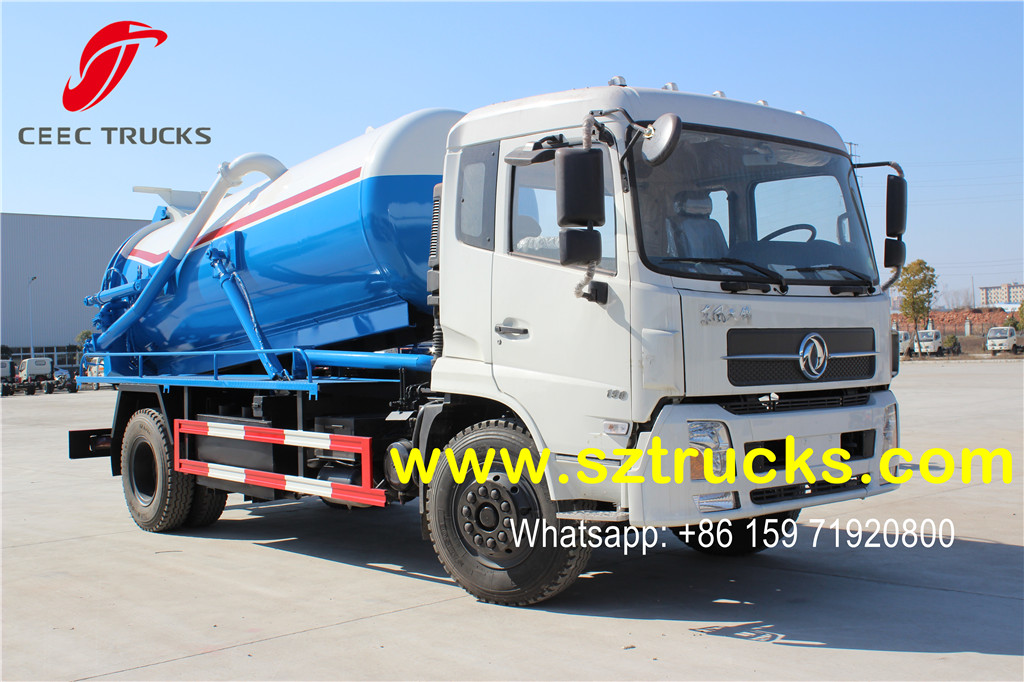

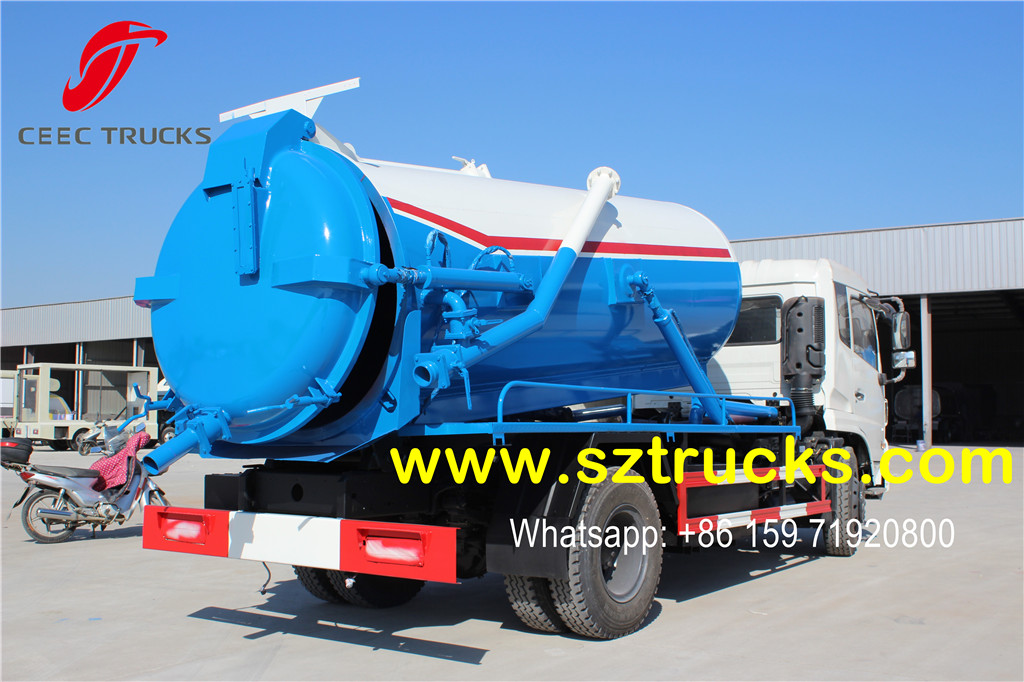

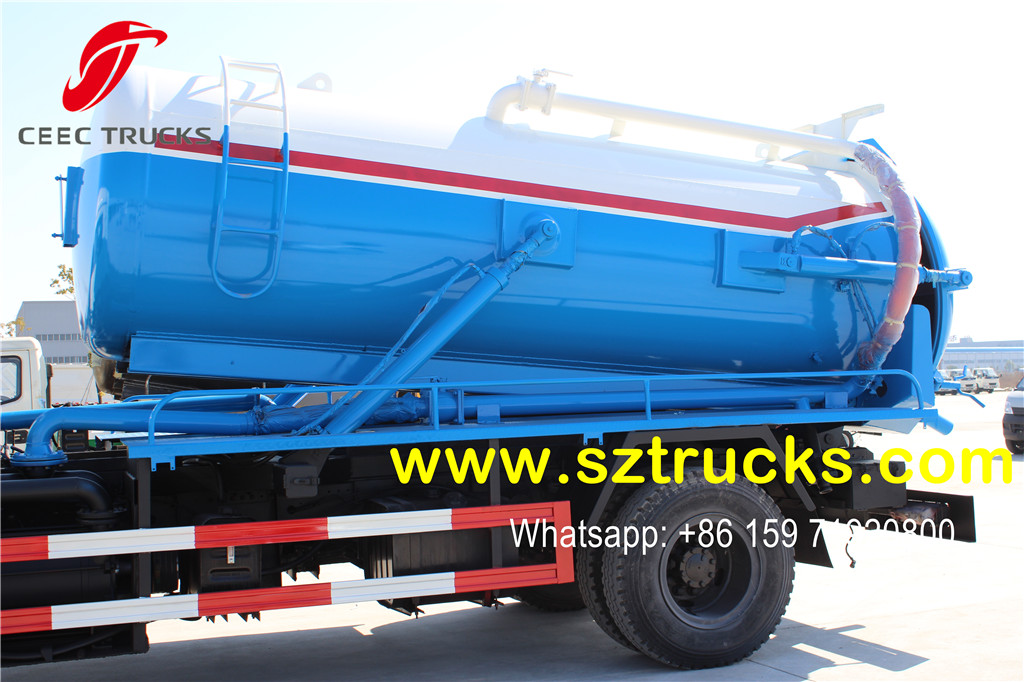

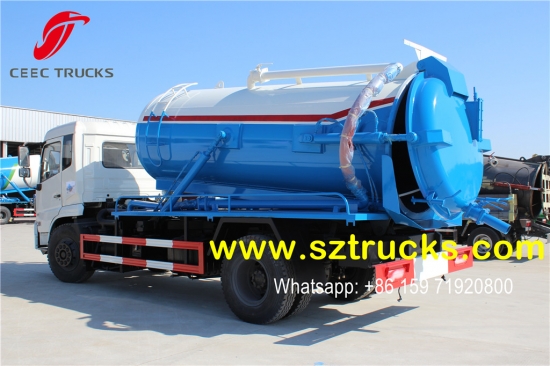

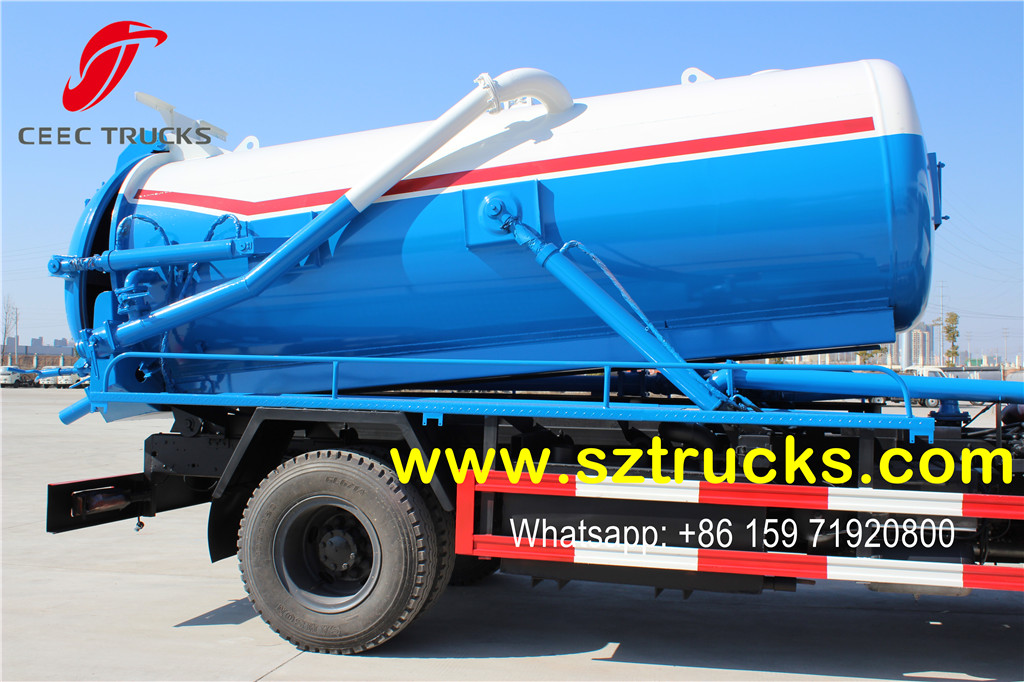

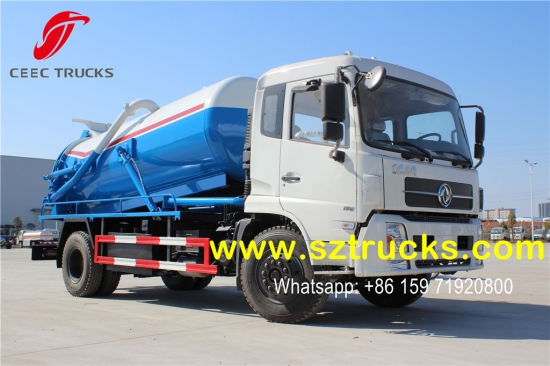

| Vacuum Sewage Suction Truck Dongfeng ( 8 m3) |
||
| General |
Vehicle Brand |
CEEC TRUCKS |
| Chassis Brand |
Dongfeng |
|
| Overall Dimension |
7900 x 2500 x 3290 mm |
|
| GVW / Kerb Weight |
16,000 kg / 7,900 kg |
|
| Cab |
Cab Capacity |
3 persons allowed |
| Air Conditioner |
Air conditioner equipped |
|
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
CUMMINS, B190 33 |
|
| Power |
190HP (140kw) |
|
| Displacement |
5900 ml |
|
| Emission Standard |
Euro III |
|
| Chassis |
Drive Type |
4X2, left hand drive |
| Transmission |
6-shift manual gearbox |
|
| Wheelbase/No. of axle |
4200 mm / 2 |
|
| Tyre Specification |
10.00-20 |
|
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
90 km/h |
|
| Paint |
Metallic paint |
|
| Super Structure |
Vacuum Tank Capacity |
8m3 |
| Tank Material |
Carbon steel thickness over 6mm |
|
| Suction Head |
7 m |
|
| Vacuum Pump |
High efficiency, vacuum rare up to 93%, quick suction and discharge |
|
| Suction Hose |
High quality, wire strength hose |
|

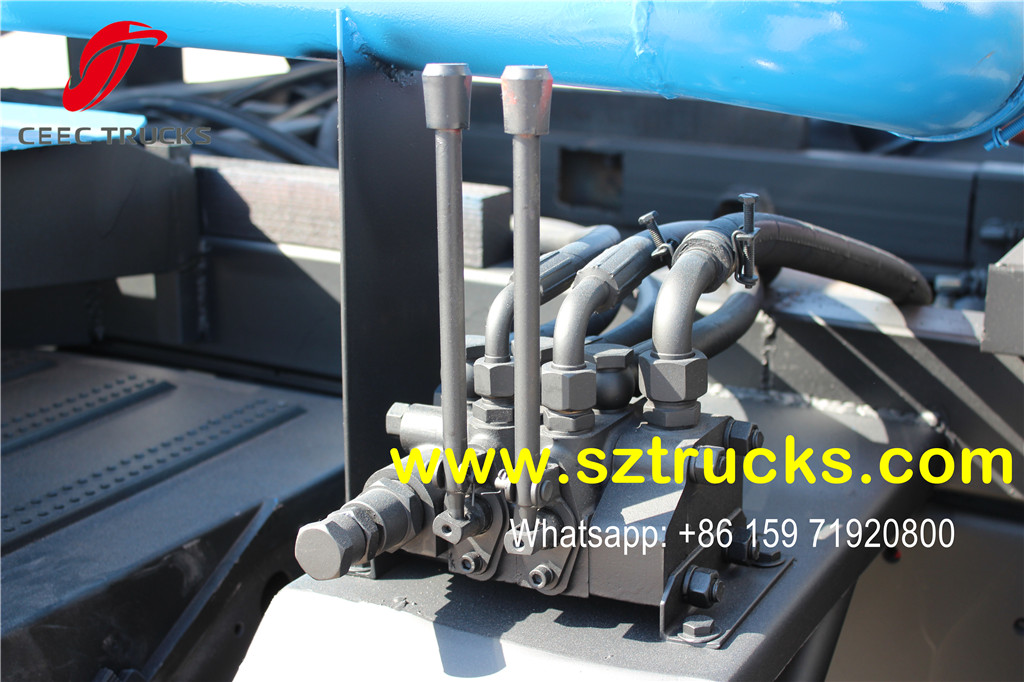

| Install vacuum Pump drive by engine through PTO, hydraulic system, multi-way valve, pressure gauges, water-gas separator, oil-gas separator, oil tank reservoir, level inspection window and suction hose. |
||

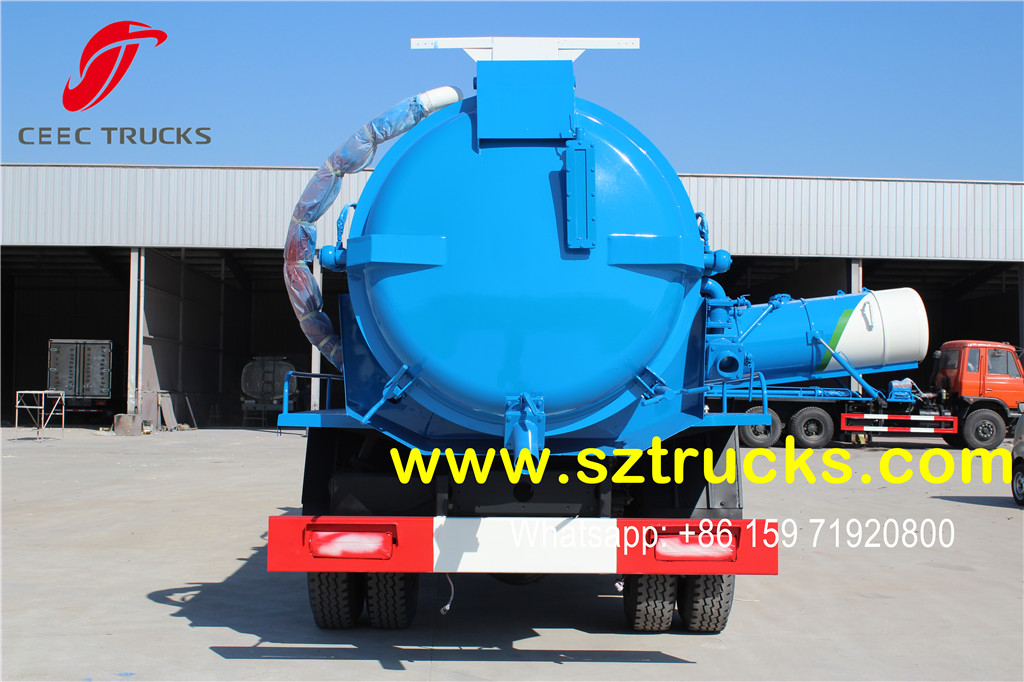

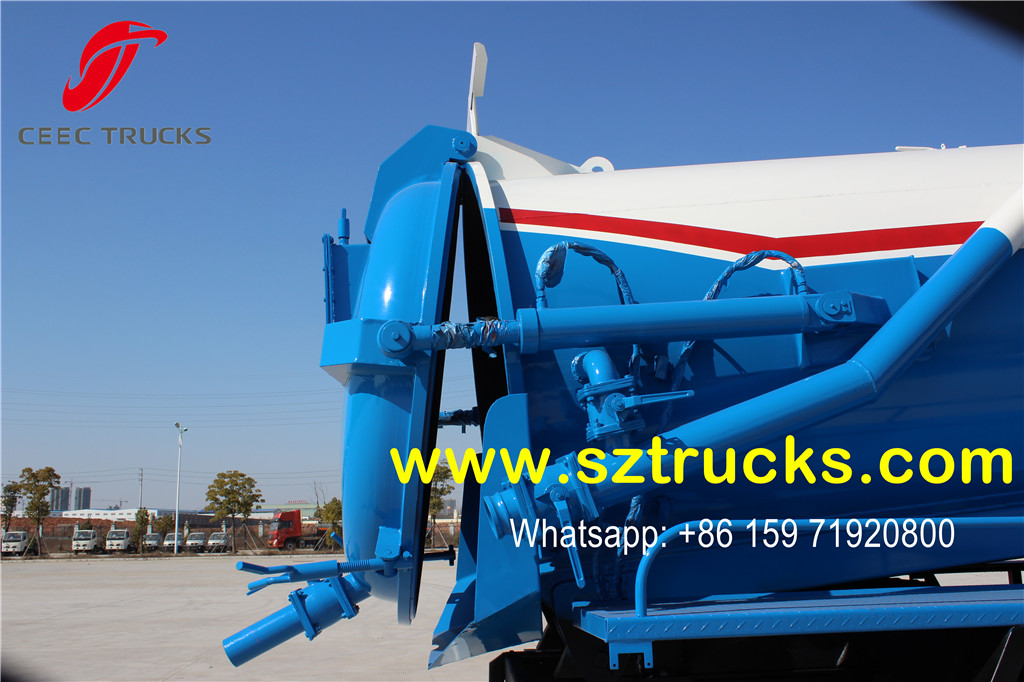

| Rear door can be hydraulic opened for complete discharge of solid stuff. |
||
| All other standard accessories: Tool kit, English manual…… |
||
| Optional |
1. Tank material could be mild steel, stainless steel… |
|
