Cesspit Emptier is suitable for transporting Industrial hazardous waste, urban sanitation sewage, construction sludge and other liquid with lifting and sucking function.
CEEC TRUCKS produced SINOTRUK RHD 10CBM vacuum sewage suction truck hace following advantages:

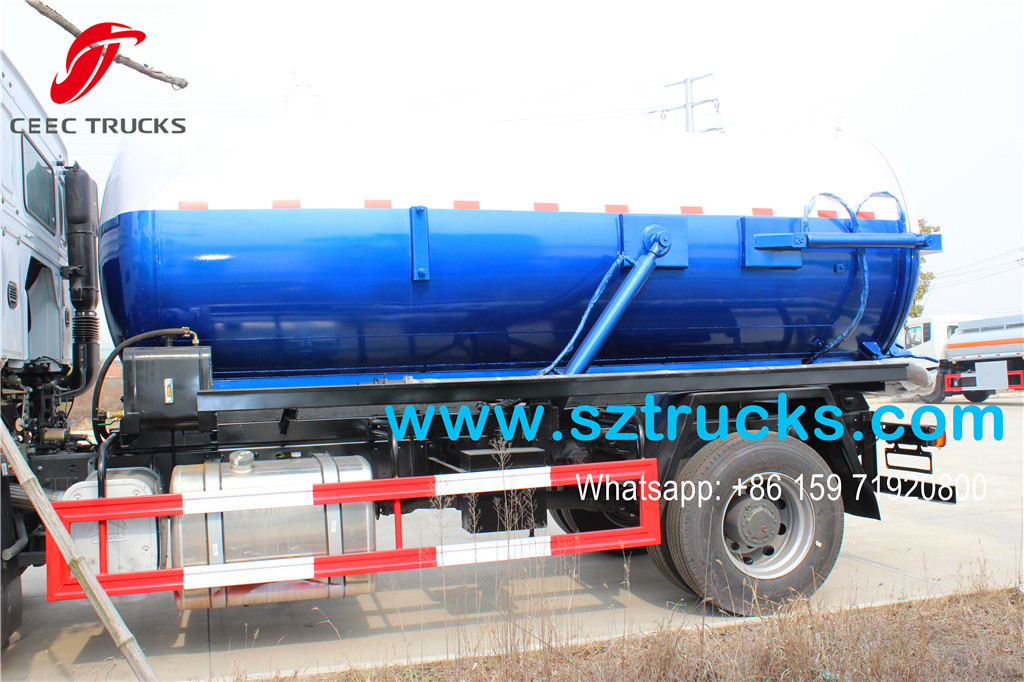

---- Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
---- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
---- Pump can be operated by a hydraulic motor or by an auxiliary engine.
---- Overfill system
with music horn is equipped, preventing the vacuum pump damage from
sewage water into vacuum pump when the tank is full.
---- Nice shape, rational structure, durable and long service life.

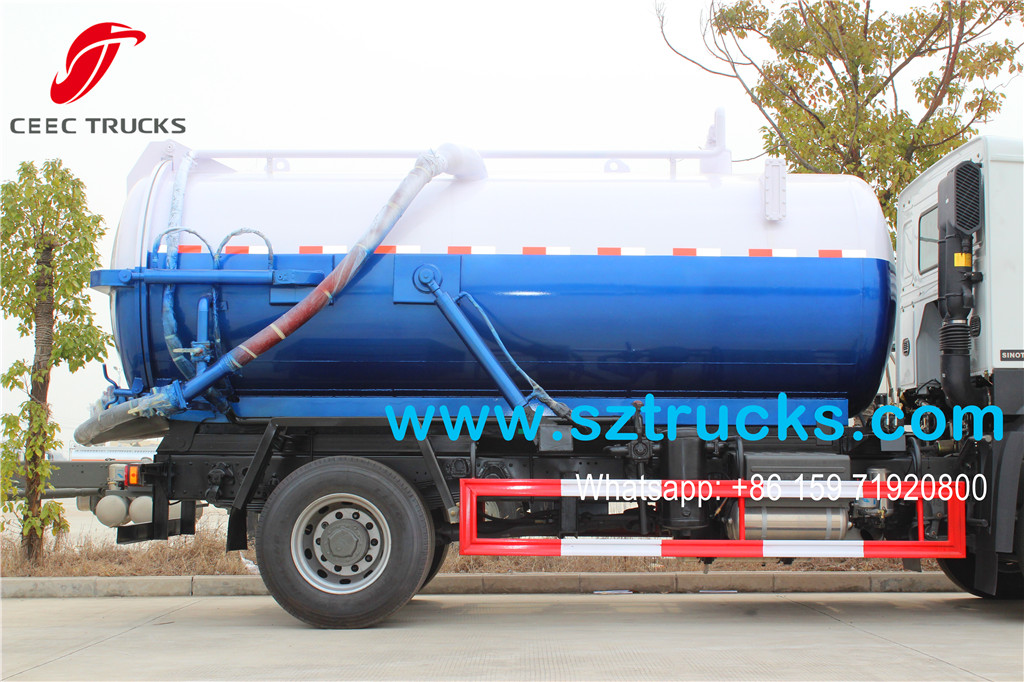

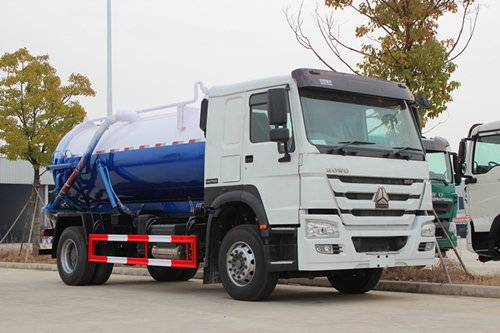

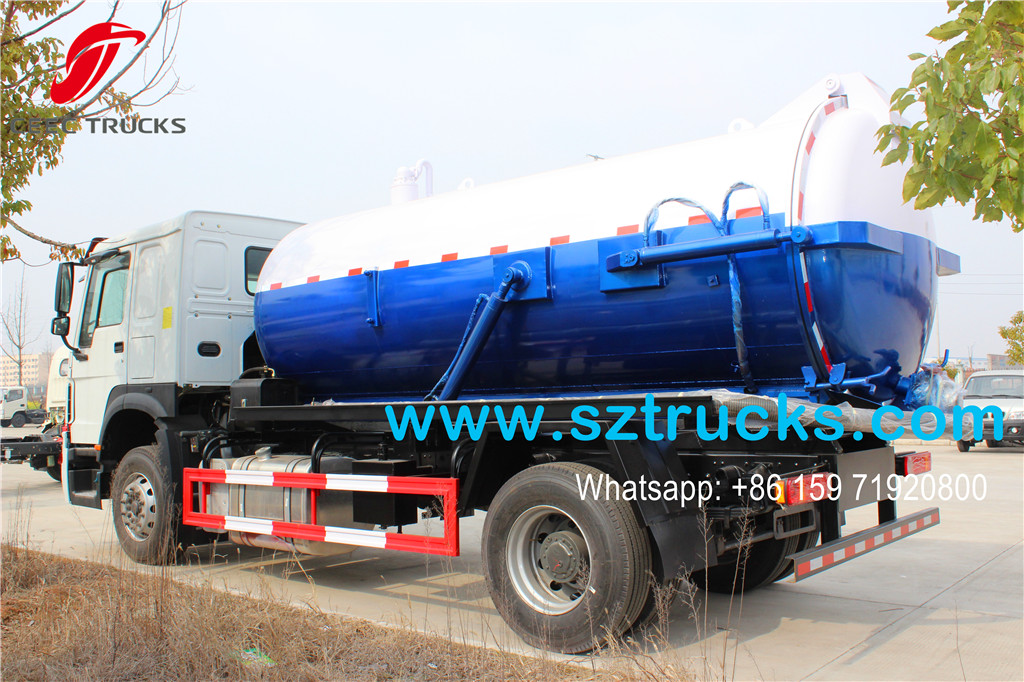

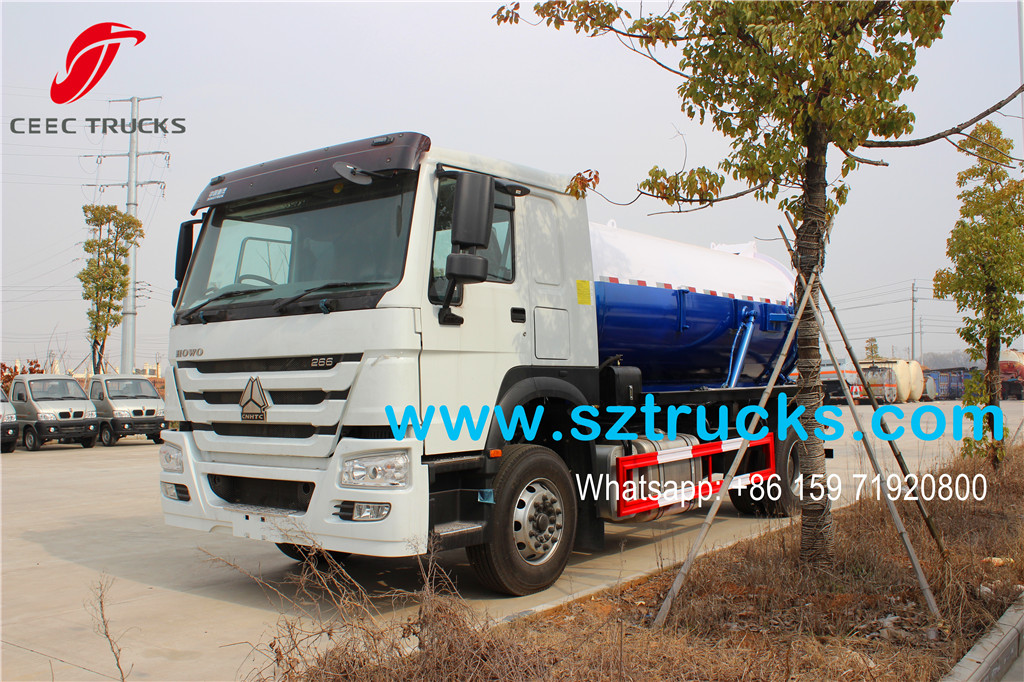

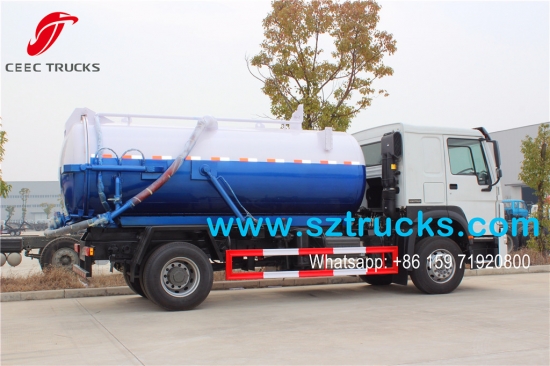

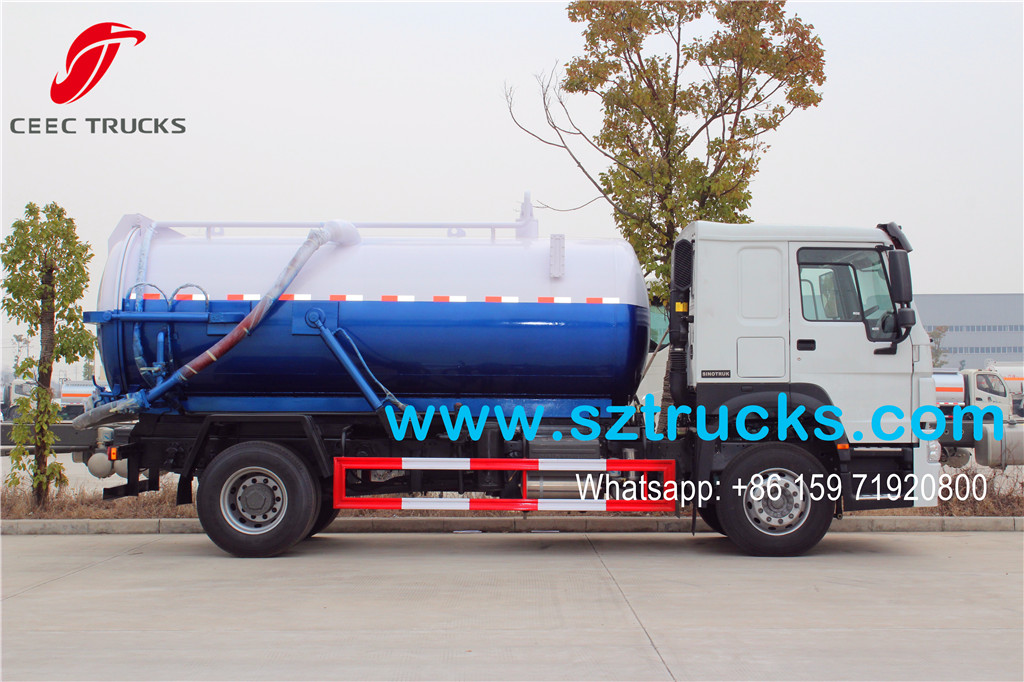

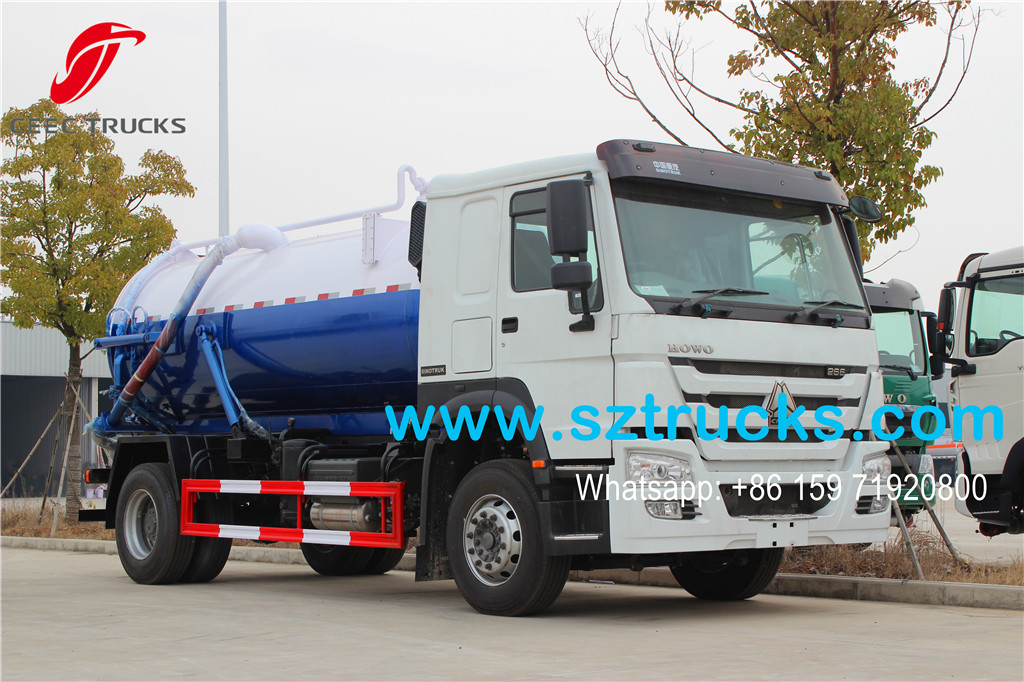

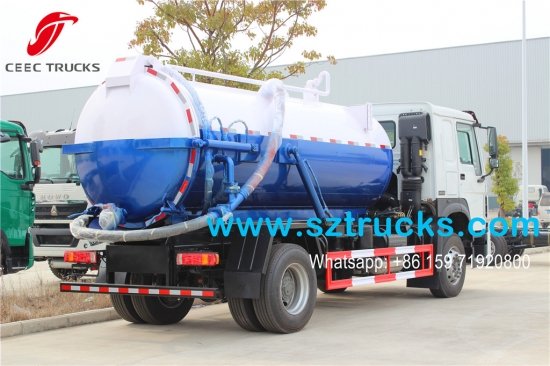

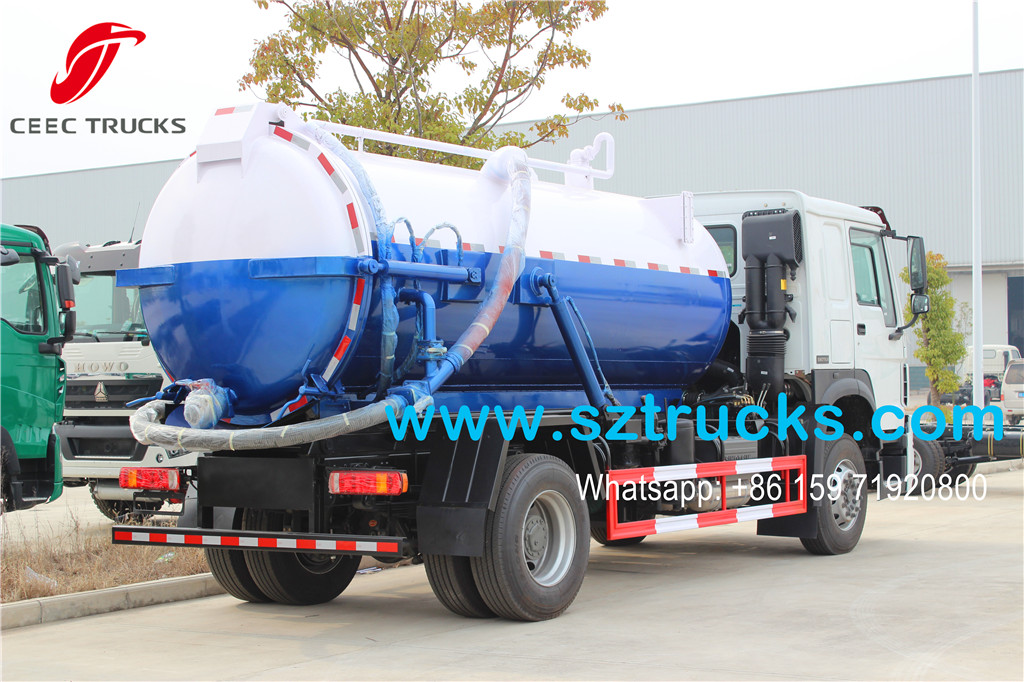

SINOTRUK RHD Cesspit Emptier ( 10 m3) |
||
| General |
Vehicle Brand |
CEEC TRUCKS |
| Chassis Brand |
SINOTRUK |
|
| Overall Dimension |
7960 x 2500 x 3290 mm |
|
| GVW / Kerb Weight |
16,000 kg / 7,900 kg |
|
| Cab |
Cab Capacity |
3 persons allowed |
| Air Conditioner |
Air conditioner equipped |
|
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
WEICHAI WD615.96 |
|
| Power |
266HP |
|
| Displacement |
9726 ml |
|
| Emission Standard |
Euro III |
|
| Chassis |
Drive Type |
4X2, Right hand drive |
| Transmission |
HW15710 10-shift manual gearbox |
|
| Wheelbase/No. of axle |
4500 mm / 2 |
|
| Tyre Specification |
12.00-20 |
|
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
90 km/h |
|
| Paint |
Metallic paint |
|
| Super Structure |
Vacuum Tank Capacity |
10m3 |
| Tank Material |
Carbon steel thickness over 6mm |
|
| Suction Head |
7 m |
|
| Vacuum Pump |
High efficiency, vacuum rare up to 93%, quick suction and discharge |
|
| Suction Hose |
High quality, wire strength hose |
|

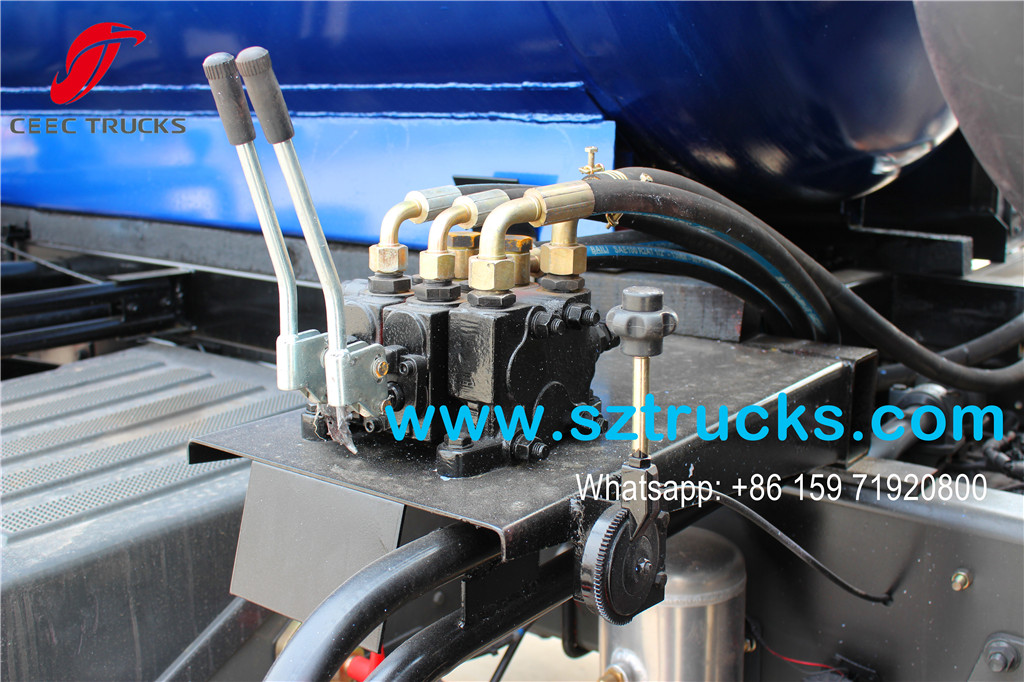

| Install vacuum Pump drive by engine through PTO, hydraulic system, multi-way valve, pressure gauges, water-gas separator, oil-gas separator, oil tank reservoir, level inspection window and suction hose. |
||

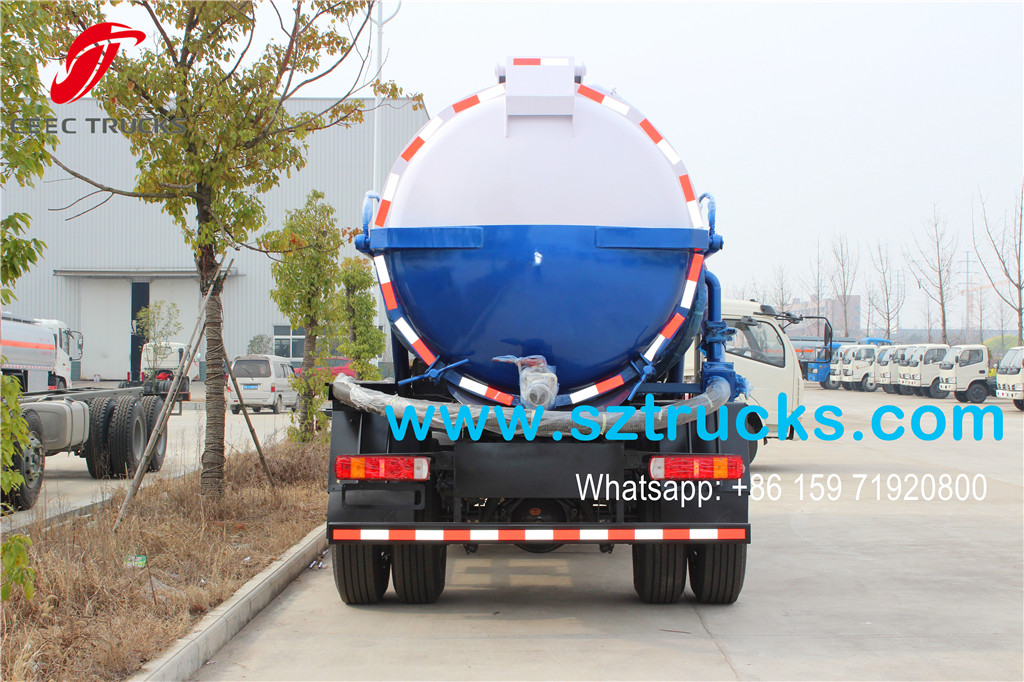

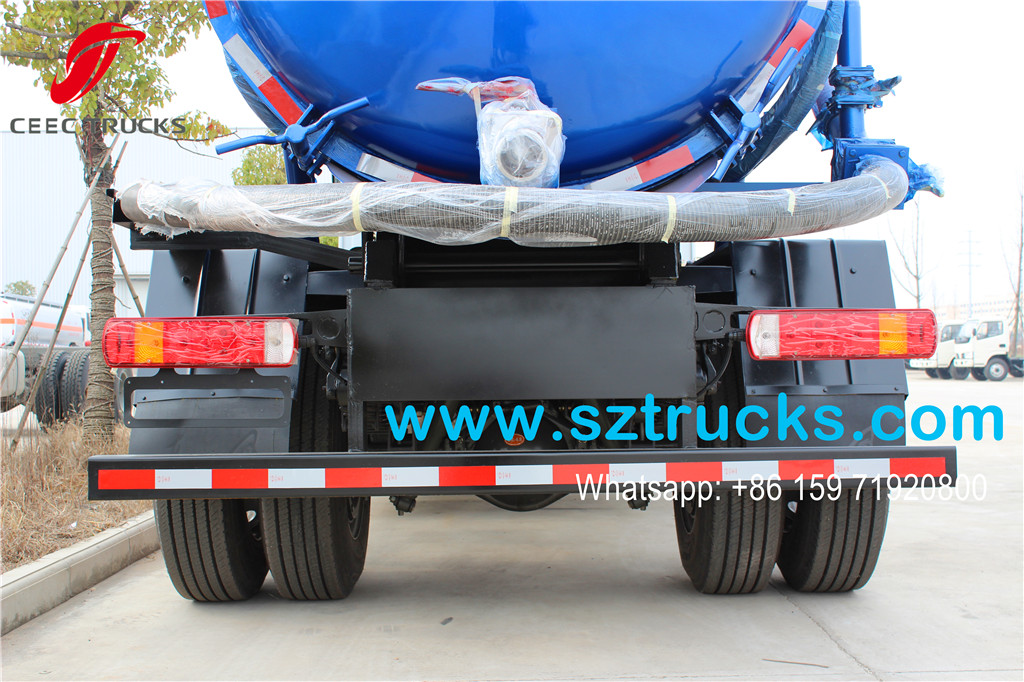

| Rear door can be hydraulic opened for complete discharge of solid stuff. |
||
| All other standard accessories: Tool kit, English manual…… |
||
| Optional |
1. Tank material could be mild steel, stainless steel… |
|
