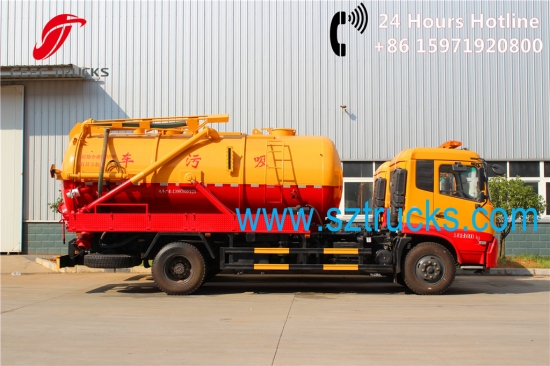

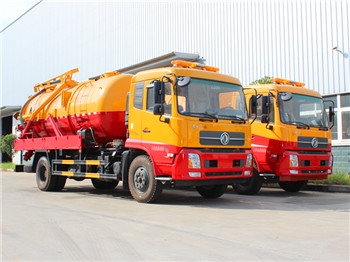

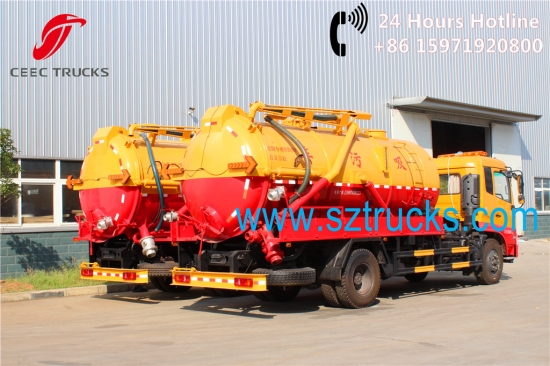

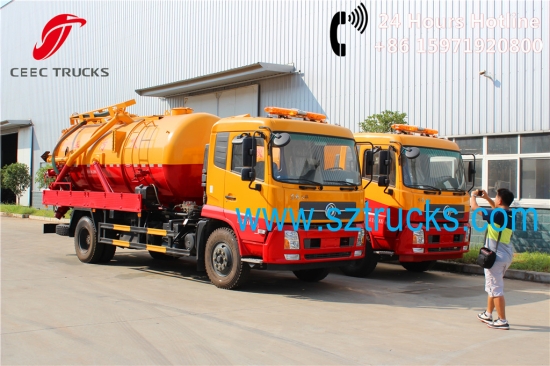

More Detail pictures to show you the Multifunctional vacuum sewage suction trucks:
CEEC Sewage Suction Truck exhibition:

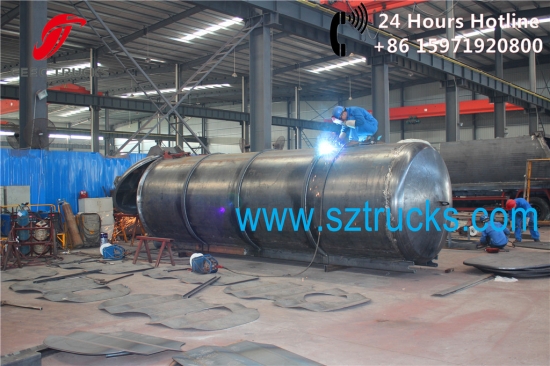

CEEC tanker truck workshop:

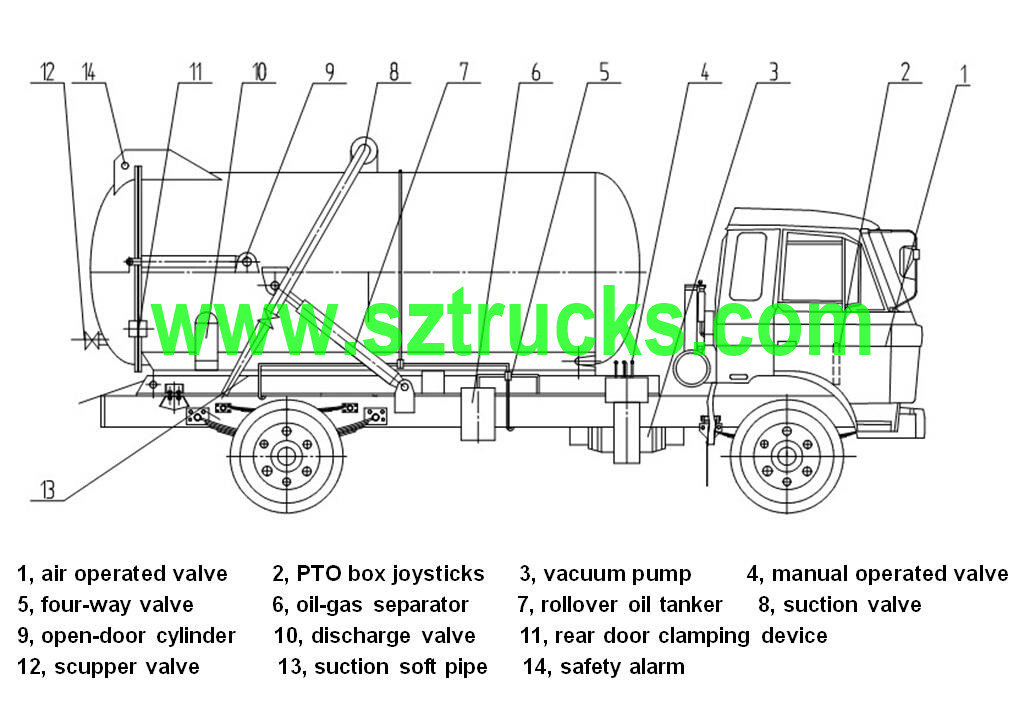

2. The yellow CEEC 10CBM Vacuum Sewage Suction truck mainly consists of: PTO (Power Take Off), Transmission shaft, vacuum pump, water and gas separator, oil and gas separator, multiple directional control valve, hanger rod, sewage tanker, flow valve, sucking gun, water tank, vacuum pressure gauge and piping system, etc.
3. Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for the tank, against corrosion resistant, rust protection and well-resisting.
4. Available also with hydraulic drive. Max. Vacuum rate 95%. Suitable i.e. recommended for continuous duty even at high vacuum levels. Low noise level on all models. This pump is designed for stationary industrial plants or for sewer cleaning, truck mounted, and equipment.
5. CEEC TRUCKS vacuum suction trucks have following advanced characters: high efficiency; self-draining; direct irrigating, etc.
6. Mainly used for pumping the sewage, fecal, slurry and mixed with small suspension debris. And this kind CEEC 10000L cesspit emptier is widely applicable to sanitation, city cleaning, residential areas, agriculture, and industry in large, medium and small cities.
7. The 8000L-10000L Cesspiter Emptier is consist of: PTO, Transmission Shaft, Vacuum Pump, Water and Gas Separator, Oil and Gas Separator, Multiple Directional Control Valve, Hanger Rod, Sewage Tanker, Flow Valve, Sucking Gun, Water Tanker, Vacuum Pressure Gauge and Pipeline System.
Product |
Dongfeng vacuum sewage sucking truck |
|
Chassis type |
DFL1160 |
|
Cubage(m3) |
7 |
|
Parameters |
Overall dimension length/width/height (mm) |
7850*2490*3300 |
Total Mass(kg) |
16000 |
|
Payload(kg) |
8000 |
|
Kerb Mass(kg) |
7300 |
|
Approach angle/ Departure angle(mm) |
20/18 |
|
Front suspension/rear suspension(mm) |
1430/1870 |
|
Fuel Type |
diesel |
|
Fuel Consumption/100 km |
|
|
Max Speed |
90 |
|
Engine |
Type |
ISDe190 40 Cummins six-cylinder inner-cooling supercharged diesel engine |
Displacement/Power(kw) |
3999/140(190hp) |
|
Manufacturer |
Dongfeng Cummins six-cylinder inner-cooling supercharged diesel engine |
|
Type |
|
|
Chassis |
Drive type |
4×2 |
Wheelbase(mm) |
3800 |
|
Tread(front/rear) |
1880/1800 |
|
Front axle |
4 Ton |
|
Rear axle |
9 Ton |
|
Steering gear |
Duel-armed steering wheel, power steering |
|
Transmission |
8 gear mechanical drive transmission |
|
Clutch |
Diaphragm clutch, hydraulic remote control, pneumatic servo |
|
Braking system |
Split air braking system, spring braking, exhaust braking |
|
Cab |
Non-longheaded, one and a half row cab,whole metal-enclosed |
|
Number of spring axle(front/rear) |
7/9+6 |
|
Tire Type |
9.00-20 |
|
Air-condition |
Choose to fix |
|
Sucking system |
Sucking pump |
Sliding-vane rotary vacuum pump |
Special performance parameters |
Vertical suction range |
≥8 |
Absolute pressure |
8500Pa |
|
Rotation speed |
500 |
|
Theory pumping speed |
98L/S |
|
Axis power |
5.5kw |
|
Vent dia |
50mm |
|
Suction Time |
5s |
|
Drain time |
4s |
|
