What is CEEC TRUCKS produced cesspit emptier:
Cesspit Emptier is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
1. Septic Pump Suction Trucks consist of: PTO, Transmission Shaft, Vacuum Pump, Water and Gas Separator, Oil and Gas Separator, Multiple Directional Control Valve, Hanger Rod, Sewage Tanker, Flow Valve, Sucking Gun, Water Tanker, Vacuum Pressure Gauge and Pipeline System.
2. Vacuum Sewage Truck use standard steel (Carbon steel Q235 & Q345 as standard, also the Stainless steel can be choose) for the tank, against corrosion resistant, rust protection and well-resisting.

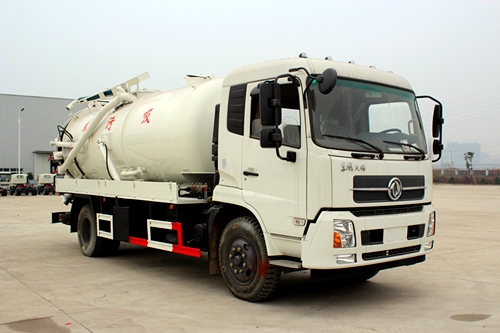

| Cesspit Emptier Dongfeng (10,000 Litres) | ||
| General | Vehicle Brand |
CEEC TRUCKS |
| Chassis Brand | Dongfeng | |
| Overall Dimension | 8090 * 2500 * 3300 mm | |
| GVW / Kerb Weight | 16,000 kg / 8,815 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins engine | |
| Power | 190 Ps (140 KW) | |
| Displacement | 5900 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left or right hand drive |
| Transmission | 8-speed front, 1 reverse | |
| Wheelbase/No. of axle | 3950 mm / 2 | |
| Tyre Specification | 10.00-20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 10,000 Litres (about 2,700 gallons) |
| Tank Material | Carbon steel | |
| Suction Pipeline | 7m | |
| Vacuum Pump |
Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. |
|
| Hose | High quality, wire strengthened hose | |
| Rear door can be hydraulic opened for complete discharge of solid stuff. | ||
| All standard accessories: inlet, discharge, antifill valve…….. | ||
| Optional |
** Tank material could be carbon steel, stainless steel..….. ** Vacuum pump could be imported brand…… |
|
