1. We CEEC TRUCKS are manufacturer, specializing in providing 6x6 All-Wheel-Drive truck many years with good reputation.
2. All CEEC produced 6x6 All-Wheel-Drive truck can be LHD & RHD for optional.

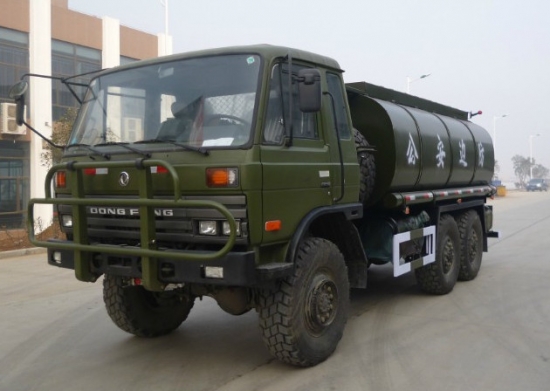

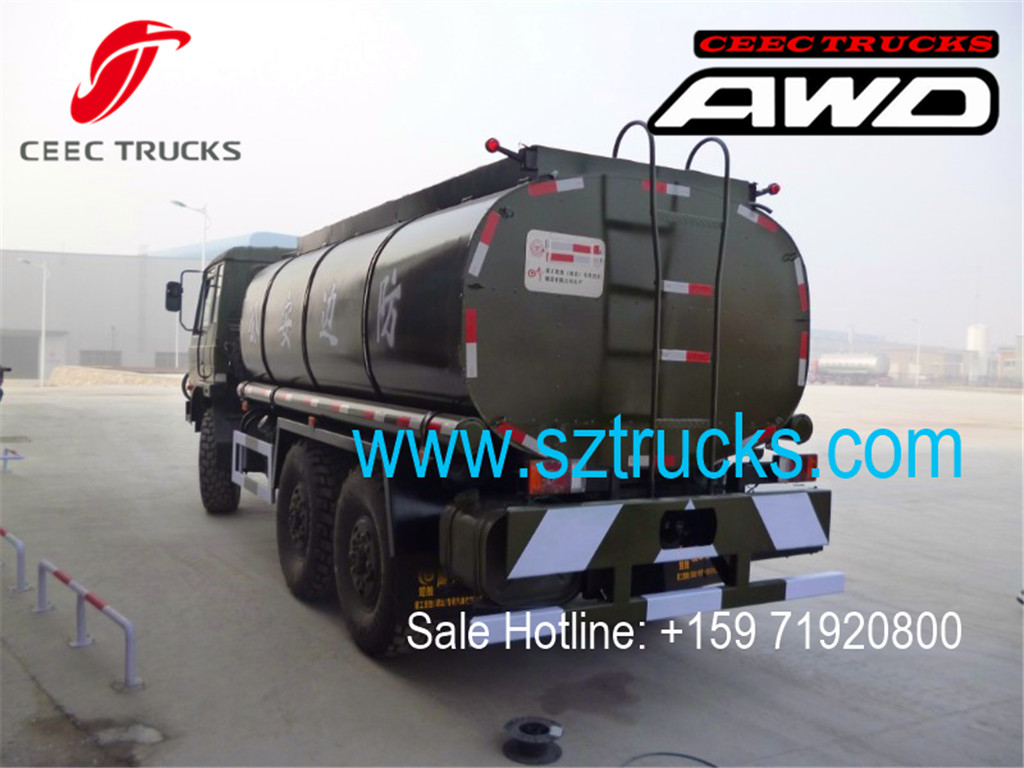

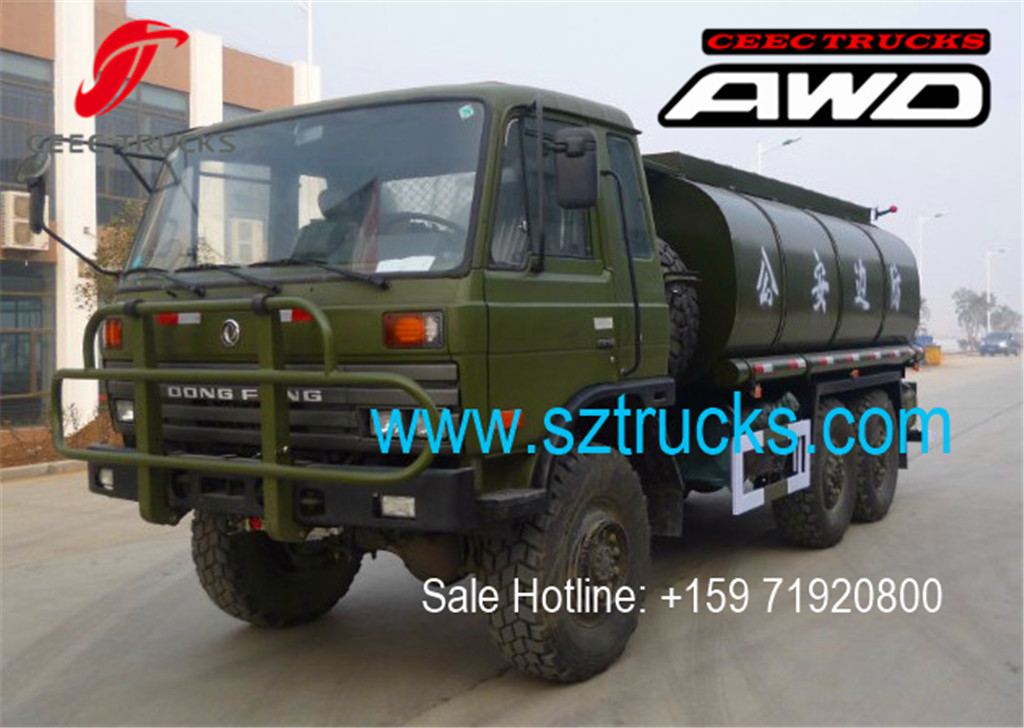

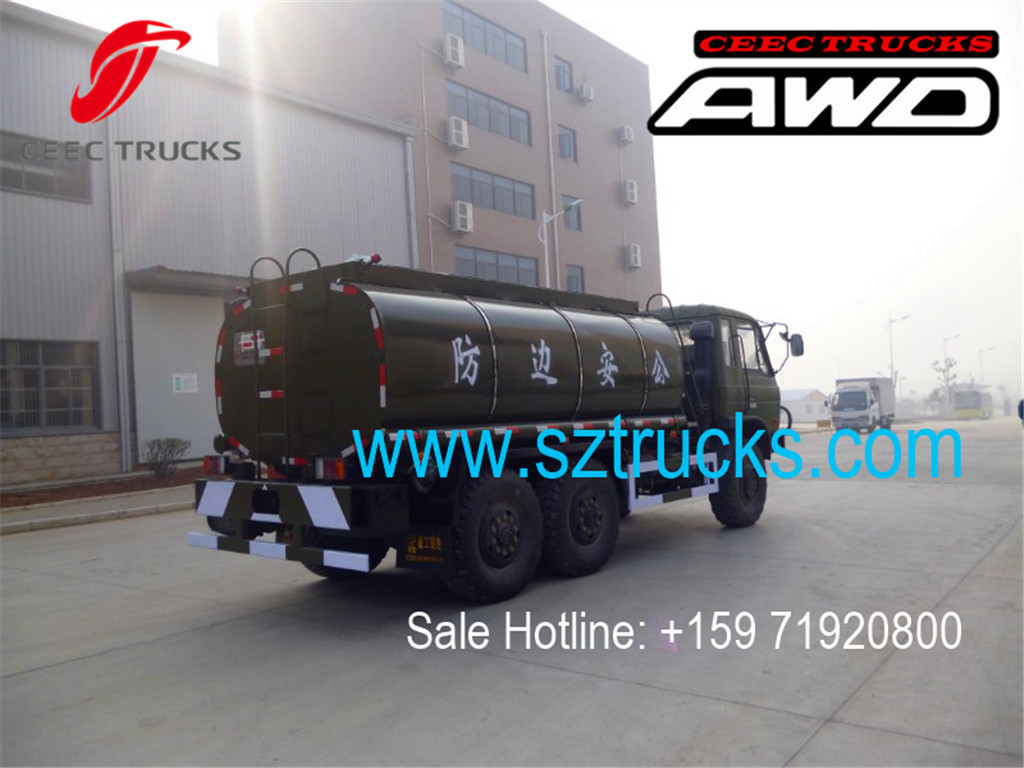

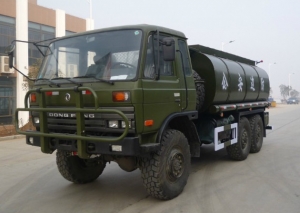

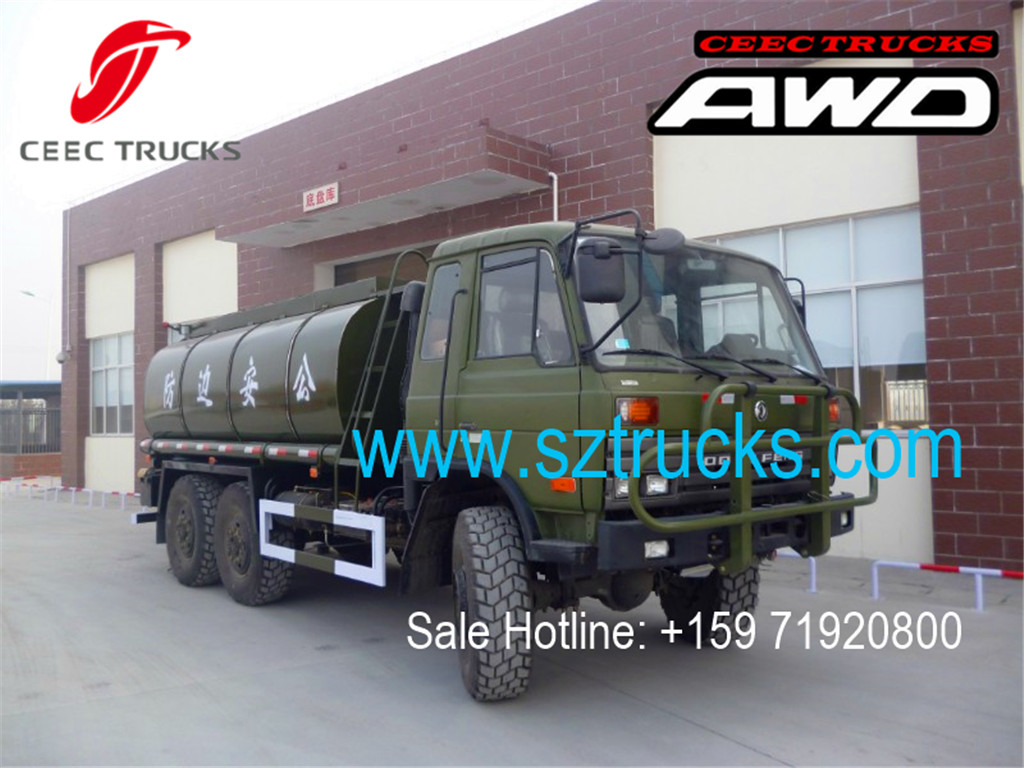

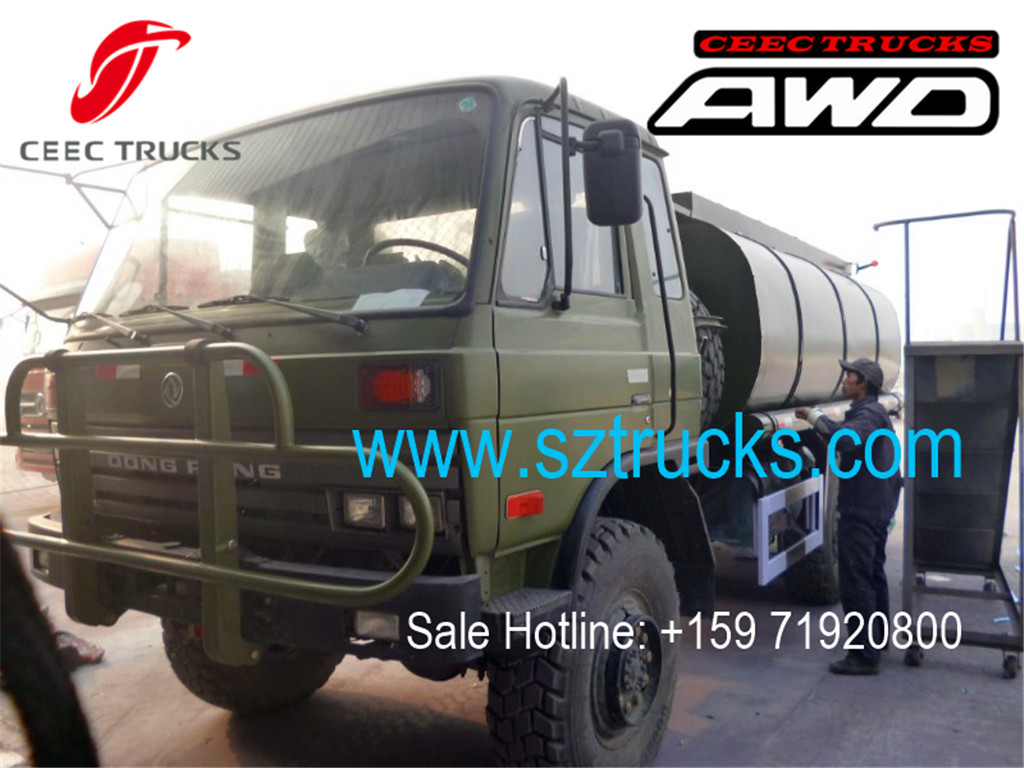

3. The CEEC 6x6 All-Wheel-Drive water sprinkler tanker trucks is using military usage strong truck chassis, mounted with CEEC produced special partssystem, and can be used as Garbage Compactor Truck, Road Sweeper, Cesspit Emptier, Water Tanker, Combined Jetting Truck, High Pressure Jetting, Roll on Roll off Truck, Skip Refuse Truck, Garbage Dumper, Truck Mounted Crane, etc.
4. The AWD trucks engine are special designed for very tough road condition and very bad environment condition.
5. Special off-road tires are standard equipment for all 6x6 trucks, which have relatively big size rim and wide tread, and special designed to be used in desert, tough road, etc.
6. Max truck speed 90km/h; Max gradeability ≮60; Fuel consumption 26.5L/100km
7. Standard equipment as below:
A, Engine: World famous brand CUMMINS B190 33 engine, 190 horse power, six cylinder inline, water cooled, four stroke, inter-cooled turbocharged diesel engine, emission standard 5900cc, maximum torque 500N/M in 1600r/min.
B, Clutch: ∮395 single plate clutch, air assisted and hydraulic manipulation.
C, Transmission Gearbox: A130 model 6-shift mechanical manual transmission gearbox, six forward and one reverse.
D, Transfer Case: mechanical type, two gears with synchronizer shifting model
E, Cabin: flat top with all metal structure, with very humanization inside design.
Items |
Parameter |
||
Truck Model |
CEEC5160GSS |
||
Water Tank Parameter |
Tank Capacity |
8-10Tons | |
Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||
Overall dimension (mm) |
Length |
7650 |
|
Width |
2470 |
||
Height |
2890 |
||
Sprinkler Width |
≥14m |
||
Sprinkler Speed |
0-20km/h |
||
Gun range |
≥28m |
||
Pump lift |
90m |
||
Gun position |
Front; Rear; two sides |
||
Chassis |
Chassis Brand |
DongFeng |
|
Drive Mode |
6x6 All-Wheel-Drive |
||
Tire type |
12.5R20 tire |
||
Tire No. |
10+1 units |
||
Max speed |
90 km/h |
||
Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
Engine |
Power |
140 kw / 190HP |
|
Fuel type |
diesel |
||
Emission Standard |
Euro 3 & Euro 4 |
||
Gearbox |
Control type |
Manual |
|
Gear |
6 forward & 1 reverse |
||
