1. We CEEC TRUCKS are manufacturer, specializing in producing Vacuum Sewage Suction truck many years with good reputation.

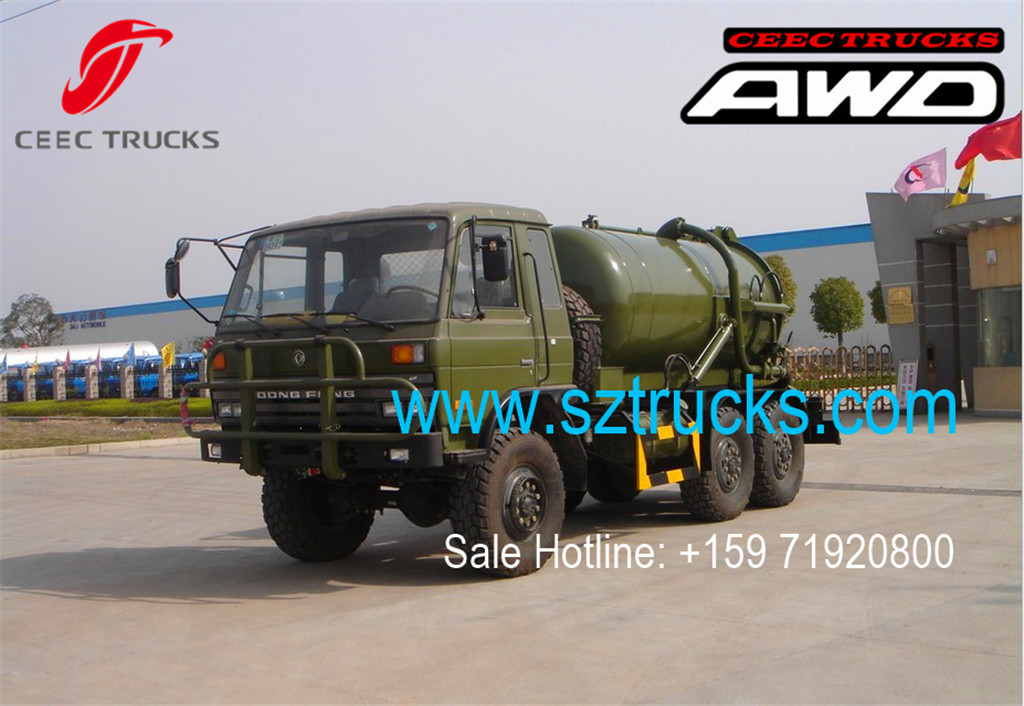

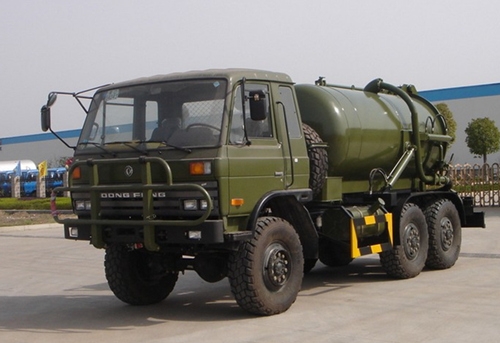

2. The DongFeng 6x6 CEEC 8-10CBM all-wheel drive Vacuum Sewage Suction truck mainly consists of: PTO (Power Take Off), Transmission shaft, vacuum pump, water and gas separator, oil and gas separator, multiple directional control valve, hanger rod, sewage tanker, flow valve, sucking gun, water tank, vacuum pressure gauge and piping system, etc.
3. Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for the tank, against corrosion resistant, rust protection and well-resisting.
4. Available also with hydraulic drive. Max. Vacuum rate 95%. Suitable i.e. recommended for continuous duty even at high vacuum levels. Low noise level on all models. This pump is designed for stationary industrial plants or for sewer cleaning, truck mounted, and equipment.
5. CEEC TRUCKS vacuum suction trucks have following advanced characters: high efficiency; self-draining; direct irrigating, etc.
6. Mainly used for pumping the sewage, fecal, slurry and mixed with small suspension debris. And this kind CEEC 10000L cesspit emptier is widely applicable to sanitation, city cleaning, residential areas, agriculture, and industry in large, medium and small cities.

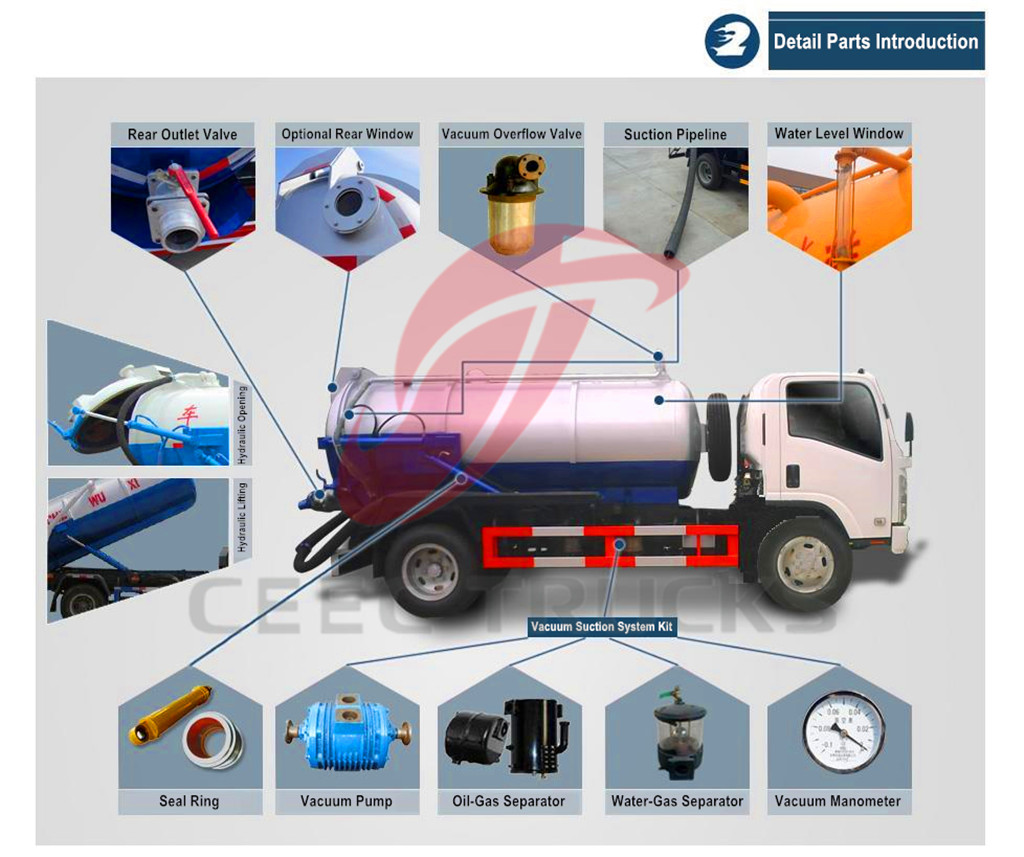

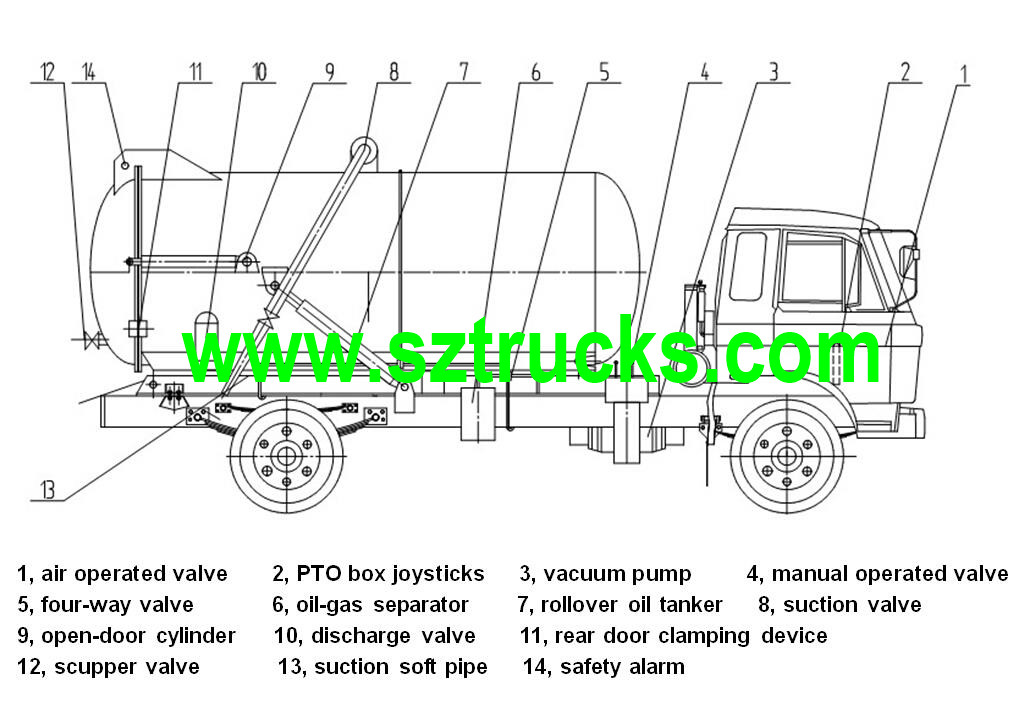

7. The 8000L-10000L Cesspiter Emptier is consist of: PTO, Transmission Shaft, Vacuum Pump, Water and Gas Separator, Oil and Gas Separator, Multiple Directional Control Valve, Hanger Rod, Sewage Tanker, Flow Valve, Sucking Gun, Water Tanker, Vacuum Pressure Gauge and Pipeline System.
Items |
Parameter |
||
Truck Model |
CEEC5160GXW |
||
Vacuum Tank Parameter |
Tank Capacity |
8-10CBM |
|
Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||
Tank Shape |
Round Shape Tank |
||
Overall dimension (mm) |
Length |
7760 |
|
Width |
2490 |
||
Height |
2845 |
||
Hose Diameter (mm) |
100 |
||
Discharging Angle (°) |
45 |
||
Scraper Thickness (mm) |
>14 |
||
Rotate Speed (rpm) |
500-600 |
||
Degree of Vacuum (kPa) |
93-96 |
||
Available Suction (m) |
7-30 |
||
Tank Filling Time (min) |
<5 |
||
Chassis |
Chassis Brand |
DongFeng |
|
Drive Mode |
6x6 All-Wheel-Drive |
||
Tire type |
12.5R20 tire |
||
Tire No. |
10+1 units |
||
Max speed |
90 km/h |
||
Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
Engine |
Power |
140 kw / 190 hp |
|
Fuel type |
diesel |
||
Emission Standard |
Euro 3 & Euro 4 |
||
Gearbox |
Control type |
Manual |
|
Gear |
6 forward & 1 reverse |
