1. We CEEC TRUCKS are manufacturer, specializing in producing Road Sweeper truck many years with good reputation.

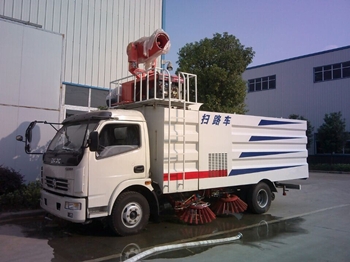

2. The CEEC 6CBM Road Sweeper trucks have 4 Sweepers in the middle and Rear Suction Nozzle. Sweeping plates have 3 forms of operations: Full Sweeping, Front-Left or Front-Right Sweeping. It is also able to avoid obstacle automatically.
3. High performance Stainless Steel both for the rubbish tank & water tank, which can longer extend the life of our road sweeper truck. And the rubbish tank capacity is 5-6CBM, the water tank capacity is 1CBM.
4. Auxiliary engine overspeed display: Alarm indicator display once in excessive speed situation. It will inform driver to forward the manual accelerator, then to reduce engine speed.
5. CEEC TRUCKS 6CBM Multifunctional Road sweeper trucks have equipped with Pesticide Spraying System, also have several warning system, including low water position for water box, vehicle working and reversing, auxiliary engine water temperature, engine oil pressure, hydraulic oil leakage, dustbin tipping and return position, rear door opening and closing, etc.
6. Front street sweeper, with a combination of cleaning and sucking, is medium-scale special vehicle for road cleaning. The chassis is famous China DongFeng brand high-end chassis. And the vehicle is mainly used for cleaning city streets, squares and large factories and mines. The vehicle enjoys high efficiency, reliability and boasts good outlook with clear features.

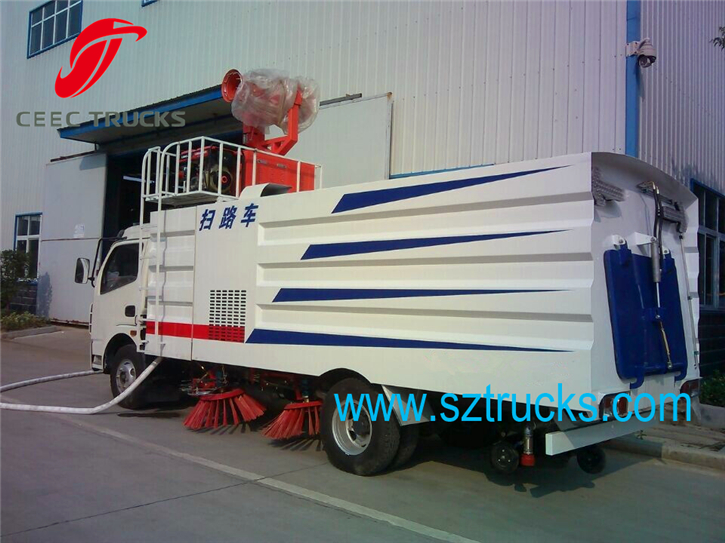

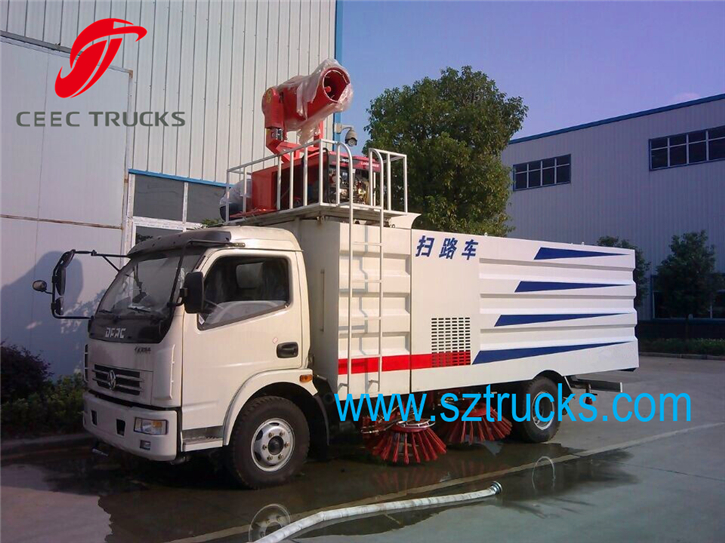

Following show CEEC New Designed road sweeper:
Rear Door Self-lock System: The rear door absorbed foreign high-tech design, self lock when close the door.
Brush System: Reliable quality brush special used in Europe, following show our two kinds of brush system for optional: 4 sweepers & 2 Sweepers
Control Box system: the control box are installed in the cab, and the box are totally made of Stainless Steel.
Parameter |
||||
Truck Model |
CEEC5080TSL |
|||
Sweeper Parameter |
Capacity |
Garbage tank |
5CBM |
|
Water tank |
1CBM |
|||
Tank Material |
Stainless steel |
|||
Tank Shape |
Square & round for optional |
|||
Overall dimension (mm) |
Length |
6000 |
||
Width |
2020 |
|||
Height |
2500 |
|||
Sweeping Speed (km/h) |
3-16 |
|||
Sweeping Wideness (mm) |
45 |
|||
Sweeping Rate (%) |
>14 |
|||
Tilting (°) |
45 |
|||
Max Diameter of Indraft (mm) |
99 |
|||
Max weight of Indraft (g) |
880 |
|||
Chassis |
Chassis Brand |
DongFeng / ISUZU |
||
Drive Mode |
4x2 |
|||
Tire type |
7.00-16 tire |
|||
Tire No. |
6+1 units |
|||
Max speed |
90 km/h |
|||
Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
|||
Engine |
Power |
88 kw / 120hp |
||
Fuel type |
diesel |
|||
Emission Standard |
Euro 3 & Euro 4 |
|||
Gearbox |
Control type |
Manual |
||
Gear |
6 forward & 1 reverse |
