We
are the best Road Sweeper
Truck manufacturers in
1. We CEEC TRUCKS are manufacturer, specializing in producing Road Sweeper truck many years with
good reputation.
2. The CEEC 3CBM Road Sweeper trucks possesses
kinds of advantages, such as swift cleaning, dust suppression, energy
consumption and so on.
3. High
performance Stainless Steel both for
the rubbish tank & water tank, which can longer extend the life of our road
sweeper truck..
4. Auxiliary
engine overspeed display: Alarm indicator display once in excessive speed
situation. It will inform driver to forward the manual accelerator, then to
reduce engine speed.
5. Water
level alarm display: indicator alarm display once water level is under one
certain level, technical showing to refill water tank to avoid water pump
sdling.
6. CEEC TRUCKS 3CBM Road sweeper trucks have following advanced characters: high efficiency; self-locked rear door; working
smoothly, etc.
7. Front

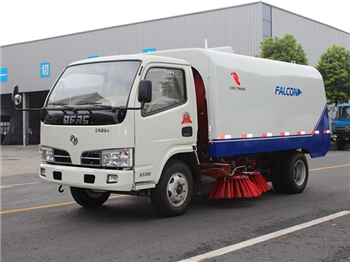

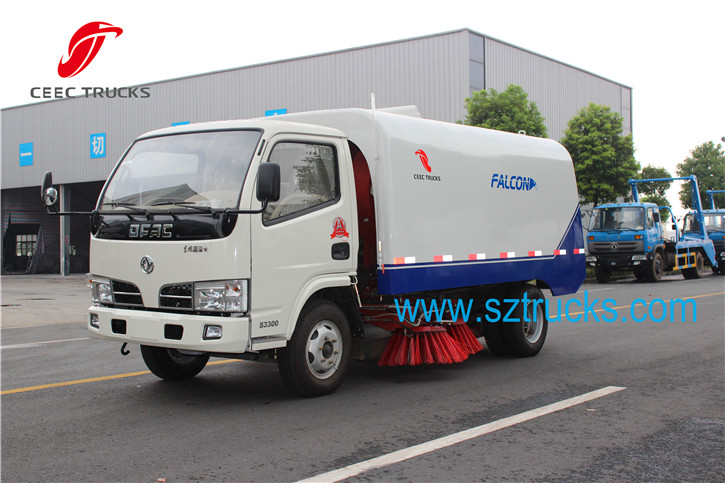

street sweeper, with a combination of cleaning and sucking, is medium-scale
special vehicle for road cleaning. The chassis is famous China DongFeng brand
high-end chassis. And the vehicle is mainly used for cleaning city streets,
squares and large factories and mines. The vehicle enjoys high efficiency, reliability
and boasts good outlook with clear features.

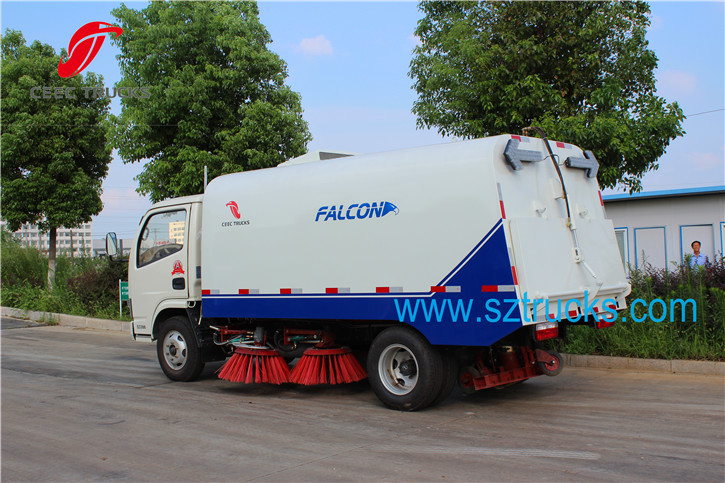

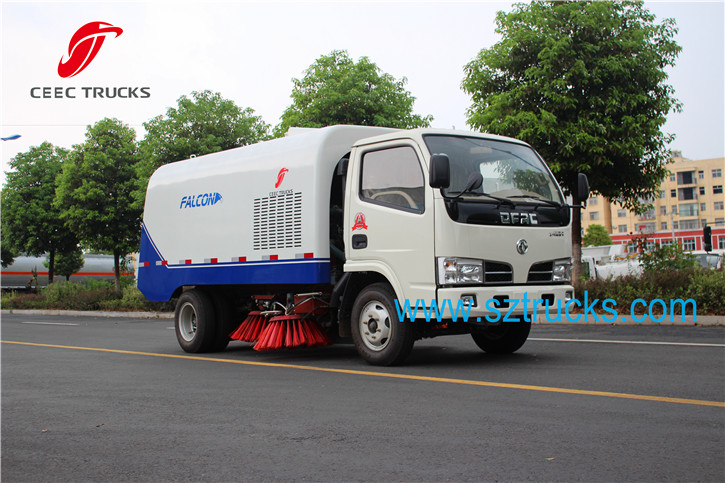

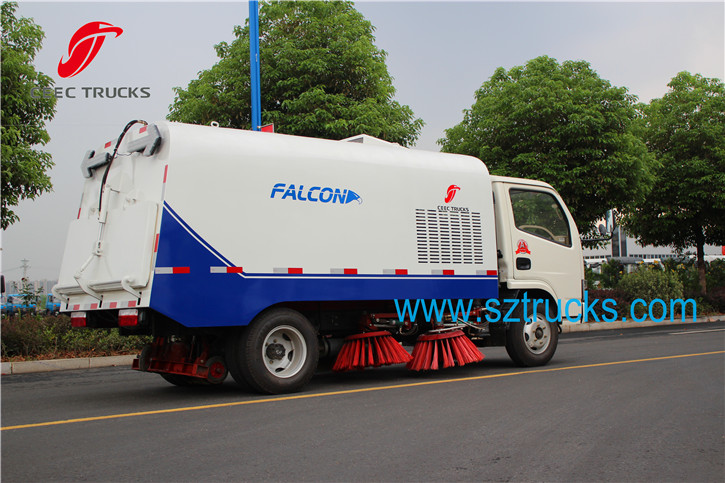

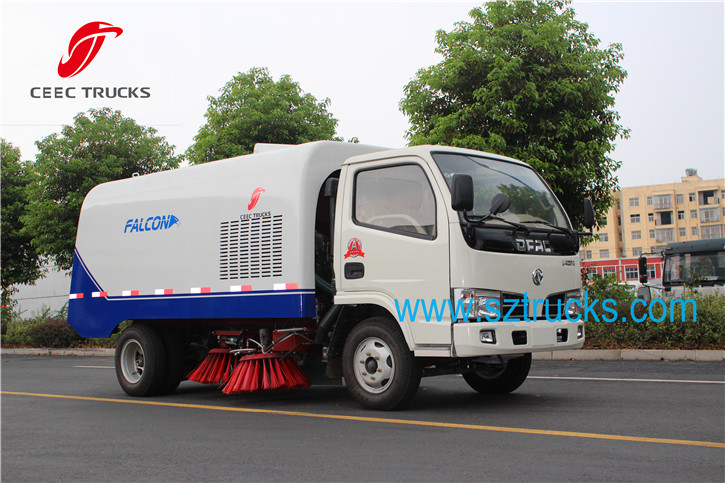

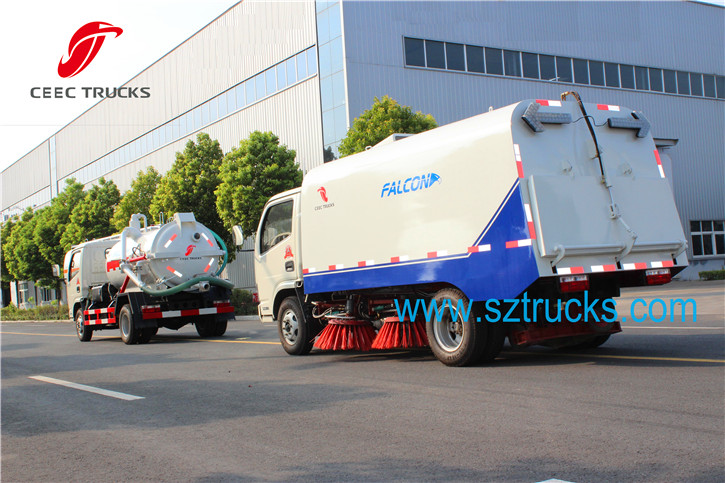

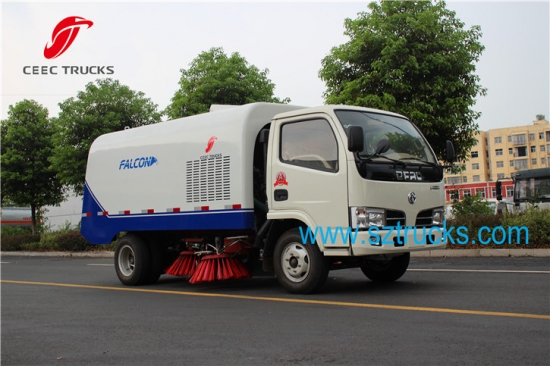

Following show CEEC New Designed road sweeper:

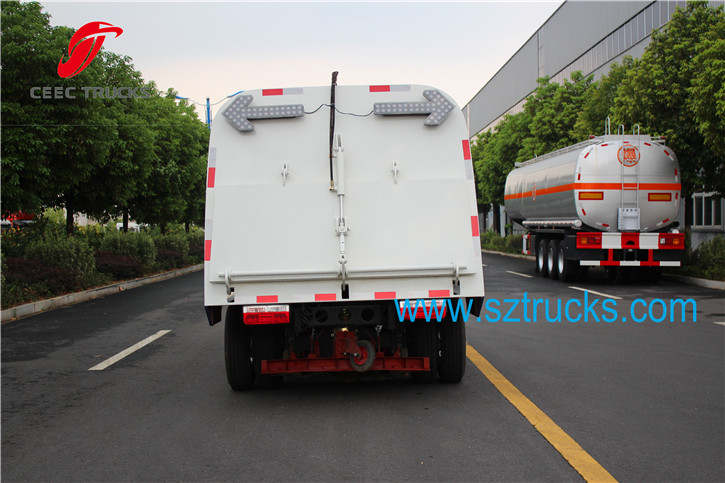

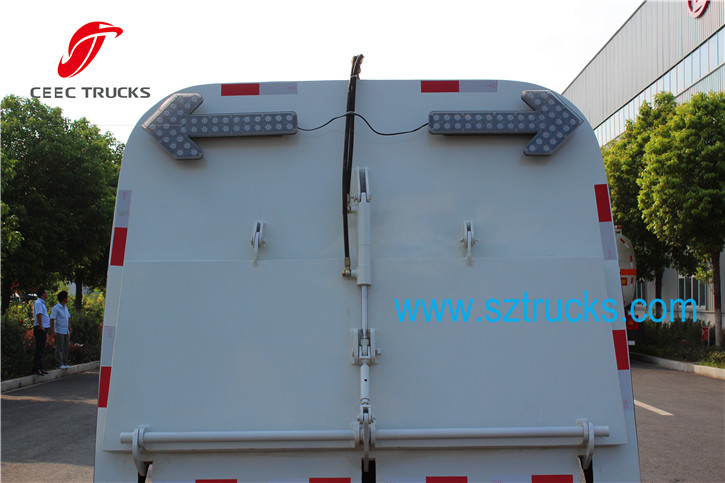

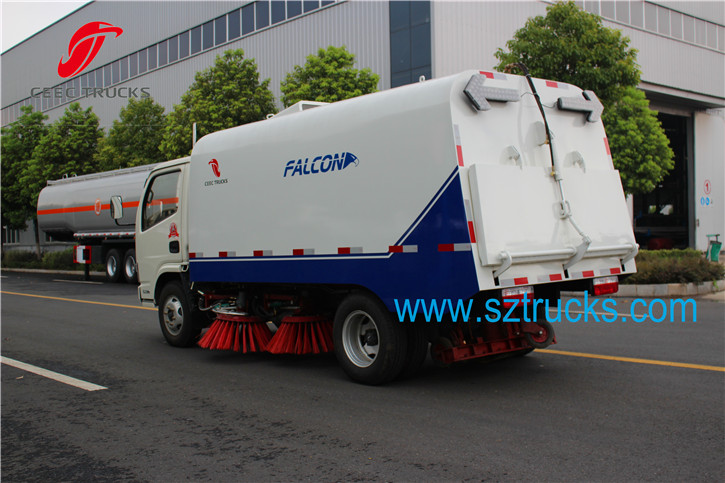

Rear Door Self-lock System: The rear door absorbed foreign high-tech design, self lock when close the door.

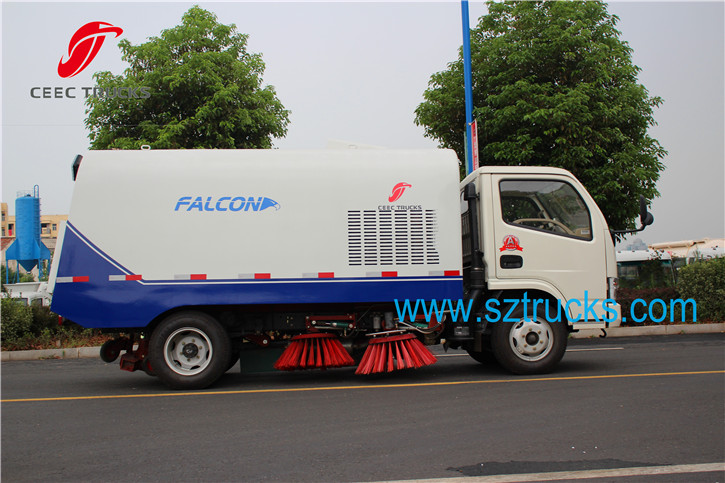

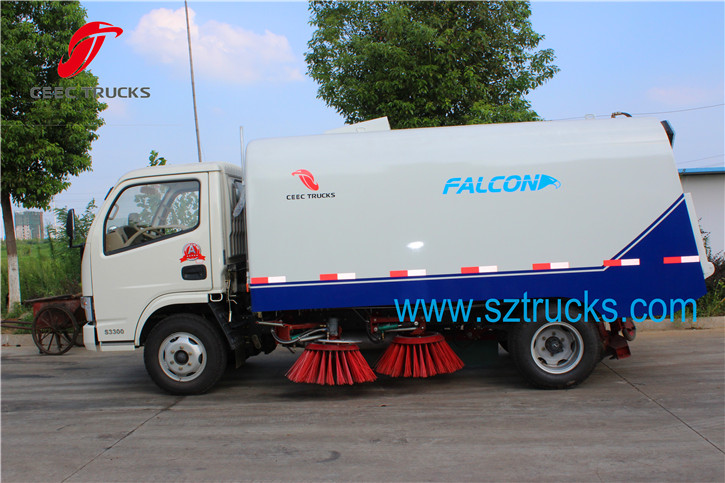

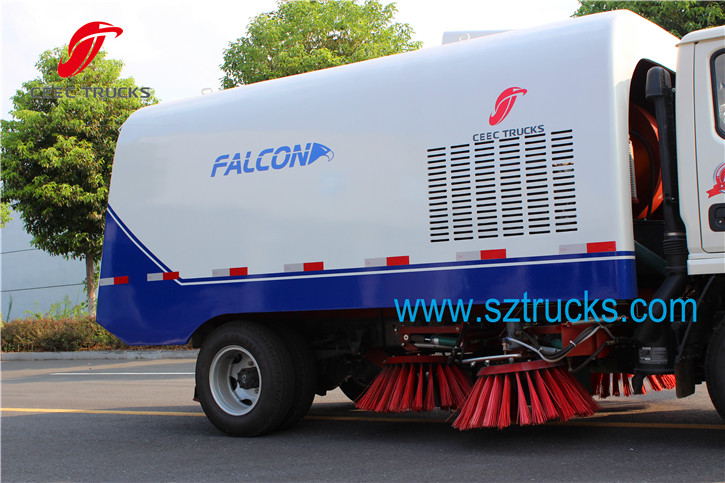

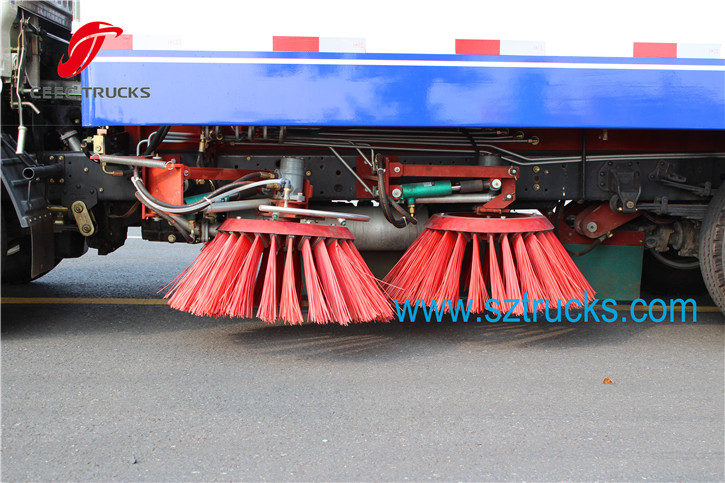

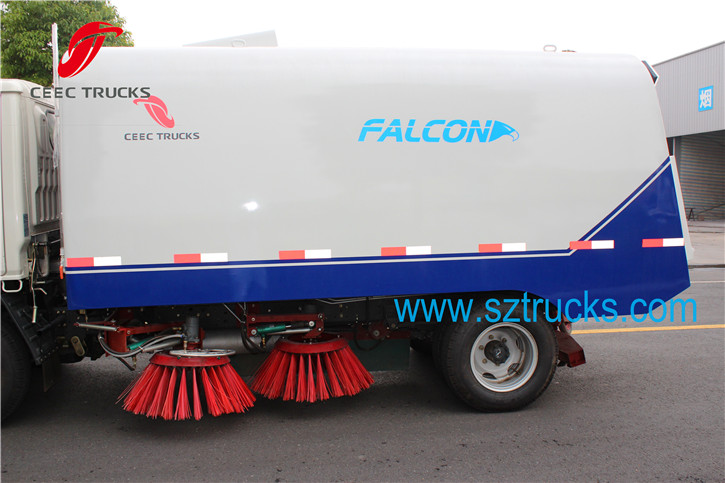

Brush System: Reliable quality brush special used in Europe, following show our two kinds of brush system for optional: 4 sweepers & 2 Sweepers

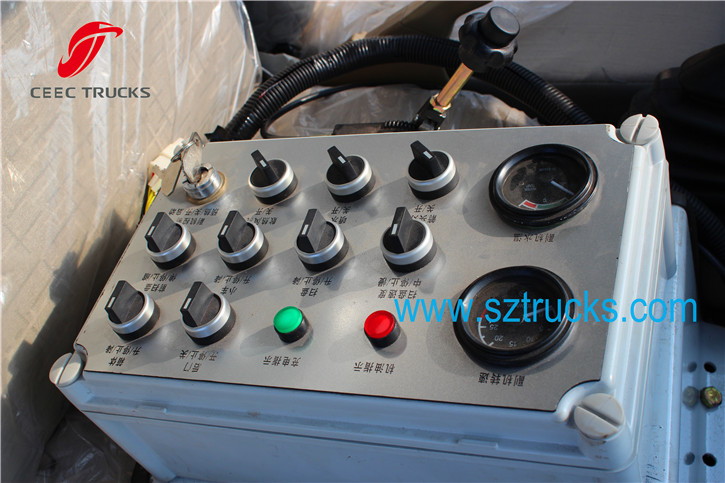

Control Box system: the control box are installed in the cab, and the box are totally made of Stainless Steel.
Parameter |
||||
Truck Model |
CEEC5060TSL1 |
|||
Sweeper Parameter |
Capacity |
Garbage tank |
3CBM |
|
Water tank |
1CBM |
|||
Tank Material |
Stainless steel |
|||
Tank Shape |
Square & round for optional |
|||
Overall dimension (mm) |
Length |
5950 |
||
Width |
1995 |
|||
Height |
2380 |
|||
Sweeping Speed (km/h) |
3-16 |
|||
Sweeping Wideness (mm) |
45 |
|||
Sweeping Rate (%) |
>14 |
|||
Tilting (°) |
45 |
|||
Max Diameter of Indraft (mm) |
99 |
|||
Max weight of Indraft (g) |
880 |
|||
Chassis |
Chassis Brand |
DongFeng |
||
Drive Mode |
4x2 |
|||
Tire type |
7.00-16 tire |
|||
Tire No. |
6+1 units |
|||
Max speed |
95 km/h |
|||
Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
|||
Engine |
Power |
70 kw / 95hp |
||
Fuel type |
diesel |
|||
Emission Standard |
Euro 3 & Euro 4 |
|||
Gearbox |
Control type |
Manual |
||
Gear |
6 forward & 1 reverse |
