2. The CEEC 10CBM Combined Sewage Jetting truck mainly has two functions: 5CBM suction tank for sewage suction truck and 3CBM water tank for high pressure jetting cleaning.
3. Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for the tank, against corrosion resistant, rust protection and well-resisting. The tank can be: one tank contains two small tanks; two separate tanks.
4. CEEC TRUCKS Combined Sewage Jetting trucks is multi-functional for washing, dredging and suction, which can effectively reduce the number of vehicles, personnel and round trip, also can significantly improve the work efficiency, meantime save time and cost.
5. All truck equipped with spray gun and quick-release connector, which makes the truck working more efficiency and saving much time.
6. The CEEC Combinations are
the united of high-tech in CEEC: the high pressure water road,
hydraulic system, vacuum system and electric control system are all used
high technology. Also equipped with monitoring device, and sewage tank
& water tank level alarm lamp.
Items |
Parameter |
||||
Truck Model |
CEEC5160GST |
||||
Tank Parameter |
Tank Capacity |
Water tank |
5CBM |
||
Garbage tank |
|||||
Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||||
Tank Shape |
Round Shape Tank for two level |
||||
Overall dimension (mm) |
Length |
8830 |
|||
Width |
2495 |
||||
Height |
3080 |
||||
Garbage tank |
Capacity |
||||
Hose Diameter (mm) |
100 |
||||
Discharging Angle (°) |
45 |
||||
Degree of Vacuum (kPa) |
93-96 |
||||
Available Suction (m) |
7-30 |
||||
Tank Filling Time (min) |
＜5 |
||||
Water tanker |
Capacity |
||||
Washing Efficiency |
95% |
||||
Water Flow (L/min) |
600-900 |
||||
Cleaning Range (m) |
≥30 |
||||
Chassis |
Chassis Brand |
DongFeng |
|||
Drive Mode |
4x2 |
||||
Tire type |
9.00-20 tire |
||||
Tire No. |
6+1 units |
||||
Max speed |
90 km/h |
||||
Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||||
Engine |
Power |
118 kw / 180hp |
|||
Fuel type |
diesel |
||||
Emission Standard |
Euro 3 & Euro 4 |
||||
Gearbox |
Control type |
Manual |
|||
Gear |
8 forward & 1 reverse |
||||

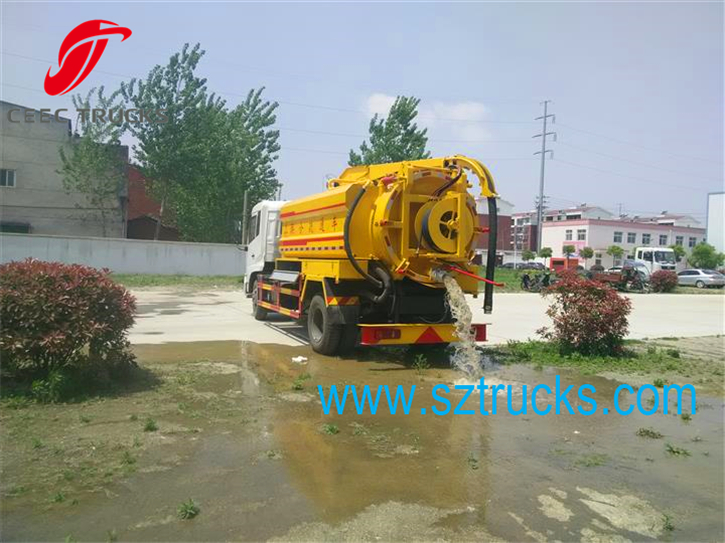

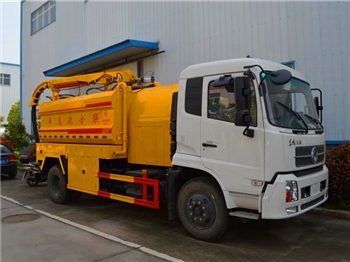

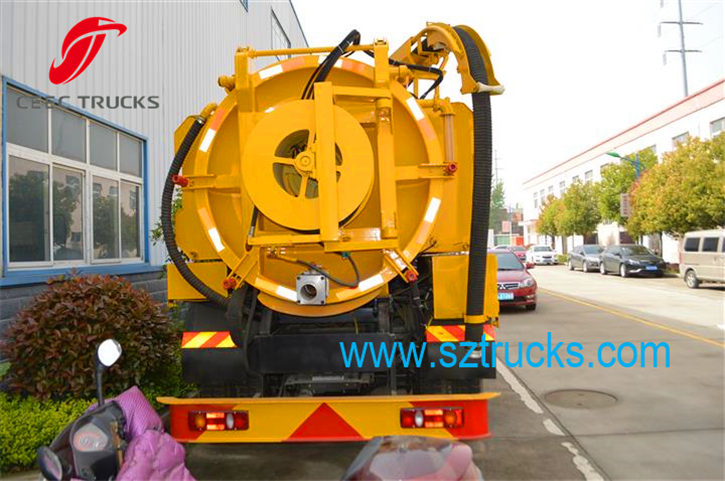

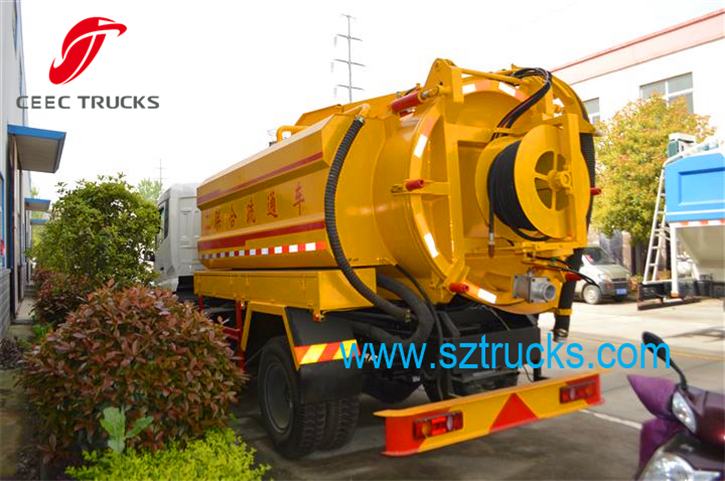

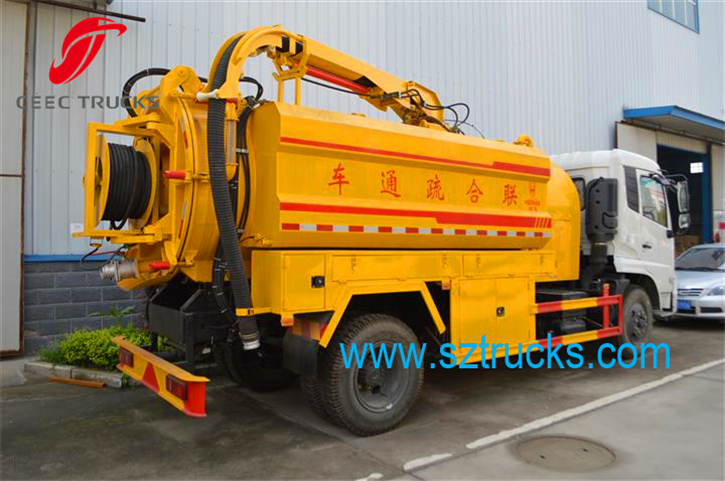

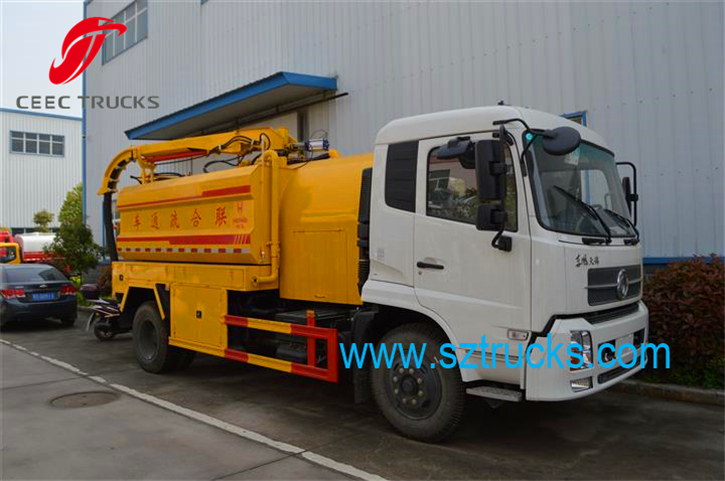

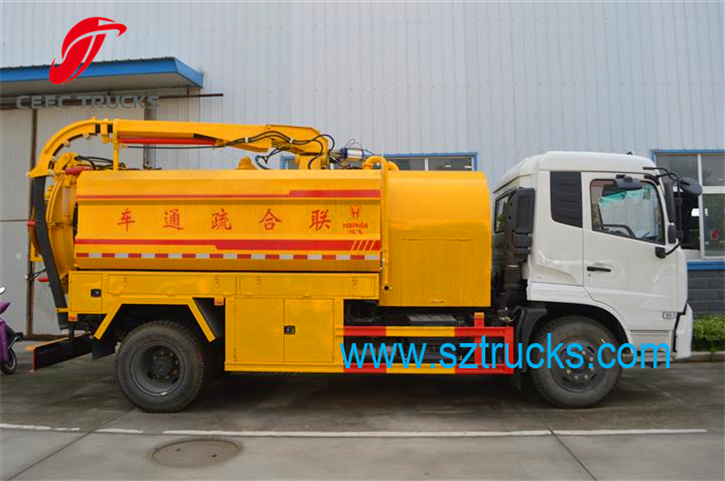

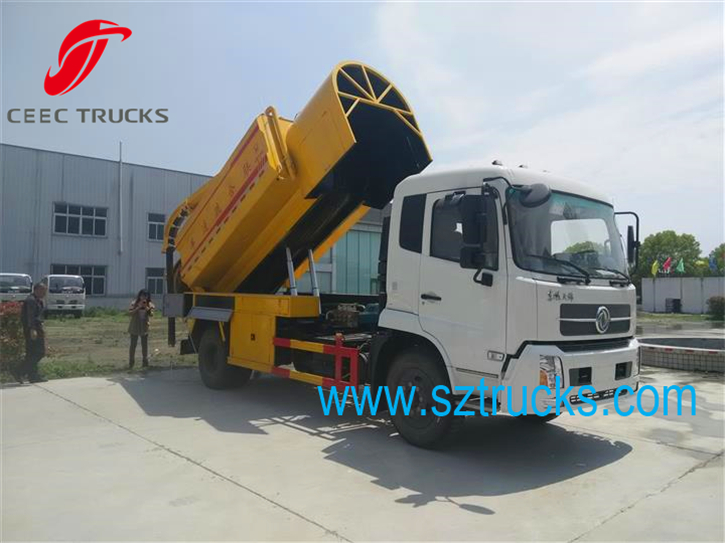

CEEC Combined Suction Jetting Truck:
