Following show two separate tanks Combined Sution Jetting Truck:
1. We CEEC TRUCKS are manufacturer, specializing in producing Combined Sewage Jetting truck many
years with good reputation.
2. The CEEC 6CBM Combined Sewage
Jetting truck mainly
has two functions: 3CBM suction tank for sewage suction truck and 3CBM water tank for high pressure jetting
cleaning.
3. Standard
steel (Carbon steel Q235 & Q345,
also the Stainless steel can be choose)
for the tank, against corrosion resistant, rust protection and well-resisting.
The tank can be: one tank contains two small tanks; two separate tanks.
4. CEEC TRUCKS Combined Sewage Jetting trucks is
multi-functional for washing, dredging and suction, which can effectively
reduce the number of vehicles, personnel and round trip, also can significantly
improve the work efficiency, meantime save time and cost.
5. All

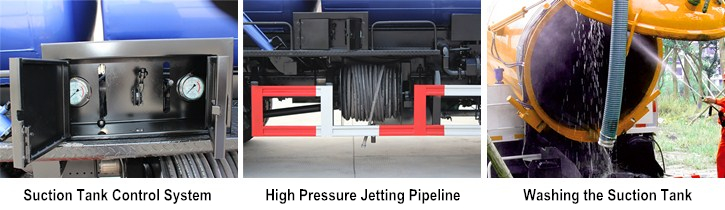

truck equipped with spray gun and quick-release connector, which makes the
truck working more efficiency and saving much time.
6. The CEEC Combinations are the united of
high-tech in CEEC: the high pressure water road, hydraulic system, vacuum
system and electric control system are all used high technology. Also equipped
with monitoring device, and sewage tank & water tank level alarm lamp.
Items |
Parameter |
||||
Truck Model |
CEEC5080GST |
||||
Tank Parameter |
Tank Capacity |
Water tank |
|||
Garbage tank |
|||||
Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||||
Tank Shape |
Round Shape Tank for two level |
||||
Overall dimension (mm) |
Length |
7210 |
|||
Width |
2240 |
||||
Height |
2600 |
||||
Garbage tank |
Capacity |
||||
Hose Diameter (mm) |
100 |
||||
Discharging Angle (°) |
45 |
||||
Degree of Vacuum (kPa) |
93-96 |
||||
Available Suction (m) |
7-30 |
||||
Tank Filling Time (min) |
＜5 |
||||
Water tanker |
Capacity |
||||
Washing Efficiency |
95% |
||||
Water Flow (L/min) |
500-800 |
||||
Cleaning Range (m) |
≥30 |
||||
Chassis |
Chassis Brand |
DongFeng |
|||
Drive Mode |
4x2 |
||||
Tire type |
7.50-16 tire |
||||
Tire No. |
6+1 units |
||||
Max speed |
90 km/h |
||||
Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||||
Engine |
Power |
88 kw / 120hp |
|||
Fuel type |
diesel |
||||
Emission Standard |
Euro 3 & Euro 4 |
||||
Gearbox |
Control type |
Manual |
|||
Gear |
6 forward & 1 reverse |
||||

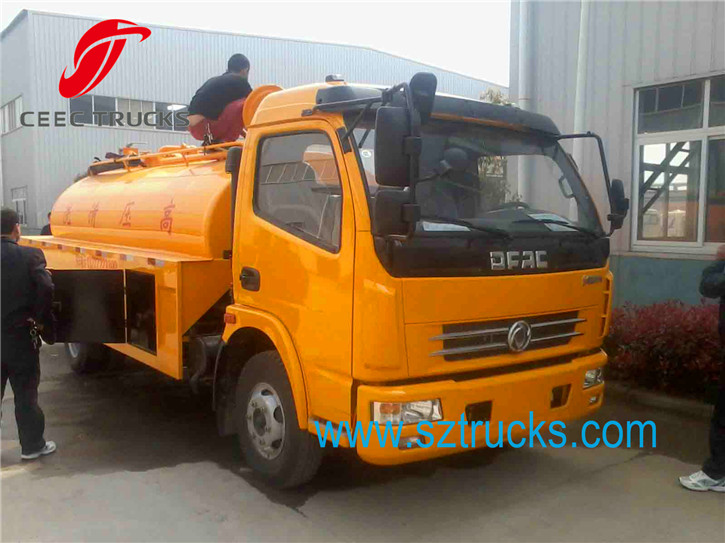

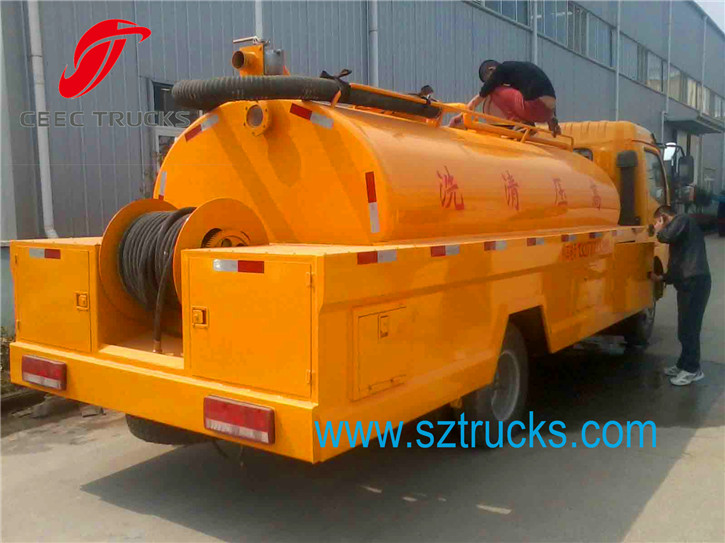

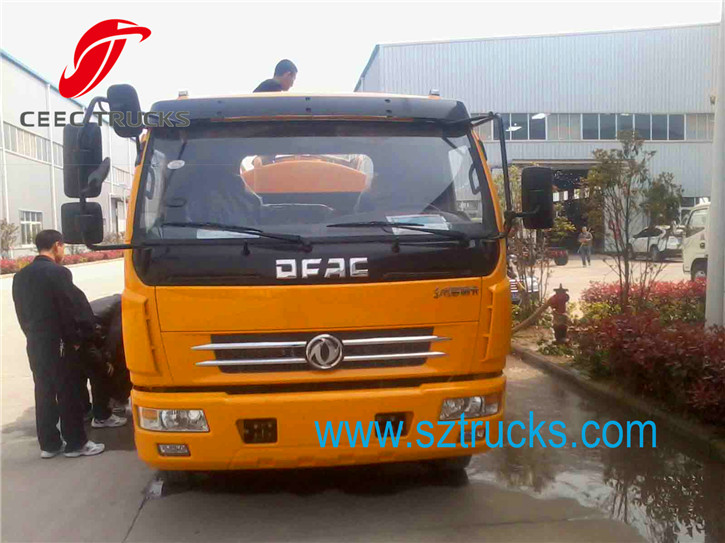

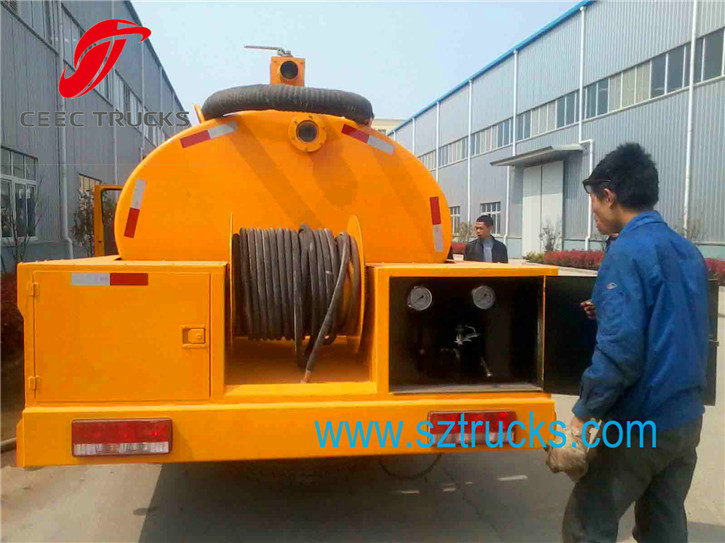

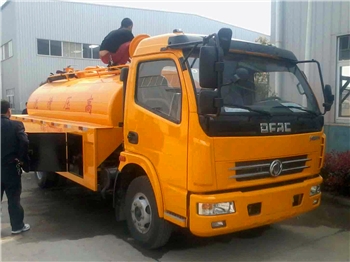

CEEC Combined Suction Jetting Truck:
