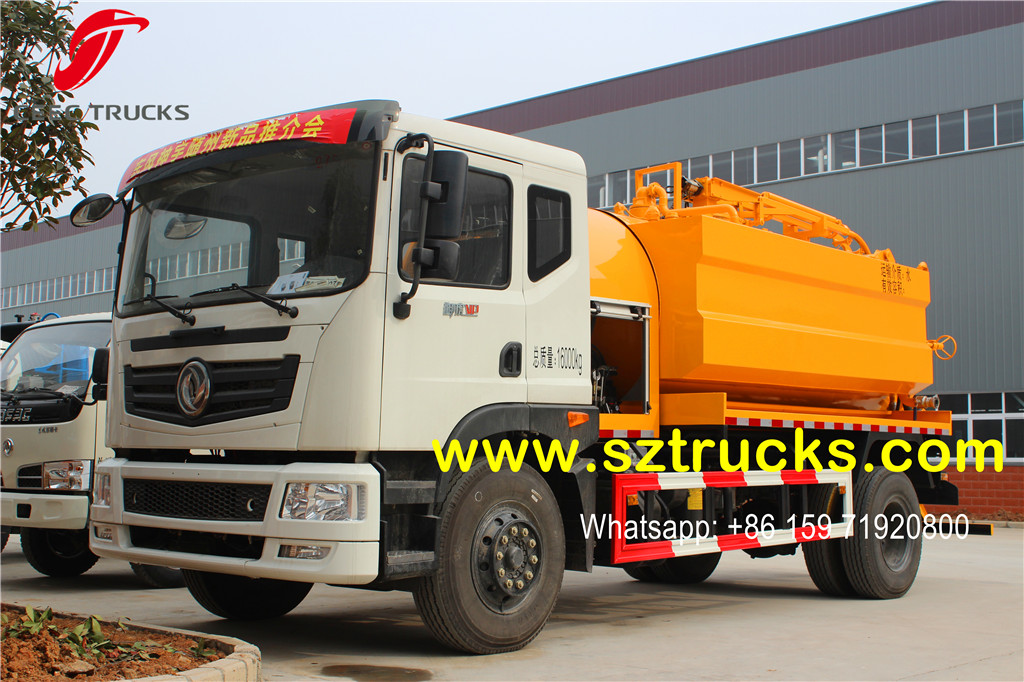

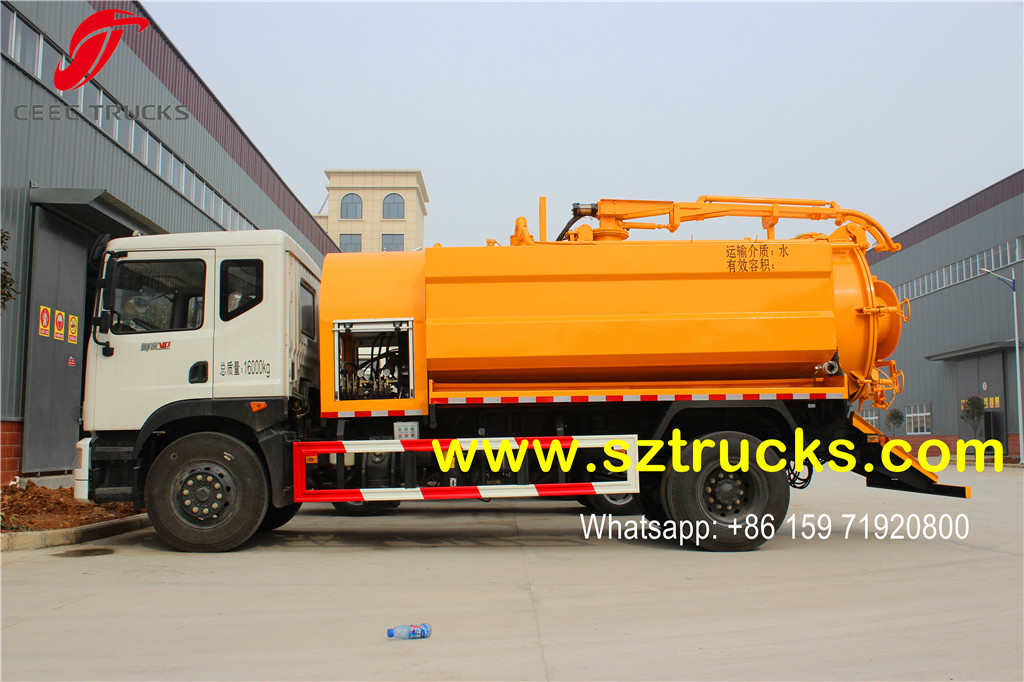

Latest Design popular model Combined Suction and Jetting Sewage Cleaner Truck 4x2 Highpressure Vacuum Washing truck for sale

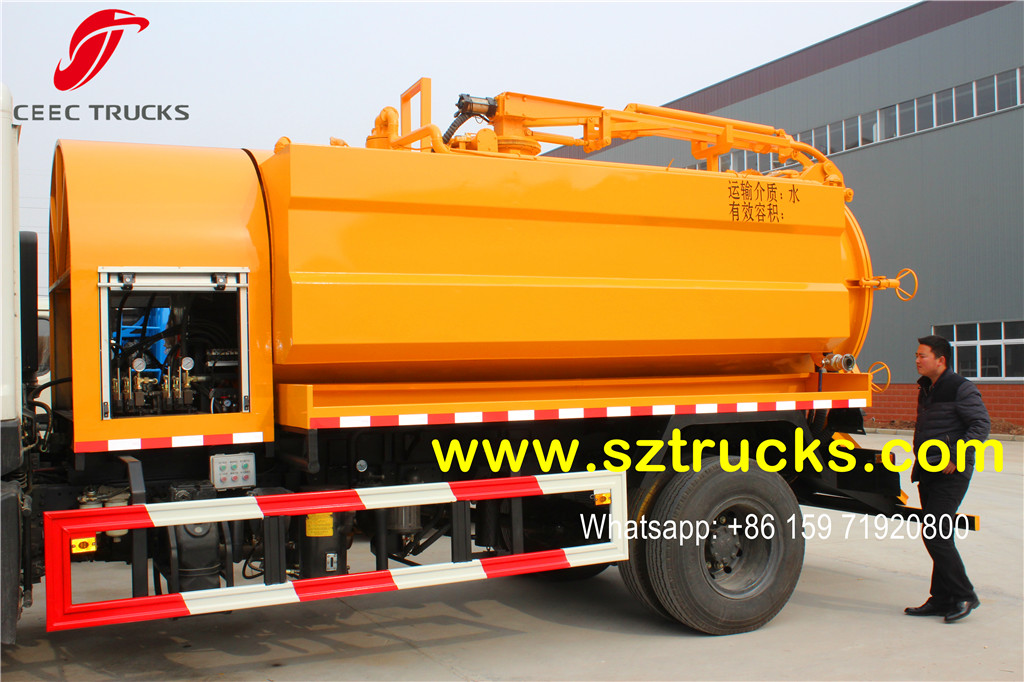

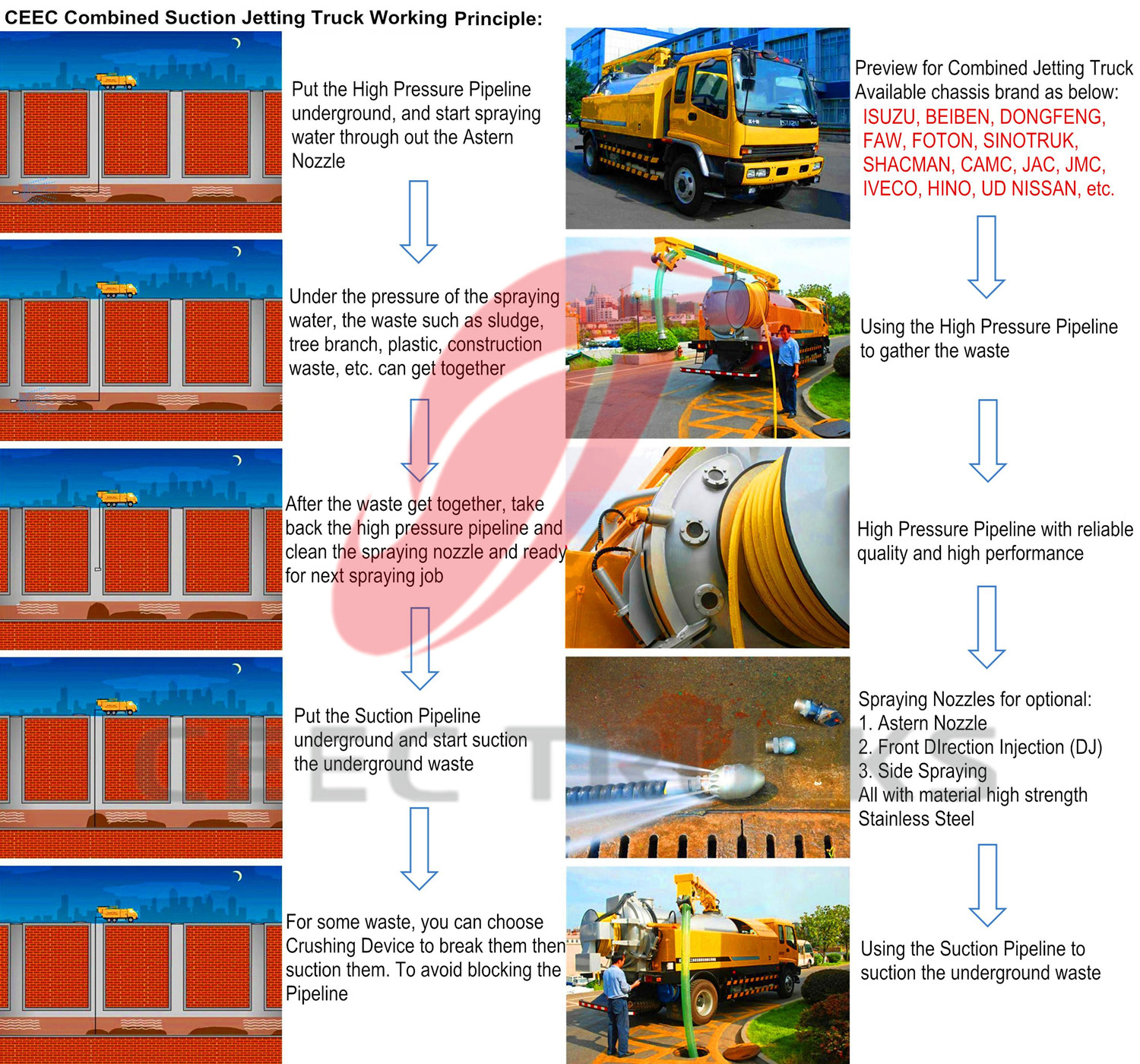

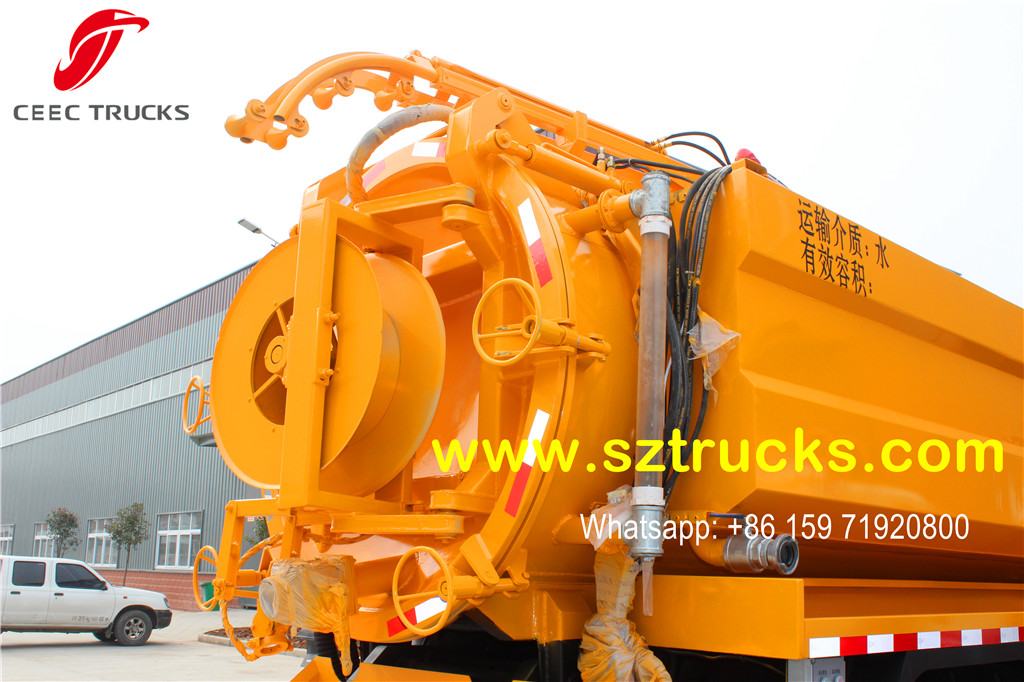

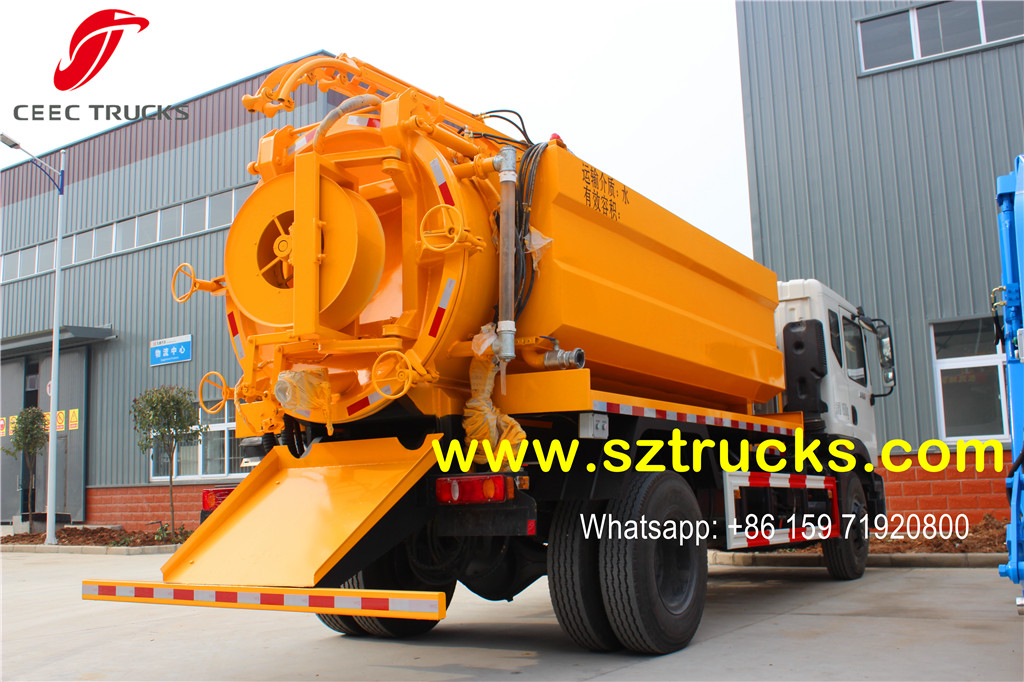

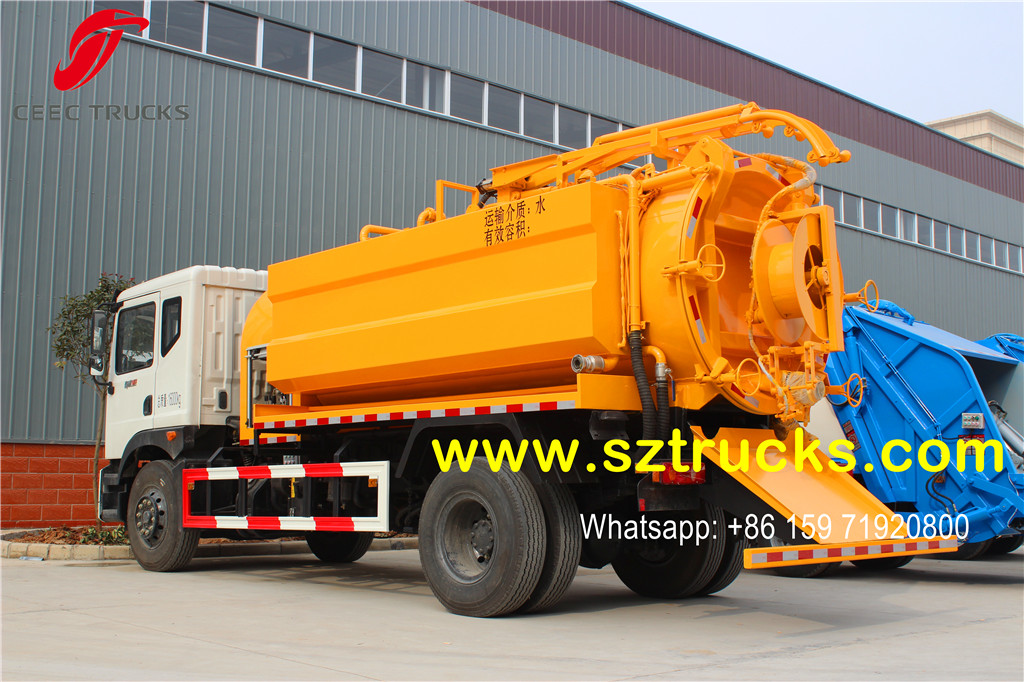

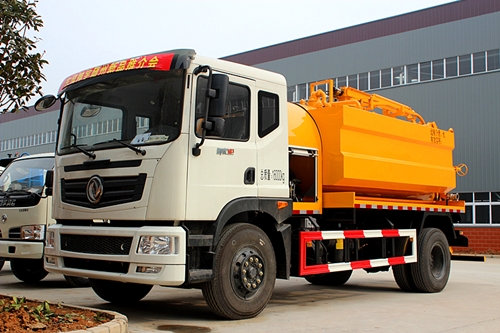

The Combined Suction Jetting Truck is alsocalled sewage suction jetting truck, sewage suction tanker truck, sewage pumpsuction jetting truck, etc. It is equipped with sewage tank, sewagepump, sewage pipeline, sewage check valve, multi-way control valve, watertanker, jetting pump, high pressure jetting pipeline, operation panel, etc. Thevacuum pump get the power from power take off from the original truck engine.The tank can be lifted about 45 and the rear door of the tank can be opened byhydraulic to discharge the sewage. It is perfect sanitation truck for MunicipalEnvironmental Sanitation Department.
Advantagesof CEEC TRUCKS combined sewage suction jetting truck:
1. The sewage tank iscompletely sealed, it is with high vacuum degree and this make the suctiondepth is more than 7m.

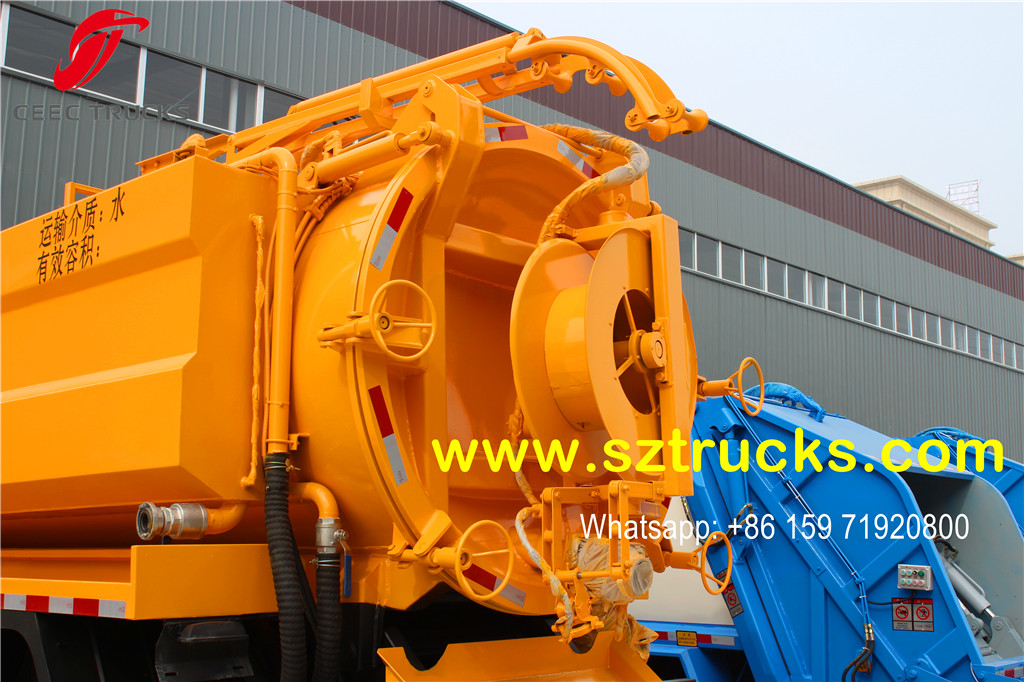

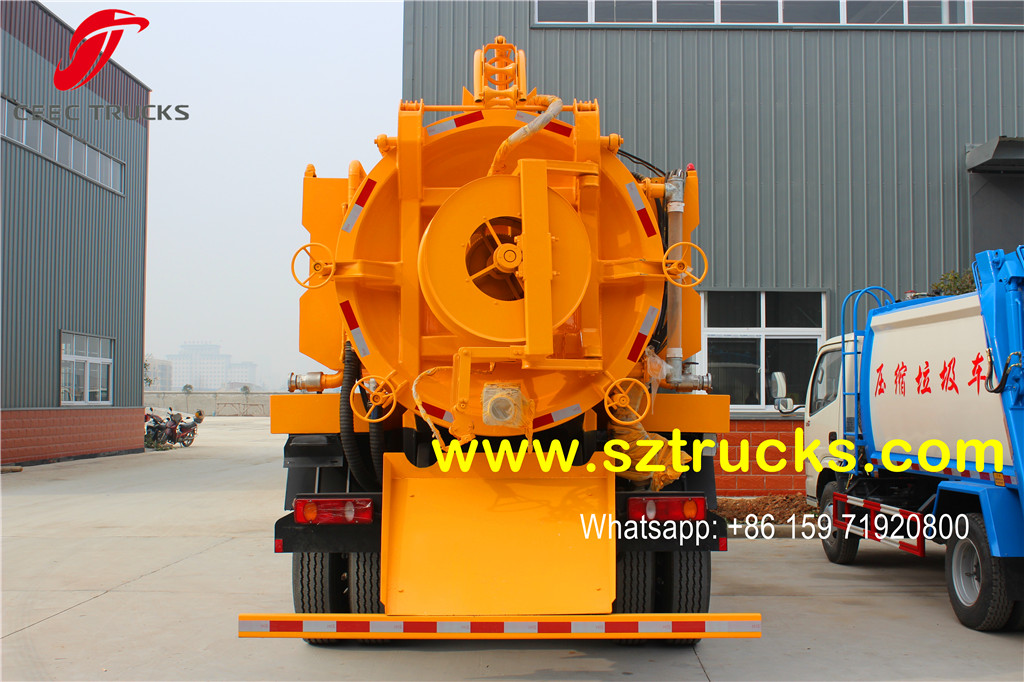

2. Sewage tank can be liftedhydraulically to 40-45 degree. Rear door can be opened & closedhydraulically. With full opening design, discharge can be very quick complete.

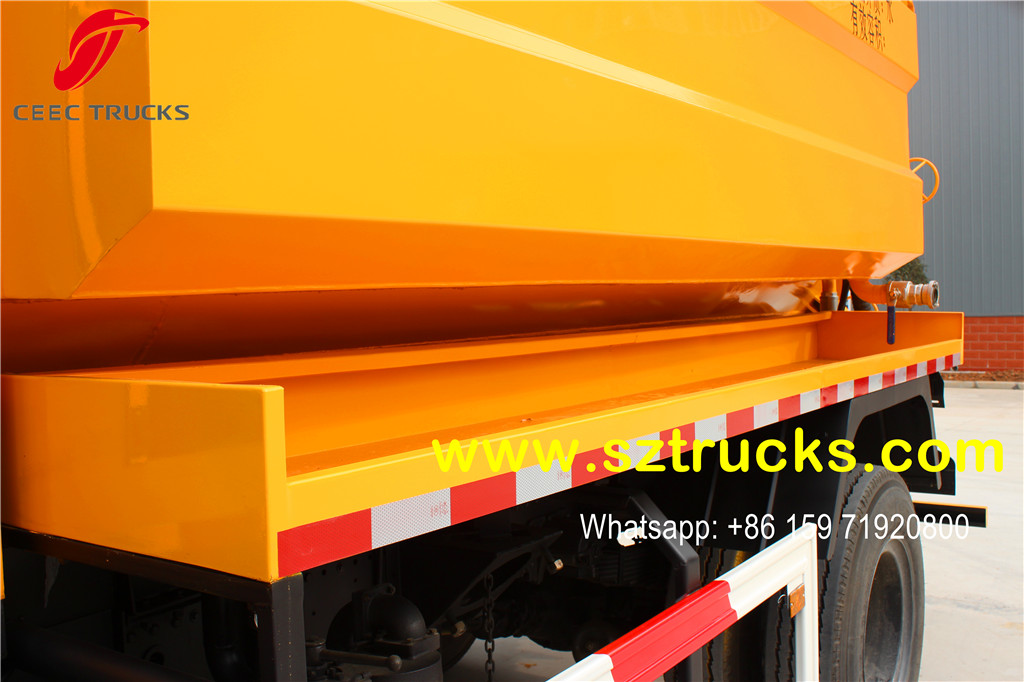

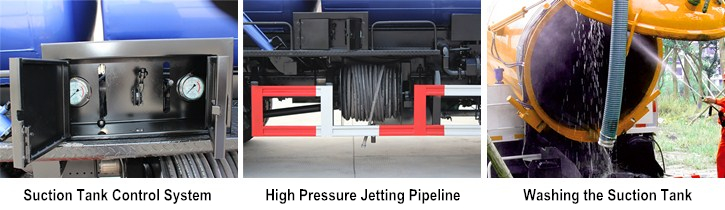

3. Water tank is totallysealed, with internal water spraying out in high speed by jetting pump &high pressure jetting pipeline.
4. Overfill system with musichorn is equipped to prevent the vacuum pump damage from sewage water intovacuum pump when the tank is full.
5. Super power of vacuumsewage truck pump, seamless die casted shell cover, designing for containerwith high ability of pressure-resistance, double hydraulic jack system, morestrength then cesspit emptier.
| Items |
Descriptions |
Specifications and Types |
| General |
Truck Name |
Combined Suction Jetting Truck |
| Drive Type |
4*2 |
|
| Gross Vehicle Weight(kg) |
16000 |
|
| Curb Weight (kg) |
7895 |
|
| Overall Dimensions L*W*H(mm) |
7690×2470×3200 |
|
| Engine |
Engine Model |
B190 33 |
| Fuel Type |
Diesel |
|
| Power |
140kw/190HP |
|
| Emission Standard |
Euro III |
|
| Displacement(ml) |
5900 |
|
| Engine Type |
6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling |
|
| Chassis |
Chassis Brand |
Dongfeng |
| Front/Rear Axle Load(KG) |
5000/10000 |
|
| Tire No. |
6+1 |
|
| Tire Specification |
10.00-20 Steel tire |
|
| Wheelbase (mm) |
4700 |
|
| Axle No. |
2 |
|
| Gear Box |
6 speed forward with 1 reverse, manual |
|
| Steering Wheel |
left hand drive |
|
| Brake |
Air brake |
|
| Radiator |
Suitable for tropical climate |
|
| Sucking System |
Tank Volume (L) |
5000 |
| Tank shape |
Cylindrical |
|
| Tank Material |
5mm thick carbon steel |
|
| Vacuum Pump |
Weilong pump |
|
| Suction Depth(m) |
More than 6 meter |
|
| Tank Tipping angle(°) |
More than 45 |
|
| Rear door |
Open and closed by hydraulic cylinders |
|
| Watering System |
Tank Volume (L) |
5000 |
| Vacuum Pump |
Weilong pump |
|
| Water Flow (L/Min) |
600-900 |
|
| Cleaning Range (m) |
≥30 |
