1. We CEEC TRUCKS are manufacturer, specializing in producing water tanker truck with good reputation.

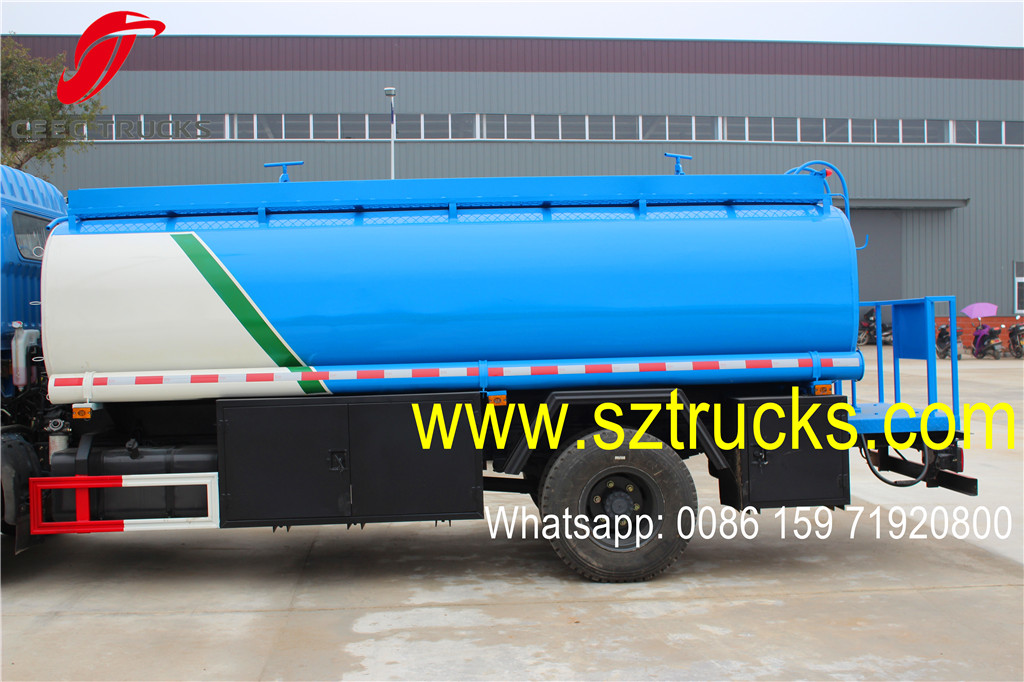

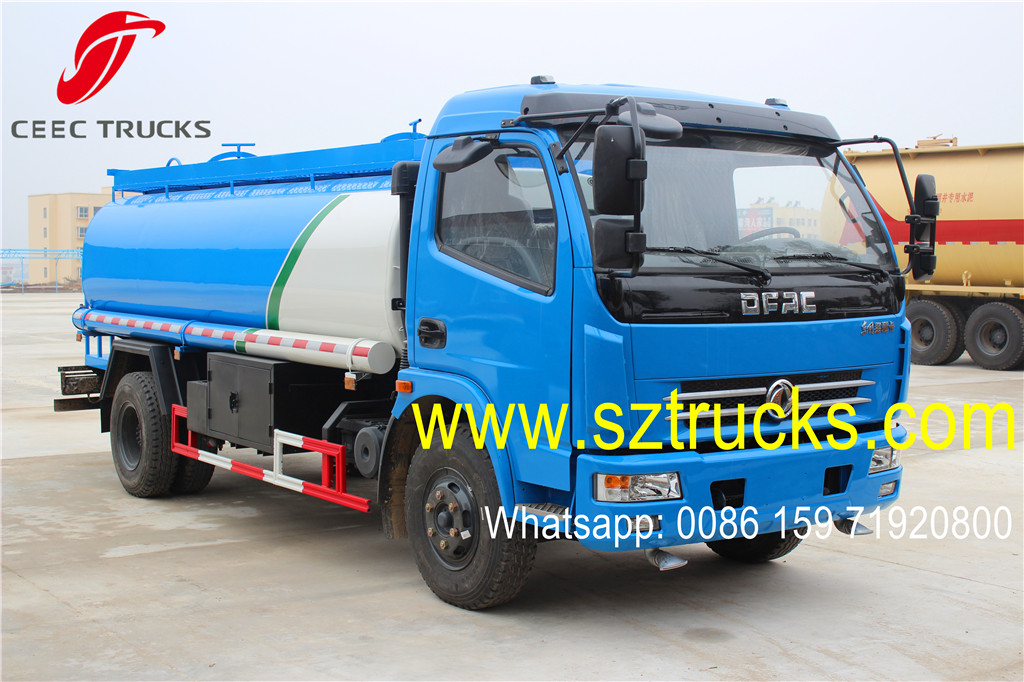

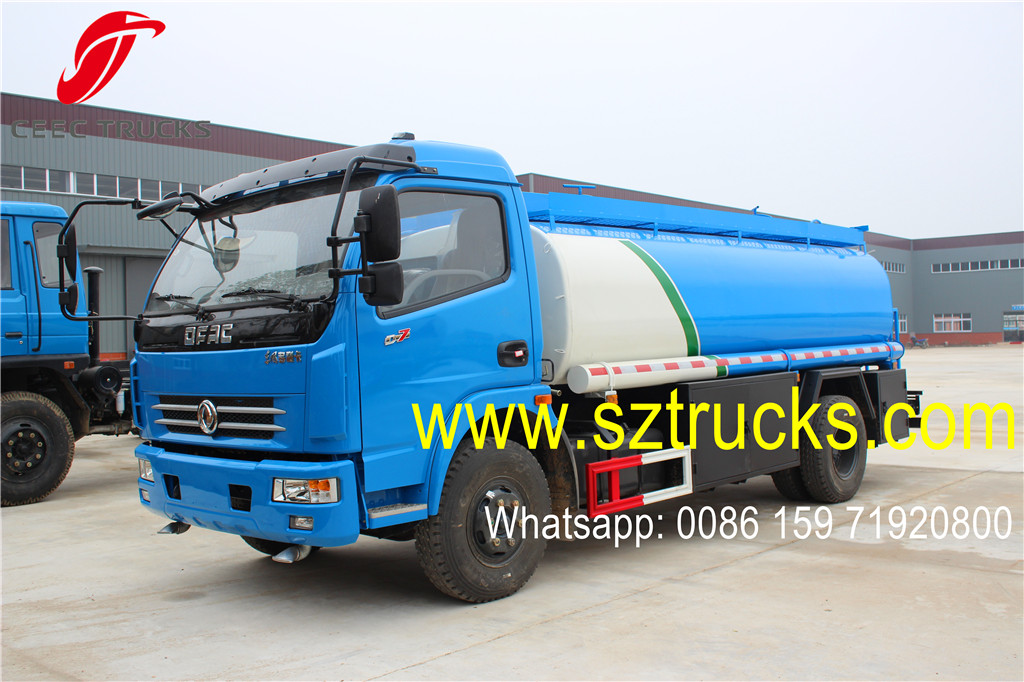

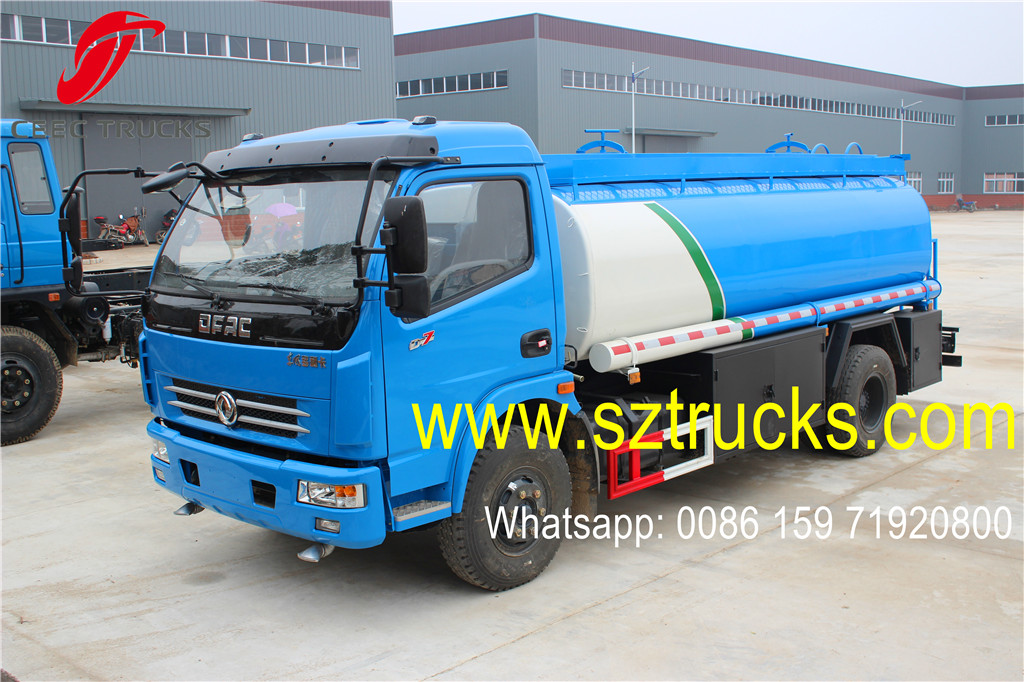

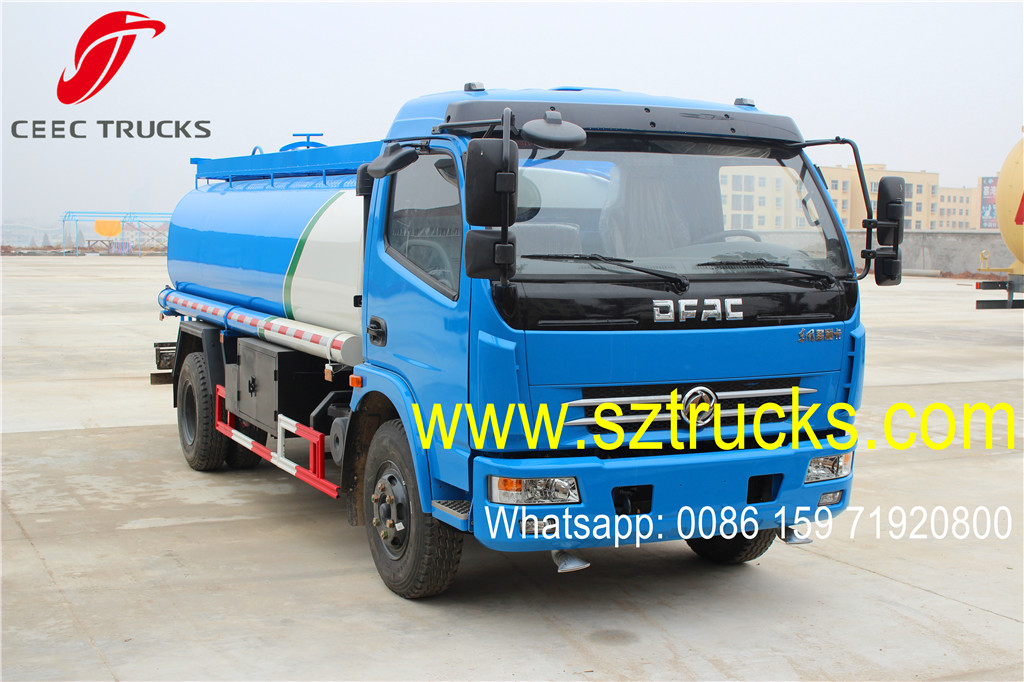

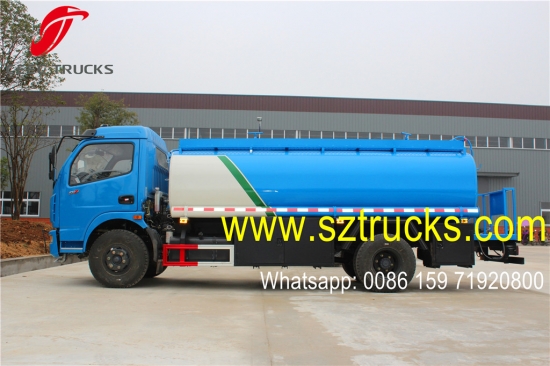

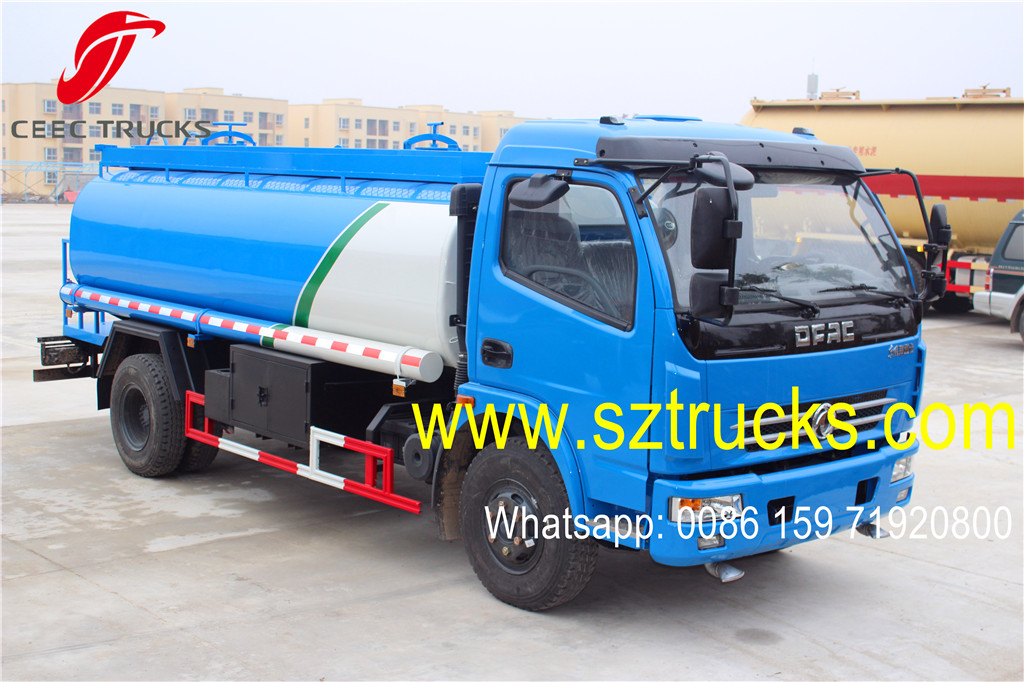

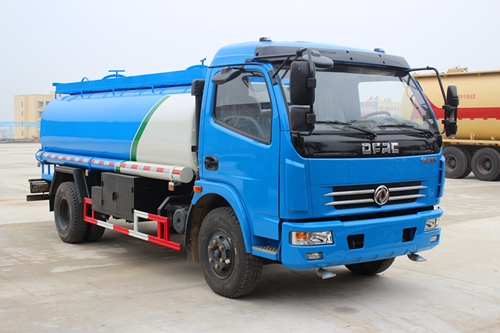

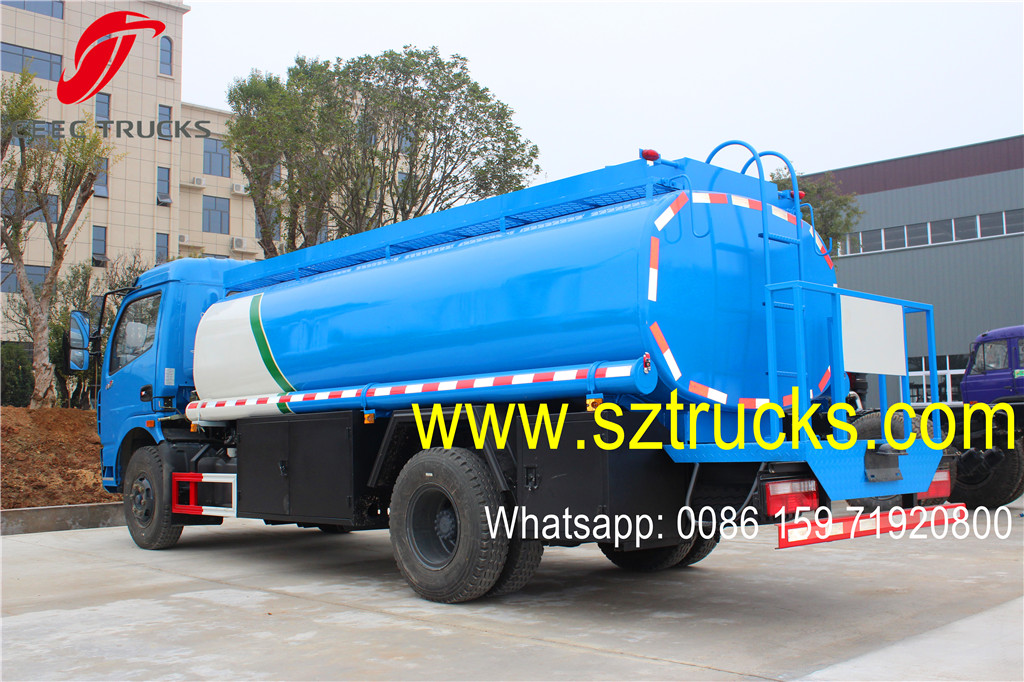

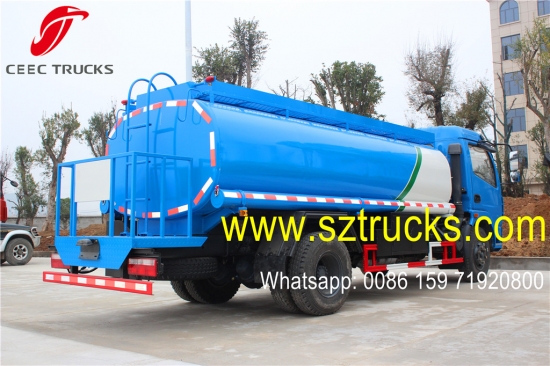

2. More details to show CEEC TRUCKS produced 8CBM water tanker:
(1) Component:second-class chassis, tank,water pump,ball valve,aqueduct,Sprinkler and protective guard etc.
(2) Function:equipped with front (rear,side)sprinkler;with rear working platform,Greening water cannon, 360° rotatable, adjust water to high or low(spray like columnar,vaporific,drizzle)

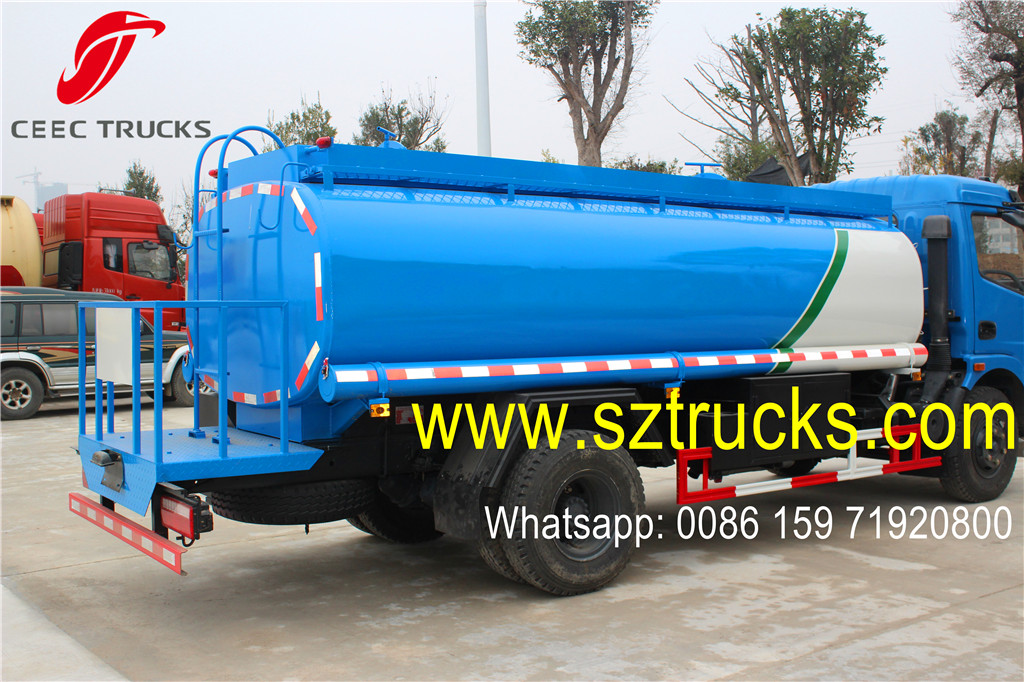

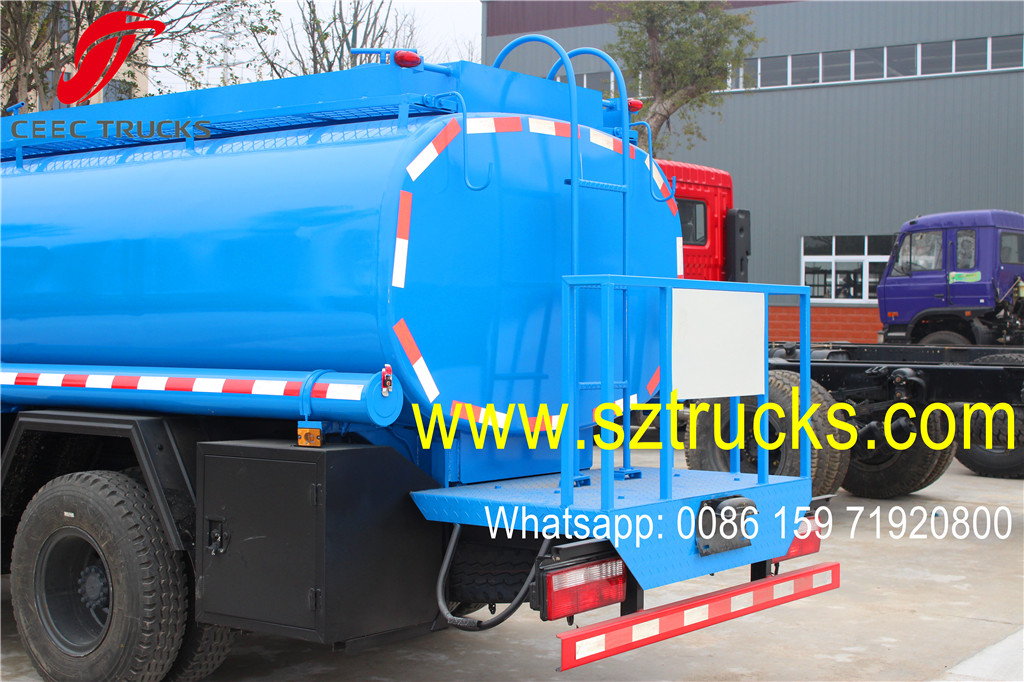

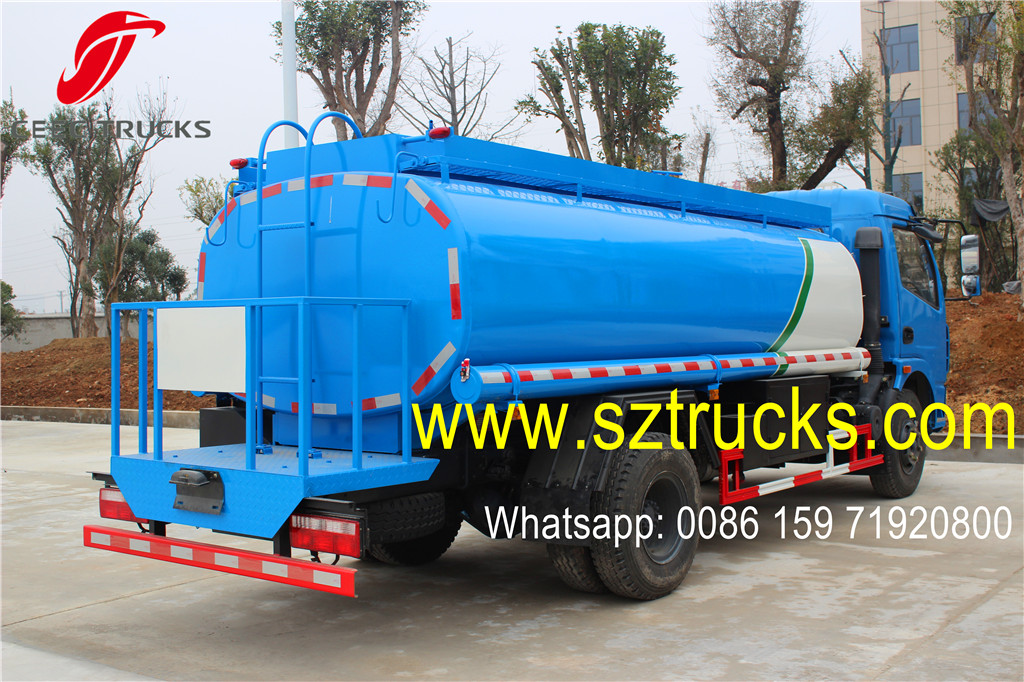

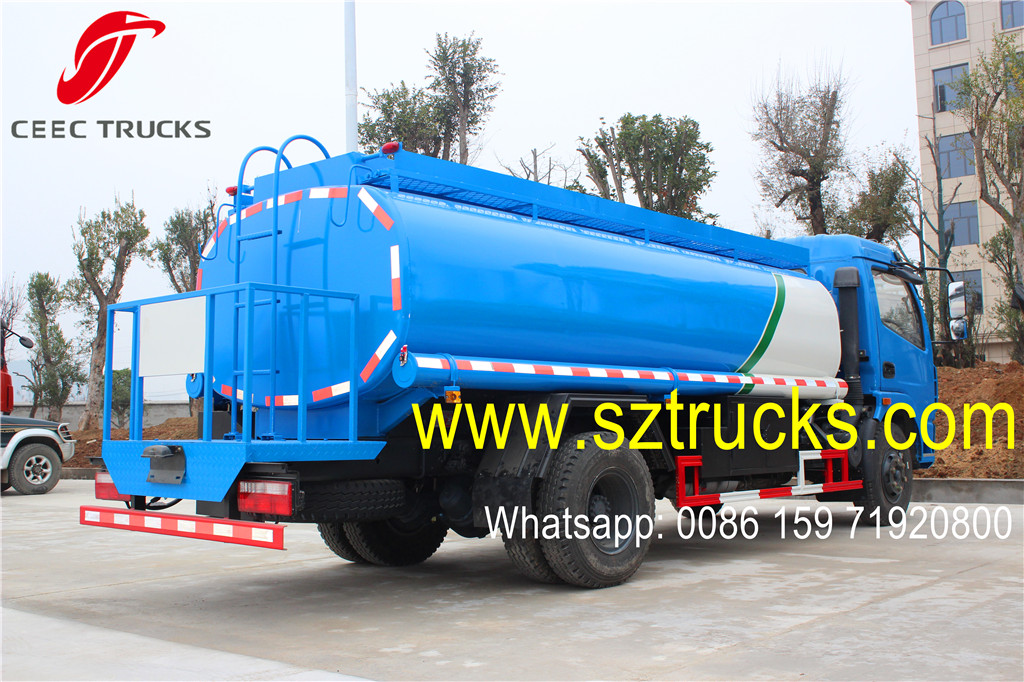

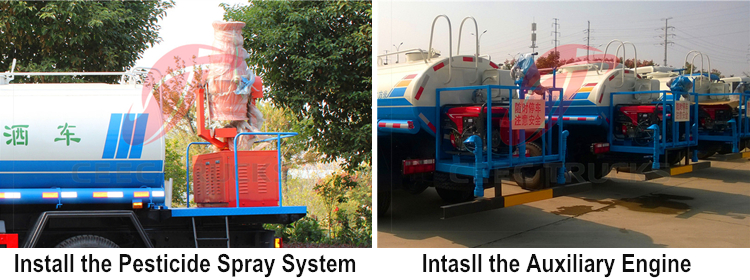

(3) With the working platform at the back, wich can be installed green high-pressure water
spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)

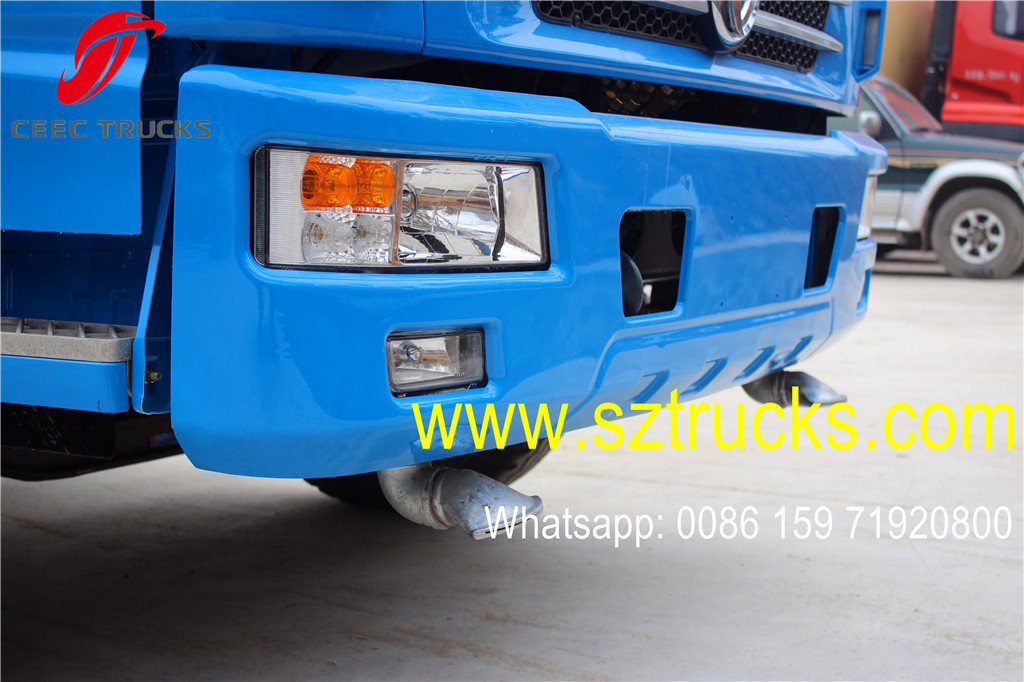

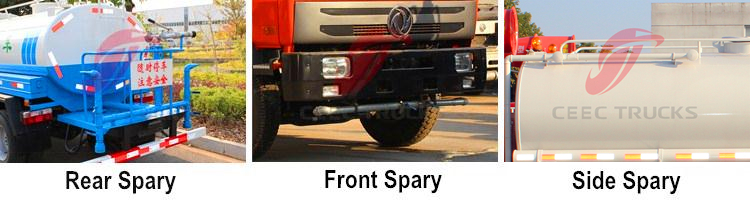

(4) With front spout, back spill and side spout function
(5) Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function
(6) Have self suction, self discharge function, the front flushes sprinkles, the side spurts,post positioned worktable, high pressured water cannon, the water shape can be cylindrical or mist. high-power sprinkle water pumps with fire hydrant and self-flow valve.
(7) It is widly used in the large-scale industry, , mining enterprise, municipal&sanitation department.
(8) Approved, high quality, competitive price, latest technology, easy and simple to handle,accept ODM/OEM.
| Parameter |
|||
| Truck Model |
CEEC5080GSS2 |
||
| Water Tank Parameter |
Tank Capacity |
8CBM |
|
| Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||
| Overall dimension (mm) |
Length |
7120 |
|
| Width |
2210 |
||
| Height |
2590 |
||
| Sprinkler Width |
≥14m |
||
| Sprinkler Speed |
0-20km/h |
||
| Gun range |
≥28-30m |
||
| Flow |
40m³/h |
||
| Rotation |
360° |
||
| Gun position |
Front; Rear; two sides |
||
| Chassis |
Chassis Brand |
DongFeng |
|
| Drive Mode |
4x2 |
||
| Tire type |
8.25-16 tire |
||
| Tire No. |
6+1 units |
||
| Max speed |
90 km/h |
||
| Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
| Engine |
Power |
88 kw / 120hp |
|
| Fuel type |
diesel |
||
| Emission Standard |
Euro 3 & Euro 4 |
||
| Gearbox |
Control type |
Manual |
|
| Gear |
6 forward & 1 reverse |
||

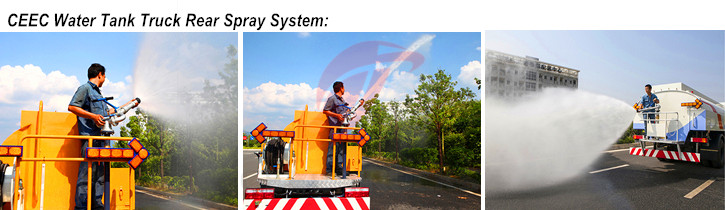

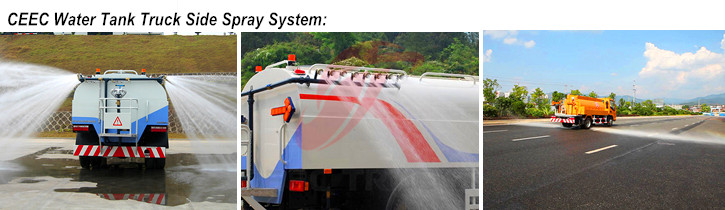

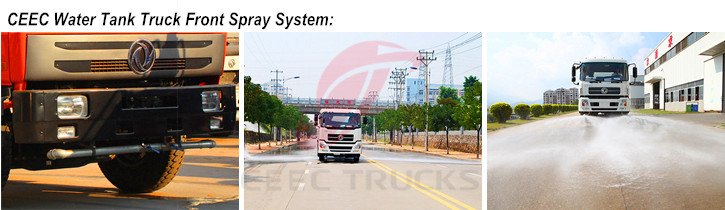

CEEC water tank truck spray system:
