CEEC water tank truck previous export:

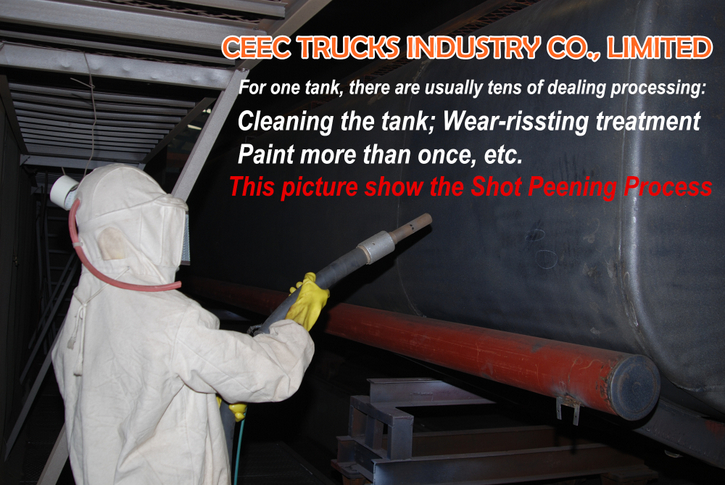

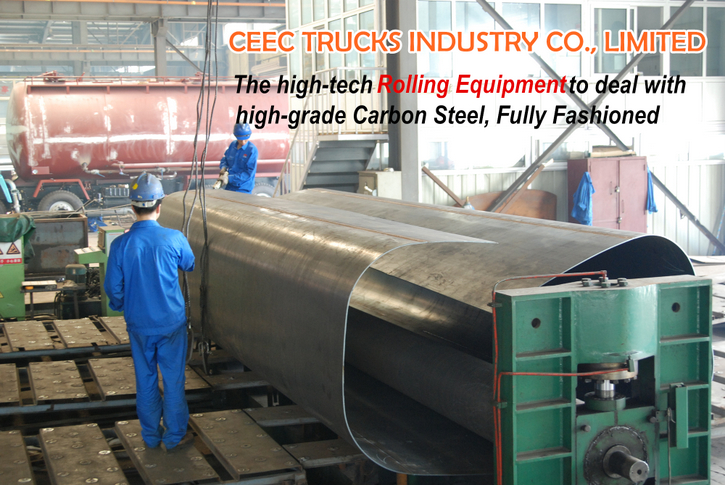

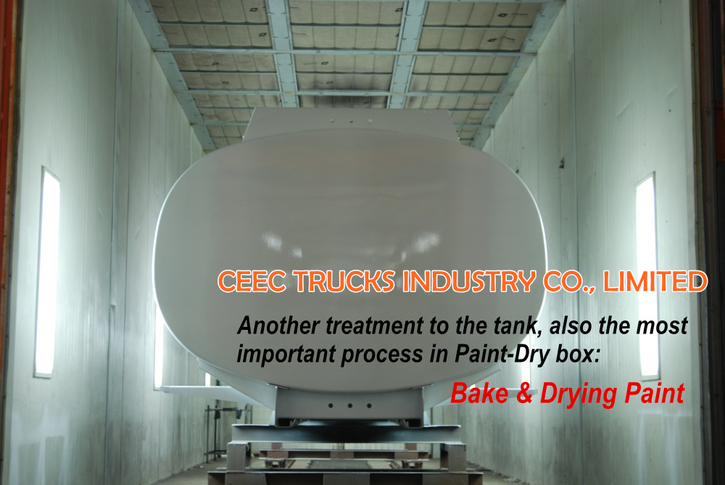

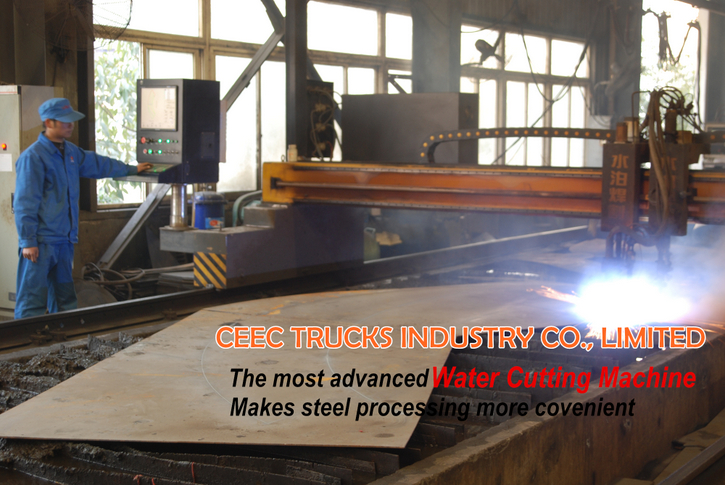

CEEC water tank truck workshop & equipment:
1. We CEEC TRUCKS are manufacturer, specializing in producing water tanker truck with good
reputation.
2. Low
& Flat water flow washing, high speed and more efficiency.
3. All
pneumatic pressure system, no weakness of hydraulic pressure, like high price
and complicated maintenance. What’s more, the pollution of oil discharge is
avoided.
4. Metal
printed inside the CEEC 3000Liters water speinkler tanker trucks keep
the Carbon Steel tank from rusting. Also the stainless steel tank is optional
for the tanker truck.
5. The
figure is flat ellipse. The transition of tank and side is by round arc,
together with quality print, which makes the whole vehicle looks good, also the DongFeng 3CBM Water Tank Trucks performance is very high.

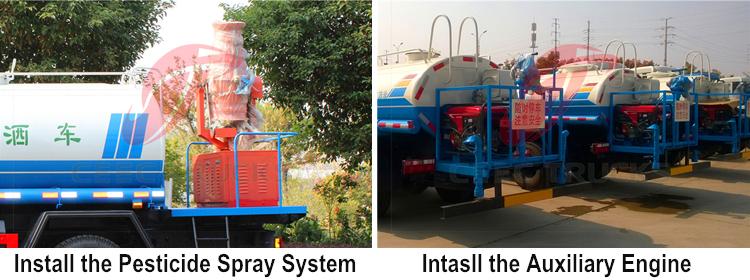

6. Other
options in CEEC TRUCKS
INDUSTRY CO., LIMITED: Highway Railings Washing, Spraying
for Adding Humidity and Reducing Dust, Low & Flat high water flow Washing,
Noise Barrier Washing, Road Spray, Right & Left Washing Flowers, Lift
Shaft, Snow Blade, Front Spray Snow Dissolving, Irrigation, Standby for Fire
Controlling, Customization is available.
Items |
Parameter |
||

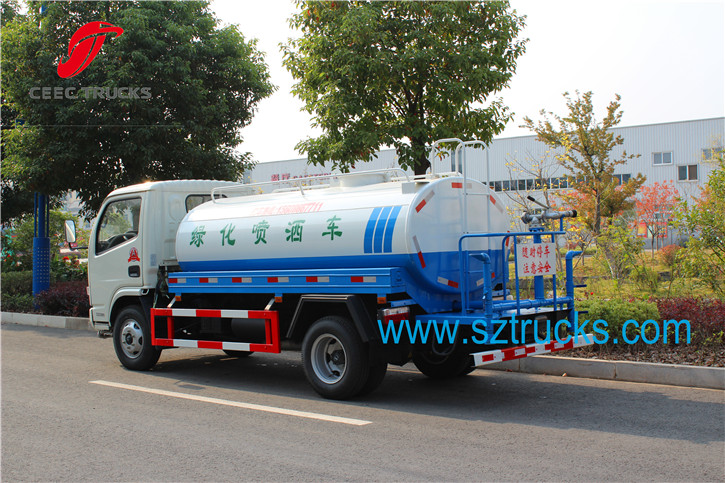

Truck Model |
CEEC5060GSS1 |
||
Water Tank Parameter |
Tank Capacity |
3CBM |
|
Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||
Overall dimension (mm) |
Length |
5650 |
|
Width |
1900 |
||
Height |
2295 |
||
Sprinkler Width |
≥14m |
||
Sprinkler Speed |
0-20km/h |
||
Gun range |
≥28m |
||
Pump lift |
90m |
||
Gun position |
Front; Rear; two sides |
||
Chassis |
Chassis Brand |
DongFeng |
|
Drive Mode |
4x2 |
||
Tire type |
7.00-16 tire |
||
Tire No. |
6+1 units |
||
Max speed |
95 km/h |
||
Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
Engine |
Power |
70 kw / 95hp |
|
Fuel type |
diesel |
||
Emission Standard |
Euro 3 & Euro 4 |
||
Gearbox |
Control type |
Manual |
|
Gear |
6 forward & 1 reverse |
||

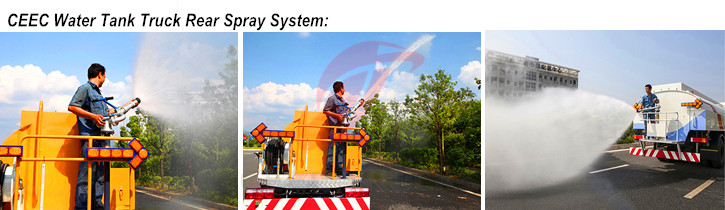

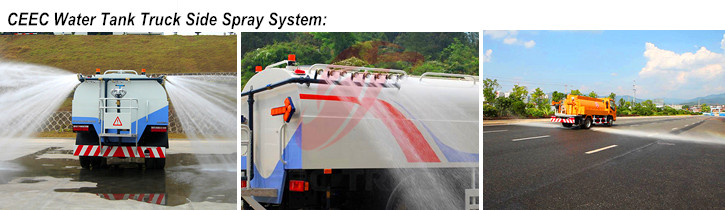

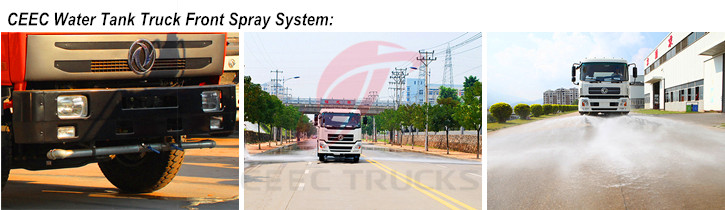

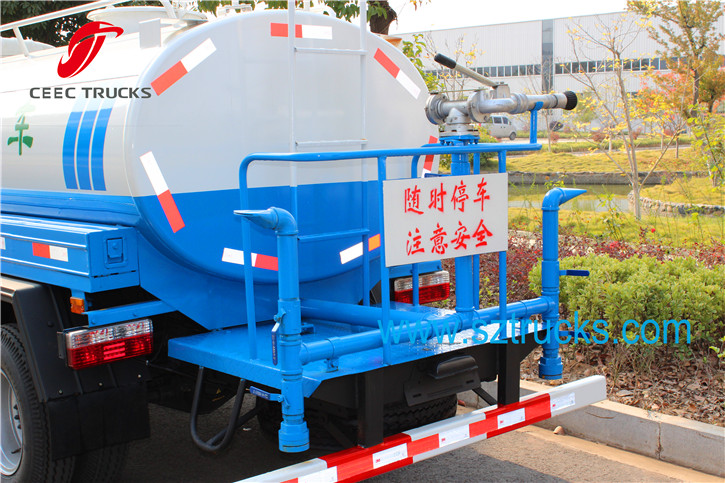

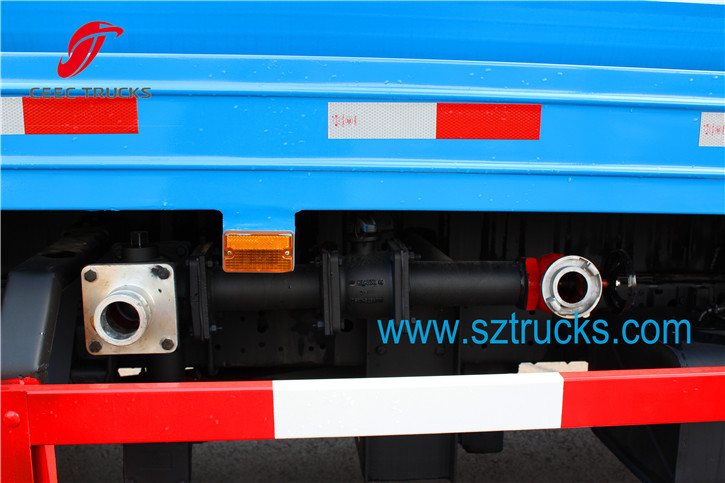

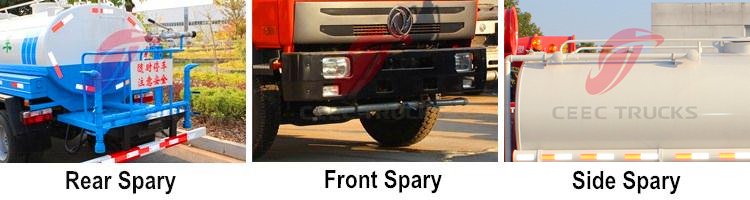

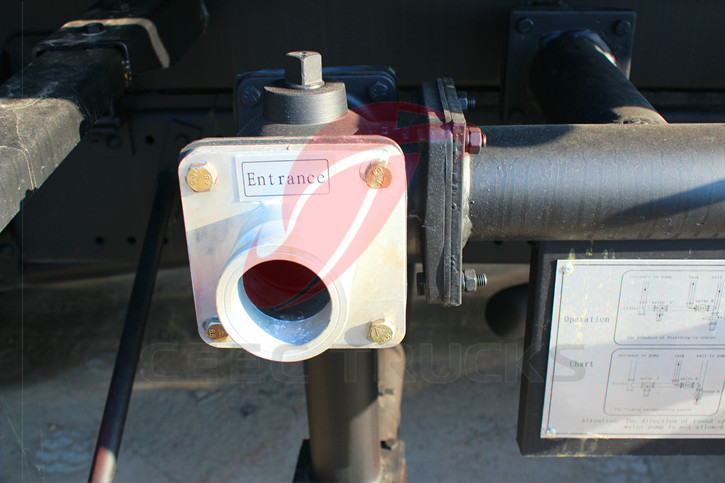

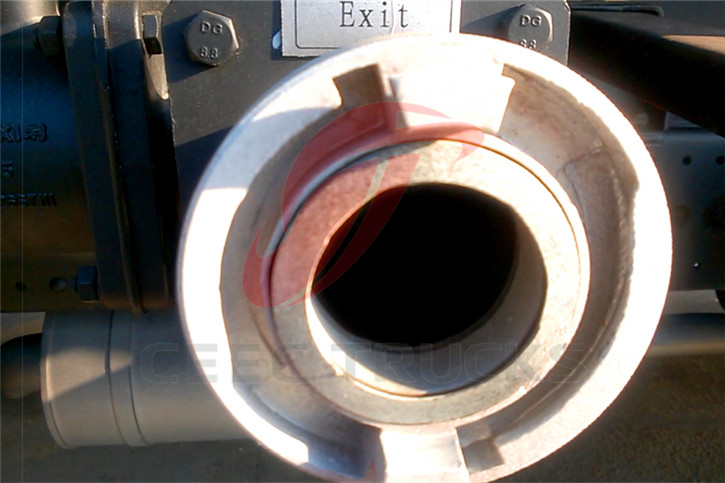

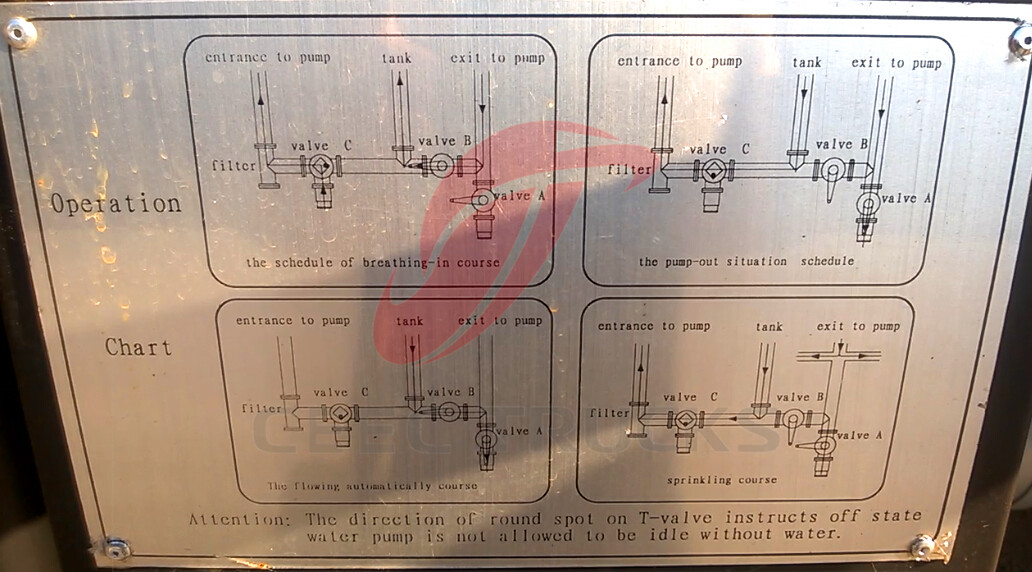

CEEC water tank truck spray system:
