1. We CEEC TRUCKS are manufacturer, specializing in producing Skip
Refuse truck many years with good reputation.

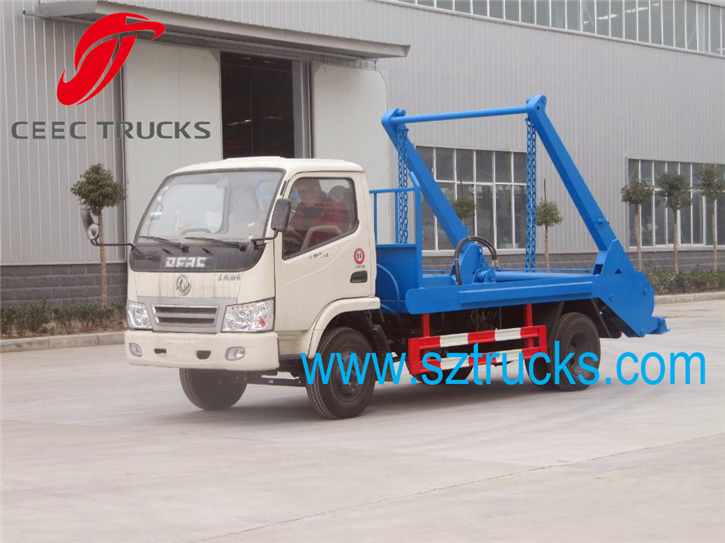

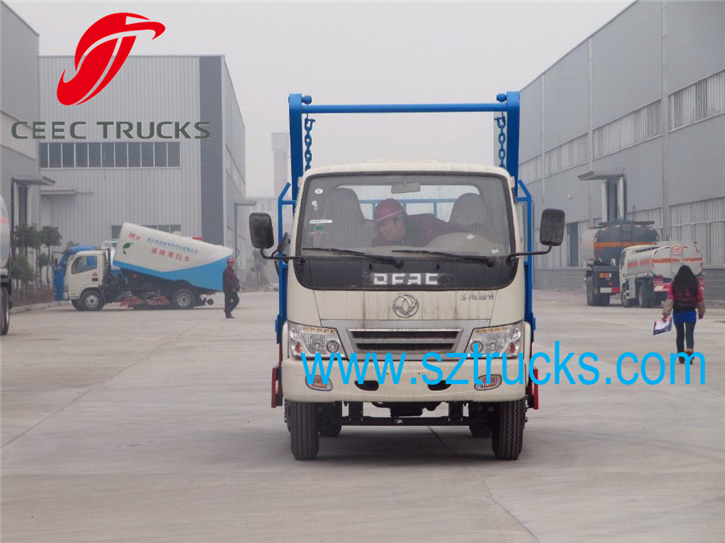

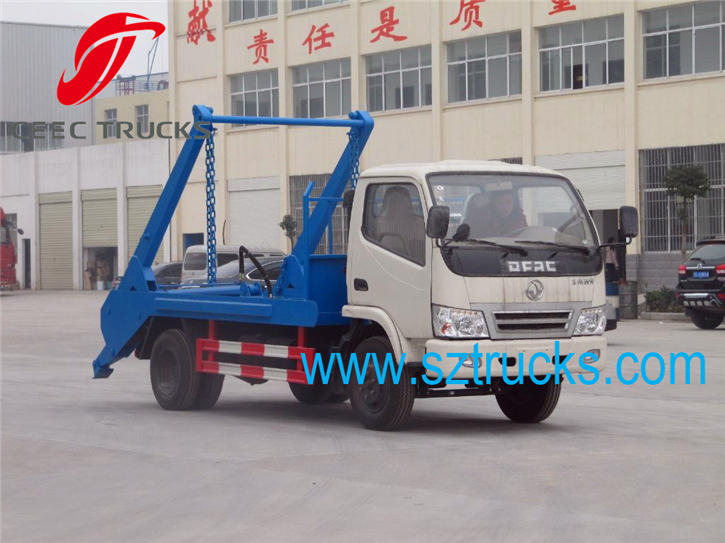

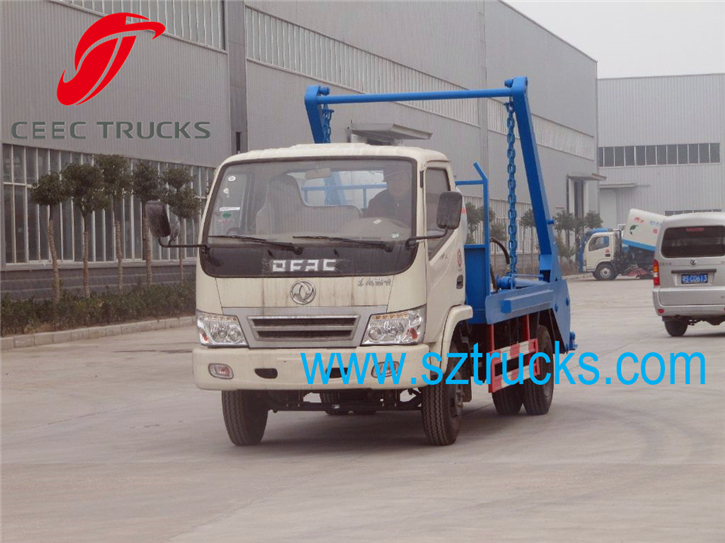

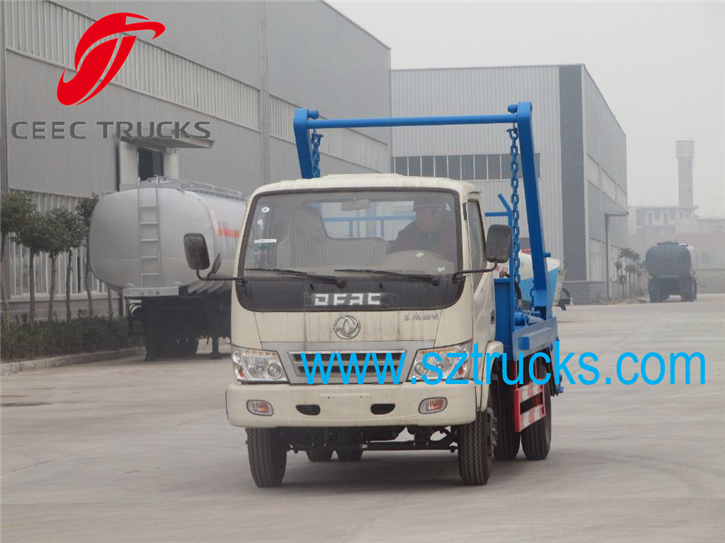

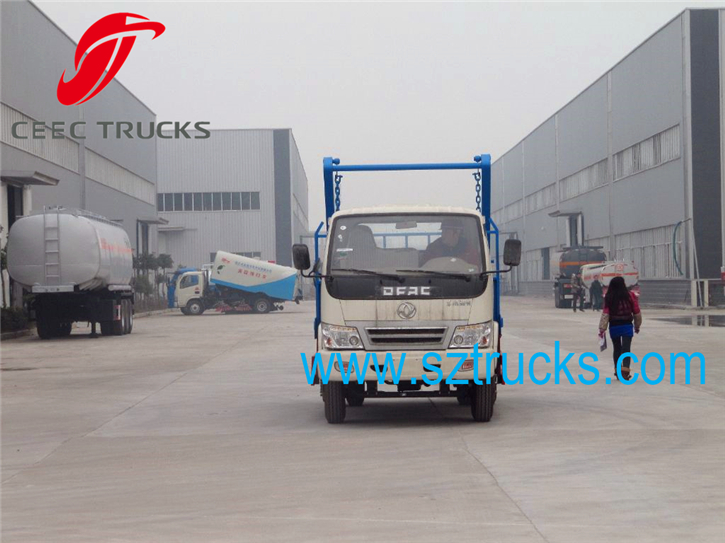

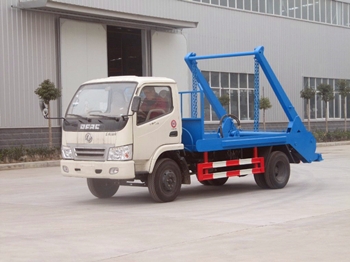

2. The CEEC DongFeng mini 3CBM Skip Refuse truck is multi-functional used for garbage
collection, transportation and self-discharging. Easy to operate and maintenance.
3. The swing system use complete sets of
equipment, safe and reliable, we have domestic brand and imported brand for
optional
4. Standard steel (Carbon steel Q235 & Q345,
also the Stainless steel can be choose) for garbage tank, against corrosion
resistant, rust protection and well-resisting.
5. 3000Liters
Swing Arm Garbage Truck adopts one truck match numbers of garbage
tank, loop transportation, which can highly improve the work efficiency, also
reduce the cost.
6. The CEEC 3CBM Skip Refuse truck:
composed of chassis, garbage tank, swing-arm reducer
bumper cylinder and so on. Characterized by the separation of garbage tank.
| Parameter |
|||
| Truck Model |
CEEC5060ZBS |
||
| Swing Arm Truck Parameter |
Tank Capacity |
3CBM |
|
| Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||
| Overall dimension (mm) |
Length |
5995 |
|
| Width |
2000 |
||
| Height |
2900 |
||
| Tank Thickness |
Side |
3mm |
|
| Floor |
3mm |
||
| Hydraulic System |
High Performed Hydraulic System |
||
| Chassis |
Chassis Brand |
DongFeng |
|
| Drive Mode |
4x2 |
||
| Tire type |
7.00-16 tire |
||
| Tire No. |
6+1 units |
||
| Max speed |
95 km/h |
||
| Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
| Engine |
Power |
70 kw / 95hp |
|
| Fuel type |
diesel |
||
| Emission Standard |
Euro 3 & Euro 4 |
||
| Gearbox |
Control type |
Manual |
|
| Gear |
5 forward & 1 reverse |
||
