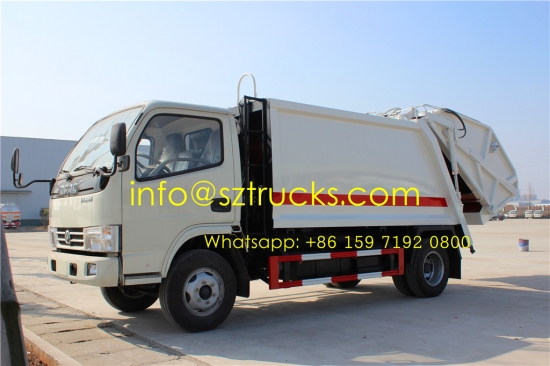

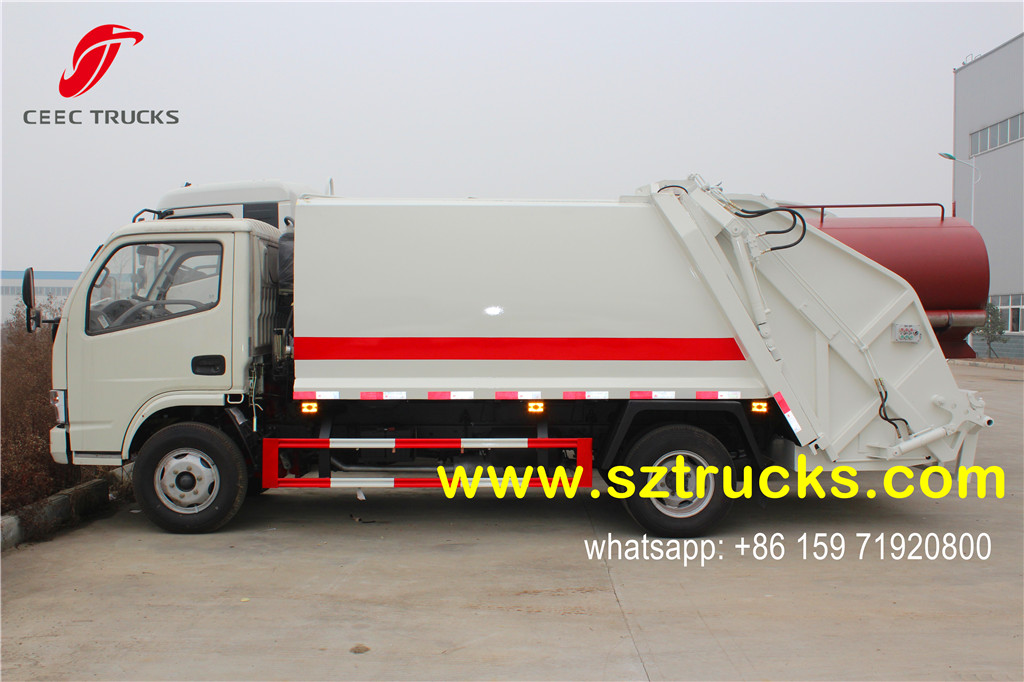

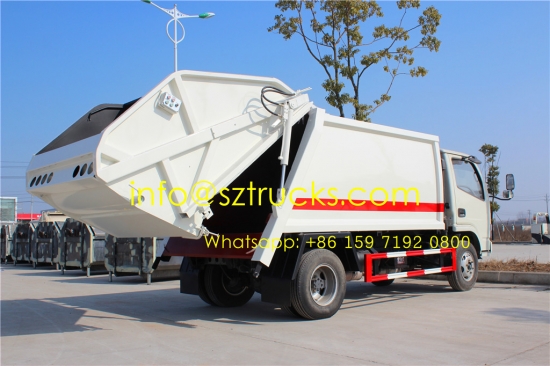

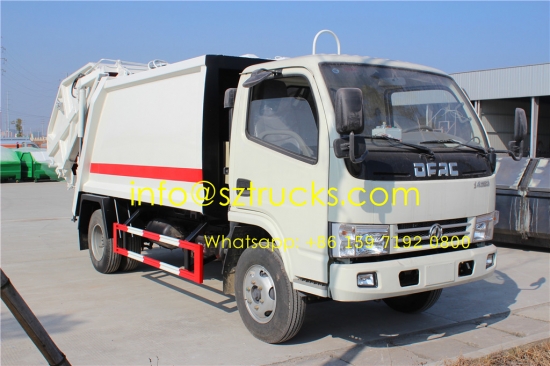

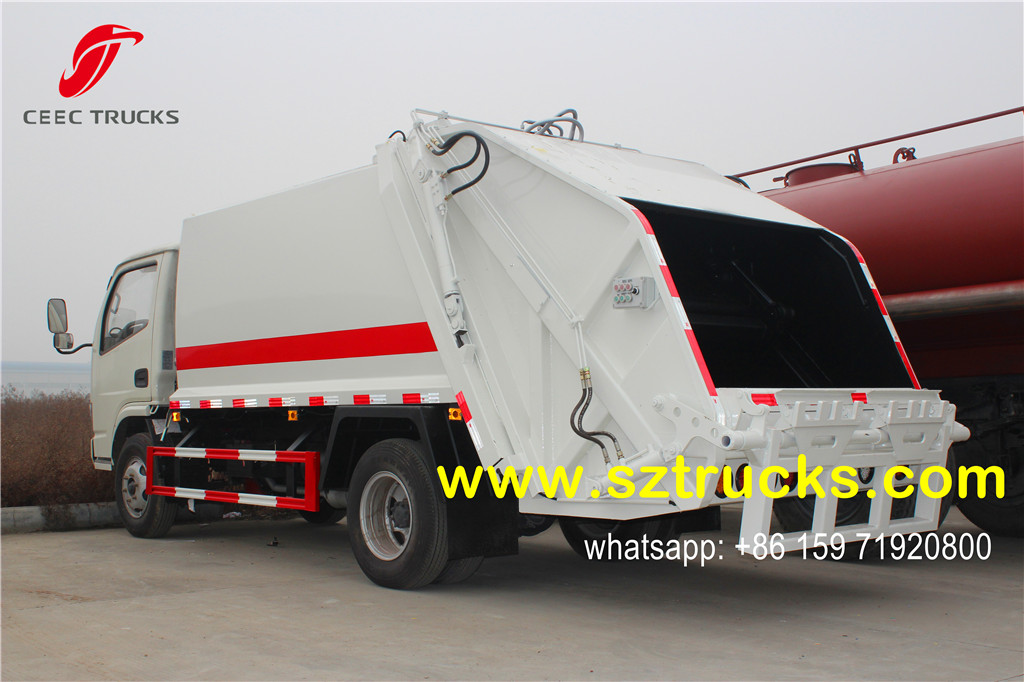

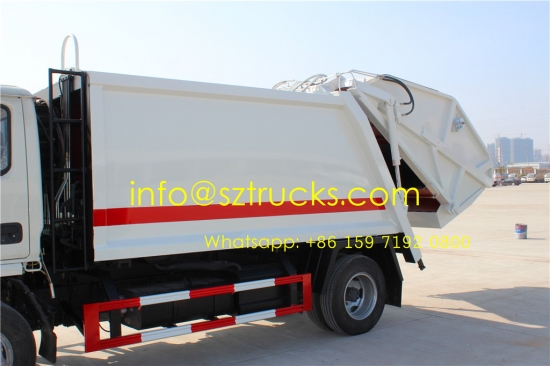

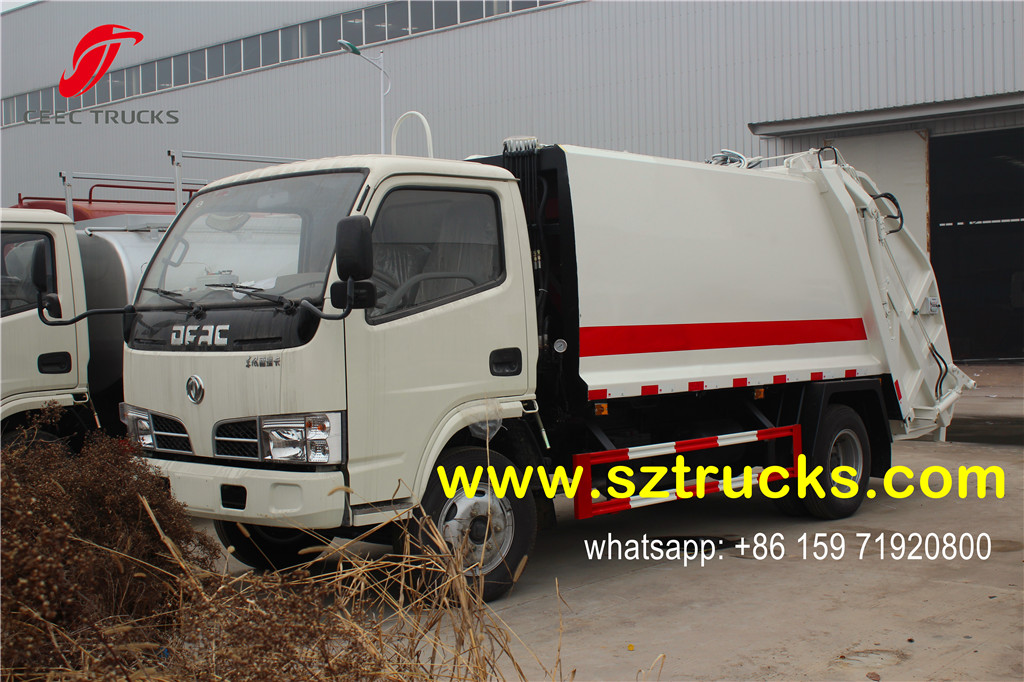

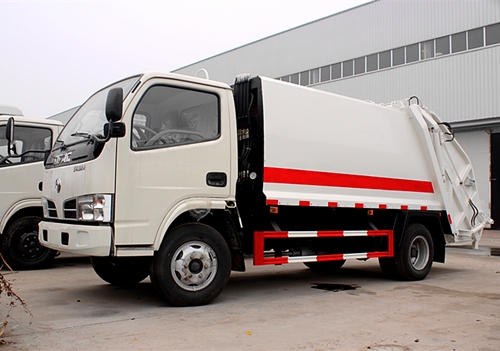

2016 newly produced 4CBM trash compressor truck

Product name

DONGFENG Garbage Compactor Truck   CEEC5060ZYS

Chassis name

EQ1060

Capacity of body

4CBM  (1100Gallons)

Specification

of vehicle

Outside dimension (mm):

6150x1950x2850

Total weight (kg):

4495

Loading weight (kg):

685

Net weight (kg):

3680

Approach / departure angle (mm):

19/13

Front / rear suspension (mm):

1032/1818

Fuel type :

Diesel

Max. speed (km/h):

95

Engine specs

Model :

CY4102

Manufacturer :

CHAOCHAI

Displacement (ml):

3856

Power (kw):

70

Chassis specs

Driving type:

4×2

Wheelbase (mm):

3300

Tread (front/rear):

1506/1442

Displacement standard:

Euro 3

Front / rear axle (T):

2T/4.2T

Gear box:

Five forwards, one revere, mechanical

Brake system:

Pneumatic

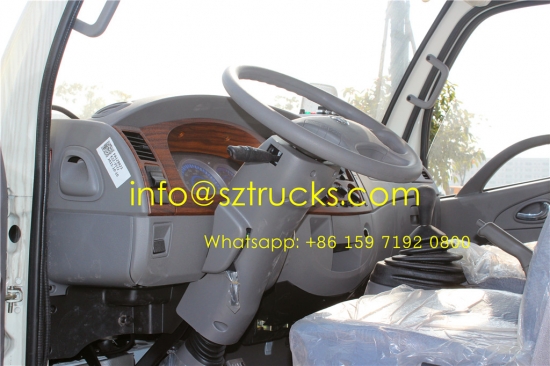

Cab:

Single cab

Spring file (front/rear):

8/9+5

Tyre:

7.00-16

Air condition :

Optional

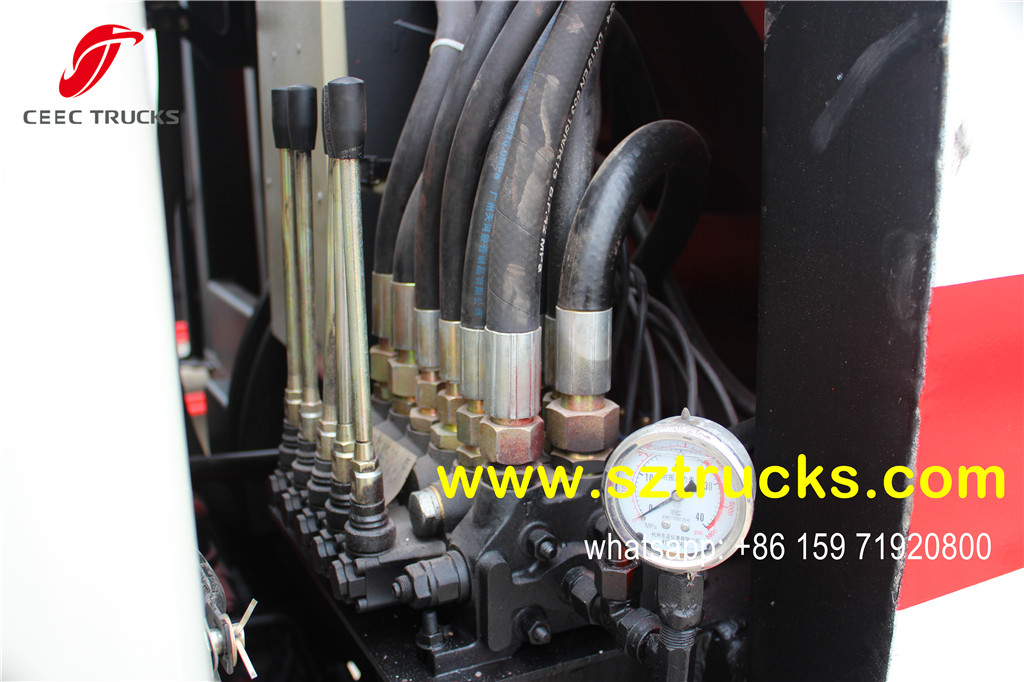

Special function

Working pressure of hydraulic

16MPa

Turn radius of loading arm

2400mm

Flux of hydraulic system:

50L/min

Max. Boom angle :

145

Lifting the bucket time:

30s

Unloading bucket time:

50s

Brief introduction

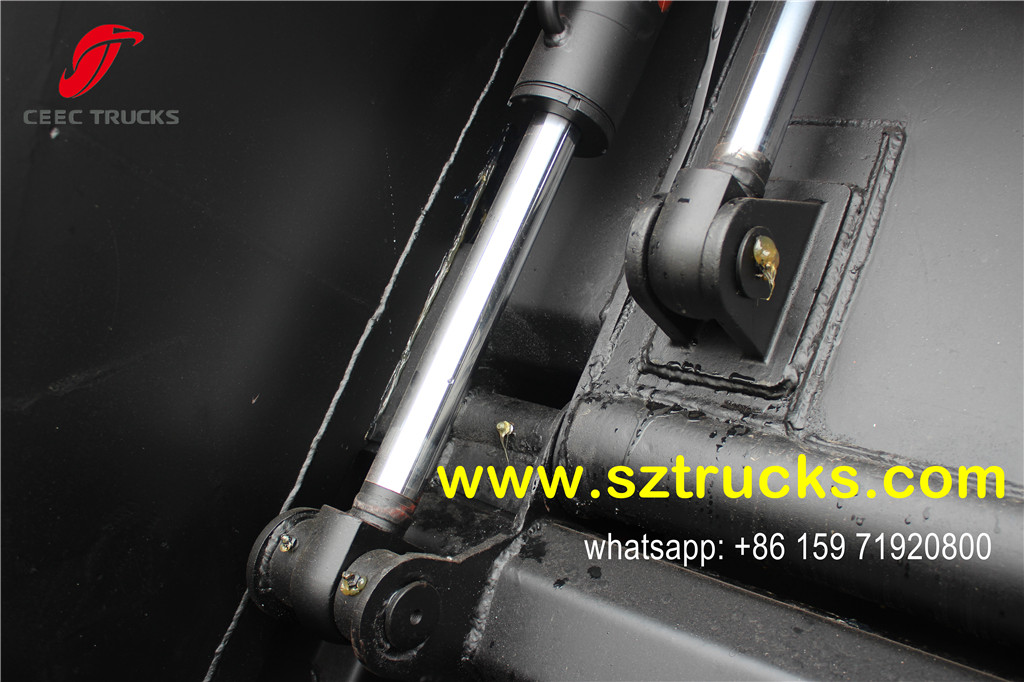

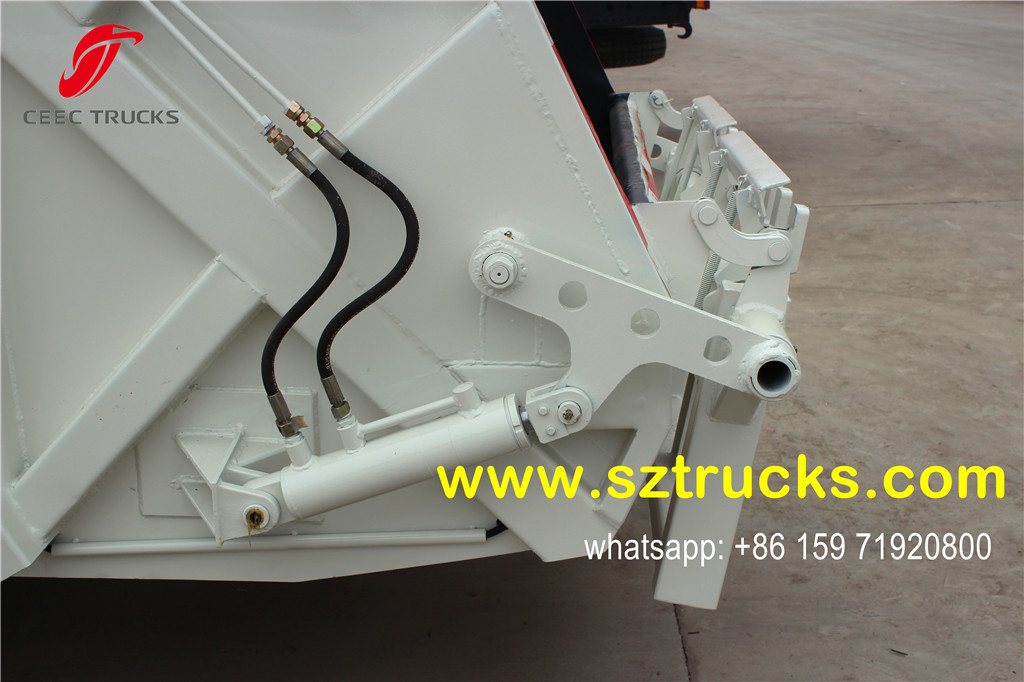

1, The large hydraulic cylinder drive the double arms, to install hydraulic legs to make sure the stability and safety of vehicle during operation.

2, The type of garbage box: sealed, semi-enclosed. The shape of garbage box: rectangular shape, trapezoidal.

3, The characterized of this vehicle: cargo compartment and vehicle body can be separated. One vehicle can work with more one garbage cargo body, recycling transport; improve the transport capacity, especially for short-distance transport, such as the sanitation department.
