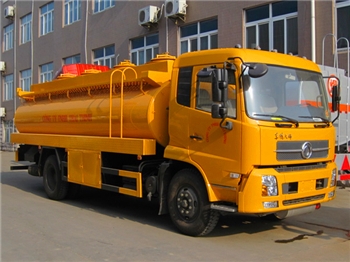

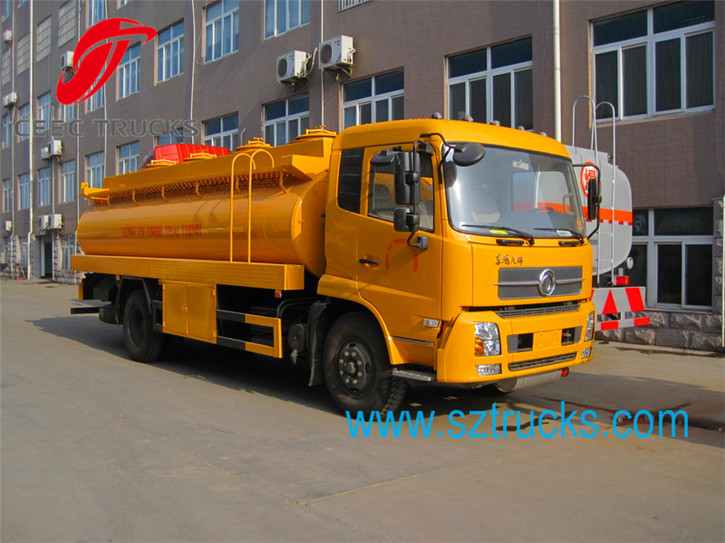

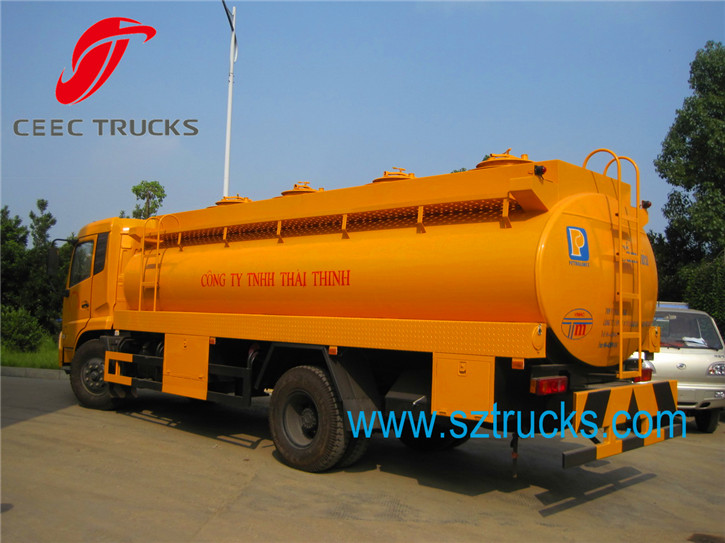

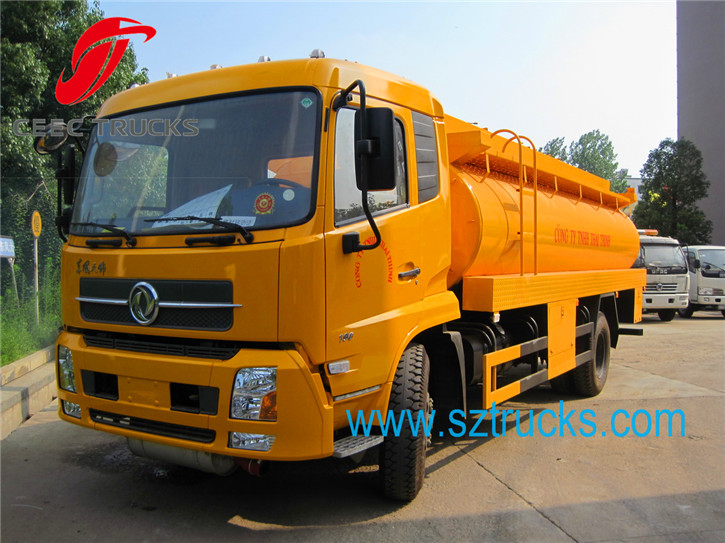

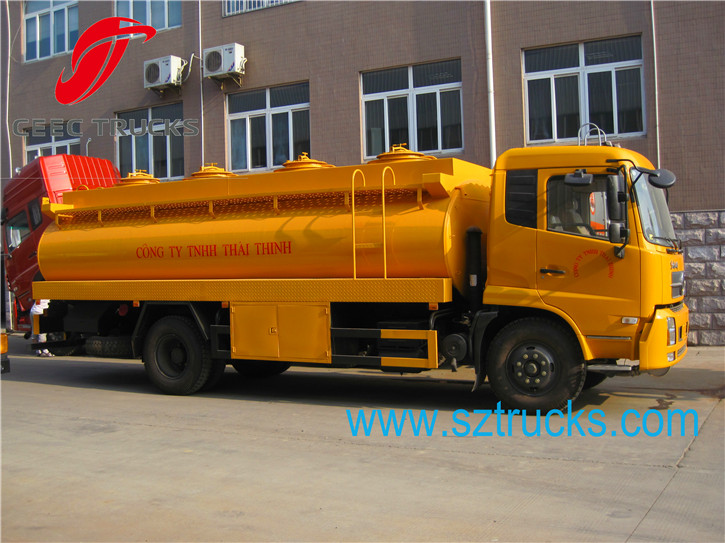

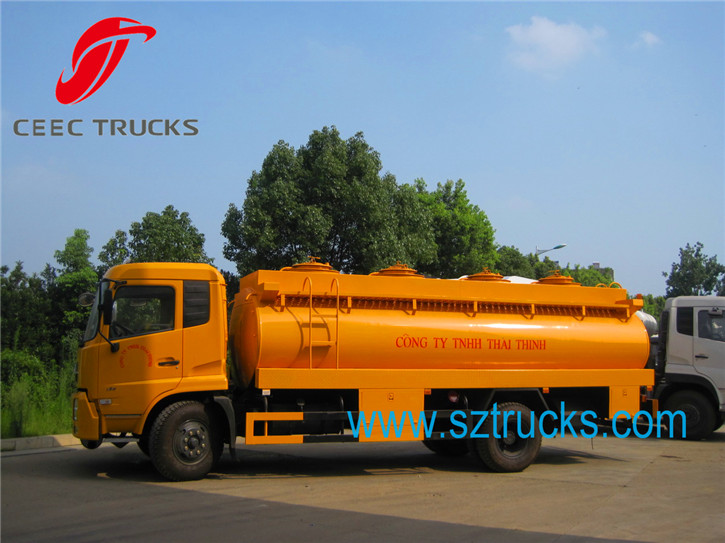

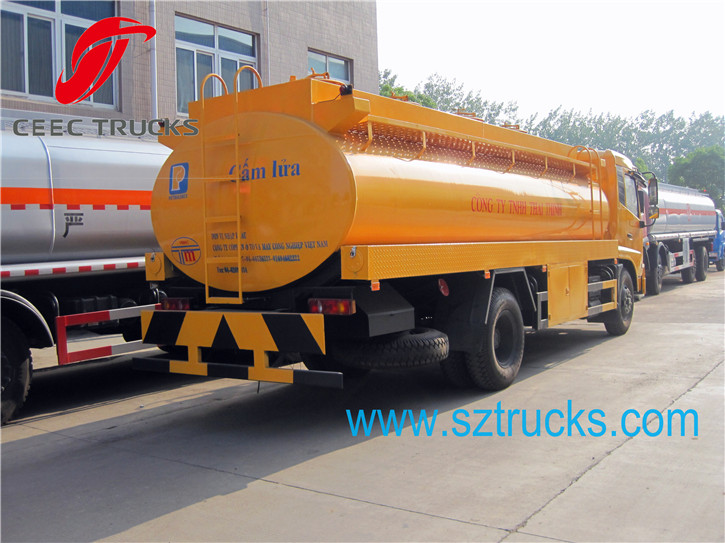

CEEC water tank truck previous export:
CEEC water tank truck workshop & equipment:
Want to buy Water Sprinkler Trucks, welcome to visit our official website and wish the pleasant cooperation!
We CEEC TRUCKS are manufacturer, specializing in producing water tanker truck with good reputation.
2. Low & Flat water flow washing, high speed and more efficiency.
3. All pneumatic pressure system, no weakness of hydraulic pressure, like high price and complicated maintenance. What’s more, the pollution of oil discharge is avoided.
4. Metal printed inside the CEEC 16000Liters water tanker truck keeps the Carbon Steel tank from rusting. Also the stainless steel tank is optional for the tanker truck. Tank thickness: for tank 4mm, for shell cover 5mm, for clapboard 4mm.
5. The figure is flat ellipse. The transition of tank and side is by round arc, together with quality print, which makes the whole vehicle looks good, also the DongFeng 16CBM Water Sprinkler Tanker Truck performance is very high.
6. Front washing and rear sprinkling, with spurting aside, with working platform after the tank installed high pressure cannon.
7. Other options in CEEC TRUCKS INDUSTRY CO., LIMITED: Highway Railings Washing, Spraying for Adding Humidity and Reducing Dust, Low & Flat high water flow Washing, Noise Barrier Washing, Road Spray, Right & Left Washing Flowers, Lift Shaft, Snow Blade, Front Spray Snow Dissolving, Irrigation, Standby for Fire Controlling, Customization is available.
| Parameter |
|||
| Truck Model |
CEEC5160GSS6 |
||
| Water Tank Parameter |
Tank Capacity |
16CBM |
|
| Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||
| Overall dimension (mm) |
Length |
8500 |
|
| Width |
2400 |
||
| Height |
3000 |
||
| Sprinkler Width |
≥14-16m |
||
| Sprinkler Speed |
0-20km/h |
||
| Gun range |
≥28-30m |
||
| Flow |
90m³/h |
||
| Rotation |
360° |
||
| Gun position |
Front; Rear; two sides |
||
| Chassis |
Chassis Brand |
DongFeng |
|
| Drive Mode |
4x2 |
||
| Tire type |
10.00-20 tire |
||
| Tire No. |
6+1 units |
||
| Max speed |
90 km/h |
||
| Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
| Engine |
Power |
132 kw / 180hp |
|
| Fuel type |
diesel |
||
| Emission Standard |
Euro 3 & Euro 4 |
||
| Gearbox |
Control type |
Manual |
|
| Gear |
8 forward & 1 reverse |
||

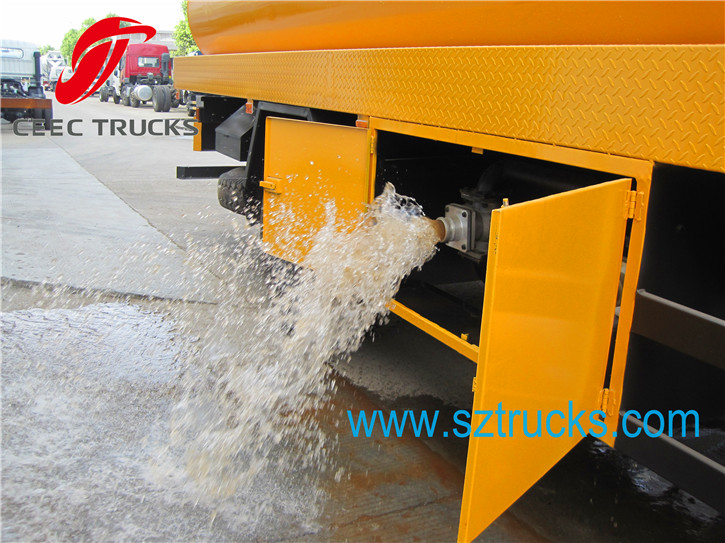

CEEC water tank truck spray system:
