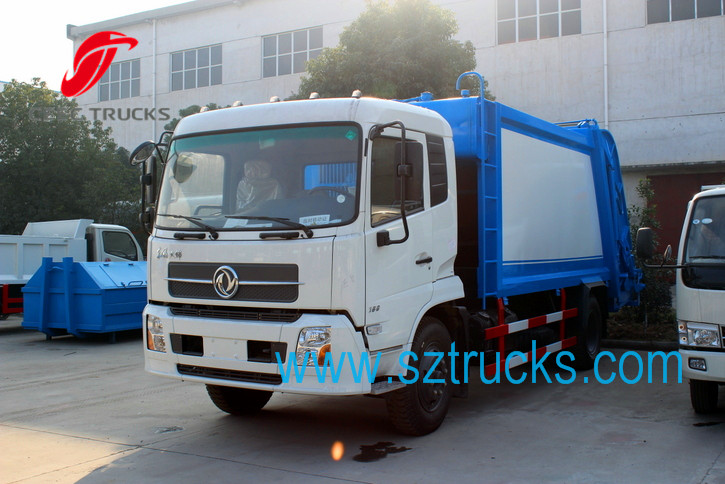

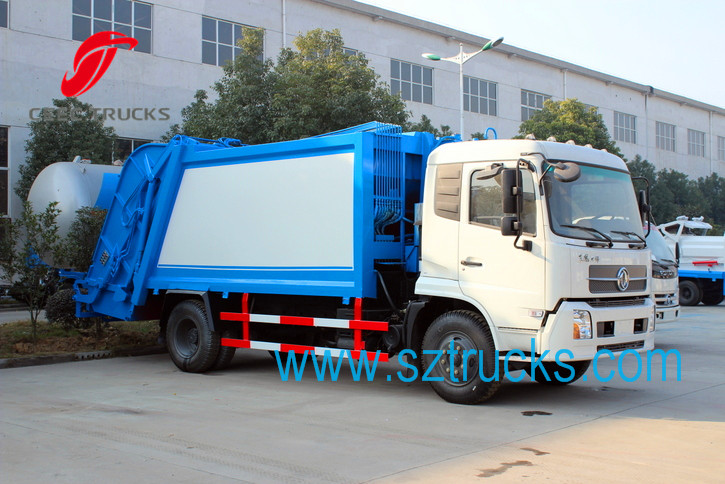

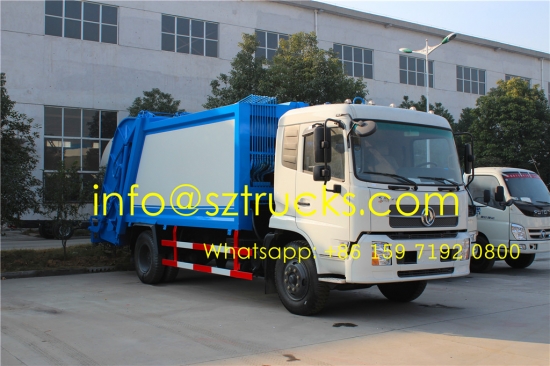

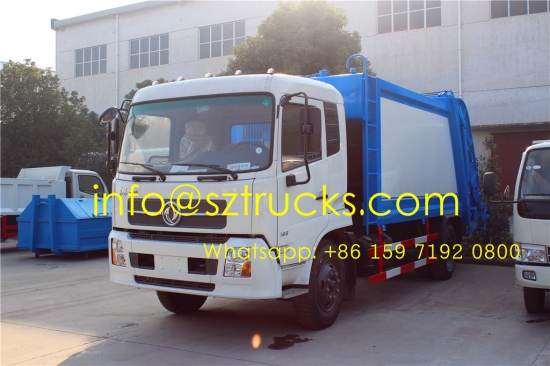

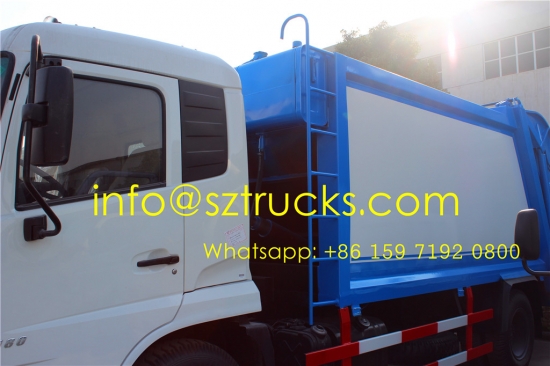

1. We CEEC TRUCKS are manufacturer, specializing in producing garbage compactor truck many years with good reputation.
2. The CEEC 16CBM garbage compactor truck control system PLC (programmable logic controller) originally imported from Italy.
3. Collecting tank is well sealed, which can prevent second pollution.
4. Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for garbage tank, against corrosion resistant, rust protection and well-resisting.
5. Relatively smaller space between scraper and loading device can let garbage more sufficiently into the body.
6. CEEC 16000L Compression Garbage vehicles adopt double direction compression techniques, which can make the whole compression work smoothly and efficiently. All the garbage compactor trucks are easy to operate and maintenance!

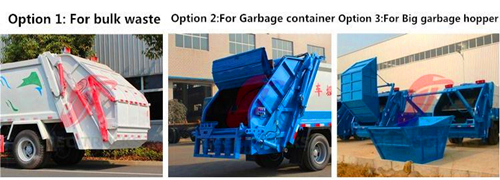

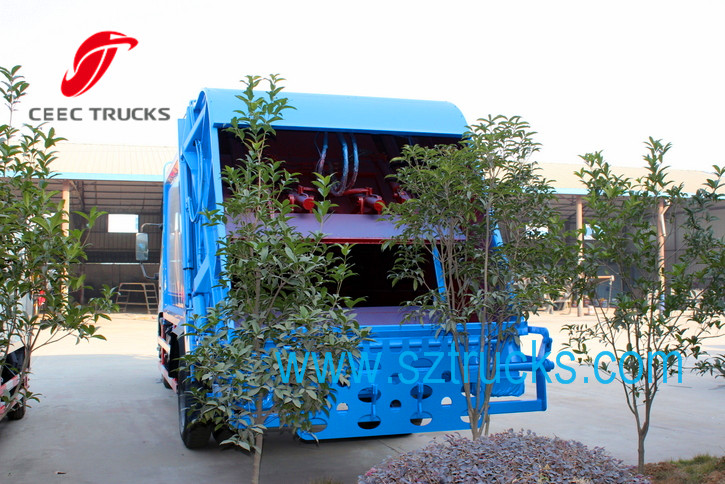

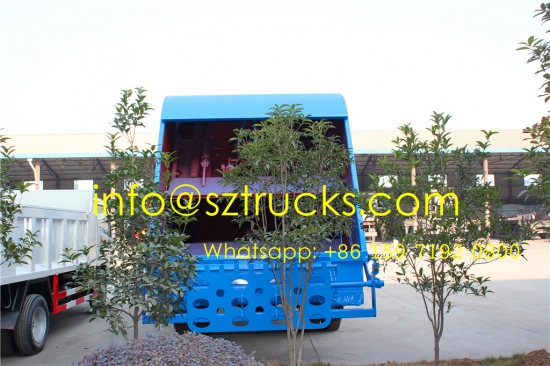

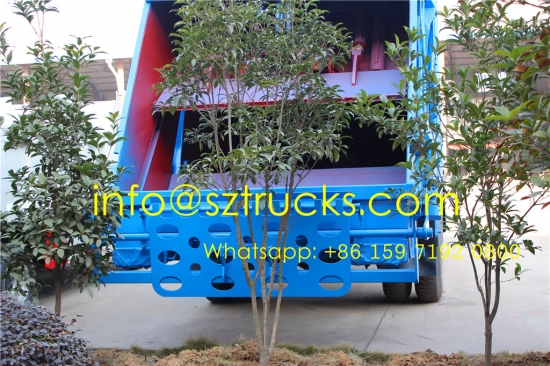

7. Different hopper can be provided to satisfy our customers. And the Hopper is hydraulically and automatically locked when closed.

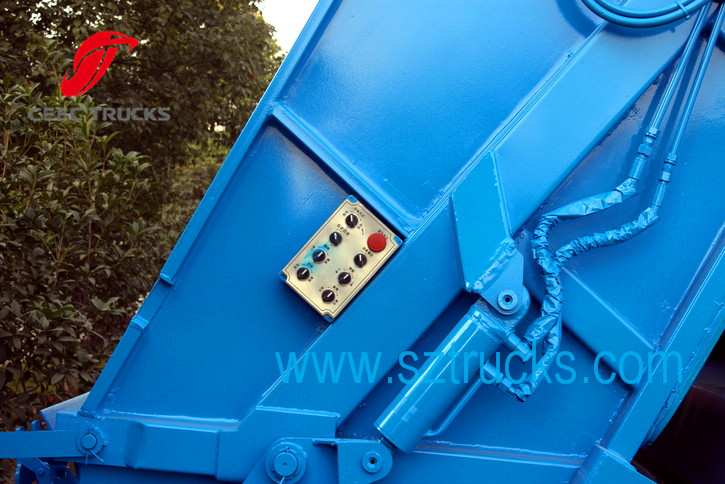

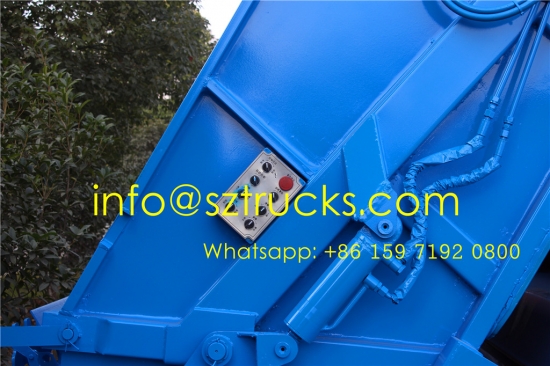

8. Controlled by the integration of machinery, electricity and hydraulic, with manual control system, crush the garbage through filling, pushing and spading, finally make the waste compressed in the dustbin.
CEEC Garbage Compactor Trucks Working Principle:
| Parameter |
|||
| Truck Model |
CEEC5180ZYSS2 |
||
| Compression Tank Parameter |
Tank Capacity |
||
| Tank Material |
Carbon Steel Q235 (Q345 for optional) |
||
| Tank Shape |
Curved Shape Tank (Square shape for optional) |
||
| Overall dimension (mm) |
Length |
8500 |
|
| Width |
2500 |
||
| Height |
3250 |
||
| Tank Thickness |
Side |
5mm |
|
| Floor |
5mm |
||
| Chassis |
Chassis Brand |
DongFeng |
|
| Drive Mode |
4x2 |
||
| Tire type |
10.00-20 tire |
||
| Tire No. |
6+1 units |
||
| Max speed |
90 km/h |
||
| Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
| Engine |
Power |
133 kw / 180hp |
|
| Fuel type |
diesel |
||
| Emission Standard |
Euro 3 & Euro 4 |
||
| Gearbox |
Control type |
Manual |
|
| Gear |
9 forward & 1 reverse |
||

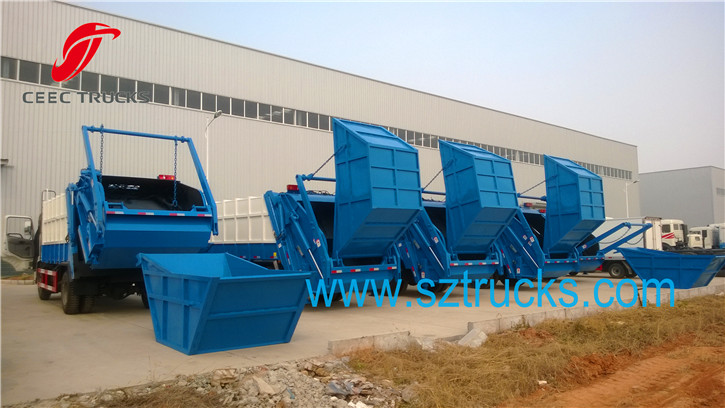

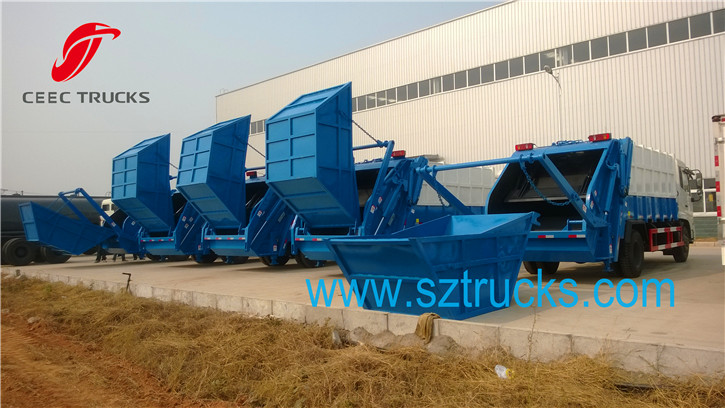

| CEEC Compactor Truck Loading Introduction |
|
||
