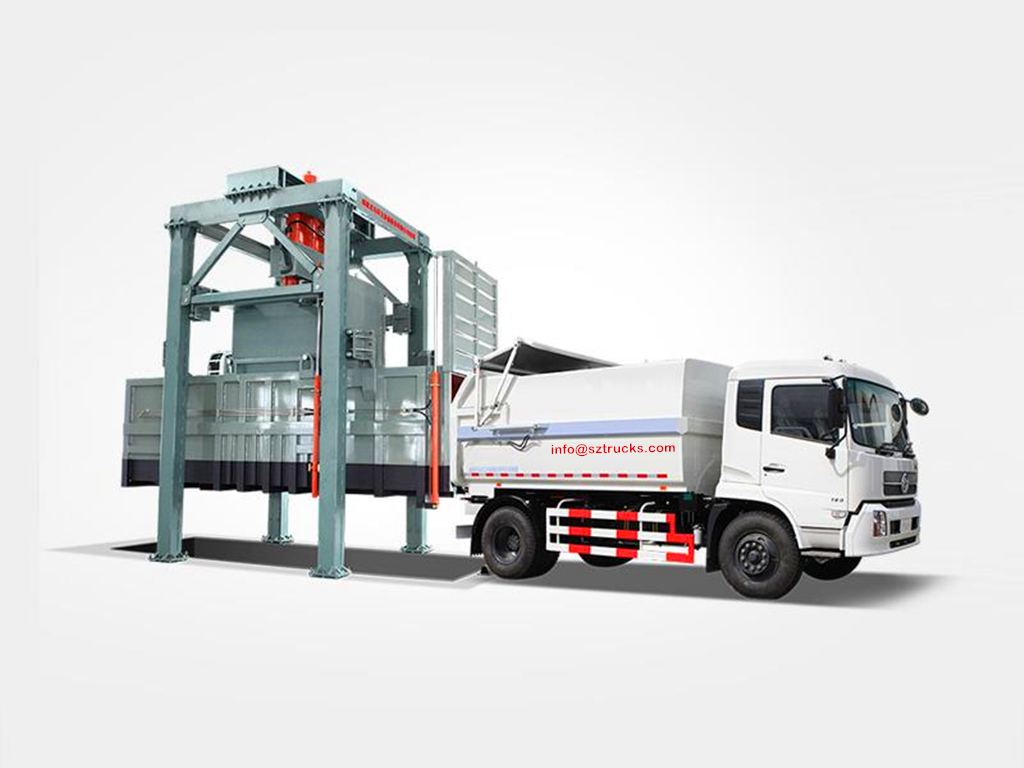

1. Docking Garbage Truck is one of important sanitation trucks, which mainly used to collection & transportation compressed rubbish from Garbage Stations.

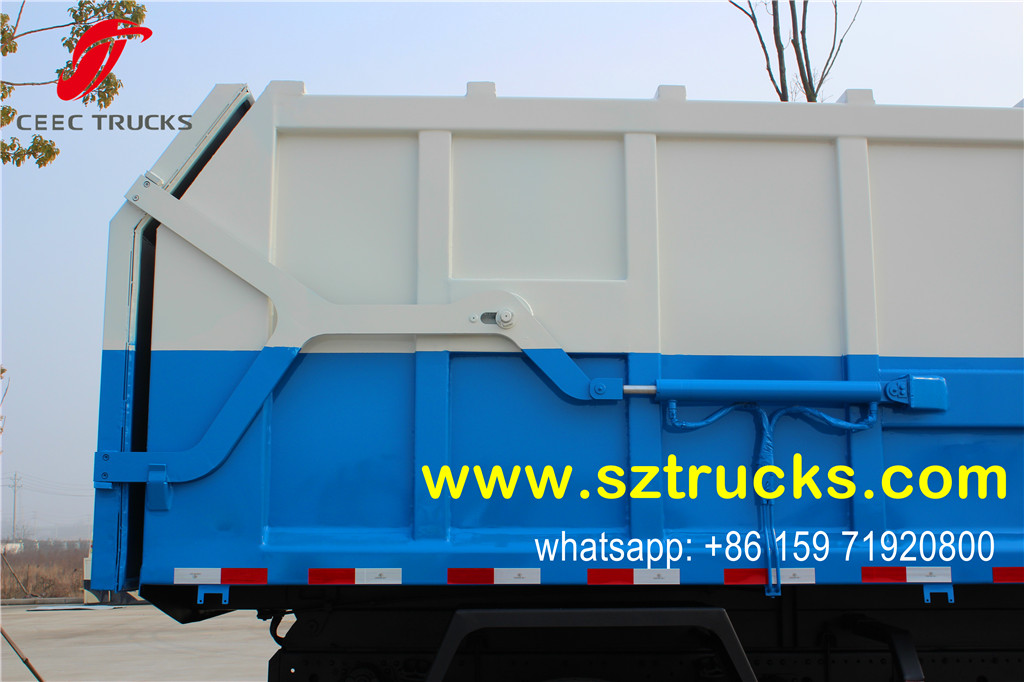

2. The hermetic garbage truck is consisted of three primary parts , Hermetical garbage compartment, Hydraulic system, Operating system, and Lifting oil cylinders (2 pcs ), one of the main part, with double-acting cylinder which is from well know company specialized in producing Hydraulic Pressure Device.
3. Garbage Compartment could be lifted on/off and motive repeated within 50 seconds periodically. Dominating characteristic of one vehicle would match dozens of garbage compartments that ensures implement work of one with multi-garbage tanks associated. Furthermore, cycle-transportation effectively enhanced hermetic garbage truck freight capacity, thereby, the sealed garbage truck is widely applicable for short-way transportation by environment-sanitation department etc...4. Hermetic garbage truck can be adopted with different brand chassis, such as Dongefeng hermetic truck, Foton sealed garbage truck, Isuzu hermetical garbage truck, JMC sealed garbage truck, Shacman sealed garbage truck, SINO hermetic garbage truck, HOWO sealed garbage truck, FAW hermetical garbage truck etc.
5. Hermetic garbage truck can be sorted by different tonnage, such as 2t hermetical garbage truck,5t hermetic garbage truck,8t sealed garbage truck,10t hermetic garbage truck,12t sealed garbage truck,15t hermetic garbage truck etc.
More details showing as below YOUTUBE video:
https://www.youtube.com/watch?v=9bPMS9rGllk&feature=youtu.be
|
Product Name |

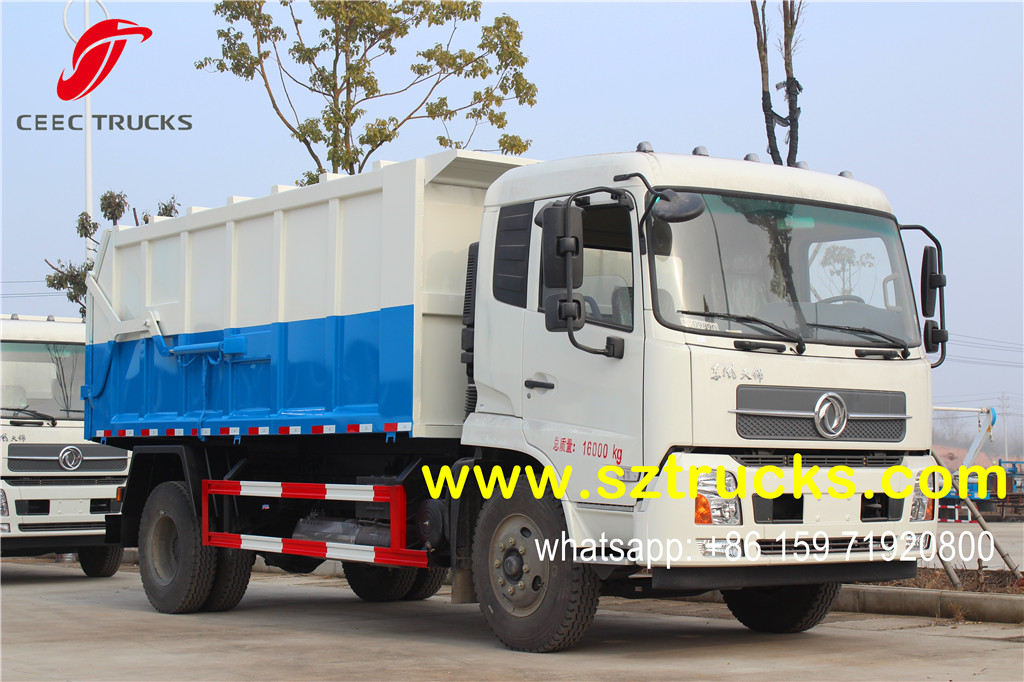

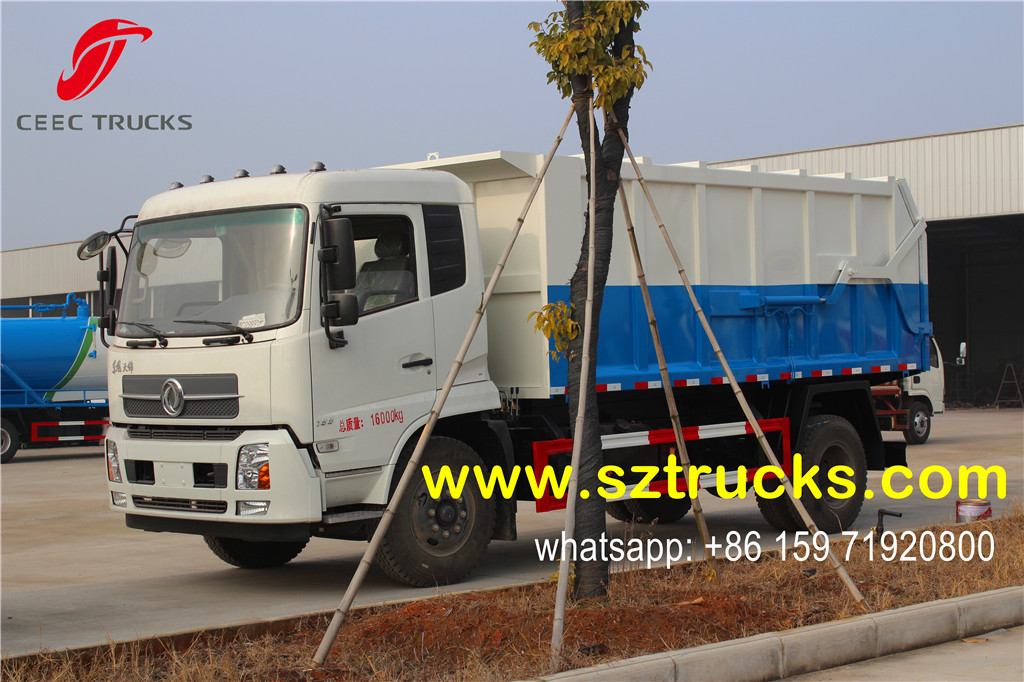

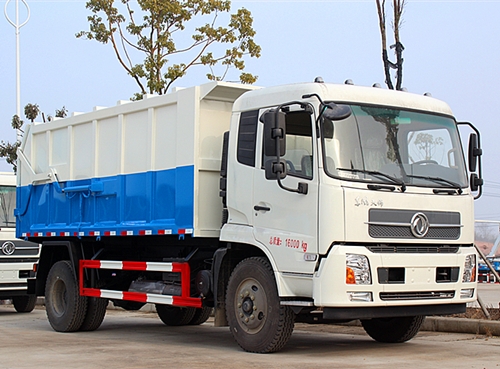

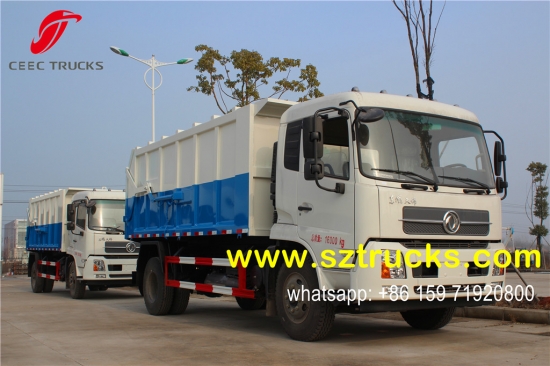

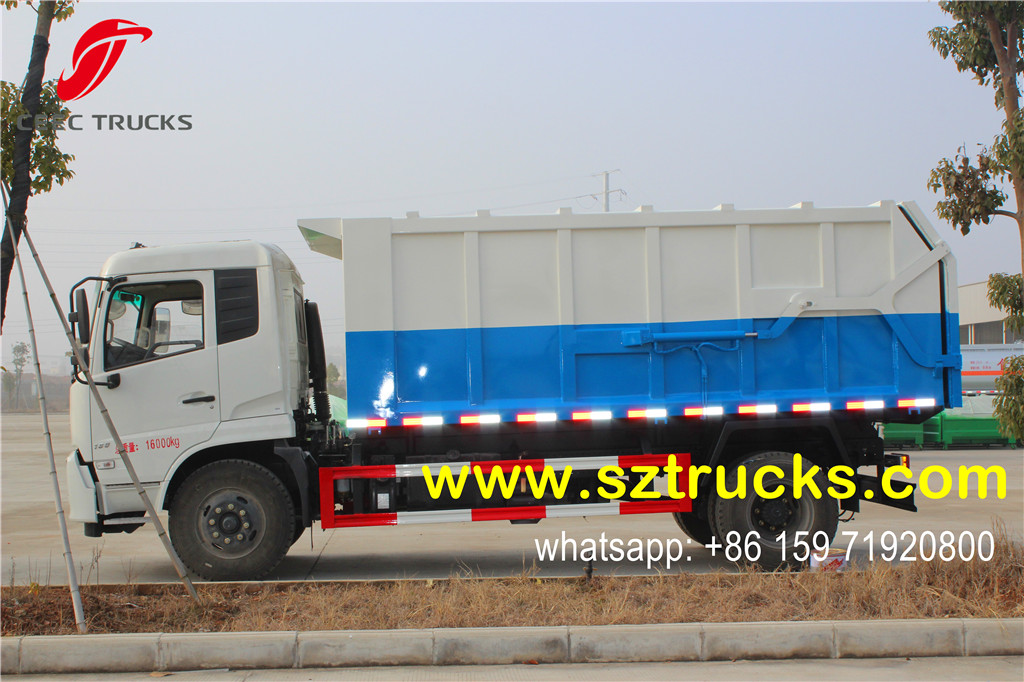

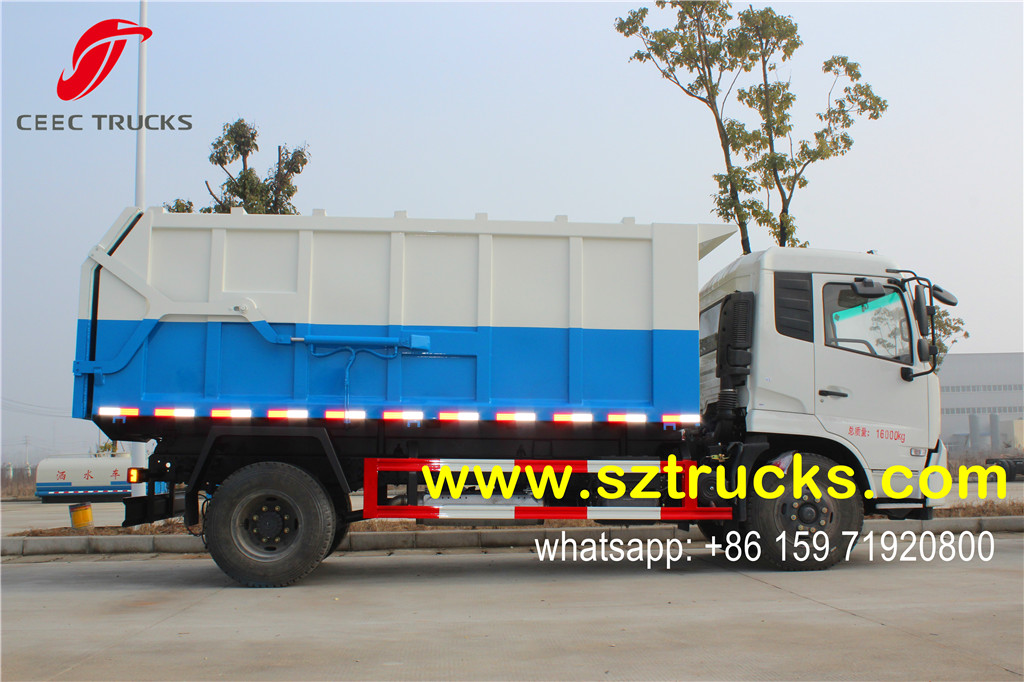

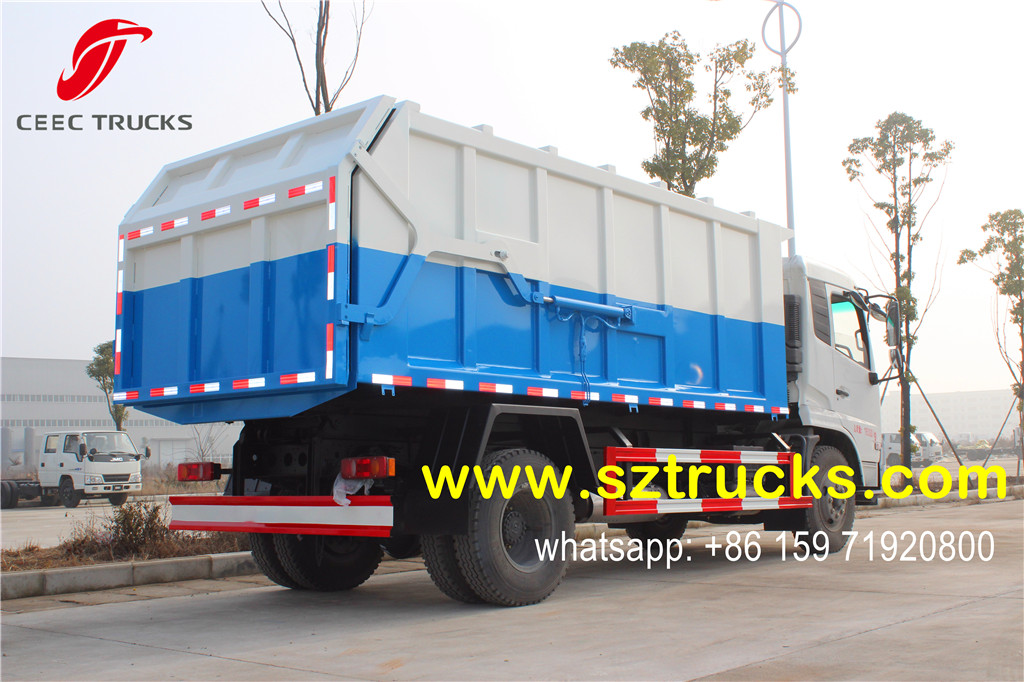

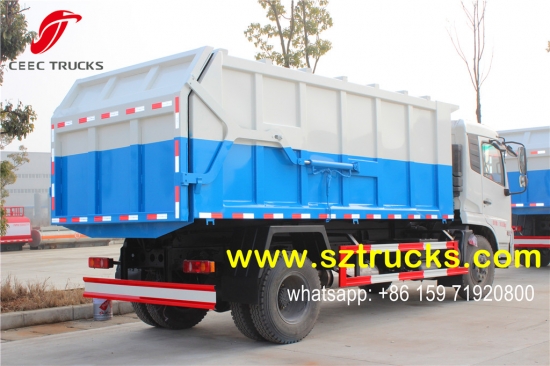

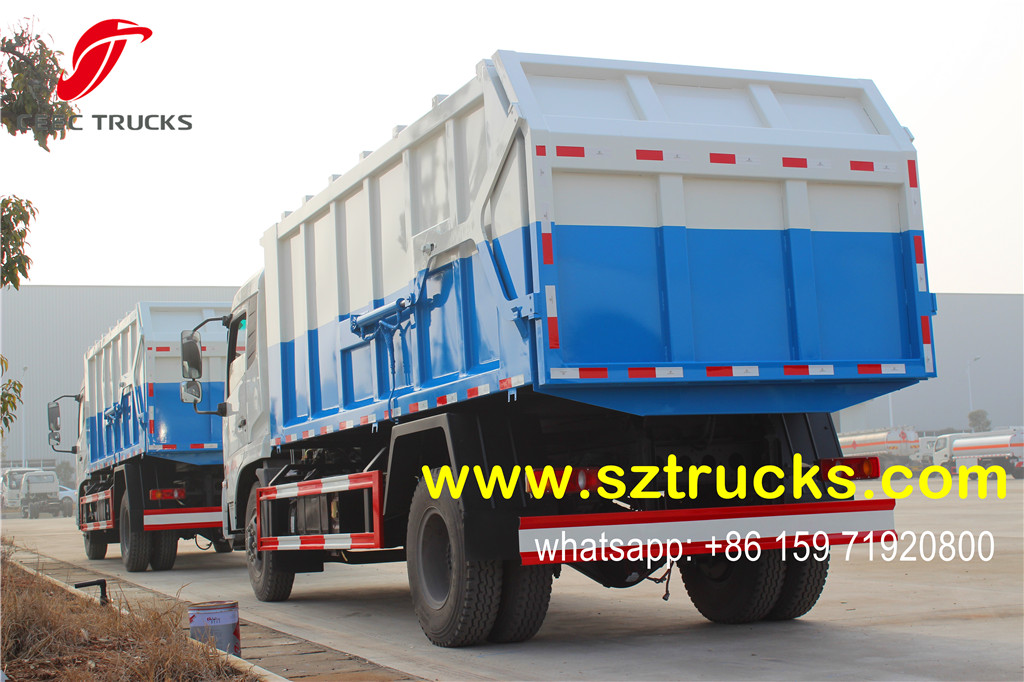

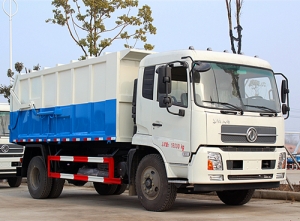

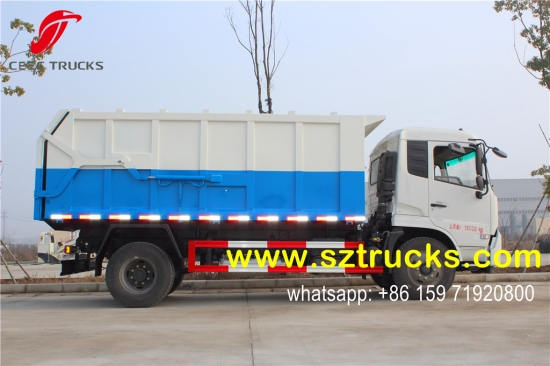

DONGFENG Docking Garbage Truck |
Overall Dimension(L*W*H)(mm) |
7220×2480×3100 |
|
Load volume(m3) |
14 |
Approach/ departure angle (° ) |
33/15 |
|
Curb weight(kg) |
6800 |
Payload(kg) |
Approx. 14000 |
|
Front/ rear suspension(mm) |
1250/2020 |
Max Speed (km/h) |
90 |
|
Wheelbase(mm) |
3950 |
Axle number |
2 |
|
Cab capacity |
3 |
Cab type |
One and half row, air ditioning |
|
Chassis Technical Parameter |
|||
|
Chassis Model: |
EQ1160 |
Chassis Manufacturer: |
DONGFENG Automobile Co., Ltd |
|
Gear box |
DONGFENG 8 shift |
Transmission type: |
Manual |
|
Brake System |
Air brake |
Leaf Spring number: |
8/11+8 |
|
Steering type |
LHD or RHD with power steering |
Traction Type: |
4*2 |
|
Tire size |
9.00-20 or 10.00-20 |
Number of Tire |
6+1 units |
|
CUMMINS Engine specification |
|||
|
Engine Model: |
B190 33 |
Engine Brand |
CUMMINS |
|
Emission stand |
Euro 3 |
Displacement(ml) |
5900 |
|
Fuel type: |
Diesel |
Power(kw) |
125(170)hp |
|
Warranty |
12 months, from the date of supply |
||
|
other Equipment or performances |

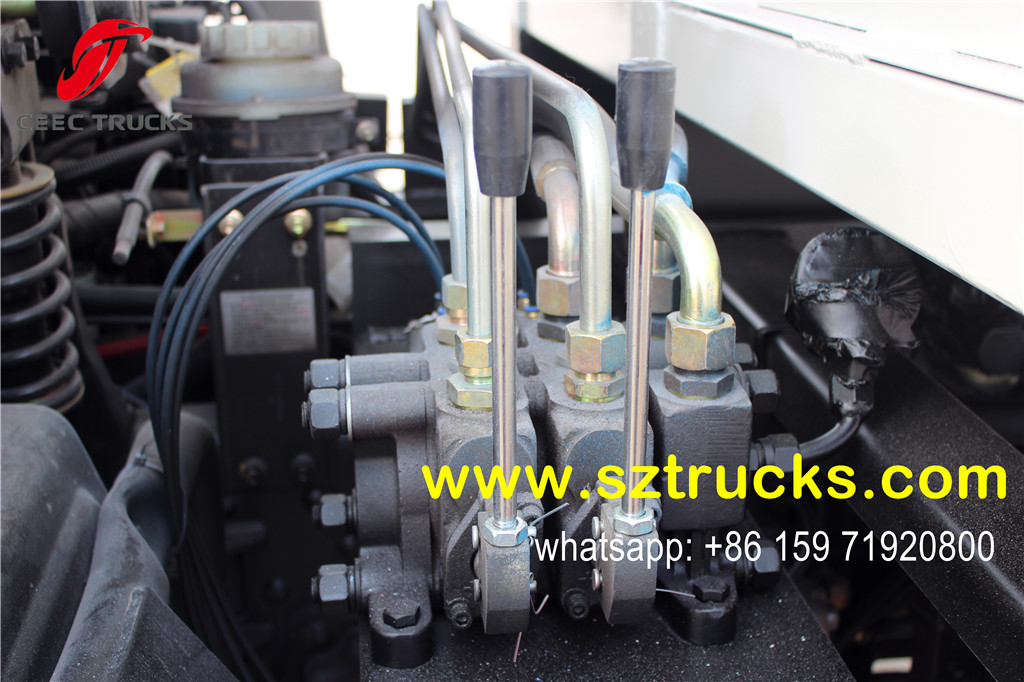

1. 24V Electric system, electrically hydraulic operation control |
||
|
2.Truck box material: Good quality carbon steel |
|||
|

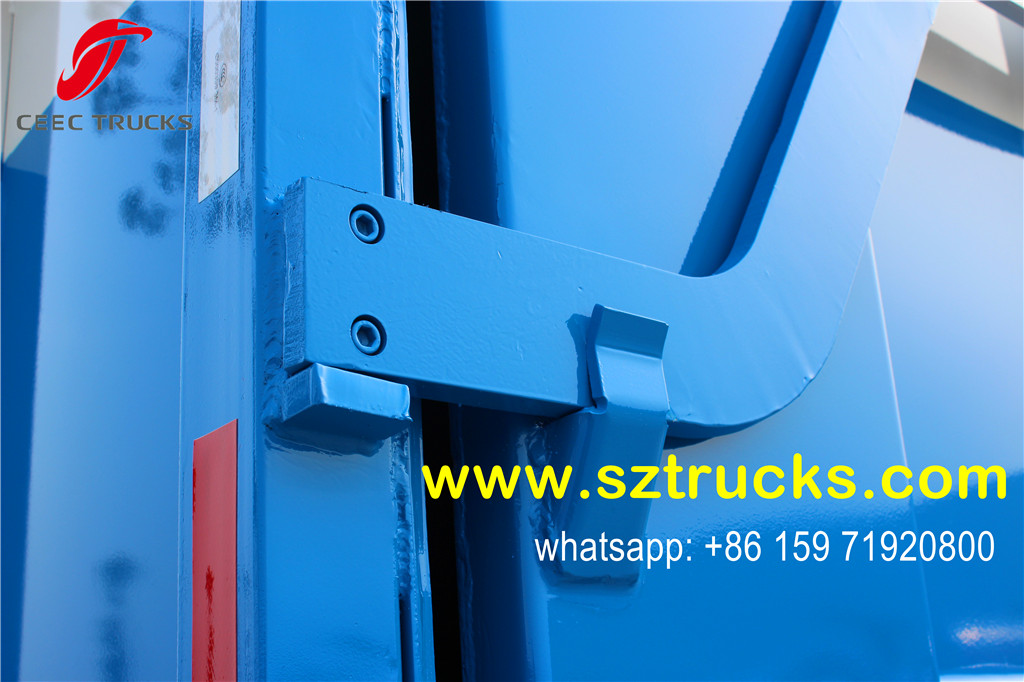

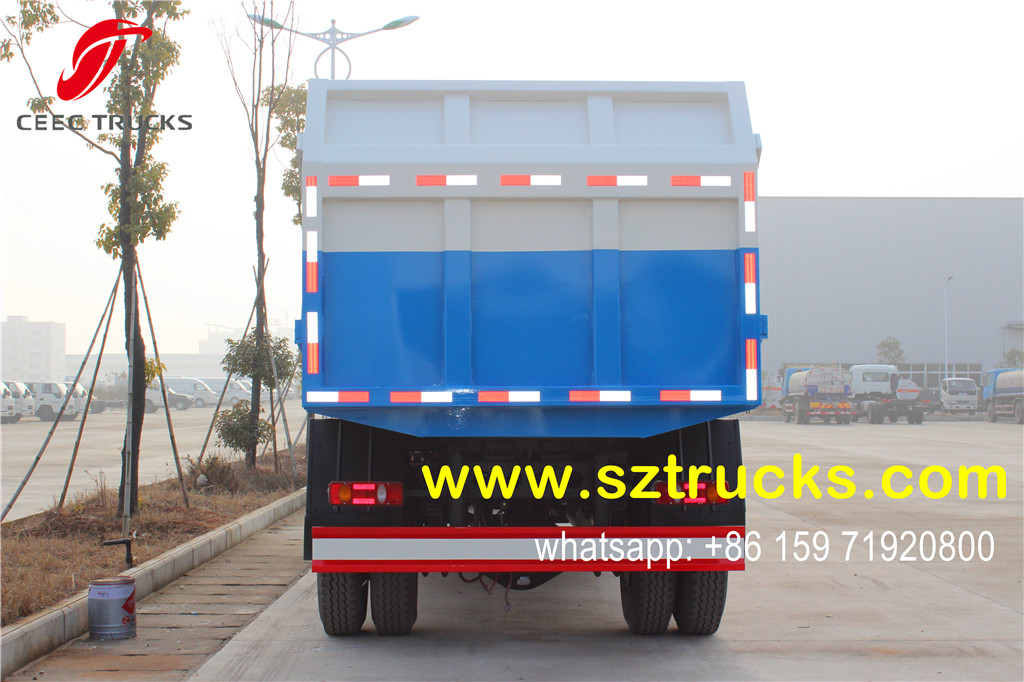

3.The top of the truck box can’t open, rear door can be opened by hydraulic controlling |
|||
