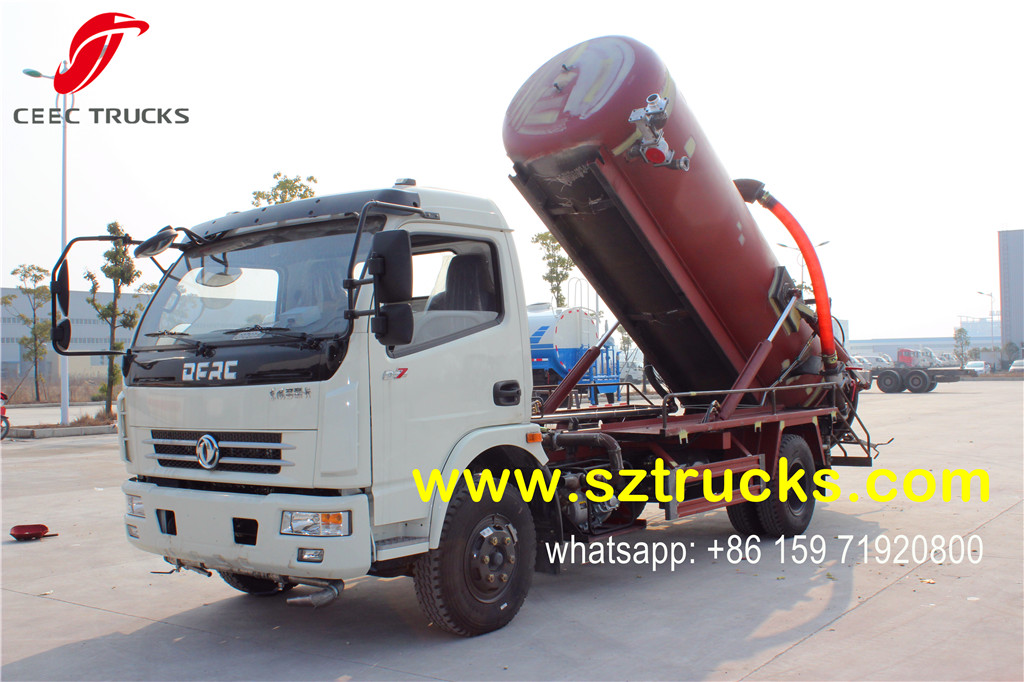

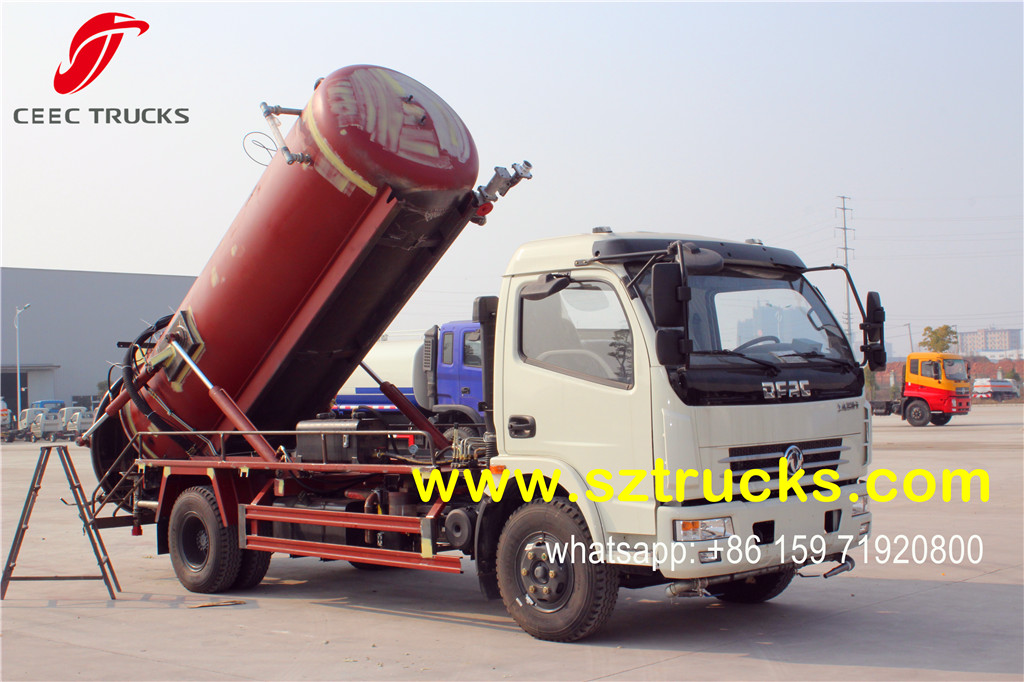

Multifunction 6000liters cesspit emptier with water spraying function

2015-12-30

　



MANUFACTURER supply Dongfeng 6000Litres Cesspit Emptier Truck  (Euro 3): https://www.youtube.com/watch?v=xNIzyxqrzIo

ADVANCED FEATURE:
Cesspit Emptier is also can be called Sewage Trucks Septic Tanker Truck Vacuum suction sewage truck also named septic truck, Vacuum suction truck.
Mainly used to suction, transport and discharge the sewage, dirty water, fecal within the sewer, rain water, inspection wells, septic tanks and various channels and excrement or petrochemical plant wastewater.
The vacuum pump can self-priming, self-discharge.

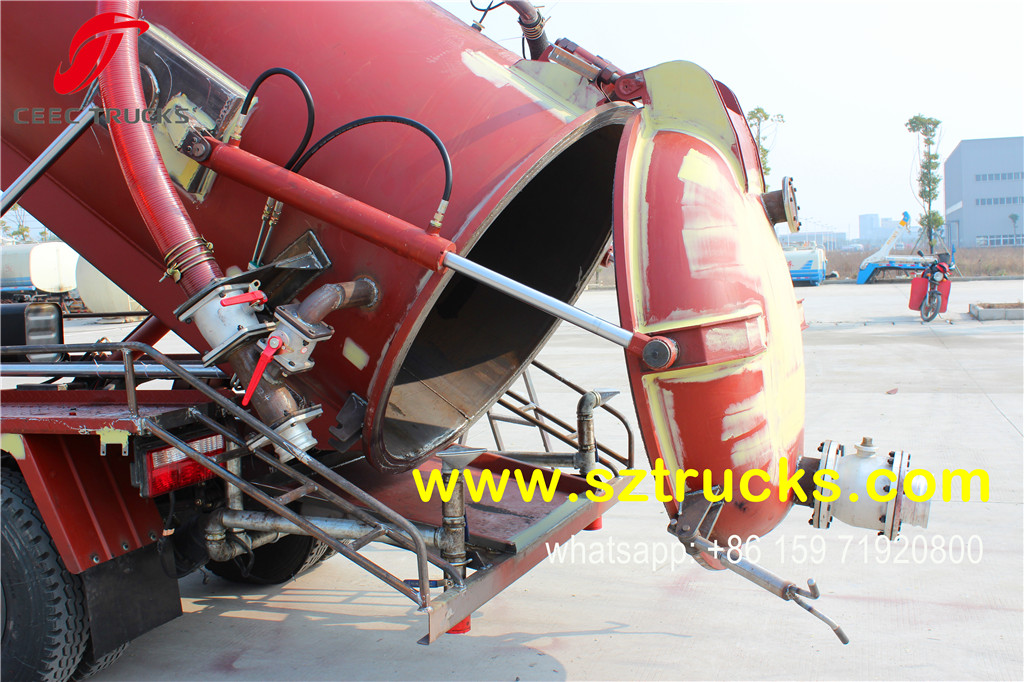

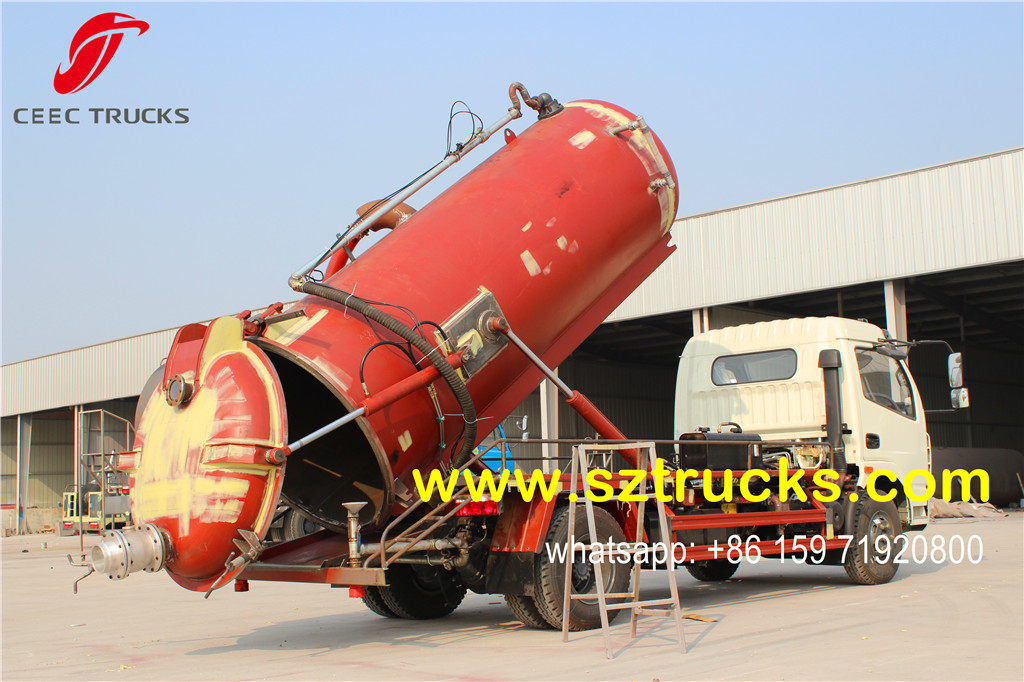

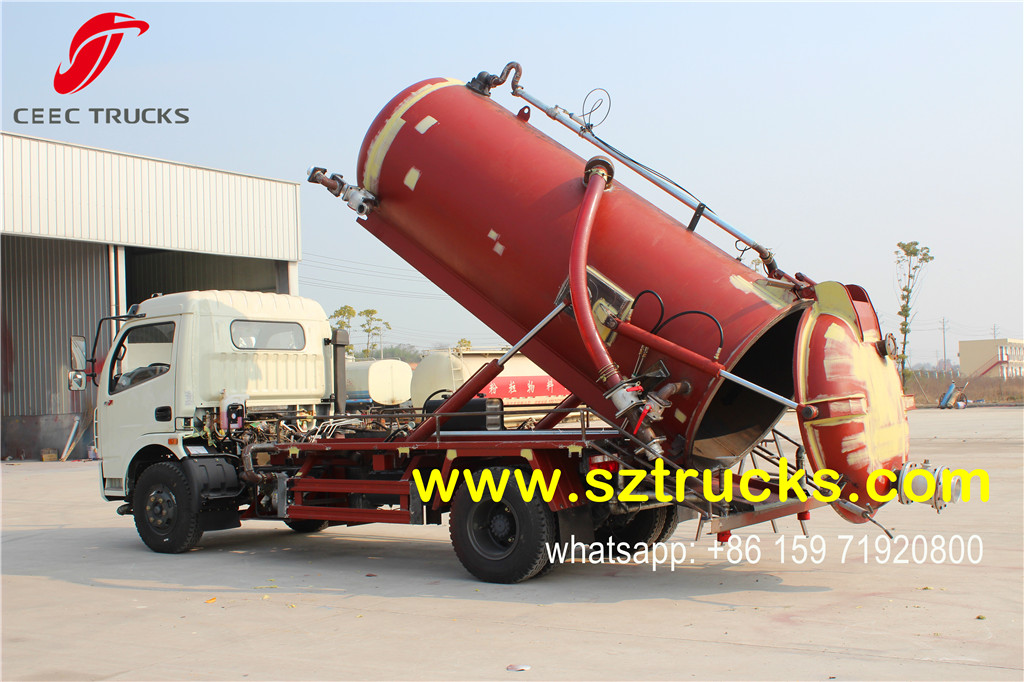

The sewage suction tank can be hydraulic self-dumping, the rear cover can be opened.
Sewage suction truck is high vacuum suction well.
Our company is specially produce Cesspit Emptier Truck Vacuum Sewage Sucking Truck.

VEHICLE
Overall dimension(length/width/height)mm 6150×2200×2450
G V W(kg) 12000
Payload (kg) 6500
Kerb mass(kg) 4505
Fuel Type Diesel

ENGINE

Model  CY4102-E3C
Exhaust/Power(kw) 3856/88(120HP)
Manufacturer  Dongfeng Chaochai Engine
Type  4-in-line water cool Turbo Charge engine
CHASSIS
Drive type  4×2

Contact infomation:
Garbage Trucks official website: http://www.sztrucks.com
Whatsapp: +86 159 7192 0800
Wheelbase (mm) 3300
Air condition with

SUCTION SYSTEM

suction pump Single Stage Rotary Oil Seal vacuum pump
SPECIAL PARAMETER
Vertical suction heihgt  ≥8
working pressure     8500Pa
rotation speed  500
suction speed  98L/S
power  5.5kw
inlet diatmeter  50mm
filling time  less than 5s
discharge time  Less than 4s
