Main specification

Product model and name

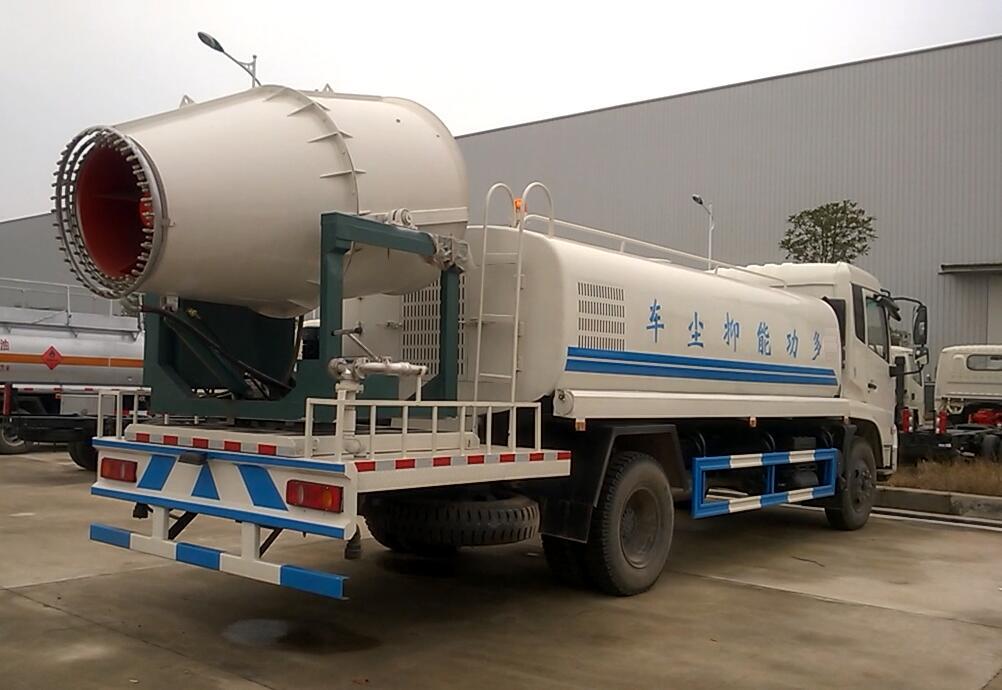

CEEC5160TDY  Dust Suppression Trucks

Gross weight(Kg)

16000

Drive type

4x2

Curb weight(Kg)

8185

Overall dimension(mm)

8990X2500X3680

Approach/departure angle(°)

25/14

Cab seats

3

Axle No.

3

Front/rear hang(mm)

1430/2910

Axle load(Kg)

5000/10000

Wheelbase(mm)

5100

Max speed(Km/h)

90

Chassis specification

Chassis model

DFL1120

Manufacturer

Dongfeng Motor Co., Ltd

Brand name

Dongfeng

Dimension(mm)

8990×2500×3680

Tyre specification

10.00-20

Tire No.

6

Steel spring number

8/13,9/10

Front track base(mm)

1940

Fuel type

Diesel

Rear track base(mm)

1860/1860

Emission standard

Euro 3

Transmission

8 forward gear

Cab

One and half row,3 person allowed with A/C and power steering

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

B210 33

Dongfeng Cummins Engine Co.,Ltd

5900

155(210HP)

Tank body

Tank capacity(m³)

8

Tank material

QB235 Carbon steel

Main Characteristic

The truck is equipped with electric pumps, piping , flow control system, constitute diesel generator sets, electrical control box, remote control devices, lifting systems, spray arms and nozzles. The high pressure atomizing water into fine particles of about 50μm, through the mist to the remote air guns within a radius of 100-120 meters, 5 minutes work to achieve coverage area of over 45,000 square meters, is locally reduced PM2 .5, PM10 particulate matter exceeded the ideal technology caused haze of pollution, is a more advanced, more scientific, less energy, purifying effect significant new air purification technology.
