DFAC 4CBM water tanker trucks with pesticide spraying system hot sale low price

2015-08-03

　



Last month, CEEC export totally 10units water tanker trucks with pesticide system to Kazakhstan ! garden watering carts, water sprinkler truck, 4*2 driven system. Following show the main technical specifications and advanced features:
1). Carbon stell, stainless steel, inner anti-corrosion.
2). It is used for garden environment-keeping, municipal maintains, area viresecence, road building large government department.
3). Rating speed:1450r/min;flux:60m³/h; self-suction height:7.5m, sprinkler width14m. Front spray and back sprinkler, side spray, with working platform at back of truck, with high pressure gun, can be adjusted column, the head 30m; also can be adjusted fog, the head 15m.
4). with front and back sprinkler, side spray, working platform at back of truck, high pressure gun which can be adjusted heavy rain, moderate rain, drizzle,mist, and specialized sprinkler pump



ITEM			UNIT	PARAMETER
Vehicle model				garden watering carts
	Fact cubage			5cbm
	Payload		Kg	5cbm
	Curb weight			3050
	Axle load			2280/3730
	Overall dimension		mm	5990×1960×2380
	Body dimension			3000-5000Liters
	Wheelbase			3300
	Front/Rear overhang			2620/3875
		Front track base		1506
		Rear track base		1466
	Approach/departure angle		°	17/13
Exhaust/hp			ml/kw	3856/70(95HP) 2545/70(95HP)
Max speed			km/h	90
Chassis model			EQ1060TJ20D3	Manufacturer	Dongfeng automobile group Co.,Ltd
Engine model			CY4102-C3F SD4BW70-3R	Manufacturer	Chaochai Sida
Engine fuel type			Diesel	Tire specification	7.00-16
Tires Nos.			6+1	Pieces of spring	8/9+5
Traction system			4×2	Transmission	5 forward speeds and 1 reverse
Operation control system			Electrically hydraulic control	Allowable passengers in cab	2
INTRODUCTION			1.Equipped with front(rear,side)sprinkler(sprinkling width>14m ) ;Equipped with rear working platform with water cannon ( range>28m );Equipped with pump(suction lift>6m) ; Equipped with fire valve,water valve,and filter gauze 2. with front flushing, back sprinkle and side spray,high pressure gun in rear,Platform,two water pipe,it length is equal to the tank’s. 3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) 4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. 5.tanker material :carbon steel
Emission standard			GB3847-2005,GB17691-2005



Frankly speaking, as the most professional tanker trucks manufacturer in China, we produce different kinds of tanker trucks, including water tanker, fuel tank, suction tanker, garbage tanker, etc. For these export to Kazakhstan trucks, which mainly used for dredging the sevage line, it's strong to wash. According to the requirement, it can install the high-pressure water pump, water gun and 50M pipe.

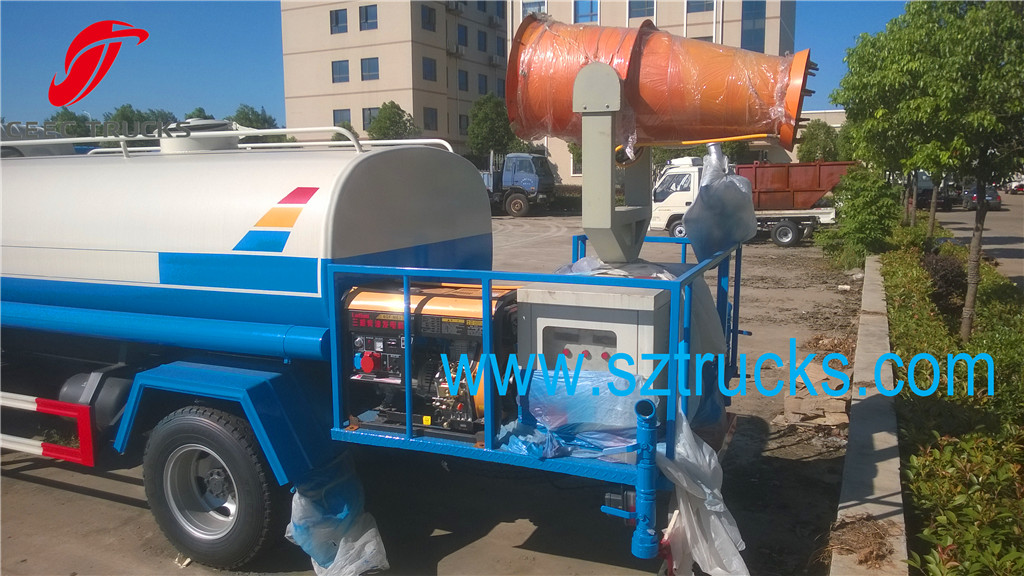

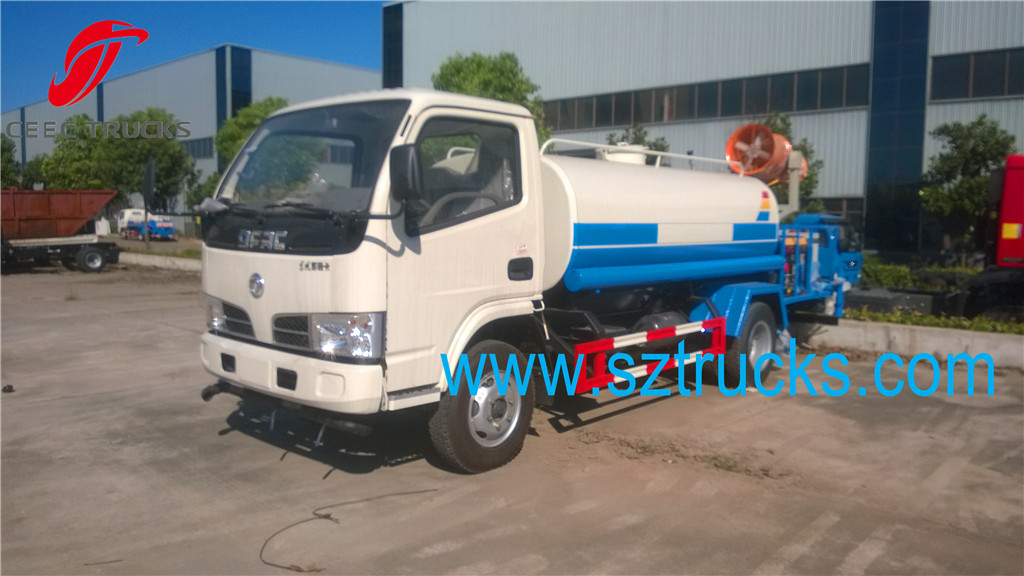

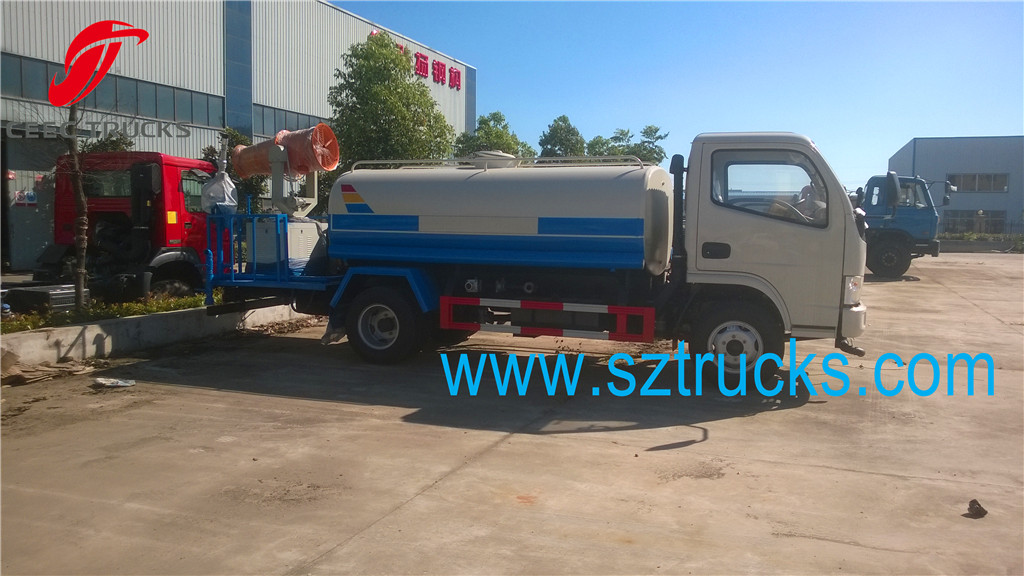

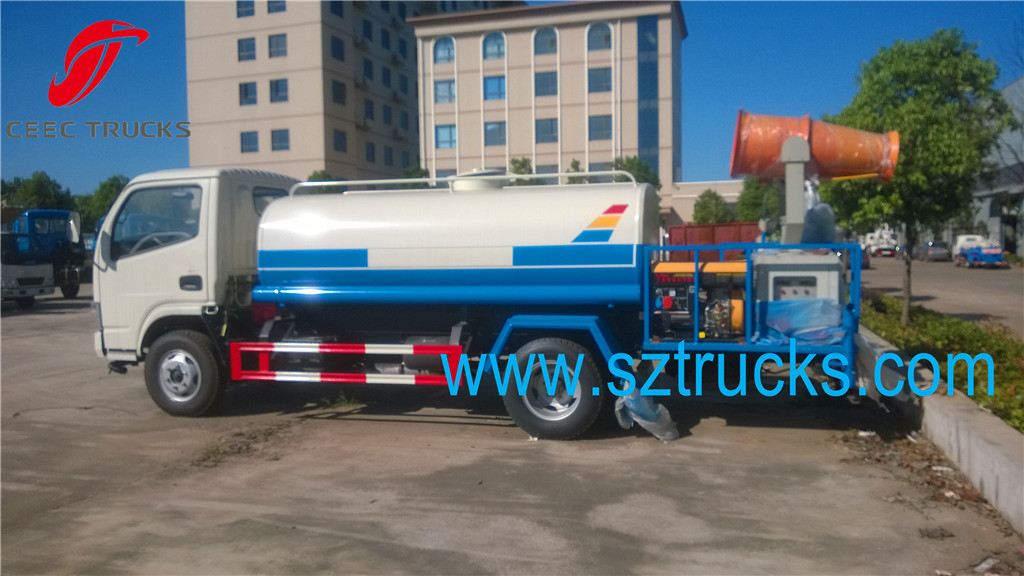

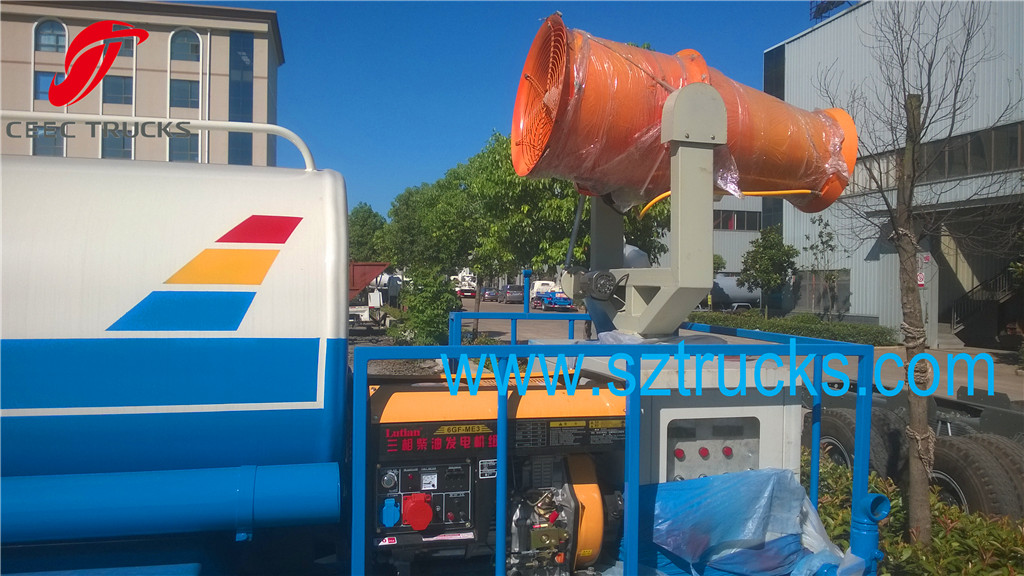

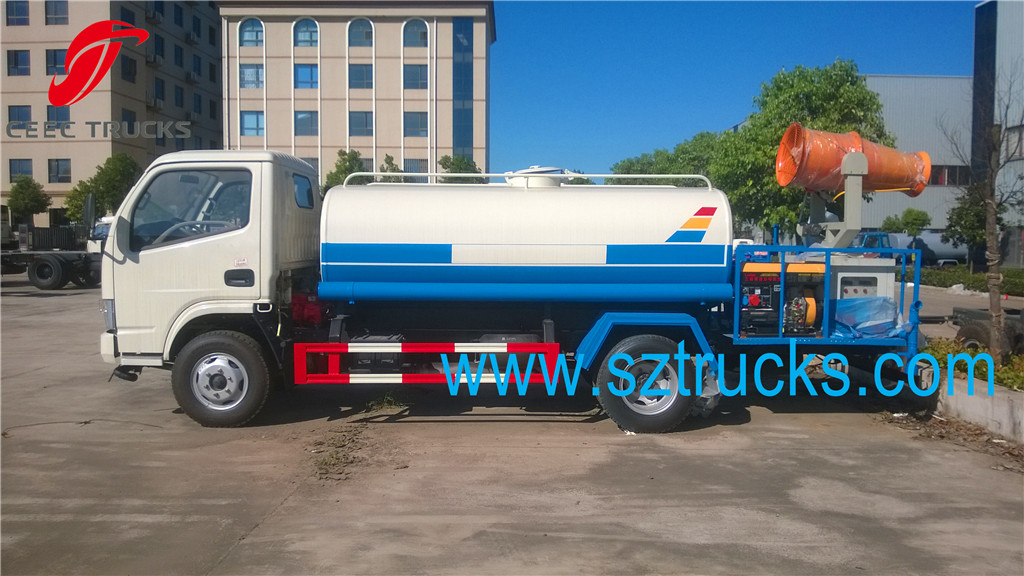

Pictures for 5000liter water sprinkler trucks with pesticide system as below:













Welcome all customers to have a visit to our factory!
